Structured Cabling For Communications
Construction Works

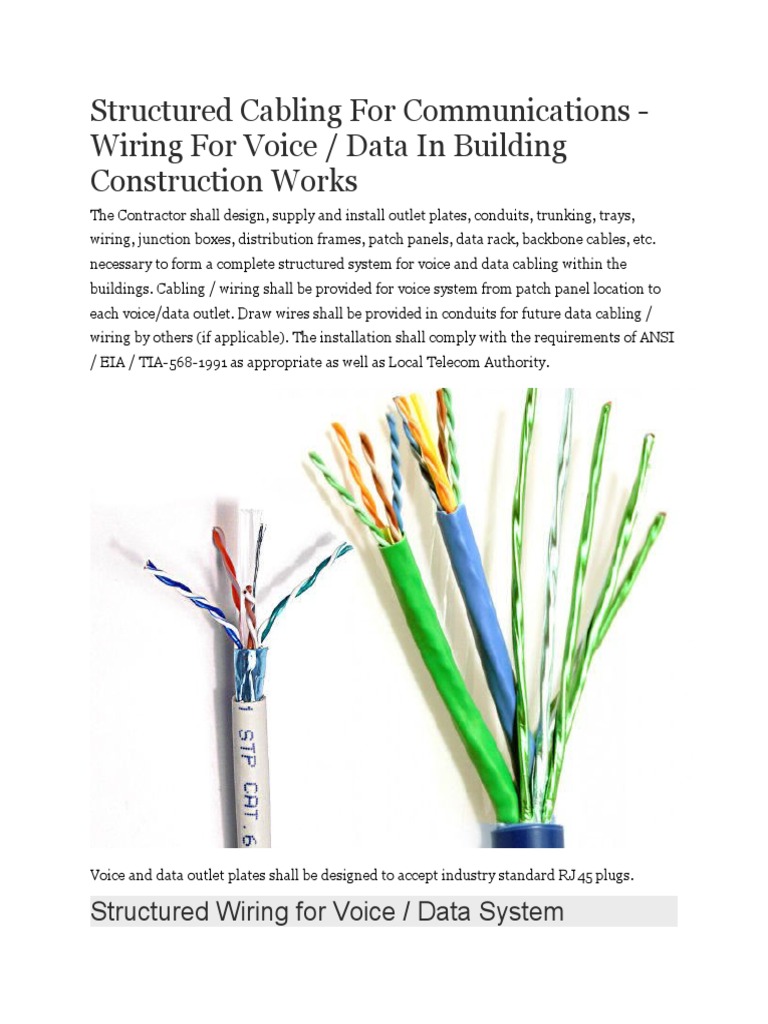

The Contractor shall design, supply and install outlet plates, conduits, trunking, trays,
wiring, junction boxes, distribution frames, patch panels, data rack, backbone cables, etc.
necessary to form a complete structured system for voice and data cabling within the
buildings. Cabling / wiring shall be provided for voice system from patch panel location to
each voice/data outlet. Draw wires shall be provided in conduits for future data cabling /
wiring by others (if applicable). The installation shall comply with the requirements of ANSI
/ EIA / TIA-568-1991 as appropriate as well as Local Telecom Authority.
Voice and data outlet plates shall be designed to accept industry standard RJ45 plugs.
The Contractor shall engage a specialist system integrator to carry out the structured wiring
for voice / data system. Wiring to individual points shall be 4-pairs UTP Category 6(link is
external). The wiring shall be terminated at the outlet end and at patch panel. The system
integrator shall test and demonstrate on site, to the satisfaction of the engineer and the
client, that the wiring is in full compliance with the specific requirements of a Category 6
installation. All wiring shall comply with TIA / EIA TSB-36 and TSB40.
All user outlets, patch frames and horizontal cables should be labelled, preferably by means
of a typewritten labelling system.
Cables shall be labelled at both ends using a self-laminating, wrap around label.
Division: INSTALLATION
3. Location of Activity
Inside and outside the building.
5. Operation
1.
Materials: Materials used will be as per the material submittal approved by the
engineer and routing as well and sizes will be as per the approved drawings in coordination with other services.
2.
To make sure that the entire installation is in conformance and in accordance with
the design intent of the project for the Electrical and Low Voltage System in addition to
the specification and as per approved shop drawings and comply with Local and
International Standards.
2.
Adhere to the drawings as closely as possible. The right is reserved to vary the runs
and sizes of Cable Trays / Trunking and to make offsets but maintain as far as possible the
free area of each duct work section, where necessary to accommodate conditions arising at
the building.
3.
Before beginning installation in any area, examine all parts of the adjoining work
onto which applicable work is to be placed. Should any condition be found which will
prevent the proper execution of the work, installation shall not proceed in that area until
such conditions are corrected by the contractor.
4.
Cable Tray / Trunking shall be stored on site under cover in dry, well ventilated
storage facilities.
5.
Where sizes of Cable Trays / Trunking are not detailed on drawing then tray shall be
adequately sized to support the cables without bunching and a 25% reserve margin shall
be allowed in size and weight be loaded.
6.
All routes are chosen to allow ease of access to all cables when installed. All
horizontal cables are to be set around all vertical rising services as necessary. Ensure
sufficient clearance from soffit for every installation.
7.
Earth continuity conductors shall be provided across gaps in all Cable Tray /
Trunking runs and bolted connections.
8.
9.
Additional support shall be provided where the Cable Tray / Trunking changes
direction or cables drop out of the cable tray. Dome headed bolts, nuts and washers of
finish suitable to the tray shall be used between trays.
10.
Suspension sets comprise threaded M10 zinc or cadmium plated hanger rods
together with nuts and locking washers, supports channel hold down clips all of which
shall have a galvanized finish. Any cut ends supports, rods, etc, must be corrosion
protected by use of galvanized or equal. No extended rods to be left.
11.
The cable tray shall be installed with a 40mm minimum space between the structure
and the tray.
12.
All cable shall be securely fixed to the tray, work and the complete installation must
be carried out in a neat and workmanlike manner without crossovers.
13.
Cables on face-up horizontally fixed tray must be secured by use of the tie wraps
where not in view. If cables are bunched or single cables greater than 25sq mm are
installed, cleats or metal straps shall be used.
7. Responsibilities
1.
Project Manager:
a.
To ensure that all the preparation and application works are carried out
according to the Contract Specification.
b.
c.
To ensure that all equipment and material required executing the work are
available according to the planned Construction Programme.
d.
2.
Site Engineer:
a.
To ensure that the works are carried out according to the Contract
Specifications approved method statement.
b.
c.
To monitor the progress of work in relation with the work program and to
report to the Project Manager.
d.
To co-ordinate with the safety officer and to ensure that the works are carried
out in safe practicing methods.
3.
Foreman:
a.
b.
To ensure that his assistant foreman/ charge hands are aware of the job
requirements and they have enough information to carry out their duties properly.
c.
To ensure in consultation with the site engineer that the manpower involved
in the works are moving as agreed and planned for the work.
d.
To ensure that the daily work is progressing as planned and advise the Site
Engineer of any requirement for the additional resources.
e.
f.
To ensure full coordination with the safety officer to maintain safe working
and proper house keeping of the site, following the approved safety measures and
further ensure that all his working team are aware of the same to prevent accident and
losses.
g.
To inform the site engineer and of the areas ready for inspection.
h.
4.
Safety Engineer:
a.
Ensure the implementation of all the safety measures in accordance with the
HSE plan and everybody aware of it for it's proper implementation.
b.
Ensure all the implemented safety measures are adequate to maintain the safe
working on the site.
c.
Inspect all the site activities and train the persons to prevent accidents and its
proper reporting to the project manager and the client.
d.
8. Manpower Required
Charge Hand and Experienced Technicians
Inspection
Description
Type of
Inspection
Reference
Document
Testing Requirement/
Acceptance Criteria
Verifying /
Control Data
Forms
Design and
Drawings
Review of
Documents
Design
Drawings
Design
drawings,
Authorities
Departments
Requirements.
Material
Review of
Approved
Documents
Documents
Drawing,
Specification
Submittals
Check
Installation of
Cable Tray /
Trunking
Visual
Approved
Method
Statement
Approved
Drawing
Method
Statement
Request for
inspection of
works
Visual
Measurement
Approved
Instrument, Earth Drawings
Test
Approved
Drawings
Approval
Wire cutters
2.
Hacksaw
3.
Measuring tape
4.
Drill machine
5.
Wooden hammer
6.
Flat file
7.
Screw drivers
8.
9.
Base Cutter
14. Distribution
Copies of this method statement have also been issued to the following for information/
action/ comments:
Project Manager
Site Engineer
Foremen
Categories
Electrical Engineering
Electrical Installation
Method Statement
Cable Tray
Cable Trunking
Medium Voltage Cables (MV Cables) In Electrical Construction Works up
Method Statement For Installation Of Electrical DB, SMDB And MDB Panelboards
3. Location of Activity
Low Voltage Room and Electrical Rooms
5. Operation
1.
Materials: Materials used will be as per the material submittal approved by the
engineer and will be as per the approved drawings in coordination with other services.
2.
Storage / Protection: DB, SMDB, and MDB and Accessories shall be unloaded
with care to avoid any damages. If they are shipped in packs or pallets, each pack of pallet
shall be lifted individually with suitable lifting equipment. Every precaution shall be taken
to preserve their cleanliness before installation. Store in accordance with manufacturers
instructions, Properly protected from construction activities and weather conditions.
3.
Installation:
a.
b.
c.
d.
Before beginning installation in any area, examine all parts of the adjoining
works into which applicable work is to be placed. Should any condition be found which
will prevent the proper execution of the work, installation shall not proceed in that area
until such conditions are corrected by the contractor.
e.
f.
g.
h.
i.
Terminate PVC, SWA PVC and MICS cables inside enclosure by securing
cables to switchboards with gland bracket; and enclosure with glanding plates or
fabricated steel extension boxes.
j.
For flush installation, DBs all conductors shall terminate behind the board in
an adaptable box. For surface mounting, trunking shall be fixed between the board and
ceiling or floor level, or conduit run directly into Trunking which prevent correct
installation of the Trunking lid. Adequate earth continuity shall be made between the
various components.
6. Responsibilities
1.
a.
Project Manager
To ensure that all the preparation and application works are carried out
according to the Contract Specification.
b.
c.
To ensure that all equipment and material required executing the work are
available according to the planned Construction Programme.
d.
2.
a.
Site Engineer
To ensure that the works are carried out according to the Contract
Specifications approved method statement.
b.
c.
To monitor the progress of work in relation with the work program and to
report to the Project Manager.
d.
To co-ordinate with the safety officer and to ensure that the works are carried
out in safe practicing methods.
3.
a.
Foreman
The foreman will carry out his duties by maintaining continuous coordination
with the site engineer on daily basis, and ensure proper distribution of the workforce in
the required and planned locations.
b.
To ensure that his assistant foreman/ charge hand are aware of the job
requirements and they have enough information to carry out their duties properly.
c.
To ensure in consultation with the site engineer that the manpower involved
in the works are moving as agreed and planned for the work.
d.
To ensure that the daily work is progressing as planned and advise the Site
Engineer for any requirement of the additional resources.
e.
f.
To ensure full coordination with the safety officer to maintain safe working
and proper house keeping of the site, following the approved safety measures and
further ensure that all his working team are aware of the same to prevent accident and
losses.
g.
After completion of works, Foreman shall inform the site engineer for
inspection of works.
h.
4.
a.
Safety Engineer
Ensure the implementation of all the safety measures in accordance with the
HSE plan and everybody aware of it for its proper implementation.
b.
Ensure all the implemented safety measures are adequate to maintain safe
working on the site.
c.
Inspect all the site activities and train the person to prevent accidents and its
proper implementation.
d.
7. Manpower Required
Charge hand and Experienced Technicians
8. Materials Requirements
DB, SMDB, MDB and accessories
9. Equipments Requirement
The equipment that will be engaged for Installation of DB, SMDB and MDB works will be as
follows:
1.
Wire cutters
2.
Measuring tape
3.
Drill machine
4.
Wooden hammer
5.
Flat file
6.
Screw drivers
7.
8.
Crimping tool
12. Distribution
Copy of this method statement shall be issued to the following for information/ action/
comments:
1.
Project Manager
2.
Site Engineer
3.
Foremen
Inspection
Type of
Reference
Testing Requirement/
Description
Inspection
Document
Acceptance Criteria
Verifying /
Control Data
Forms
Design drawing
1
Design and
Review of
Design
Drawings
Documents
Drawings
Authorities
Departments
Requirements.
Material
Review of
Approval
Documents
Check
Visual,
Switchgear
Insulation
Approved
Submittals
Documents
Properlocation
Approved
Method
cable
terminations.
TestReport
installation, termination
etc Material should have
minimum status of NO
Objection with
Approved
Drawing Method
Statement
comments
Visual,
4
Request for
Insulation
inspection of
Resistance
works
and Continuity
Test report.
Categories
Approved
Drawing
No obstructions Level,
and it is in proper
position
Approved
Drawings
