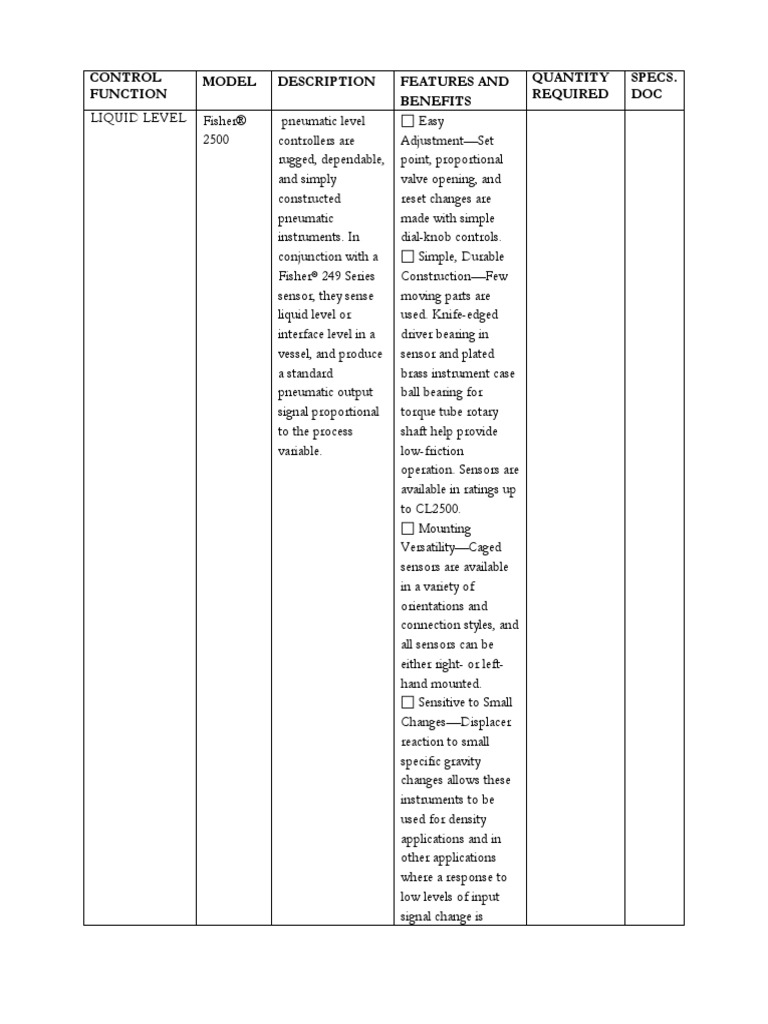

CONTROL

FUNCTION

MODEL

DESCRIPTION

LIQUID LEVEL

Fisher
2500

pneumatic level
controllers are
rugged, dependable,
and simply
constructed
pneumatic
instruments. In
conjunction with a
Fisher 249 Series
sensor, they sense
liquid level or
interface level in a
vessel, and produce
a standard
pneumatic output
signal proportional
to the process
variable.

QUANTITY
FEATURES AND
REQUIRED
BENEFITS
Easy
AdjustmentSet
point, proportional
valve opening, and
reset changes are
made with simple
dial-knob controls.
Simple, Durable
ConstructionFew
moving parts are
used. Knife-edged
driver bearing in
sensor and plated
brass instrument case
ball bearing for
torque tube rotary
shaft help provide
low-friction
operation. Sensors are
available in ratings up
to CL2500.
Mounting
VersatilityCaged
sensors are available
in a variety of
orientations and
connection styles, and
all sensors can be
either right- or lefthand mounted.
Sensitive to Small
ChangesDisplacer
reaction to small
specific gravity
changes allows these
instruments to be
used for density
applications and in
other applications
where a response to
low levels of input
signal change is

SPECS.
DOC

CONTROL
FUNCTION

MODEL

DESCRIPTION

Fisher
L2 and
L2sj

liquid level
controllers use a
displacer type
sensor to detect

QUANTITY
FEATURES AND
REQUIRED
BENEFITS
required.
Easy
ReversibilityAction
is field reversible
from direct to reverse
or vice versa without
additional parts.
Reduced
Maintenance Costs
Spring-out wire
provides for inservice cleaning of
relay orifice. Torque
tube can be replaced
without removing
torque tube arm.
Reduced
Operating Costs
Supply pressure
conservation is
enhanced in all
constructions because
relay exhaust opens
only when output
pressure is being
reduced.
Smaller Vessel
Sizes Required for
Stable Control
Caged 249 Series
sensors come
standard with a liquid
damping orifice in the
lower equalizing
connection that helps
stability where vessel
capacitance is small
and permits narrower
proportional valve
settings.
More Reliable
ControlTwo-stage
proportional relay
with integral action

SPECS.
DOC

CONTROL
FUNCTION

MODEL

DESCRIPTION
liquid level or the
interface of two
liquids of different
specific gravities.
The reliability of the
design make these
controllers well
suited for high
pressure liquid level
applications in
natural gas
production,
compression and
processing. The
device delivers a
pneumatic output
signal to a control
valve.

QUANTITY
FEATURES AND
REQUIRED
BENEFITS
provides more
dependable liquid
level control.
Snap-Acting or
Throttling Control
One standard
controller available as
either throttling or
snap-acting.
Vibration
Resistant Sensor
Dynamics O-ring
friction and process
pressure sensitivity
are minimal.
Performance stays
constant with process
pressure changes and
controller remains
vibration resistant.
NACE Service
ReadyStandard
construction uses
materials that comply
with the requirements
of NACE MR01752002.
Field-Configurable
Vertical or Horizontal
DisplacerDisplacer
may be adjusted in
the field for vertical
or horizontal
operation without
additional parts.
Field-Reversible
OutputThe
controller can be
adjusted in the field
for direct or reverse
action without
additional parts. The

SPECS.
DOC

CONTROL
FUNCTION

MODEL

DESCRIPTION

LEVEL
SWITCHES

Fisher
2100

On-off switch that

senses high or low
liquid levels. A
displacer is used as
the sensor and is
located in an
external cage that
mounts to the
outside of a vessel.
Series differential
pressure indicating
controllers show
process differential
pressure and set
point on an easy-toread process scale.

DIFFERENTIAL
PRESSURE
Fisher
4194

FEATURES AND
BENEFITS
controller also has
adjustable gain
sensitivity.
CL1500 Pressure
RatingSensor
assembly is designed
and specified for
ASME B16.34
CL1500 service when
using a
Polyvinylchloride
(PVC) displacer. For
PED (97/23/EC)
maximum pressure is
limited to 200 bar
(2900 psig).
Vent-Away
CaseThe ability to
pipe away exhaust
permits using natural
gas as the operating
medium.
Easy
MaintenanceBoth
the controller and the
sensor can be easily
disassembled to
inspect the process
seals and for
maintenance.

QUANTITY
REQUIRED

SPECS.
DOC

CONTROL
FUNCTION

MODEL

DESCRIPTION

FEATURES AND
BENEFITS

QUANTITY
REQUIRED

SPECS.
DOC
