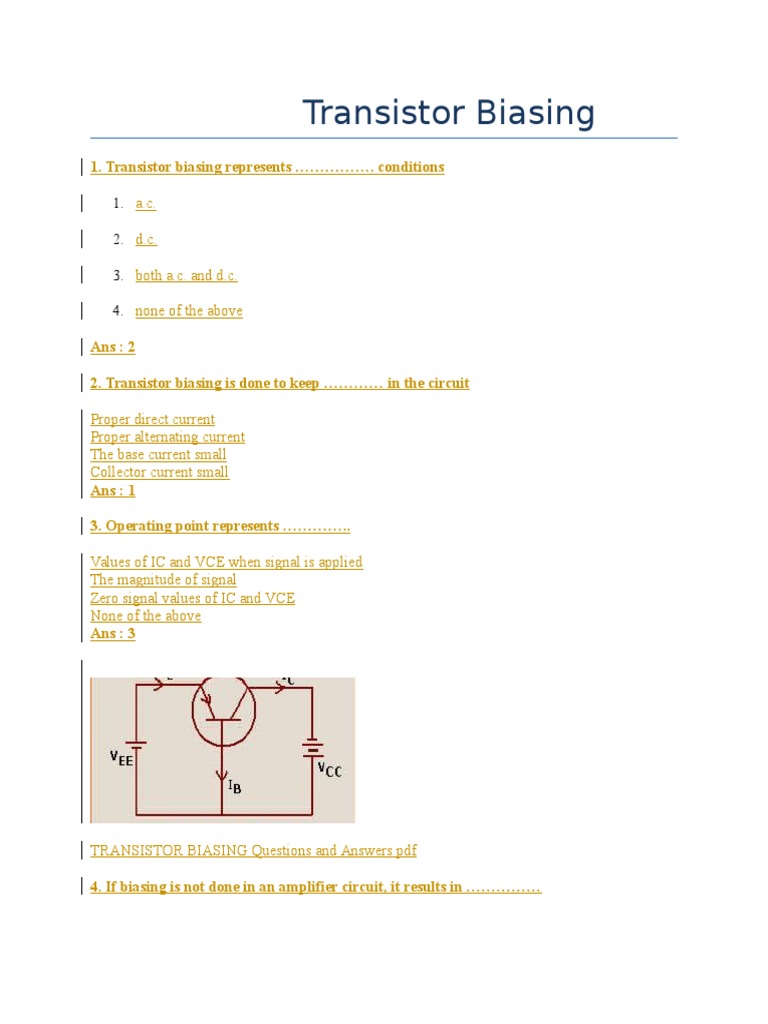

Transistor Biasing Represents . Conditions
Transistor Biasing Represents . Conditions
15. The biasing circuit has a stability factor of 50. If due to temperature change, ICBO
changes by 1 A, then IC will change by
100 A
25 A
20 A
50 A
Ans : 4
16. For good stabilsation in voltage divider bias, the current I1 flowing through R1 and R2
should be equal to or greater than
10 IB
3 IB
2 IB
4 IB
Ans : 1
17. The leakage current in a silicon transistor is about the leakage current in a
germanium transistor
One hundredth
One tenth
One thousandth
One millionth
Ans : 3
18. The operating point is also called the .
Cut off point
Quiescent point
Saturation point
None of the above
Ans : 2
19. For proper amplification by a transistor circuit, the operating point should be located at
the .. of the d.c. load line
The end point
Middle
The maximum current point
None of the above
Ans : 2
20. The operating point on the a.c. load line
Also line
Does not lie
May or may not lie
Data insufficient
Ans : 1
21. The disadvantage of voltage divider bias is that it has .
High stability factor
Low base current
Many resistors
None of the above
Ans : 3
22. Thermal runaway occurs when .
Collector is reverse biased
Transistor is not biased
Emitter is forward biased
Junction capacitance is high
Ans : 2
23. The purpose of resistance in the emitter circuit of a transistor amplifier is to .
Limit the maximum emitter current
Provide base-emitter bias
Limit the change in emitter current
None of the above
Ans : 3
24. In a transistor amplifier circuit VCE = VCB + ..
VBE
2VBE
5 VBE
None of the above
Ans : 1
25. The base resistor method is generally used in
Amplifier circuits
Switching circuits
Rectifier circuits
None of the above
Ans : 2
26. For germanium transistor amplifier, VCE should .. for faithful amplification
Be zero
Be 0.2 V
Not fall below 0.7 V
None of the above
Ans : 3
27. In a base resistor method, if the value of changes by 50, then collector current will
change by a factor
25
50
100
200
Ans : 2
28. The stability factor of a collector feedback bias circuit is .. that of base resistor
bias.
The same as
More than
Less than
None of the above
Ans : 3
29. In the design of a biasing circuit, the value of collector load RC is determined by
VCE consideration
VBE consideration
IB consideration
None of the above
Ans : 1
30. If the value of collector current IC increases, then the value of VCE
Remains the same
Decreases
Increases
None of the above
Ans : 2
31. If the temperature increases, the value of VCE
37. A silicon transistor is biased with base resistor method. If =100, VBE =0.7 V, zero
signal collector current IC = 1 mA and VCC = 6V , what is the value of the base resistor
RB?
105 kO
530 kO
315 kO
None of the above
Ans : 2
38. In voltage divider bias, VCC = 25 V; R1 = 10 kO; R2 = 2.2 V ; RC = 3.6 V and RE =1
kO. What is the emitter voltage?
7V
3V
V
8V
Ans : 4
39. In the above question (Q38.) , what is the collector voltage?
3V
8V
6V
7V
Ans : 1
40. In voltage divider bias, operating point is 3 V, 2 mA. If VCC = 9 V, RC = 2.2 kO, what is
the value of RE ?
2000 O
1400 O
800 O
1600 O
Ans : 3
