CHAROTAR UNIVERSITY OF SCIENCE AND

Faculty of Technology and

Manubhai Shivabhai Patel Department of Civil

i ee i

Date:

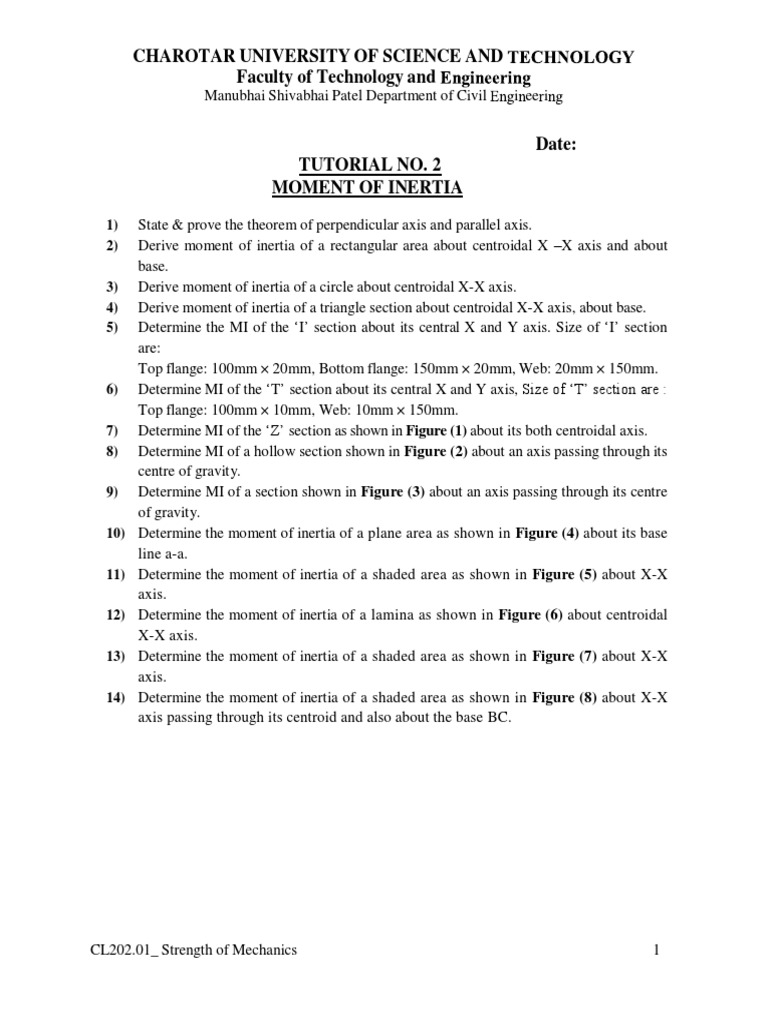

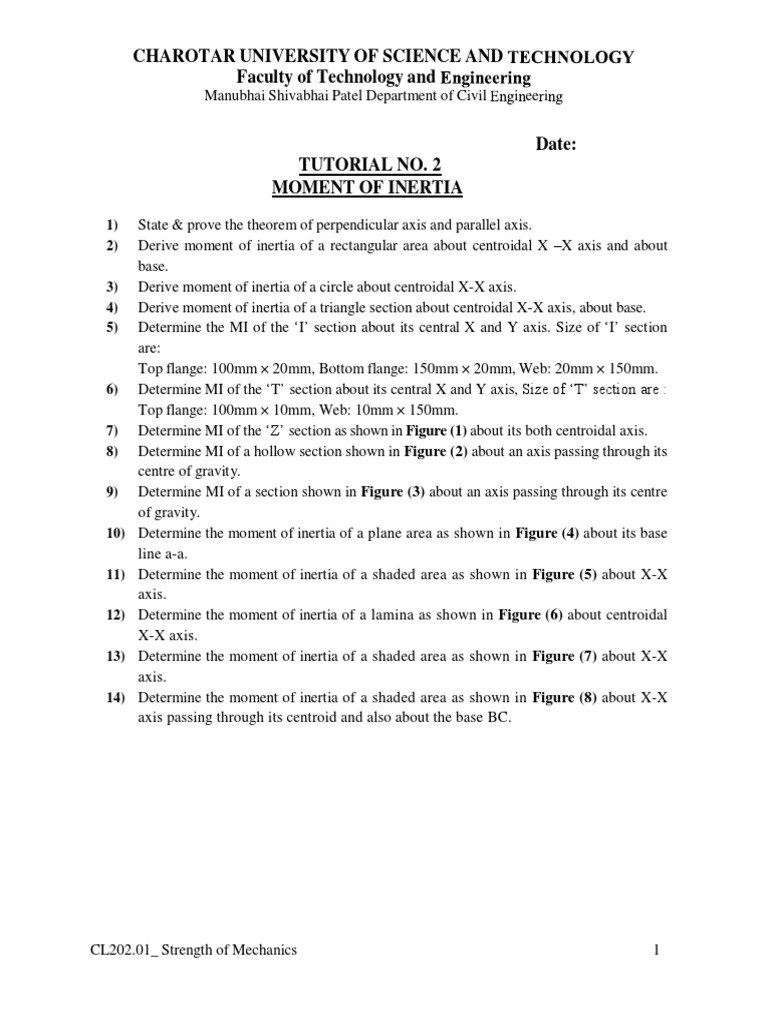

TUTORIAL NO. 2
MOMENT OF INERTIA
1)
2)
3)
4)
5)

6)
7)
8)
9)
10)
11)
12)
13)
14)

State & prove the theorem of perpendicular axis and parallel axis.
Derive moment of inertia of a rectangular area about centroidal X X axis and about
base.
Derive moment of inertia of a circle about centroidal X-X axis.
Derive moment of inertia of a triangle section about centroidal X-X axis, about base.
Determine the MI of the I section about its central X and Y axis. Size of I section
are:
Top flange: 100mm 20mm, Bottom flange: 150mm 20mm, Web: 20mm 150mm.
Determine MI of the T section about its central X and Y axis, Size of T section are :
Top flange: 100mm 10mm, Web: 10mm 150mm.
Determine MI of the Z section as shown in Figure (1) about its both centroidal axis.
Determine MI of a hollow section shown in Figure (2) about an axis passing through its
centre of gravity.
Determine MI of a section shown in Figure (3) about an axis passing through its centre
of gravity.
Determine the moment of inertia of a plane area as shown in Figure (4) about its base
line a-a.
Determine the moment of inertia of a shaded area as shown in Figure (5) about X-X
axis.
Determine the moment of inertia of a lamina as shown in Figure (6) about centroidal
X-X axis.
Determine the moment of inertia of a shaded area as shown in Figure (7) about X-X
axis.
Determine the moment of inertia of a shaded area as shown in Figure (8) about X-X
axis passing through its centroid and also about the base BC.

CL202.01_ Strength of Mechanics

CHAROTAR UNIVERSITY OF SCIENCE AND

Faculty of Technology and
Manubhai Shivabhai Patel Department of Civil

i ee i

50

Note : All Dimensions are in mm.

Grade Obtained:

Signature of Faculty:

CL202.01_ Strength of Mechanics

Date:
