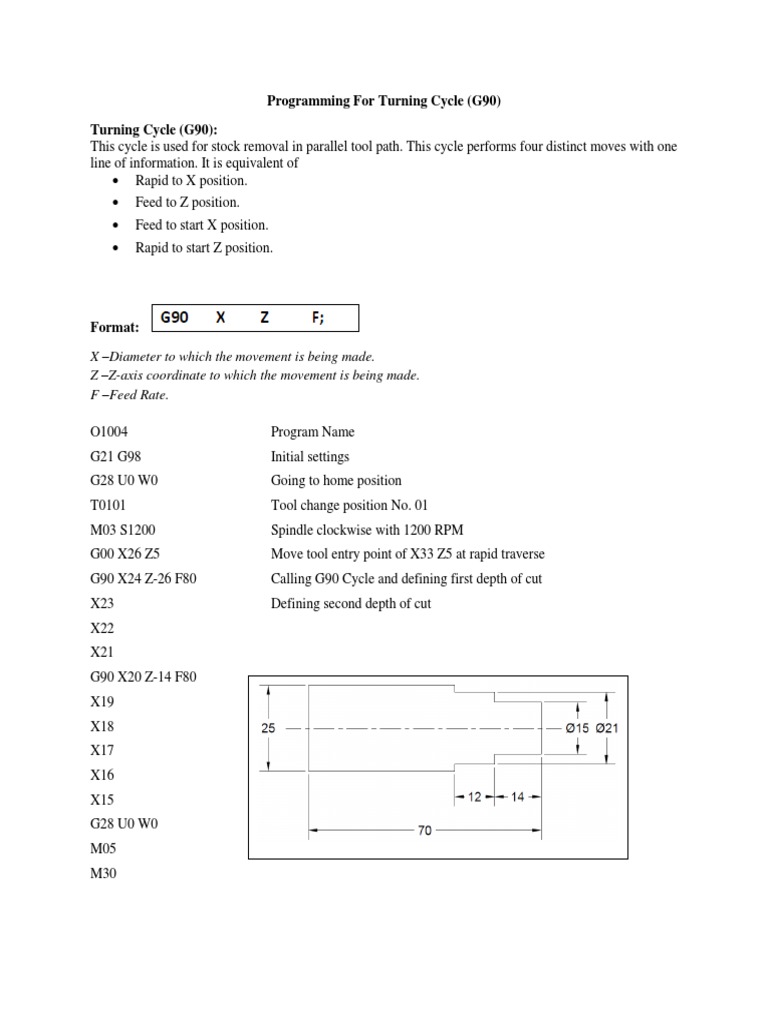

    Programming For Turning Cycle (G90)

    Turning Cycle (G90):


    This cycle is used for stock removal in parallel tool path. This cycle performs four distinct moves with one
    line of information. It is equivalent of
    Rapid to X position.

    Feed to Z position.

    Feed to start X position.

    Rapid to start Z position.

    Format:
    X Diameter to which the movement is being made.
    Z Z-axis coordinate to which the movement is being made.
    F Feed Rate.
    O1004

    Program Name

    G21 G98

    Initial settings

    G28 U0 W0

    Going to home position

    T0101

    Tool change position No. 01

    M03 S1200

    Spindle clockwise with 1200 RPM

    G00 X26 Z5

    Move tool entry point of X33 Z5 at rapid traverse

    G90 X24 Z-26 F80

    Calling G90 Cycle and defining first depth of cut

    X23

    Defining second depth of cut

    X22
    X21
    G90 X20 Z-14 F80
    X19
    X18
    X17
    X16
    X15
    G28 U0 W0
    M05
    M30
