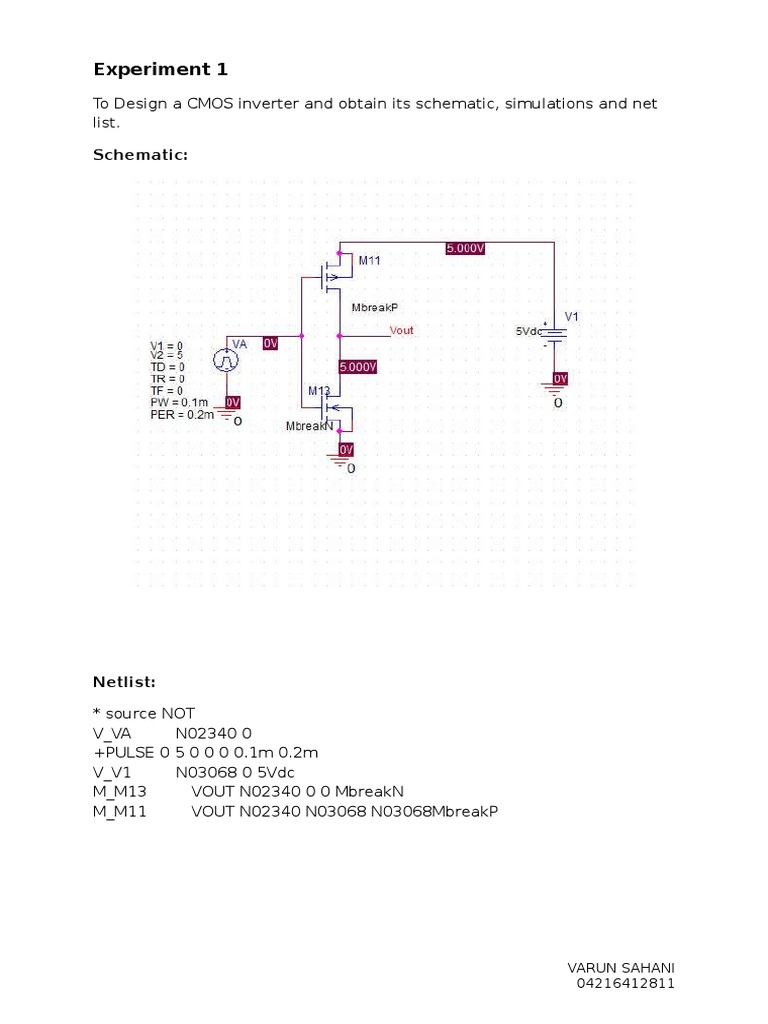

    Experiment 1

    To Design a CMOS inverter and obtain its schematic, simulations and net
    list.
    Schematic:

    Netlist:
    * source NOT
    V_VA
    N02340 0
    +PULSE 0 5 0 0 0 0.1m 0.2m
    V_V1
    N03068 0 5Vdc
    M_M13
    VOUT N02340 0 0 MbreakN
    M_M11
    VOUT N02340 N03068 N03068MbreakP

    VARUN SAHANI
    04216412811

    Simulations:

    Truth Table:

    VA (input)

    Vout

    VARUN SAHANI
    04216412811

    Experiment 2
    To implement the NOR logic using CMOS circuits, and obtain it schematic,
    simulations and netlist.
    Schematic:

    Netlist:
    *source NOR
    V_V3 VA 0
    +PULSE 0V 05V 0 0 0 0.1m 0.2m
    M_M4
    N04577 VA N00074 MbreakP
    V_V2 VB 0
    +PULSE 0V 5V 0 0 0.05m 0.2m
    M_M3
    VO VB N04577 N04577MbreakP
    V_V1
    N00074 0 5Vdc
    M_M1
    VO VA 0 0 MbreakN
    M_M2
    VO VB 0 0 MbreakN

    VARUN SAHANI
    04216412811

    Simulations:

    Truth Table:
    A (input)

    B (input)

    Vout

    Experiment 3
    VARUN SAHANI
    04216412811

    To implement a NAND2 CMOS Logic and obtain its schematic, simulations


    and netlist.
    Schematic:

    Netlist:
    *sourceNAND
    M_M3
    VOVAN00070N00070MbreakN
    M_M4
    N00070VB00MbreakN
    V_V5
    VA0
    +PULSE0V 5V0000.1m0.2m
    V_V4
    VB0
    +PULSE0V 5V0000.05m0.2m
    M_M5
    VOVAN00652N00652MbreakP
    M_M6
    VOVBN00652N00652MbreakP
    V_V1
    N006520 5Vdc

    Simulations:

    VARUN SAHANI
    04216412811

    Truth Table:
    A (input)

    B (input)

    C(output)

    Experiment 5

    VARUN SAHANI
    04216412811

    To implement XNOR CMOS logic and obtain its schematic, simulations and
    netlist.
    Schematic:

    Truth Table:
    A (input)

    B (input)

    C(output)

    Netlist:
    VARUN SAHANI
    04216412811

    Simulations:

    Experiment 4
    To implement XOR Logic in CMOS and obtain its schematic, simulations and netilist.
    VARUN SAHANI
    04216412811

    Schematic:

    Truth Table:

    VARUN SAHANI
    04216412811

    A (input)

    B (input)

    C(output)

    Netlist:

    Simulations:

    VARUN SAHANI
    04216412811

    Experiment 6
    To implement a Resistive Load inverter and obtain its voltage transfer characteristics.

    VARUN SAHANI
    04216412811

    Schematic:

    Net List:
    * source VTCRL
    V_V1
    N00817 0 5v
    M_M1
    VOUT VIN 0 0 MbreakN
    R_R1
    VOUT N00817 100k
    V_V2
    VIN 0 0Vdc

    Input/Output voltages with respect to time:

    VARUN SAHANI
    04216412811

    Voltage Transfer Characteristics:

    Experiment 7
    VARUN SAHANI
    04216412811

    To implement N type Depletion Load Inverter and obtain its voltage transfer
    characteristics.
    Schematic:

    Net List:
    * source VTCNL
    M_M2
    N00817 VOUT VOUT 0 MbreakND
    V_V1
    N00817 0 5v
    M_M1
    VOUT VIN 0 0 MbreakN
    V_V2
    VIN 0 0Vdc

    Input/Ouput voltages with respect to time:

    VARUN SAHANI
    04216412811

    Voltage transfer characteristics:

    Experiment 8
    VARUN SAHANI
    04216412811

    Implement CMOS inverter and obtain its Voltage transfer characteristics.


    Schematic:

    Net List:
    * source VTCMOS
    V_V2
    N00817 0 5v
    M_M1
    VOUT VIN 0 0 MbreakN
    M_M2
    VOUT VIN N00817 N00817MbreakP
    V_V1
    VIN 0 0Vdc

    Input/Output voltage with respect to timing:

    VARUN SAHANI
    04216412811

    Voltage Transfer Characteristics:

    VARUN SAHANI
    04216412811
