Tutorial Problem Set - 5 PDF
Tutorial Problem Set - 5 PDF

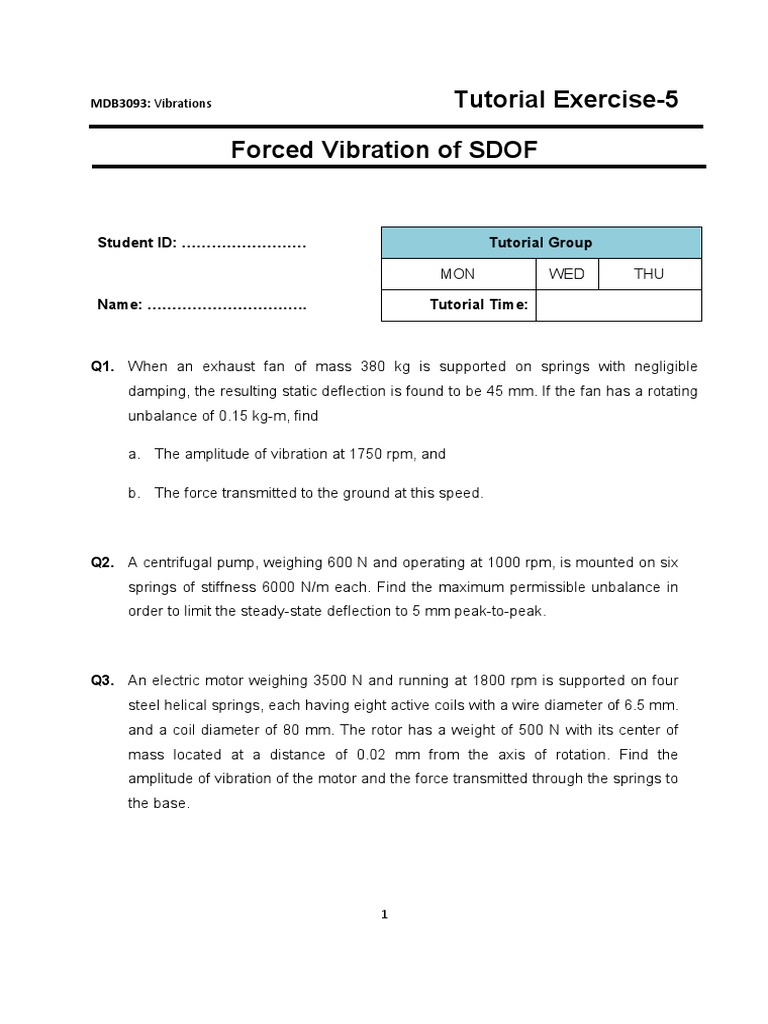

MDB3093: Vibrations
Student ID: .
Tutorial Group
MON
Name: ..
WED
THU
Tutorial Time:
Q1. When an exhaust fan of mass 380 kg is supported on springs with negligible
damping, the resulting static deflection is found to be 45 mm. If the fan has a rotating
unbalance of 0.15 kg-m, find
a. The amplitude of vibration at 1750 rpm, and
b. The force transmitted to the ground at this speed.
Q2. A centrifugal pump, weighing 600 N and operating at 1000 rpm, is mounted on six
springs of stiffness 6000 N/m each. Find the maximum permissible unbalance in
order to limit the steady-state deflection to 5 mm peak-to-peak.
Q3. An electric motor weighing 3500 N and running at 1800 rpm is supported on four
steel helical springs, each having eight active coils with a wire diameter of 6.5 mm.
and a coil diameter of 80 mm. The rotor has a weight of 500 N with its center of
mass located at a distance of 0.02 mm from the axis of rotation. Find the
amplitude of vibration of the motor and the force transmitted through the springs to
the base.
Tutorial Exercise-5
MDB3093: Vibrations
Q4.
the spring constant of the elastic support which transmits no more than 25% of
the unbalanced force to the foundation, and
b.
Q5.
b.
The additional mass to be added (uniformly) to the rotor if the deflection of the
rotor at resonance is to be reduced to 0.05 m,
c.
The peak deflection of the turbine when the frequency ratio (r) varies.
