DESIGN PART CATIA TUTORIAL

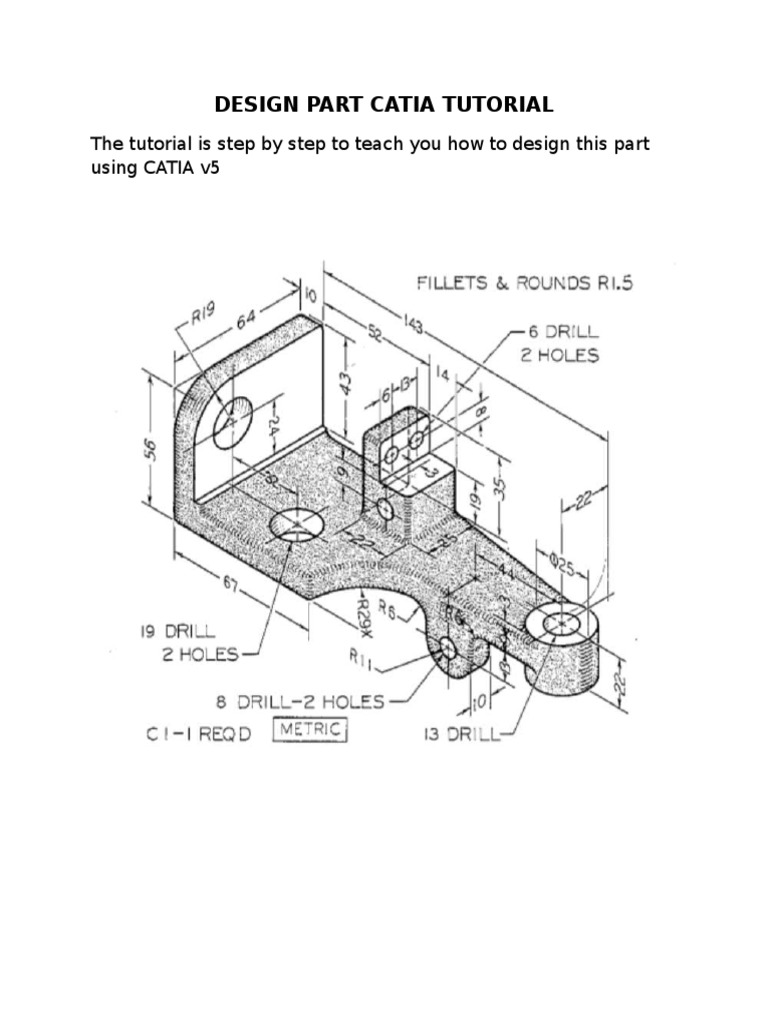

The tutorial is step by step to teach you how to design this part
using CATIA v5

Select xy plane and click on sketch

Select profile

and point to the origin and draw vertical line.

Then draw arc by clicking on

Then draw a vertical line and draw another arc by clicking on

And draw lines to complete the sketch.

Make arc and line tangency by clicking on

Add dimension to the sketch using

click and add the length of 67.

, modify the dimension by double

And complete the following dimensions of sketch to make sketch fully

constrain.

Exit from the sketch plane using

Click on pad
and select your sketch that you made in the previous step.
Follow the pad definition as seen below (note: the profile surface (sketch.2
may have different name in your file))

Make a plane offset from XY plane

as shown below

Make sure the plane in the positive Z direction, otherwise click on reverse
direction.
Choose the plane you made and click on sketch
Draw a circle

of diameter 25 and make the center coincides with the

center the arc from previous pad and click on

and choose coincide.

Use pad
and make sure the direction is downwardif not, click on
reverse direction.
Change the dimension to 22 then press ok.

Your prt should now look like this

Select xz plane and click on sketch

Select profile

and point to the origin and draw following sketch.

Make sure the following two lines are coincidence:

Use pad
direction.

and make sure the direction to the left if not, click on reverse

Change the dimension to 22 then press ok.

Select this face and click on sketch

Sketch a rectangular with following dimension.

Use pad
press ok.

and make sure the direction. Change the dimension to 2 then

Select this face and click on sketch

Do the following sketch and make pad 25.

Select this face and click on sketch

Make this two circles and do this constrains:

Then, make two lines tangency with outer circle and make end-point for
every line confidence with horizontal line in the part.

Make sure two lines are vertical.

Trim this arc.

Then make pad with dimension 10.

The part is now look like this

Face
2

Face
3

Face
1
edge

Face
5

Face
4

Select face 1 and click on sketch

Draw a circle of diameter 13mm. Hold CTRL and select the circle and the
circular edge shown in the previous figure, then click
concentricity.

and choose

Exit the sketch by clicking on

Use the pocket

and choose up to last.

Repeat the same steps to the other faces. Note that the pocket in all faces is
up to last except faces 3 is up to next.

The final part is now look like this

Now choose the edge fillet

required fillets.

and set the radius 1.5 mm and select the

Now choose the edge fillet

following fillets.

Change the view by clicking on

view

and set the radius 1.5 mm and select the

or the icons behind it for more obvious

DONE!!!!!
