Date

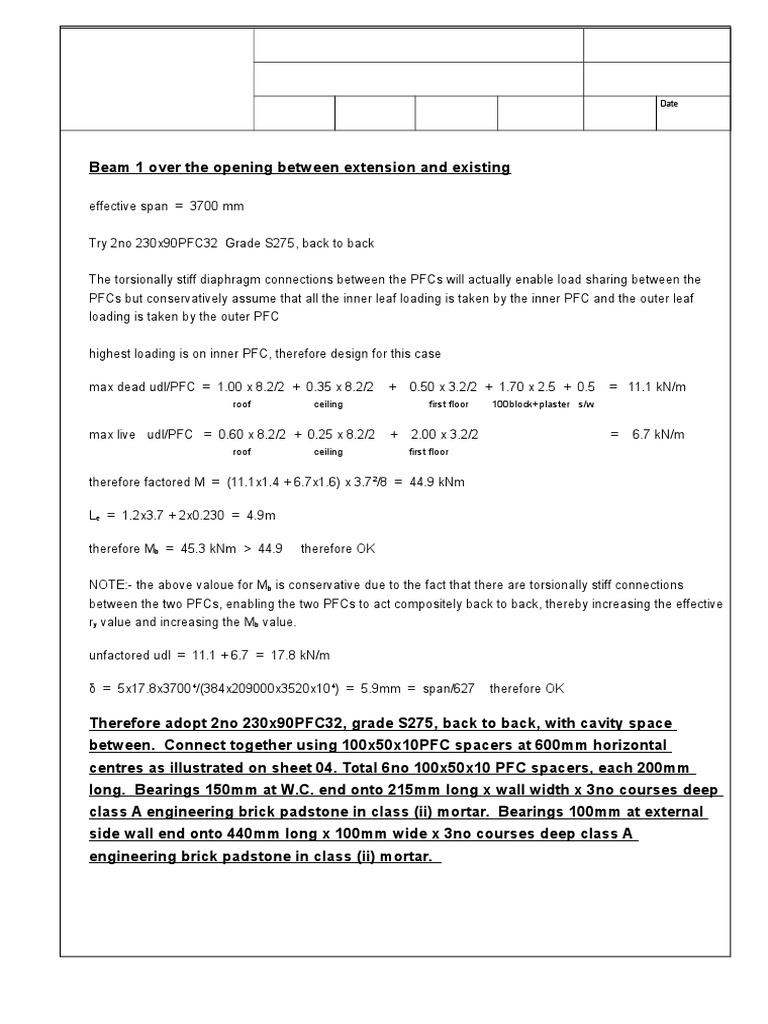

Beam 1 over the opening between extension and existing

effective span = 3700 mm

Try 2no 230x90PFC32 Grade S275, back to back

The torsionally stiff diaphragm connections between the PFCs will actually enable load sharing between the
PFCs but conservatively assume that all the inner leaf loading is taken by the inner PFC and the outer leaf
loading is taken by the outer PFC

highest loading is on inner PFC, therefore design for this case

max dead udl/PFC = 1.00 x 8.2/2 + 0.35 x 8.2/2 + 0.50 x 3.2/2 + 1.70 x 2.5 + 0.5 = 11.1 kN/m
roof ceiling first floor 100block+plaster s/w

max live udl/PFC = 0.60 x 8.2/2 + 0.25 x 8.2/2 + 2.00 x 3.2/2 = 6.7 kN/m
roof ceiling first floor

therefore factored M = (11.1x1.4 + 6.7x1.6) x 3.7 2/8 = 44.9 kNm

Le = 1.2x3.7 + 2x0.230 = 4.9m

therefore Mb = 45.3 kNm > 44.9 therefore OK

NOTE:- the above valoue for Mb is conservative due to the fact that there are torsionally stiff connections
between the two PFCs, enabling the two PFCs to act compositely back to back, thereby increasing the effective
ry value and increasing the Mb value.

unfactored udl = 11.1 + 6.7 = 17.8 kN/m

= 5x17.8x37004/(384x209000x3520x104) = 5.9mm = span/627 therefore OK

Therefore adopt 2no 230x90PFC32, grade S275, back to back, with cavity space
between. Connect together using 100x50x10PFC spacers at 600mm horizontal
centres as illustrated on sheet 04. Total 6no 100x50x10 PFC spacers, each 200mm
long. Bearings 150mm at W.C. end onto 215mm long x wall width x 3no courses deep
class A engineering brick padstone in class (ii) mortar. Bearings 100mm at external
side wall end onto 440mm long x 100mm wide x 3no courses deep class A
engineering brick padstone in class (ii) mortar.
 Date

Section through PFCs (N.T.S.):-

Inner leaf Outer leaf PFC

PFC

130

100x50x10 PFC, 200mm long, welded to inner leaf PFC using

200mm long runs of 6mm fillet weld along outer edges of
100x50x10 PFCs.
100x50x10 PFCs to be located at 600mm horizontal centres.
each 100x50x10 PFC to be bolted to inner leaf PFC using 2no

Plan of PFCs (N.T.S.):-

Inner leaf Outer leaf
