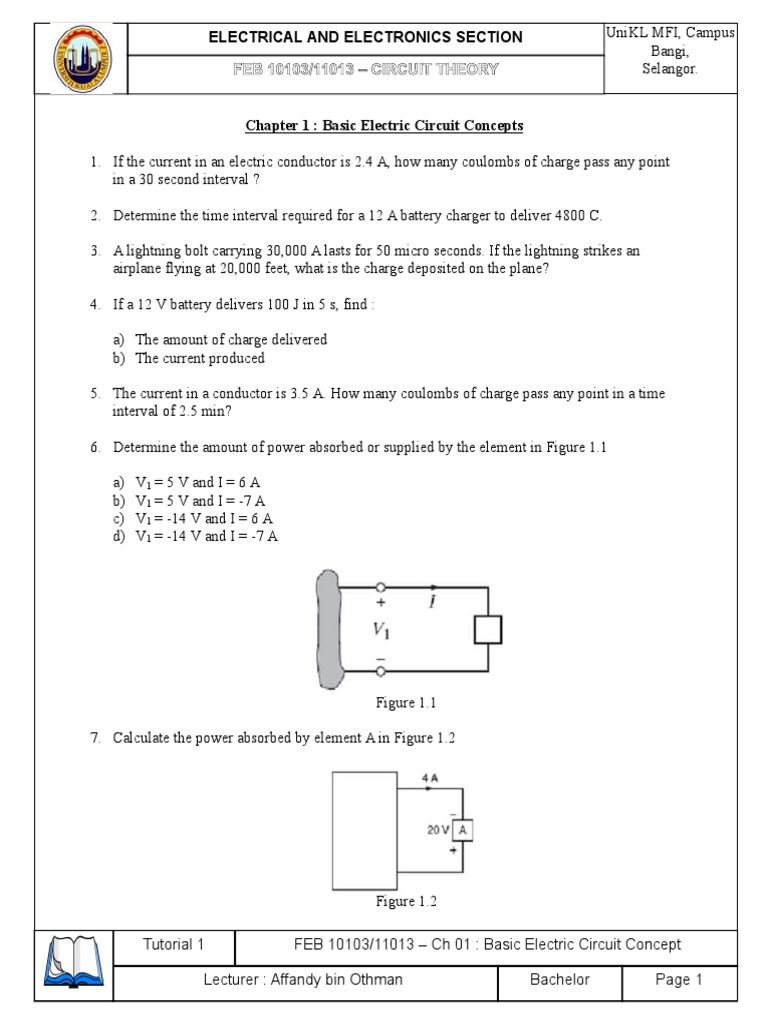

ELECTRICAL AND ELECTRONICS SECTION UniKL MFI, Campus

Bangi,
FEB 10103/11013 CIRCUIT THEORY Selangor.

Chapter 1 : Basic Electric Circuit Concepts

1. If the current in an electric conductor is 2.4 A, how many coulombs of charge pass any point
in a 30 second interval ?

2. Determine the time interval required for a 12 A battery charger to deliver 4800 C.

3. A lightning bolt carrying 30,000 A lasts for 50 micro seconds. If the lightning strikes an
airplane flying at 20,000 feet, what is the charge deposited on the plane?

4. If a 12 V battery delivers 100 J in 5 s, find :

a) The amount of charge delivered

b) The current produced

5. The current in a conductor is 3.5 A. How many coulombs of charge pass any point in a time
interval of 2.5 min?

6. Determine the amount of power absorbed or supplied by the element in Figure 1.1

a) V1 = 5 V and I = 6 A
b) V1 = 5 V and I = -7 A
c) V1 = -14 V and I = 6 A
d) V1 = -14 V and I = -7 A

Figure 1.1

7. Calculate the power absorbed by element A in Figure 1.2

Figure 1.2

Tutorial 1 FEB 10103/11013 Ch 01 : Basic Electric Circuit Concept

Lecturer : Affandy bin Othman Bachelor Page 1

 ELECTRICAL AND ELECTRONICS SECTION UniKL MFI, Campus
Bangi,
FEB 10103/11013 CIRCUIT THEORY Selangor.

8. Calculate the power supplied by element A in Figure 1.3

Figure 1.3

9. Element A in the diagram in Figure 1.4 absorbs 30 W of power. Calculate Vx.

Figure 1.4

10. Element B in the diagram in Figure 1.5 supplies 60 W of power. Calculate Ix.

Figure 1.5

11. (i) How much power is element 2 absorbing in Figure 1.6(a) P1 = 42 W?

(ii) How much power is element 1 absorbing in Figure 1.6(b) P2 = -72 W?

Figure 1.6

Tutorial 1 FEB 10103/11013 Ch 01 : Basic Electric Circuit Concept

Lecturer : Affandy bin Othman Bachelor Page 2

 ELECTRICAL AND ELECTRONICS SECTION UniKL MFI, Campus
Bangi,
FEB 10103/11013 CIRCUIT THEORY Selangor.

12. Compute the power that is absorbed or supplied by the elements in the network Figure 1.7

Figure 1.7

13. Find the power absorbed or supplied by element 1 in Figure 1.8

Figure 1.8

Tutorial 1 FEB 10103/11013 Ch 01 : Basic Electric Circuit Concept

Lecturer : Affandy bin Othman Bachelor Page 3
