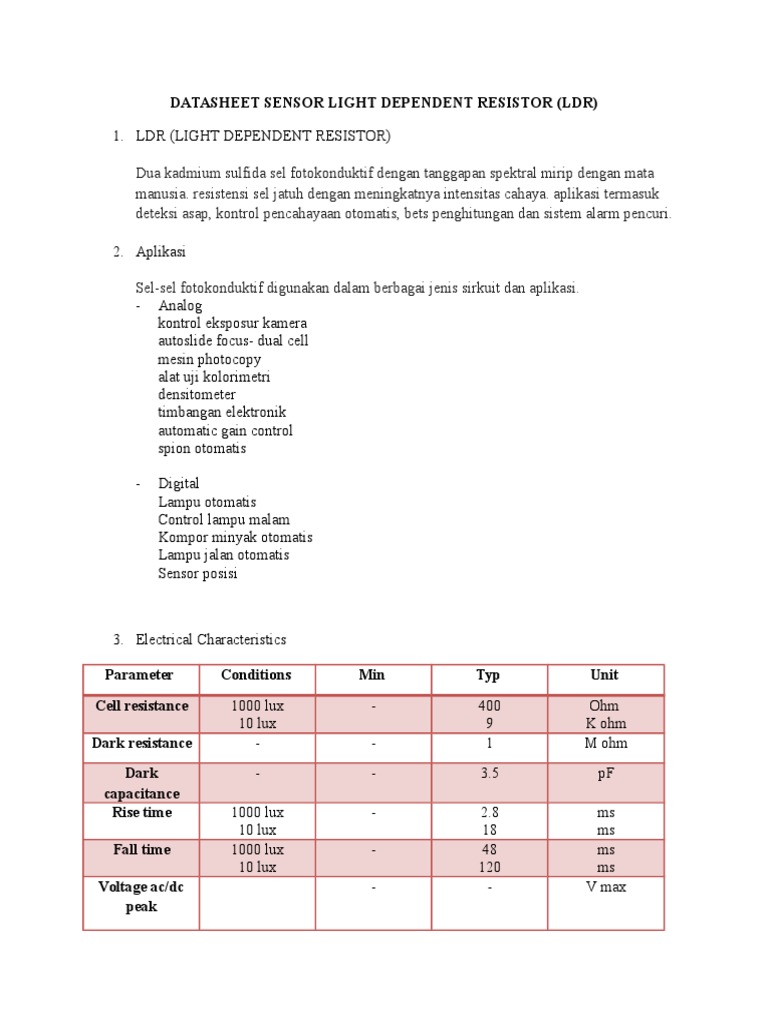

    DATASHEET SENSOR LIGHT DEPENDENT RESISTOR (LDR)

    1. LDR (LIGHT DEPENDENT RESISTOR)

    Dua kadmium sulfida sel fotokonduktif dengan tanggapan spektral mirip dengan mata
    manusia. resistensi sel jatuh dengan meningkatnya intensitas cahaya. aplikasi termasuk
    deteksi asap, kontrol pencahayaan otomatis, bets penghitungan dan sistem alarm pencuri.

    2. Aplikasi

    Sel-sel fotokonduktif digunakan dalam berbagai jenis sirkuit dan aplikasi.


    - Analog
    kontrol eksposur kamera
    autoslide focus- dual cell
    mesin photocopy
    alat uji kolorimetri
    densitometer
    timbangan elektronik
    automatic gain control
    spion otomatis

    - Digital
    Lampu otomatis
    Control lampu malam
    Kompor minyak otomatis
    Lampu jalan otomatis
    Sensor posisi

    3. Electrical Characteristics

    Parameter Conditions Min Typ Unit

    Cell resistance 1000 lux - 400 Ohm


    10 lux 9 K ohm
    Dark resistance - - 1 M ohm
    Dark - - 3.5 pF
    capacitance
    Rise time 1000 lux - 2.8 ms
    10 lux 18 ms
    Fall time 1000 lux - 48 ms
    10 lux 120 ms
    Voltage ac/dc - - V max
    peak
    Current - - mA max
    Power - - mW max
    dissipation
    Operating -60 - Deg. C
    temperature
