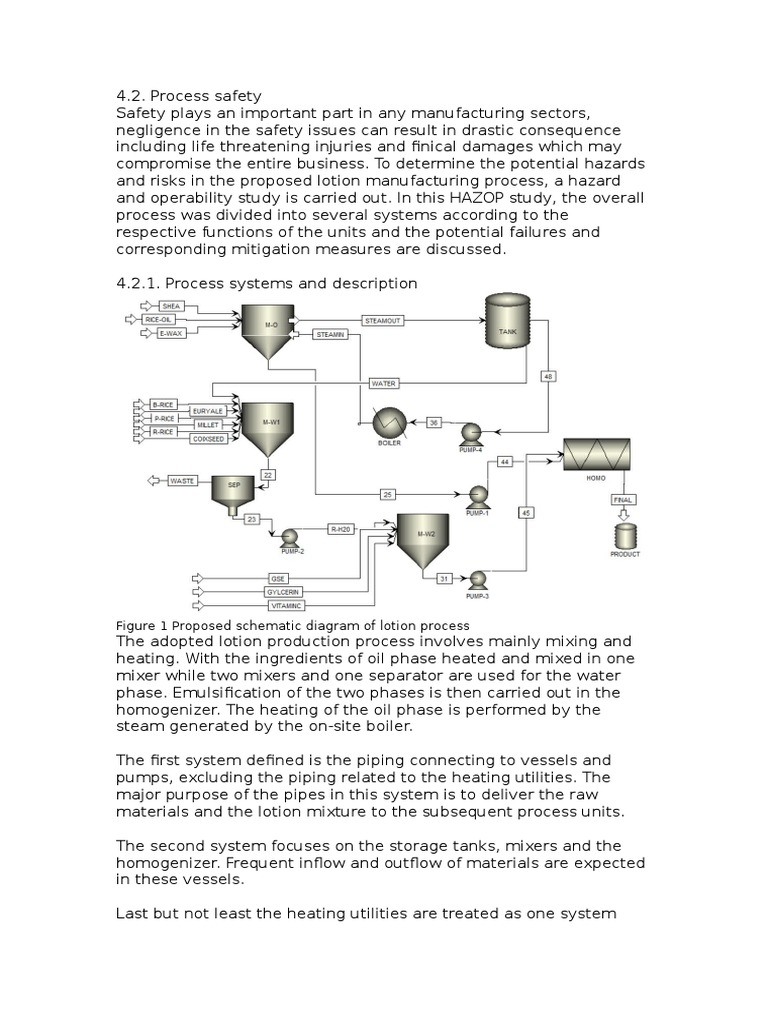

Figure 1 Proposed Schematic Diagram of Lotion Process
Figure 1 Proposed Schematic Diagram of Lotion Process
Process safety
Safety plays an important part in any manufacturing sectors,
negligence in the safety issues can result in drastic consequence
including life threatening injuries and finical damages which may
compromise the entire business. To determine the potential hazards
and risks in the proposed lotion manufacturing process, a hazard
and operability study is carried out. In this HAZOP study, the overall
process was divided into several systems according to the
respective functions of the units and the potential failures and
corresponding mitigation measures are discussed.
The second system focuses on the storage tanks, mixers and the
homogenizer. Frequent inflow and outflow of materials are expected
in these vessels.
Last but not least the heating utilities are treated as one system
which include the boiler, connections pipes and a water tank. Heat is
provided to heat up and melt the oil phase so the steam
temperature will only be around 150oC and at a relatively low
pressure.
Besides noise, there are some other safety concern posed by the
mixer. For example, the mixer propeller may not be connected
properly and it can fall off during operation and damage the mixer.
Workers can also be damaged by the mixing blade if they do not
follow the operation code strictly, for example, the blade have to be
completely stopped and removed from the power source before
washing and inspection to prevent moving blades from damaging
the workers. The mixer should only be turned on after the materials
are filled into the container and sealing the container to avoid
splashing of the materials.
[**]http://www.who.int/quantifying_ehimpacts/publications/en/ebd9.
pdf
4.2.3. HAZOP Table
Table1 HAZOP table
System Process Deviation Possible Causes Possible Action Required
Parame (Guide consequences
ters Word)
1 (Pipes) Flow No flow Blockage of pipes No transport of No flow alert signals
Pumps not functioning materials Frequent inspection
Backup pumps
Install by pass
More Pump malfunctioning Breakage of pipes Installation of
flowmeter
Backup pumps
Flow relief pipes
Install by pass
Less Pump malfunctioning Waste/Loss of Installation of flow
Blockage of pipes materials meter
Leakage of pipes Failure of lotion Backup pumps
production Frequent inspection
Backup pipes
- Corrosion Long term usage Leakage of material Frequent checking
Breaking of pipes
2 (Mixers) Flow No flow Closed valves No production Installation of flow
Pump not functioning formation meter
Pipes blockage Idling of mixer blades Low level alert
Over Failed valves Overflow of mixer Overflow pipes
Pump malfunctioning content Installation of check
Reverse flow into valves
pipes
Less Leakage of mixer Insufficient materials Frequent inspection
Low flow/blockage in for lotion Flow meter
inlet
Agitation None No power supply No mixing Backup cables and
No content in vessel Shocking Hazard power
Damaged blades Broken blade maybe Low level alert
Loose propellers in lotion
The propeller may fall
off, breaking the mixer
More Incorrect set up Damage of motors Install rpm monitor
and mixer blades Limit the maximum
Overheated motors rotation speed
Less Incorrect setup Poor mixing Install rpm monitor
Clogging of materials Frequent inspection
(Separator) Separati None Breaking of filter No separation Frequent inspection
on Complete blockage of
filter
Other than Partial damage of filter Incomplete separation Frequent inspection of
both separator and
filtrate
(Homogeni Mixing Later Oil and water phase Poor emulsifying Equalizer of flow
zer) flow at very different process
time/velocity
Absent Blockage of pipes No emulsification Flow meter of both
Malfunction of pumps inlets
3 (Boiler) Flow No Closed valve Heat coiling melt Interlock the water
Pump not functioning down supply with the power
Water service failure of heating coil.
Less Low water level in Temperature too high Flow meter, Water level
water tank sensor
Water supply failure Auto-shut down device
Blockage of pipes Back up water supply
Heating No Loss of power No heat is provided to Temperature sensors
the process
More Incorrect setting of Too much heating Temperature sensors
boiler Cooling backups
Too little water flowing
Less Incorrect setting of No enough heat to Temperature sensors
boiler melt the oil phase
Water flow to high
Pressure Higher Closed valves Rupture of pipes/boiler Pressure sensors
Explosion Pressure relief
Fail open valves
4.2.4. Other safety issues
4.2.4.1. Good Housekeeping
Good housekeeping can prevent certain workplace accidents and
help improving the overall efficiency and safety of the plant son it is
crucial to pay attention to housekeeping in the plant.
First of all, the environment of the factory should be kept clean and
tidy. Raw materials should be stored in designated areas with clear
signs and labeling to avoid blockage of aisles and staircases and
tripping. If stacking of materials is required, the stacked materials
should not interfere with the emergency systems such as smoke
detectors and fire sprinkles [*]. Firm supports should also be
provided to prevent the stacked materials from collapsing. In case of
spillage, signs should be placed to warn workers of slipping hazard
and the spilt material should be removed as soon as possible.
Regular cleaning and waste disposal should also be implemented to
maintain a hygienic workplace that is to clean up any accumulation
of dirt and waste in the factory.
The main waste generated in the process is the used grains, the
used grains are to be transported in a specific waste collection area
with proper storage. The wasted grains are expected to be emptied
once a day to avoid accumulation in the plant.
Moreover, the factory should provide sufficient facilities for the
employees. For example, Slip-proof mat or materials should be used
in the construction of the factory as the process involves liquids that
may trigger slipping hazard. The factory should also be equipped
with adequate emergency equipment such as fire extinguishers and
first aid boxes with regular checking to ensure the functionality of
the equipment so that employees can respond to accidents swiftly.
Any damaged facilities such as broken lights and cracks on floor
should be mended to provide a good working environment as many
hazards can arise from non-functioning amenities.
[*]https://www.ccohs.ca/oshanswers/hsprograms/house.html
