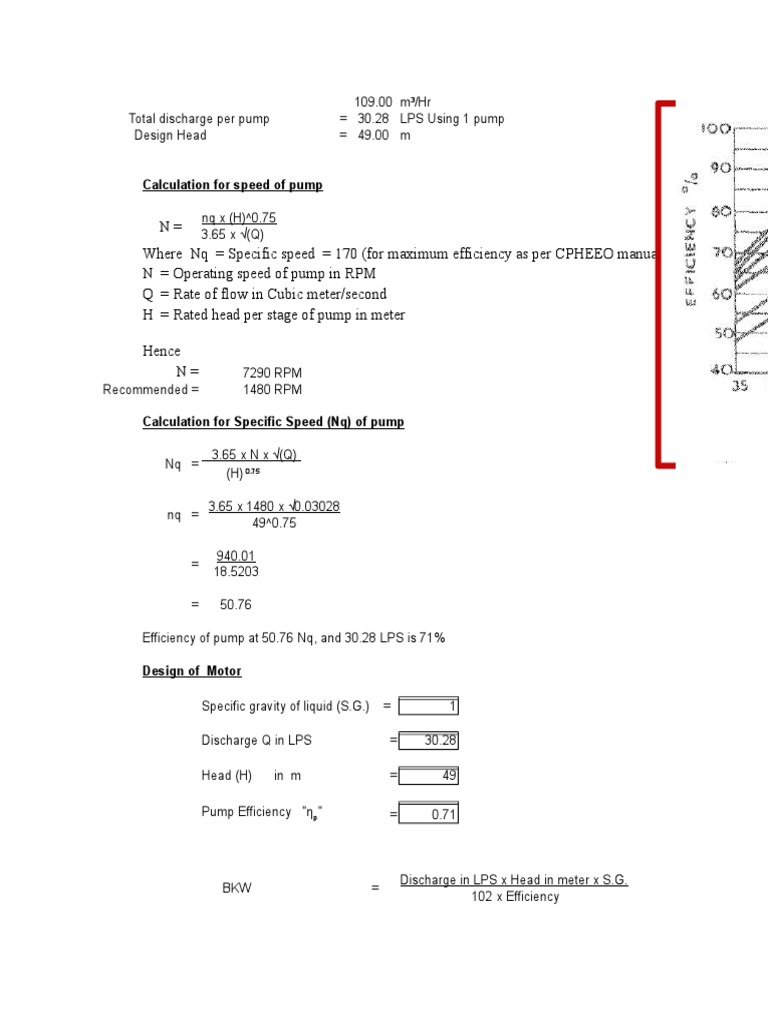

109.

00 m3/Hr
Total discharge per pump = 30.28 LPS Using 1 pump
Design Head = 49.00 m

Calculation for speed of pump

nq x (H)^0.75
N= 3.65 x (Q)
Where Nq = Specific speed = 170 (for maximum efficiency as per CPHEEO manual)
N = Operating speed of pump in RPM
Q = Rate of flow in Cubic meter/second
H = Rated head per stage of pump in meter

Hence
N= 7290 RPM
Recommended = 1480 RPM

Calculation for Specific Speed (Nq) of pump

3.65 x N x (Q)
Nq =
(H) 0.75

3.65 x 1480 x 0.03028

nq =
49^0.75

940.01
=
18.5203

= 50.76

Efficiency of pump at 50.76 Nq, and 30.28 LPS is 71%

Design of Motor

Specific gravity of liquid (S.G.) = 1

Discharge Q in LPS = 30.28

Head (H) in m = 49

Pump Efficiency "p" = 0.71

Discharge in LPS x Head in meter x S.G.

BKW =
102 x Efficiency
 30.28 x 49 x 1
=
102 x 0.71

= 20.4877 KW 27.47445
Motor margin as per CPHEEO Manual
= 15 %
Add motor margin = 3.07 KW

Total = 23.56 KW

Next available rating of motor = 30 KW

40.2 HP
 0.37 IS 325
0.55 IS 1076 R-20 Series
0.75
1.1
1.5
2.2
2.6
3.7
5.5
7.5
9.3
11
15
18.5
22
30
37
45
55
75
90
110
112
125
132
140
150
160
180
185
200
220
224
235
250
280
290
315
355
400
450
500
560
630
710
800
900
1000
