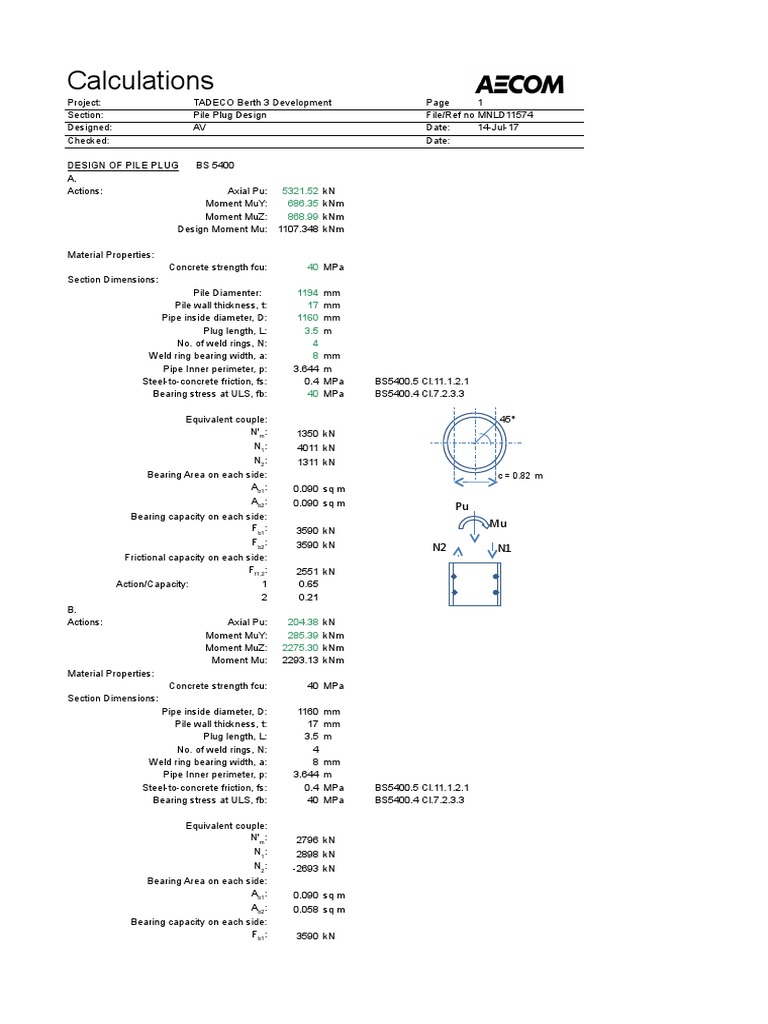

    Calculations

    Project: TADECO Berth 3 Development Page 1


    Section: Pile Plug Design File/Ref no MNLD11574
    Designed: AV Date: 14-Jul-17
    Checked: Date:

    DESIGN OF PILE PLUG BS 5400


    A.
    Actions: Axial Pu: 5321.52 kN
    Moment MuY: 686.35 kNm
    Moment MuZ: 868.99 kNm
    Design Moment Mu: 1107.348 kNm

    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pile Diamenter: 1194 mm
    Pile wall thickness, t: 17 mm
    Pipe inside diameter, D: 1160 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.644 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple: 45
    N'm: 1350 kN
    N1: 4011 kN
    N2: 1311 kN
    Bearing Area on each side: c = 0.82 m
    Ab1: 0.090 sq m
    Ab2: 0.090 sq m Pu
    Bearing capacity on each side:
    Fb1: Mu
    3590 kN
    Fb2: 3590 kN N2 N1
    Frictional capacity on each side:
    Ff1,2: 2551 kN
    Action/Capacity: 1 0.65
    2 0.21
    B.
    Actions: Axial Pu: 204.38 kN
    Moment MuY: 285.39 kNm
    Moment MuZ: 2275.30 kNm
    Moment Mu: 2293.13 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1160 mm
    Pile wall thickness, t: 17 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.644 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 2796 kN
    N1: 2898 kN
    N2: -2693 kN
    Bearing Area on each side:
    Ab1: 0.090 sq m
    Ab2: 0.058 sq m
    Bearing capacity on each side:
    Fb1: 3590 kN
    Fb2: 2332 kN
    Frictional capacity on each side:
    Ff1,2: 2551 kN
    Action/Capacity: 1 0.47
    2 0.55
    C.
    Actions: Axial Pu: 996.00 kN
    Moment MuY: 2096.97 kNm
    Moment MuZ: 2240.96 kNm
    Moment Mu: 3069.07 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1160 mm
    Pile wall thickness, t: 17 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.644 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 3742 kN
    N1: 4240 kN
    N2: -3244 kN
    Bearing Area on each side:
    Ab1: 0.090 sq m
    Ab2: 0.058 sq m
    Bearing capacity on each side:
    Fb1: 3590 kN
    Fb2: 2332 kN
    Frictional capacity on each side:
    Ff1,2: 2551 kN
    Action/Capacity: 1 0.69
    2 0.66
    D.
    Actions: Axial Pu: 2616.77 kN
    Moment MuY: 1069.80 kNm
    Moment MuZ: 2845.25 kNm
    Moment Mu: 3039.72 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1160 mm
    Pile wall thickness, t: 17 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.644 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 3706 kN
    N1: 5014 kN
    N2: -2397 kN
    Bearing Area on each side:
    Ab1: 0.090 sq m
    Ab2: 0.058 sq m
    Bearing capacity on each side:
    Fb1: 3590 kN
    Fb2: 2332 kN
    Frictional capacity on each side:
    Ff1,2: 2551 kN
    Action/Capacity: 1 0.82
    2 0.49
    Calculations
    Project: TADECO Berth 3 Development Page 1
    Section: Pile Plug Design File/Ref no MNLD11574
    Designed: AV Date: 14-Jul-17
    Checked: Date:

    DESIGN OF PILE PLUG BS 5400


    A.
    Actions: Axial Pu: 2181.29 kN
    Moment MuY: 336.08 kNm
    Moment MuZ: 339.27 kNm
    Design Moment Mu: 477.5499 kNm

    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pile Diamenter: 894 mm
    Pile wall thickness, t: 9 mm
    Pipe inside diameter, D: 876 mm
    Plug length, L: 2.5 m
    No. of weld rings, N: 3
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 2.752 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple: 45
    N'm: 771 kN
    N1: 1862 kN
    N2: 320 kN
    Bearing Area on each side: c = 0.82 m
    Ab1: 0.046 sq m
    Ab2: 0.046 sq m Pu
    Bearing capacity on each side:
    Fb1: Mu
    1821 kN
    Fb2: 1821 kN N2 N1
    Frictional capacity on each side:
    Ff1,2: 1376 kN
    Action/Capacity: 1 0.58
    2 0.10
    B.
    Actions: Axial Pu: 146.94 kN
    Moment MuY: 818.50 kNm
    Moment MuZ: 308.44 kNm
    Moment Mu: 874.69 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 876 mm
    Pile wall thickness, t: 9 mm
    Plug length, L: 2.5 m
    No. of weld rings, N: 3
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 2.752 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 1412 kN
    N1: 1486 kN
    N2: -1339 kN
    Bearing Area on each side:
    Ab1: 0.046 sq m
    Ab2: 0.033 sq m
    Bearing capacity on each side:
    Fb1: 1821 kN
    Fb2: 1321 kN
    Frictional capacity on each side:
    Ff1,2: 1376 kN
    Action/Capacity: 1 0.46
    2 0.50
    C.
    Actions: Axial Pu: 855.13 kN
    Moment MuY: 835.67 kNm
    Moment MuZ: 62.29 kNm
    Moment Mu: 837.99 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 876 mm
    Pile wall thickness, t: 9 mm
    Plug length, L: 2.5 m
    No. of weld rings, N: 3
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 2.752 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 1353 kN
    N1: 1780 kN
    N2: -925 kN
    Bearing Area on each side:
    Ab1: 0.046 sq m
    Ab2: 0.033 sq m
    Bearing capacity on each side:
    Fb1: 1821 kN
    Fb2: 1321 kN
    Frictional capacity on each side:
    Ff1,2: 1376 kN
    Action/Capacity: 1 0.56
    2 0.34
    D.
    Actions: Axial Pu: 752.50 kN
    Moment MuY: 34.59 kNm
    Moment MuZ: 950.14 kNm
    Moment Mu: 950.77 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 876 mm
    Pile wall thickness, t: 9 mm
    Plug length, L: 2.5 m
    No. of weld rings, N: 3
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 2.752 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 1535 kN
    N1: 1911 kN
    N2: -1159 kN
    Bearing Area on each side:
    Ab1: 0.046 sq m
    Ab2: 0.033 sq m
    Bearing capacity on each side:
    Fb1: 1821 kN
    Fb2: 1321 kN
    Frictional capacity on each side:
    Ff1,2: 1376 kN
    Action/Capacity: 1 0.60
    2 0.43
    Calculations
    Project: TADECO Berth 3 Development Page 1
    Section: Pile Plug Design File/Ref no MNLD11574
    Designed: AV Date: 14-Jul-17
    Checked: Date:

    DESIGN OF PILE PLUG BS 5400


    A.
    Actions: Axial Pu: 5534.43 kN
    Moment MuY: 135.31 kNm
    Moment MuZ: 573.46 kNm
    Design Moment Mu: 589.2072 kNm

    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pile Diamenter: 1096 mm
    Pile wall thickness, t: 18 mm
    Pipe inside diameter, D: 1060 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.330 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple: 45
    N'm: 786 kN
    N1: 3553 kN
    N2: 1981 kN
    Bearing Area on each side: c = 0.82 m
    Ab1: 0.084 sq m
    Ab2: 0.084 sq m Pu
    Bearing capacity on each side:
    Fb1: Mu
    3350 kN
    Fb2: 3350 kN N2 N1
    Frictional capacity on each side:
    Ff1,2: 2331 kN
    Action/Capacity: 1 0.63
    2 0.35
    B.
    Actions: Axial Pu: 4778.60 kN
    Moment MuY: 633.15 kNm
    Moment MuZ: 1447.07 kNm
    Moment Mu: 1579.52 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1060 mm
    Pile wall thickness, t: 18 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.330 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 2107 kN
    N1: 4497 kN
    N2: 282 kN
    Bearing Area on each side:
    Ab1: 0.084 sq m
    Ab2: 0.084 sq m
    Bearing capacity on each side:
    Fb1: 3350 kN
    Fb2: 3350 kN
    Frictional capacity on each side:
    Ff1,2: 2331 kN
    Action/Capacity: 1 0.79
    2 0.05
    C.
    Actions: Axial Pu: 2490.02 kN
    Moment MuY: 2072.26 kNm
    Moment MuZ: 691.89 kNm
    Moment Mu: 2184.71 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1060 mm
    Pile wall thickness, t: 18 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.330 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 2915 kN
    N1: 4160 kN
    N2: -1670 kN
    Bearing Area on each side:
    Ab1: 0.084 sq m
    Ab2: 0.053 sq m
    Bearing capacity on each side:
    Fb1: 3350 kN
    Fb2: 2131 kN
    Frictional capacity on each side:
    Ff1,2: 2331 kN
    Action/Capacity: 1 0.73
    2 0.37
    D.
    Actions: Axial Pu: -2903.81 kN
    Moment MuY: 15.57 kNm
    Moment MuZ: 1010.93 kNm
    Moment Mu: 1011.05 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1060 mm
    Pile wall thickness, t: 18 mm
    Plug length, L: 3.5 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.330 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 1349 kN
    N1: -103 kN
    N2: -2801 kN
    Bearing Area on each side:
    Ab1: 0.053 sq m
    Ab2: 0.053 sq m
    Bearing capacity on each side:
    Fb1: 2131 kN
    Fb2: 2131 kN
    Frictional capacity on each side:
    Ff1,2: 2331 kN
    Action/Capacity: 1 0.02
    2 0.63
    Calculations
    Project: TADECO Berth 3 Development Page 1
    Section: Pile Plug Design File/Ref no MNLD11574
    Designed: AV Date: 14-Jul-17
    Checked: Date:

    DESIGN OF PILE PLUG BS 5400


    A.
    Actions: Axial Pu: 5858.18 kN
    Moment MuY: 2.14 kNm
    Moment MuZ: 772.71 kNm
    Design Moment Mu: 772.713 kNm

    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pile Diamenter: 1296 mm
    Pile wall thickness, t: 18 mm
    Pipe inside diameter, D: 1260 mm
    Plug length, L: 4 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.958 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple: 45
    N'm: 867 kN
    N1: 3796 kN
    N2: 2062 kN
    Bearing Area on each side: c = 0.82 m
    Ab1: 0.099 sq m
    Ab2: 0.099 sq m Pu
    Bearing capacity on each side:
    Fb1: Mu
    3979 kN
    Fb2: 3979 kN N2 N1
    Frictional capacity on each side:
    Ff1,2: 3167 kN
    Action/Capacity: 1 0.53
    2 0.29
    B.
    Actions: Axial Pu: 5159.55 kN
    Moment MuY: 2063.11 kNm
    Moment MuZ: 2729.02 kNm
    Moment Mu: 3421.11 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1260 mm
    Pile wall thickness, t: 18 mm
    Plug length, L: 4 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.958 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 3840 kN
    N1: 6420 kN
    N2: -1260 kN
    Bearing Area on each side:
    Ab1: 0.099 sq m
    Ab2: 0.063 sq m
    Bearing capacity on each side:
    Fb1: 3979 kN
    Fb2: 2533 kN
    Frictional capacity on each side:
    Ff1,2: 3167 kN
    Action/Capacity: 1 0.90
    2 0.22
    C.
    Actions: Axial Pu: 2600.58 kN
    Moment MuY: 2748.29 kNm
    Moment MuZ: 623.47 kNm
    Moment Mu: 2818.12 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1260 mm
    Pile wall thickness, t: 18 mm
    Plug length, L: 4 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.958 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 3163 kN
    N1: 4463 kN
    N2: -1863 kN
    Bearing Area on each side:
    Ab1: 0.099 sq m
    Ab2: 0.063 sq m
    Bearing capacity on each side:
    Fb1: 3979 kN
    Fb2: 2533 kN
    Frictional capacity on each side:
    Ff1,2: 3167 kN
    Action/Capacity: 1 0.62
    2 0.33
    D.
    Actions: Axial Pu: -4647.09 kN
    Moment MuY: 207.06 kNm
    Moment MuZ: 2386.88 kNm
    Moment Mu: 2395.84 kNm
    Material Properties:
    Concrete strength fcu: 40 MPa
    Section Dimensions:
    Pipe inside diameter, D: 1260 mm
    Pile wall thickness, t: 18 mm
    Plug length, L: 4 m
    No. of weld rings, N: 4
    Weld ring bearing width, a: 8 mm
    Pipe Inner perimeter, p: 3.958 m
    Steel-to-concrete friction, fs: 0.4 MPa BS5400.5 Cl.11.1.2.1
    Bearing stress at ULS, fb: 40 MPa BS5400.4 Cl.7.2.3.3

    Equivalent couple:
    N'm: 2689 kN
    N1: 366 kN
    N2: -5013 kN
    Bearing Area on each side:
    Ab1: 0.099 sq m
    Ab2: 0.063 sq m
    Bearing capacity on each side:
    Fb1: 3979 kN
    Fb2: 2533 kN
    Frictional capacity on each side:
    Ff1,2: 3167 kN
    Action/Capacity: 1 0.05
    2 0.88

    You might also like
