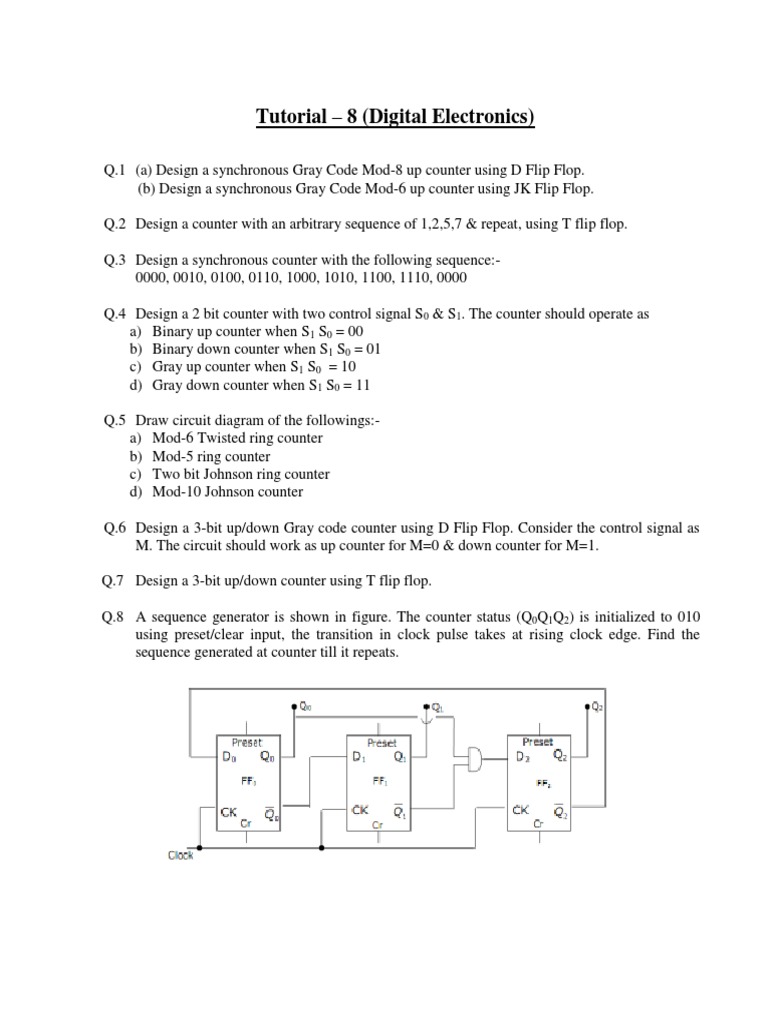

Tutorial 8 (Digital Electronics)

Q.1 (a) Design a synchronous Gray Code Mod-8 up counter using D Flip Flop.
(b) Design a synchronous Gray Code Mod-6 up counter using JK Flip Flop.

Q.2 Design a counter with an arbitrary sequence of 1,2,5,7 & repeat, using T flip flop.

Q.3 Design a synchronous counter with the following sequence:-


0000, 0010, 0100, 0110, 1000, 1010, 1100, 1110, 0000

Q.4 Design a 2 bit counter with two control signal S0 & S1. The counter should operate as
a) Binary up counter when S1 S0 = 00
b) Binary down counter when S1 S0 = 01
c) Gray up counter when S1 S0 = 10
d) Gray down counter when S1 S0 = 11

Q.5 Draw circuit diagram of the followings:-


a) Mod-6 Twisted ring counter
b) Mod-5 ring counter
c) Two bit Johnson ring counter
d) Mod-10 Johnson counter

Q.6 Design a 3-bit up/down Gray code counter using D Flip Flop. Consider the control signal as
M. The circuit should work as up counter for M=0 & down counter for M=1.

Q.7 Design a 3-bit up/down counter using T flip flop.

Q.8 A sequence generator is shown in figure. The counter status (Q0Q1Q2) is initialized to 010
using preset/clear input, the transition in clock pulse takes at rising clock edge. Find the
sequence generated at counter till it repeats.
Q.9 The initial contents of the 4 bit serial in serial out, right shift, shift register are shown in
figure , are 0110. After 3 clock pulses are applied, the content of shift register will be:

Q.10 A 4 bit shift register, which shift 1 bit to the right at every clock pulse is initialized to values
1000 for (Q0Q1Q2Q3). The D input is derived from Q0, Q2 and Q3 through two XOR gates as
shown in figure.

a) Write 4 bit values (Q0Q1Q2Q3) after each clock pulse till the pattern (1000) reappear on
(Q0Q1Q2Q3)
b) To what values should the shift register be initialized so that pattern (1001) occurs after
the first clock pulse?
