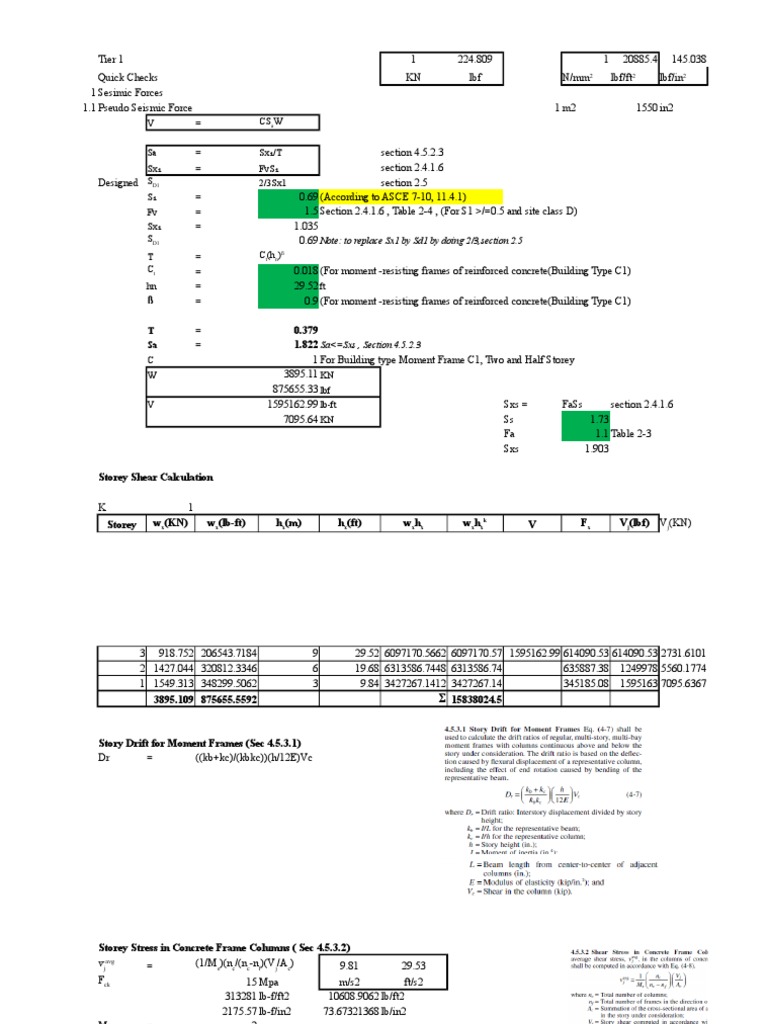

Quick Checks KN lbf N/mm2 lbf/ft2 lbf/in2
1 Sesimic Forces
1.1 Pseudo Seismic Force 1 m2 1550 in2
V = CSaW
T = 0.379
Sa = 1.822 Sa<=Sxs , Section 4.5.2.3
C 1 For Building type Moment Frame C1, Two and Half Storey
W 3895.11 KN
875655.33 lbf
V 1595162.99 lb-ft Sxs = FaSs section 2.4.1.6
7095.64 KN Ss 1.73
Fa 1.1 Table 2-3
Sxs 1.903
K 1
Storey wx(KN) wx(lb-ft) hx(m) hx(ft) wxhx wxhxk V Fx Vj(lbf) Vj(KN)
3 918.752 206543.7184 9 29.52 6097170.5662 6097170.57 1595162.99 614090.53 614090.53 2731.6101
2 1427.044 320812.3346 6 19.68 6313586.7448 6313586.74 635887.38 1249978 5560.1774
1 1549.313 348299.5062 3 9.84 3427267.1412 3427267.14 345185.08 1595163 7095.6367
3895.109 875655.5592 15838024.5
Sa = Sx/T
Sx = FvS
S = 0.733 (According to ASCE 7-10, 11.4.1)
Fv = 1.5 (For S1 </=0.1 and site class D)
Sx = 1.0995
T = Ct(hn)b
Ct = 0.018 (For moment -resisting frames of reinforced concrete(Building Type C1)
hn = 29.52 ft
b = 0.9 (For moment -resisting frames of reinforced concrete(Building Type C1)
T = 0.379
Sa = 2.903
C 1 For Building type Moment Frame C1, Two and Half Storey
W 3895.11 KN
875620.28 lbf
V 2541755.79 lb-ft
11306.74 KN
d concrete(Building Type C1)
V CsW
Cs
