The "Convert value" instruction reads the value of the IN parameter and converts it to the data type selected for the OUT parameter. It uses the input and output data types selected in the instruction box to perform the conversion. The converted value is then sent to the output parameter OUT.
The "Convert value" instruction reads the value of the IN parameter and converts it to the data type selected for the OUT parameter. It uses the input and output data types selected in the instruction box to perform the conversion. The converted value is then sent to the output parameter OUT.
The "Convert value" instruction reads the value of the IN parameter and converts it to the data type selected for the OUT parameter. It uses the input and output data types selected in the instruction box to perform the conversion. The converted value is then sent to the output parameter OUT.

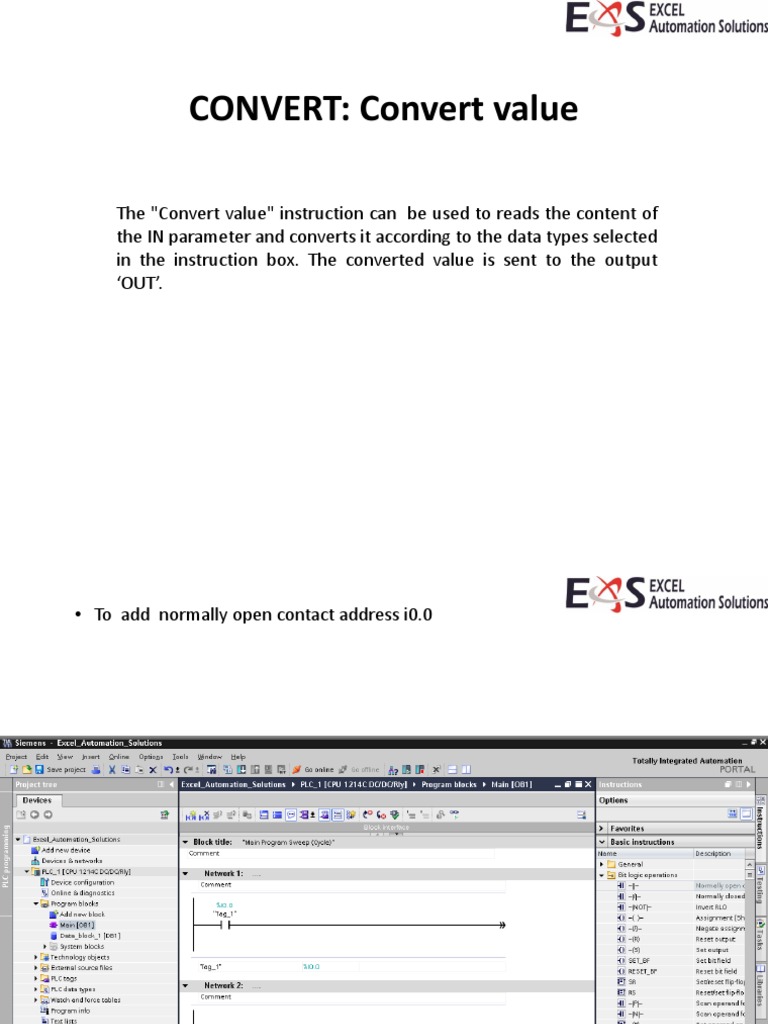

The "Convert value" instruction can be used to reads the content of
the IN parameter and converts it according to the data types selected in the instruction box. The converted value is sent to the output OUT. To add normally open contact address i0.0 To add an CONVERT instruction Instruction basic instruction Conversion operation CONVERT Double click the instruction or drag and drop the instruction into the network Select the data type for the instruction from the "<???>" drop-down list of the box Select the two data types for convert operation one is input (INT) another one is output(BCD) Data type selected for input and output To create the data block: Program block click add new block open data block Data block_1 is opened Click add new to create tag for first operand enter the name ,select the data type Like wise to create second operand Two operand created select and copy the Tag(IN) in the data block Paste the copied tag from data block to operand IN Like wise to copy and paste the second tag of the data block for operand out Compile and download the program Go to monitor mode Select and right click the first input modify modify operand Enter the value in modify value and click ok If operand Tag_1" has the signal state 1, the content of operand IN" is read and converted to BINARY CODED DECIMAL. The result is stored in operand OUT. DECIMAL TO BCD TABLE
