Thermodynamic cycles describe the ideal processes that working fluids undergo in thermal systems. There are several types of cycles, including the Otto, Diesel, Dual, Carnot, Rankine, and Brayton cycles. The first three are related to internal combustion engines while the last three are used to analyze power plants. The Rankine cycle models steam power plants, involving isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. The Brayton cycle describes gas turbine engines through isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. Thermodynamic cycles help evaluate thermal processes.
Gas-Engines and Producer-Gas Plants
A Practice Treatise Setting Forth the Principles of Gas-Engines and Producer Design, the Selection and Installation of an Engine, Conditions of Perfect Operation, Producer-Gas Engines and Their Possibilities, the Care of Gas-Engines and Producer-Gas Plants, with a Chapter on Volatile Hydrocarbon and Oil Engines
Thermodynamic cycles describe the ideal processes that working fluids undergo in thermal systems. There are several types of cycles, including the Otto, Diesel, Dual, Carnot, Rankine, and Brayton cycles. The first three are related to internal combustion engines while the last three are used to analyze power plants. The Rankine cycle models steam power plants, involving isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. The Brayton cycle describes gas turbine engines through isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. Thermodynamic cycles help evaluate thermal processes.
Thermodynamic cycles describe the ideal processes that working fluids undergo in thermal systems. There are several types of cycles, including the Otto, Diesel, Dual, Carnot, Rankine, and Brayton cycles. The first three are related to internal combustion engines while the last three are used to analyze power plants. The Rankine cycle models steam power plants, involving isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. The Brayton cycle describes gas turbine engines through isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. Thermodynamic cycles help evaluate thermal processes.
Thermodynamic cycles describe the ideal processes that working fluids undergo in thermal systems. There are several types of cycles, including the Otto, Diesel, Dual, Carnot, Rankine, and Brayton cycles. The first three are related to internal combustion engines while the last three are used to analyze power plants. The Rankine cycle models steam power plants, involving isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. The Brayton cycle describes gas turbine engines through isentropic compression, constant pressure heating, isentropic expansion, and constant pressure heat rejection. Thermodynamic cycles help evaluate thermal processes.

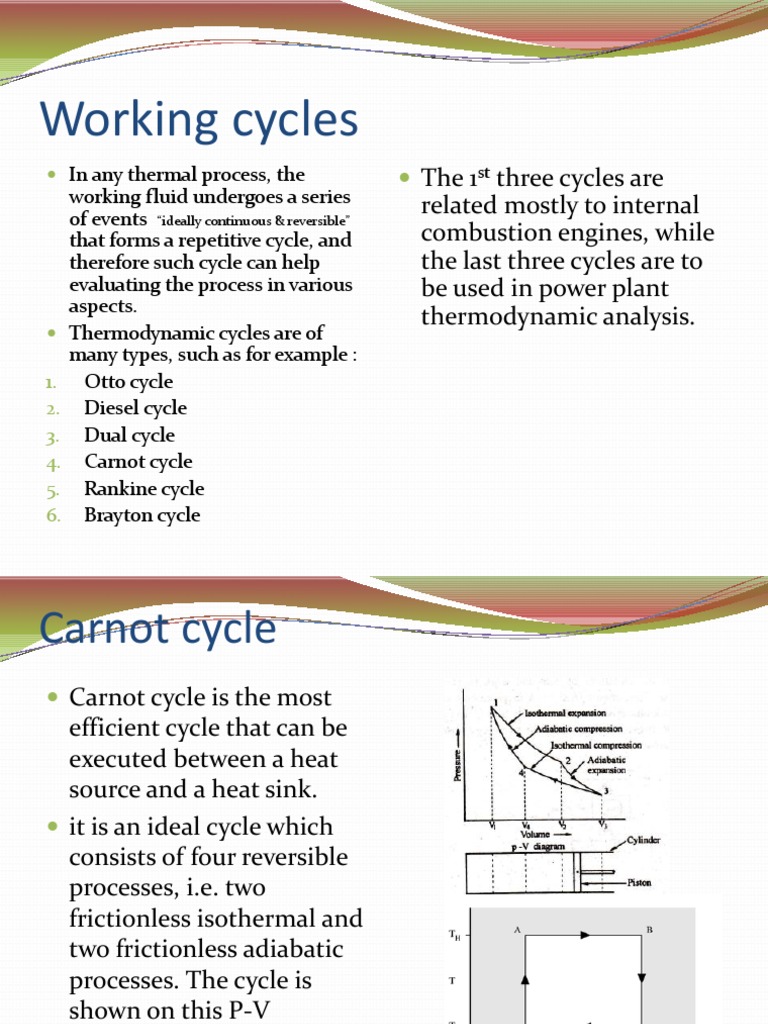

In any thermal process, the The 1st three cycles are
working fluid undergoes a series related mostly to internal of events ideally continuous & reversible that forms a repetitive cycle, and combustion engines, while therefore such cycle can help the last three cycles are to evaluating the process in various be used in power plant aspects. thermodynamic analysis. Thermodynamic cycles are of many types, such as for example : 1. Otto cycle 2. Diesel cycle 3. Dual cycle 4. Carnot cycle 5. Rankine cycle 6. Brayton cycle Carnot cycle Carnot cycle is the most efficient cycle that can be executed between a heat source and a heat sink. it is an ideal cycle which consists of four reversible processes, i.e. two frictionless isothermal and two frictionless adiabatic processes. The cycle is shown on this P-V diagram. TL = 1- TH Rankine cycle A Rankine cycle describes a model of steam- operated heat engine most commonly found in power generation plants. Common heat sources for power plants using the Rankine cycle are the combustion of coal, natural gas and oil, and nuclear fission Process 1-2 isentropic compression: The working fluid is pumped from low to high pressure. Process 2-3isobaric heat supply: The high pressure liquid enters a boiler where it is heated at constant pressure by an external heat source to become a dry saturated vapor. Process 3-4isentropic expansion: The dry saturated vapor expands through a turbine, generating power. This decreases the temperature and pressure of the vapor, and some condensation may occur. Process 4-1isobaric heat rejection: The wet vapor then enters a condenser where it is condensed at a constant pressure to become a saturated liquid. Brayton cycle The Brayton cycle is a thermodynamic cycle that describes the workings of the gas turbine engine, Brayton cycle is made up of the following four internally reversible processes: Isentropic compression (in a compressor) Constant pressure heat addition Isentropic expansion (in a turbine) Constant pressure heat rejection Working cycles related to power plant Steam power Rankine cycle plant Brayton cycle Gas turbine
Otto diesel dual
I C Engines cycles Classification of power plant cycles Vapor Gas power power cycle cycle
