Topic:

Tutorial Sheet 1B 2-D Moment of Forces

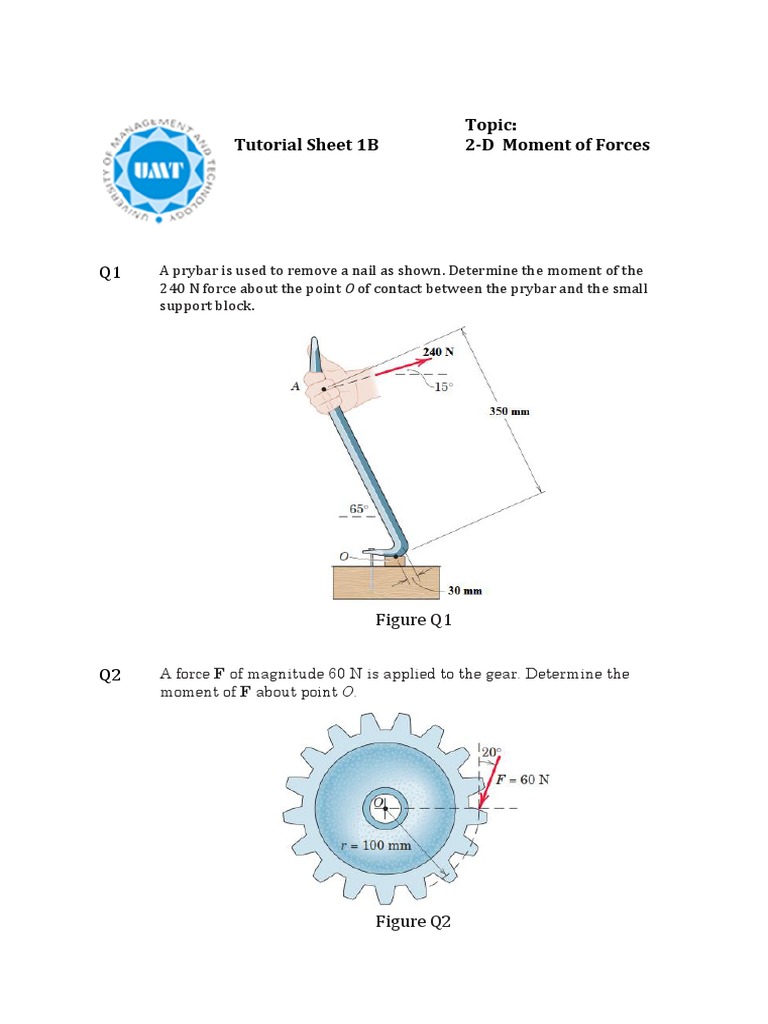

Q1 A prybar is used to remove a nail as shown. Determine the moment of the

240 N force about the point O of contact between the prybar and the small
support block.

Figure Q1

Q2 A force F of magnitude 60 N is applied to the gear. Determine the

moment of F about point O.

Figure Q2
Q3 Determine the angle which will maximize the moment Mo of the 200 N
force about the shaft axis at O. Also compute Mo.

Figure Q3

Q4 The spring-loaded follower A bears against the circular portion of the cam
until the lobe of the cam lifts the plunger. The force required to lift the plunger
is proportional to its vertical movement h from its lowest position. For design
purposes determine the angle for which the moment of the contact force on
the cam about the bearing O is a maximum. In the enlarged view of the contact,
neglect the small distance between the actual contact point B and the end C of
the lobe.

Figure Q4
Q5 As the result of a wind blowing normal to the plane of the rectangular sign, a
uniform pressure of 175 N/m2 is exerted in the direction shown in the
Figure Q. Determine the moment of the resulting force about point O. Express
your result as a vector using the coordinates shown.

Figure Q5

Q6 The small crane is mounted along the side of a pickup bed and facilitates the
handling of heavy loads. When the boom elevation angle is = 40o , the force
in the hydraulic cylinder BC is 4.5 kN, and this force applied at point C is in the
direction from B to C (the cylinder is in compression). Determine the moment
of this 4.5-kN force about the boom pivot point O.
Figure Q6
