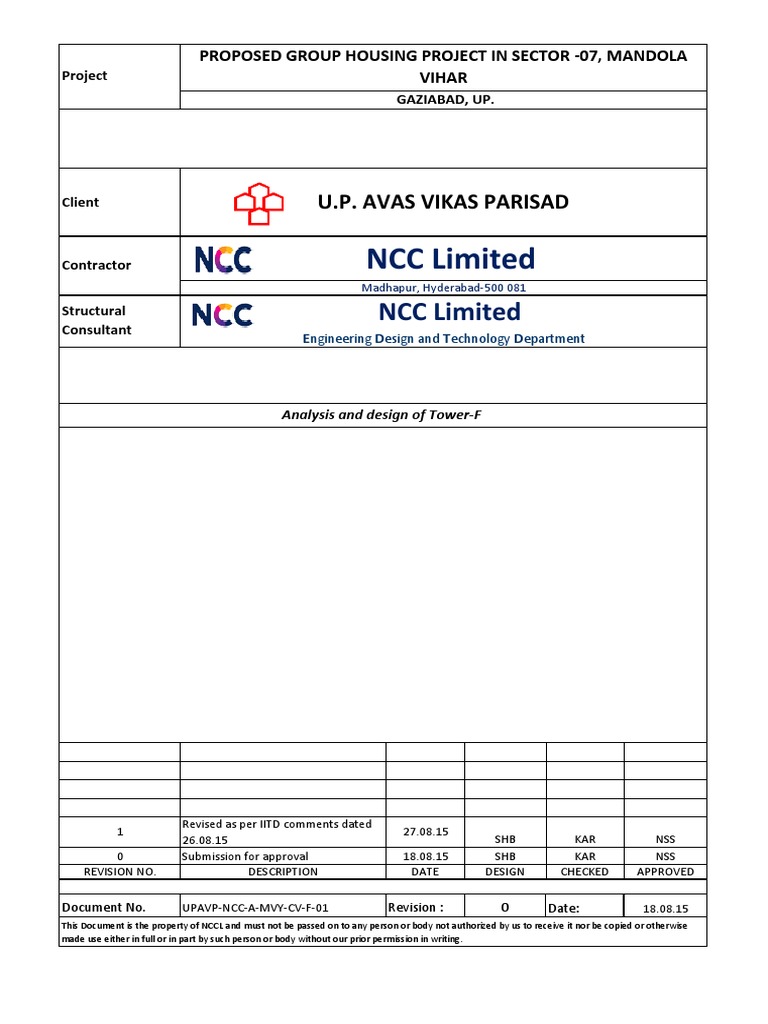

PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA

Project VIHAR
GAZIABAD, UP.

Client U.P. AVAS VIKAS PARISAD

Contractor NCC Limited

Madhapur, Hyderabad-500 081

Structural NCC Limited

Consultant
Engineering Design and Technology Department

Analysis and design of Tower-F

Revised as per IITD comments dated

1 27.08.15
26.08.15 SHB KAR NSS
0 Submission for approval 18.08.15 SHB KAR NSS
REVISION NO. DESCRIPTION DATE DESIGN CHECKED APPROVED

Document No. UPAVP-NCC-A-MVY-CV-F-01 Revision : 0 Date: 18.08.15

This Document is the property of NCCL and must not be passed on to any person or body not authorized by us to receive it nor be copied or otherwise
made use either in full or in part by such person or body without our prior permission in writing.
 NCC LIMITED
ENGINEERING DESIGN & TECHNOLOGY DEPARTMENT
PROPOSED GROUP HOUSING PROJECT DOCUMENT NO. DATE
PROJECT
IN SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
DESIGNED CHECKED APPRVD REV.
Doc. Title Analysis and design of Tower-F
SHB KAR NSS 1

INDEX
1.0 INTRODUCTION Page No.

1.1. Site Information 2

1.2 Reference Drawings 2

1.3 Codes and Standards 2

1.4. Software References 3

2.0 DESIGN CRITERIA 3

3.0 METHODOLOGY FOR ANALYSIS 4

4.0 LOADS AND LOAD COMBINATIONS

4.1 Dead Loads 5

4.2 Live Loads 5

4.3 Wind Loads 5

4.4 Earth Quake Loads 6

4.5 Basic Load cases 6

4.6 Load Combinations 7

5.0 MODELLING OF THE STRUCTURE - E TABS and SAFE MODEL 8

6.0 ANALYSIS & DESIGN RESULTS 10

7.0 ANNEXURES

7.1.1 DESIGN OF RAFT FOOTING 21

7.1.2 BASE PRESSURE DIAGRAMS 21

7.1.3 DESIGN OF DRIVEWAY COLUMN FOUNDATIONS 26

7.1.4 COLUMN AND WALL DESIGN FROM E-TABS 44

7.1.5 SOFT STOREY CALCULATIONS FROM E-TABS 49

7.1.6 DESIGN OF RETAINING WALL 51

1
 NCC Limited
Engineering Design and Technology Department
PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date
Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

1.0. INTRODUCTION :
This document covers the basic design parameter for analysis and design of super structure
and foundations for Basement + Stilt + 16 floors residential building of Tower-F at
"Proposed Group housing project in Sector-07, at Mondola Vihar, Ghaziabad, U.P"
This document is prepared on the basis of contract specifications and related documents. This
document includes the general description of structure, geometry, location, load cases considered
(including Wind and Seismic Loads), load combinations for analysis and design of the building
satisfying the code requirements.

1.1 Site Information

Location of Site:
This project is located in Sector - 07, Mandola Vihar, Ghaziabad, U.P.

Basic Wind Speed

The design wind speed as per the provisions of IS: 875 (Part-3) -1987 is 47m/sec.

Seismic zone
The project site is situated in zone IV in the seismic map of India as per IS:1893 (part-1)

1.2 Reference Drawings :

Architectural drawings - Floor plans ADE/MV/TD/AR/L-02 TO 07
- Elevations ADE/MV/TD/AR/2BHKS/E-01
- Sections ADE/MV/TD/AR/2BHKS/S-01
1.3 Codes, Standards and References
1 IS 456 : 2000 Code of practice for plain and reinforced concrete
IS 875 : 1987 Code of practice for Design loads (other than Earthquake loads) for
2
(Part-1 to 5) Buildings & structures.

3 IS 1893 -2002 (Part 1) Criteria for Earthquake Resistant Design of Structure.

4 IS:13920 Code of Practice for ductile detailing of reinforced concrete

structures subjected to seismic forces.
5 SP 16 (1980) Design Aids to IS 456

6 SP 34 (1987) Hand Book on Concrete Reinforcement and Detailing

IS:2950
7 Code of practice for design and construction of raft foundations

IS:1080 Code of practice for design and construction of shallow foundations

8
in soils (other than raft, ring and shell )
9 IS:3370 Code of Practice for concrete structures for the storage of liquids: (All
parts)
10 Papers published by any authors, institutions and IIT's

2
 NCC Limited
Engineering Design and Technology Department
PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date
Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1
1.4 Software Reference :

ANALYSIS AND DESIGN

For structural analysis and design, well known softwares like ETABS, SAFE, and STAAD Pro are used.
In addition to these softwares inhouse excel sheet programmes are used for the design of slabs,
staircases, isolated footings etc.

2.0 DESIGN CRITERIA :

a) Material Strength
Concrete : The grade of conrete shall be as follows for various concrete elements,
depending on the design requirement
Grade of concrete = M30 Raft Foundation
= M40 Columns and Shear Wall coming from foundation
= M30/M25 Stilt and First Floor slabs and Beams
= M40/M30/M25 Typical Floors
Modulus of Elasticity of Concrete, Ec = 5000 x fck MPa
Poissons Ratio for Concrete, = 0.2

Reinforcement:
The reinforcement steel shall be High yield strength deformed bars grade Fe 500 conforming
to IS: 1786 - 2008
Reinforcement cover:

Concrete Member Cover, mm

Foundations/Footings = 50 Bottom, Sides & Top
Columns / Pedestals = 40
Shear walls = 40
Typical floor RCC wall = 25
Floor Slabs = 20
Floor Beams = 25
Staircase slabs, chajjas, projections. = 20
Retaining walls = 40 Earth side
= 30 Inside

3
 NCC Limited
Engineering Design and Technology Department
PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date
Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

3.0. METHODOLOGY FOR ANALYSIS

The super structure & foundation are analysed seperately. The superstructure is modelled
in E-TABS with utmost accuracy to reflect its behaviour under various load combinaions
acting on the structure. As the tower- F is mirrro of Tower-A, Tower-A etab model is used for
analysis super structure and foundation.
The super structure consists of Basement + Stilt + 16 floors. The frame for the building
considered is that till first floor level columns, beams with few shear walls will be there and
from first floor level the columns/beams frame will be replaced with RC walls.
All RC walls in typical floors shall be 150mm thick except at lift and stair case wall which are
160mm thk and all slabs shall be 100/115/150mm thick in various rooms.

To avoid fouling of service pile lines with beams and to restrict floor height of basement to 3.6m
stilt floor slab under tower is designed as a flat slab of uniform thichness and
having couple of beams at edges and around large openings.
Driveway portion is conventional system

Flat slab is designing by using SAFE software.

First floor level is conventional beams and slab system and above this RCC walls and slab system.

For seismic analysis of the structure Response Reduction factor 4 is used and ductile detailing
is done for dual framed structure only ( i.e, for Shear walls, columns and beams only).
and for R.C. walls starting from first floor ductile detailing will not be provided.

The foundation design is done seperately from the reactions obtained from the analysis of
superstructure. Depending on the S.B.C of the soil and the loads coming on foundation
Raft is provided so that the loads are transferred to the ground below safely.

3.1. Raft footing on Soil:

2,
For design of raft foundation gross SBC considered is 246 kN/m based on detailed Soil
Investigation report(refer geo technical report -Project no.215051).
From S.B.C , subgrade modulus of soil is calculated and applied to the Raft in SAFE Software.
All the loads coming from super structure are applied on Raft footing and designed for
various load combinations.

The soil below foundation is modelled by defining spring constants with modulus of subgrade
reaction calculated as shown below. (As per Foundation Analysis and Design book by J.E. Bowles)
Allowable settlement = 25 mm
2
Gross S.B.C = 246 kN/m
2
Modulus of sub grade reaction = (246/.025) x 2.5 24600 kN/m /m

4
 NCC Limited
Engineering Design and Technology Department
PROPOSED GROUP HOUSING PROJECT IN Document No. Date
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

4.0. LOADS
4.1. Dead Loads:

a) Self Weight of the structure :

Self weight of the structure will be calculated based on the geometry
modelled in/by the software
Unit weight of RCC = 25 kN/cum
Unit weight of PCC = 24 kN/cum
Unit weight of Brick = 20 kN/cum
Floor finishes 0.05 X 20 = 1.0 kN/sqm
Sunken loads, density = 20kN/cum
Kitchen balcony, 200mm sunk = 4.0 kN/sqm
Toilet, 300mm sunk = 6.0 kN/sqm
Balconies, 50mm sunk = 1.0 kN/sqm

All the other loads such as elevation projections, parapet wall near staircase ,
wall load upto sill level in door/windows etc as per arhitectural drawings are calculated
and applied on the structure as uniformly distributed loads.

4.2. Live Loads:

Living area = 2.0 kN/m2

Balconies, Corridors = 3.0 kN/m2
Terrace (accesable) = 1.5 kN/m2
Terrace (inaccesable) = 0.75 kN/m2
Stair case live = 3.0 kN/m2
Lift Machine room = 10.0 kN/m2
Parking loads = 5.0 kN/m2
Fire fighting vehicle load = 25.0 kN/m2

4.3 Wind Loads (As per IS: 875 - Part: 3 - Wind Loads)

Design wind velocity, V z (N/m2) = Vb.k1.k2.k2

Design wind pressure, p z = 0.6 V z2
Basic wind Speed, Vb = 47 m/sec
Risk Coefficient, k 1 (Table 1 , P11) = 1.0
Topography Factor, k3 = 1.0
Terrain, Height and structure size Coefficient, k 2
(for Terrain Category = 2, Class = C from Table-2, P-12)

5
 NCC Limited
Engineering Design and Technology Department
PROPOSED GROUP HOUSING PROJECT IN Document No. Date
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Design wind pressures at various elevations shall be as follows

V b k1 k 2 k3
pz = 47 1.0 0.93 1.0 = 1.15 kN/sqm ( upto 10m Height)
pz = 47 1.0 0.97 1.0 = 1.25 kN/sqm ( 10m to 15m Height)
pz = 47 1.0 1.00 1.0 = 1.33 kN/sqm ( 15m to 20m Height)
pz = 47 1.0 1.04 1.0 = 1.43 kN/sqm ( 20m to 30m Height)
pz = 47 1.0 1.10 1.0 = 1.60 kN/sqm ( 30m to 50m Height)
pz = 47 1.0 1.17 1.0 = 1.81 kN/sqm ( 50m to 100m Height)

Force coefficients on the building are applied as per Fig. 4 of IS 875 (part 3)

In X-Direction
h/b = 2.04
a/b = 1.25 hence force coefficient applied is 1.20

In Y-Direction
h/b = 1.63
a/b = 0.8 hence force coefficient applied is 1.20
These coefficient are applied on the walls in their respective directions.

4.4 EARTHQUAKE LOADS (As per IS:1893 - 2002 Part-2 )

The basic paramenters are as follows :

Seismic Zone = IV
Zone Factor, Z = 0.24
Importance Factor, I = 1.0
Response reduction Factor, R = 4.0
Type of soil = Medium
Damping Ratio = 0.05
Time period, T = 0.09 h / d
Time period applied in X- direction = (0.09 x 59.595) / 36.555 = 0.887
Time period applied in Y- direction = (0.09 x 59.595) / 29.26= 0.991
The seismic analysis is carried out by using seismic co-efficient menthod and
response spectrum method and designed the structure with modified the base shear
as per the clause 7.8.2 of IS 1983(part-1) : 2002

4.5 Basic Load Cases :

The following basic loads are considered for analysis and design
of the superstructure and foundation.

6
 NCC Limited
Engineering Design and Technology Department
PROPOSED GROUP HOUSING PROJECT IN Document No. Date
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

No. Load Type Description

1 EQX Seismic in X- direction
2 EQY Seismic in Y- direction
3 SRSS X Response Spectrum in X- direction
4 SRSS Y Response Spectrum in Y- direction
5 DL Dead Loads
6 LL Live Loads
7 WL(X) Wind Pressure in +X Direction
8 WL(XN) Wind Pressure in -X Direction
9 WL(Y) Wind Pressure in +Y Direction
10 WL(YN) Wind Pressure in -Y Direction

4.6 Load Combinations :

The following load combinations are considered for analysis
Serviceability Load Combinations

1.0 x (DL + LL) 1.0 x (DL + 0.25LL + SRSSX/EQX)

1.0 x (DL + SRSSX/EQX) 1.0 x (DL + 0.25LL + SRSSXN/EQXN)
1.0 x (DL + SRSSXN/EQXN) 1.0 x (DL + 0.25LL + SRSSY/EQY)
1.0 x (DL + SRSSY/EQY) 1.0 x (DL + 0.25LL + SRSSYN/EQYN)
1.0 x (DL + SRSSYN/EQYN) 1.0 x (DL + LL + WLX)
1.0 x (DL + WLX) 1.0 x (DL + LL + WLXN)
1.0 x (DL + WLXN) 1.0 x (DL + LL + WLY)
1.0 x (DL + WLY) 1.0 x (DL + LL + WLYN)
1.0 x (DL + WLYN)

Design Load Combinations

1.5 x (DL + LL) 1.2 x (DL + 0.25LL + SRSSX/EQX)
1.5 x (DL + SRSSX/EQX) 1.2 x (DL + 0.25LL + SRSSXN/EQXN)
1.5 x (DL + SRSSXN/EQXN) 1.2 x (DL + 0.25LL + SRSSY/EQY)
1.5 x (DL + SRSSY/EQY) 1.2 x (DL + 0.25LL + SRSSYN/EQYN)
1.5 x (DL + SRSSYN/EQYN) 1.2 x (DL + LL + WLX)
1.5 x (DL + WLX) 1.2 x (DL + LL + WLXN)
1.5 x (DL + WLXN) 1.2 x (DL + LL + WLY)
1.5 x (DL + WLY) 1.2 x (DL + LL + WLYN)
1.5 x (DL + WLYN)

7
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

5.0.MODELLING OF THE STRUCUTRE - E TABS MODELS

Tower F(mirror of tower A) building structure is analysed in E tabs by modelling the walls
and slabs as a 3-D model for analysis.

Fig.-1a E tabs model for 3-D view of the Building.

8
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Fig.-2 Typical Floor Plan

Fig.-3 Safe model for showing Raft footing plan.

9
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

6 ANALYSIS AND DESIGN RESULTS

Super Structure

The Tower is modelled and analysed and design using Etabs software.
The columns and shear walls are designed using this software and the reinforcement is
provided accordingly. The reinforcement details are provided in annexure 7.1.2.

Raft

The raft foundation is provided to support all the columns/Shearwalls of tower. The
extents of the raft foundation are shown in the layout drawing as shown in Fig.3. It also shows
the location of columns/shearwalls resting on the raft footing. The support reactions coming
from super structure are taken directly from the E TABS output file of tower after analysis.
The raft is laid on soil at a depth of 3m from Natural Ground level. The thickness of the
Raft provided is 1000mm.
The exterior columns of Tower-G are resting on Tower-F raft. The drive way columns
beside tower-F are resting on Tower-F raft. Exterior Wall of tower F is resting on Tower E raft.
The analysis and design of raft footing is performed using the SAFE FEM package for the
various load combinations. The base pressures obtained from the analysis for governing
load combinations are tabulated below. It is ensured that the loads coming on to the
foundation are within the safe load carrying capacity of the soil. The reinforcement is provided
on the basis of design results obtained from SAFE.

For Part-1

Permissible Safe Bearing Result Fig

S.NoLoad type Load combination capacity (kN/sqm) From Safe No

at -4.35m lvl at -4.35m lvl

1 Vertical DL+LL 246 235 Safe 5
2 Lateral DL+EQ/SRSS 343 317 Safe 6
3 Lateral DL+LL+EQ/SRSS 343 327.4 Safe 7
4 Lateral DL+WL 296 248 Safe 8
5 Lateral DL+LL+WL 296 256.5 Safe 9
For Part-2

SHEAR CHECK
Enhanced Shear is considered to perform the shear check in the raft. The shears are
well below the permissible limits except at a few locations for which shear
reinforcement is provided and the calculations are provided below.

10
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1
Two way Shear Check for Tower-F

Shear wall group = SW1 SW2 SW3 SW4 SW5

FY12 / FY21 / FX12 / FX11 / FY8 /

Grids = FX7 FX6 FY25 FY8 FX19
Size of wall/col (thickness) = 300/200 300/200 300/200 300/150 300/200

Size of wall/col (length) = 3200 3750 3200 7475 4200

Footing Depth (mm) = 1000 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30 30
Maximum Load (kN) = 7599 8116.6 8641 12753 9721
FDLLLL
Governing Load combination FDLW FDLWL FDLLL FDLLL SRSSY
= LX X WLX WLX Max

Avg. Base pressure under column (kN/m2)

= 260 265 230 225 200

Punching area (m2) = 4.72 5.8156 5.134 10.435 6.3736

Load resisted by punching area (kN) = 1227 1541.1 1181 2347.8 1274.7
Net Shear force (kN) = 6372 6575.5 7461 10406 8446.5
Punching perimeter (m) = 8280 9380 8280 16830 10280

Punching shear stress,(N/mm2) = 0.82 0.75 0.96 0.66 0.87

ks = 1 1 1 1 1
2
Allowable shear stress (N/mm ) = 1.37 1.37 1.37 1.37 1.37
tc=ks * 0.25 sqrt(fck)
OK OK OK OK OK

11
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Shear wall group = SW6 SW7 SW8 SW10 SW11 SW12

FY27 / FY37 / FX25 / FY16 / FY9 / FX24 /

Grids = FX18 FX14 FY27 FX28 FX32 FY14

Size of wall/col (thickness) = 300/200 300/200 300/200 300/200 300/200 300/200

Size of wall/col (length) = 3750 8050 3200 3750 4200 6250

Footing Depth (mm) = 1000 1000 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30 30 30
Maximum Load (kN) = 9093 14784 8814 7506.2 10590 12752

FDLLLL
Governing Load combination
FDLW FDLWL FDLLL FDLW SRSSY FDLLL
= LX X WLX LX N Max WLX
2
Avg. Base pressure under column (kN/m =) 250 235 215 285 145 210
2
Punching area (m ) = 5.816 11.148 5.134 5.8156 6.3736 8.9156
Load resisted by punching area (kN) = 1454 2619.7 1104 1657.5 924.17 1872.3
Net Shear force (kN) = 7639 12164 7710 5848.8 9665.5 10880
Punching perimeter (m) = 9380 17980 8280 9380 10280 14380
2
Punching shear stress,(N/mm ) = 0.87 0.72 0.99 0.66 1 0.8
ks = 1 1 1 1 1 1
2
Allowable shear stress (N/mm ) = 1.37 1.37 1.37 1.37 1.37 1.37

tc=ks * 0.25 sqrt(fck)

OK OK OK OK OK OK

12
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Shear wall group = SW13 SW14 SW15 SW16 SW9

FY2 / FX2 / FY14 / FY11 / FX34 /

Grids = FX19 FY12 FX28 FY17 FY34

Size of wall/col (thickness) = 300 300 300 250 300/150

Size of wall/col (length) = 4200 4200 4200 3450 8050

Footing Depth (mm) = 1000 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30 30
Maximum Load (kN) = 9949.5 11960 10478 7788.3 28124
FDLLL
LSRS FDLLLL
Governing Load combination FDLWL SY FDLW SRSSY FDLWL
= X Min LX Max X
2
Avg. Base pressure under column (kN/m ) = 288 109 285 210 265

Punching area (m2) = 6.3736 6.374 6.3736 5.2241 10.249

Load resisted by punching area (kN)

= 1835.6 694.7 1816.5 1097.1 2715.9
Net Shear force (kN) = 8113.9 11265 8661.6 6691.2 25408
Punching perimeter (m) = 10280 10280 10280 8780 17980
2
Punching shear stress,(N/mm ) = 0.84 1.17 0.9 0.81 1.5
ks = 1 1 1 1 1

Allowable shear stress (N/mm2)

= 1.37 1.37 1.37 1.37 1.37
tc=ks * 0.25 sqrt(fck)
NOT
OK OK OK OK OK

As the Punching shear stress under wall SW-9 at grid AX34/ AY34 is exceeding allowable
shear stress,tc. However, less than 1.5tc . Hence shear links are provided
According to IS 456-2000, Cl: 31.6.3.2, shear reinforcment shall be provided upto a section
where the shear stress doesnt exceed 0.5tc
Punching shear stress at distance 1.25d from face of the support = 0.68 N/mm2
< 0.5tc = 0.685
Vus = 0.13 N/mm2
Considering 10mm dia bar for shear reinforcement Sv = 262.7 mm
For four legged stirrups spacing required = 1051 mm c/c
However, provide a shear reinforcement of Y10 - 4 legged bar at spacing of 250mm c/c.

13
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Shear wall group = SW17 SW17 SW18 SW18 SW19

FX10 / FY16 / FY17 / FY20 / FX8 /

Grids = FY26 FX2 FX7 FX27 FY25

Size of wall/col (thickness) = 250 250 250 250 250

Size of wall/col (length) = 3450 3450 3200 3200 2600
Footing Depth (mm) = 1000 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30 30
Maximum Load (kN) = 9562.6 9951
FDLLL 7977.6 8117 6688
FDLLL LSRS
Governing Load combination LSRSS SYN FDLW FDLWL FDLLL
= Y Min Min LX X WLX
Avg. Base pressure under column (kN/m2) = 280 295 260 275 235
2
Punching area (m ) = 5.2241 5.224 4.9266 4.9266 4.2126
Load resisted by punching area (kN) = 1462.8 1541 1280.9 1354.8 989.96
Net Shear force (kN) = 8099.9 8410 6696.6 6761.9 5697.7
Punching perimeter (m) = 8780 8780 8280 8280 7080
2
Punching shear stress,(N/mm ) = 0.98 1.02 0.86 0.87 0.86
ks = 1 1 1 1 1
2
Allowable shear stress (N/mm ) = 1.37 1.37 1.37 1.37 1.37
tc=ks * 0.25 sqrt(fck)

OK OK OK OK OK

14
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Shear wall group = SW20 SW21 SW21 SW21 SW21

FY31 / FX18 / FX13 / FX12 / FY4 /

Grids = FX4 FY33 FY2 FY17 FX13

Size of wall/col (thickness) = 250 250 250 250 250

Size of wall/col (length) = 2600 1200 1200 1200 1200
Footing Depth (mm)
= 1000 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30 30
Maximum Load (kN) = 6386 2882 2979.1 3622 3909
FDLLL
FDLLL LSRS FDLLL FDLLLL FDLLL
Governing Load combination LSRSS SY LSRSS SRSSY LSRSS
= YN Min Max YN Min N Max YN Max
2
Avg. Base pressure under column (kN/m ) = 275 195 250 205 205
2
Punching area (m ) = 4.2126 2.547 2.5466 2.5466 2.5466

Load resisted by punching area (kN)

= 1158.5 496.6 636.65 522.05 522.05
Net Shear force (kN) = 5227.1 2385 2342.5 3100.1 3387.3
Punching perimeter (m) = 7080 4280 4280 4280 4280
2
Punching shear stress,(N/mm ) = 0.79 0.59 0.58 0.77 0.84
ks = 1 1 1 1 1

Allowable shear stress (N/mm2) = 1.37 1.37 1.37 1.37 1.37

tc=ks * 0.25 sqrt(fck)

OK OK OK OK OK

15
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Shear wall group = SW22 SW22 SW23 SW23 SW23

FX7 / FX31 / FY25 / FY30 / FY23 /

Grids = FY5 FY22 FX4 FX14 FX16

Size of wall/col (thickness) = 250 250 250 250 250

Size of wall/col (length) = 1200 1200 1200 1200 1200
Footing Depth (mm)
= 1000 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30 30
Maximum Load (kN) = 3858 4115 4026.7 2600 4323
FDLLL FDLLL
LSRSS LSRS FDLLL FDLLLL FDLLL
Governing Load combination YN SY LSRSS SRSSY LSRSS
= Max Max Y Min Max Y Min
2
Avg. Base pressure under column (kN/m ) = 155 190 280 195 245
2
Punching area (m ) = 2.5466 2.547 2.5466 2.5466 2.5466

Load resisted by punching area (kN)

= 394.72 483.9 713.05 496.59 623.92
Net Shear force (kN) = 3463.6 3632 3313.6 2103.1 3699.3
Punching perimeter (m) = 4280 4280 4280 4280 4280
2
Punching shear stress,(N/mm ) = 0.86 0.9 0.82 0.52 0.92
ks = 1 1 1 1 1

Allowable shear stress (N/mm2) = 1.37 1.37 1.37 1.37 1.37

tc=ks * 0.25 sqrt(fck)

OK OK OK OK OK

16
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Shear wall group = SW24 SW24 SW25 SW26 SW26 SW26

FX29 / FX26 / FX29 /

Grids = FY34 FY9 FY28 FX15 FX9 FX23

Size of wall/col (thickness) = 250 250 250 250 250 250

Size of wall/col (length) = 1200 1200 1200 900 900 900
Footing Depth (mm)
= 1000 1000 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30 30 30
Maximum Load (kN) = 2830 4615 3110.5 2748
2357 3040
FDLLL FDLLL FDLLL
LSRSS LSRS FDLLL FDLLLL FDLLL LSRS
Governing Load combination YN SYN LSRSS SRSSY LSRSS SYN
= Max Min YN Min Max YN Max Min
2
Avg. Base pressure under column (kN/m ) = 170 290 290 205 185 260
2
Punching area (m ) = 2.5466 2.547 2.5466 2.1896 2.1896 2.19

Load resisted by punching area (kN)

= 432.92 738.5 738.51 448.87 405.08 569.3
Net Shear force (kN) = 2397.1 3876 2372 2299.6 1952.3 2471
Punching perimeter (m) = 4280 4280 4280 6060 6060 6060
2
Punching shear stress,(N/mm ) = 0.6 0.96 0.59 0.4 0.34 0.43
ks = 1 1 1 0.78 0.78 0.78
2
Allowable shear stress (N/mm ) = 1.37 1.37 1.37 1.07 1.07 1.07

tc=ks * 0.25 sqrt(fck)

OK OK OK OK OK OK

17
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

Shear wall group = SW26 SW26 SW26 SW26

Grids = FX27 FX20 FX27 FY13

Size of wall/col (thickness) = 250 250 250 250

Size of wall/col (length) = 900 900 900 900
Footing Depth (mm)
= 1000 1000 1000 1000
Effective depth (mm) = 940 940 940 940
2
Grade of concrete (N/mm ) = 30 30 30 30
Maximum Load (kN) = 3022 3146
FDLLL 2469.7 3132
FDLLL LSRS FDLLL FDLLLL
Governing Load combination LSRSS SYN LSRSS SRSSY
= YN Min Max YN Min N Max
2
Avg. Base pressure under column (kN/m ) = 260 195 245 265

Punching area (m2) = 2.1896 2.19 2.1896 2.1896

Load resisted by punching area (kN)

= 569.3 427 536.45 580.24
Net Shear force (kN) = 2452.7 2719 1933.3 2552
Punching perimeter (m) = 6060 6060 6060 6060
Punching shear stress,(N/mm2) = 0.43 0.48 0.34 0.45
ks = 0.78 0.78 0.78 0.78
2
Allowable shear stress (N/mm ) = 1.07 1.07 1.07 1.07

tc=ks * 0.25 sqrt(fck)

OK OK OK OK

18
 NCC Limited
Engineering Design and Technology Department

PROPOSED GROUP HOUSING PROJECT IN SECTOR - Document No. Date

Project :
07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15

Designed Checked Approved Rev.

Title : Analysis and design of Tower-F
SHB KAR NSS 1

One Way shear check 3920

2512
Strip no. 6432
Strip width 2.70 m 0.699
load case FDL+EQX
Shear force/ strip = 2306 kN
Shear force/ mtr 854 kN
Grade of Concrete = M30
Total depth of Raft = 1000 mm
Effective Depth = 950 mm
Percentage reinforcement provided at that location is = 0.699%
Nominal shear stress = 0.899 N/mm2
Max permissible shear stress = 3.5 N/mm2
2
Permissible shear stress, 1.73tc at 'd' = 0.87 N/mm
Permissible shear stress, tc at '1.73d' = 0.52 N/mm2

Shear reinforcement required

Vus = 0.029 N/mm2
considering 10mm dia bar for shear reinforcement
Sv = 2353 mm

for four legged stirrups spacing required = 9412 mm c/c

Hence provide a shear reinforcement of Y10 - 4 legged bar at spacing of 250mm c/c.

19
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

7 ANNEXURES

7.1.1 Design of Raft footing

7.1.2 Base pressure diagrams

7.1.3 Design of driveway column foundations

7.1.4 Column/Wall design from E tabs

7.1.5 Soft Storey Calculations from E tabs

7.1.6 Design of proped cantilever retaining wall

20
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

7.1.1 Design of Raft footing

Fig No.4 Loads on Raft

7.1.2 Base pressure diagrams

Fig No.5 Base Pressure Diagram - DL+LL

21
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Fig No.6 Base Pressure Diagram - DL+EQX

Fig No.7 Base Pressure Diagram - DL+LL+EQNX

22
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Fig No.8 Base Pressure Diagram - DL+WLX

Fig No.9 Base Pressure Diagram - DL+LL+WLX

23
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Fig No.10 Top additional reinforcement to Y-20 @250c/c in X- direction

Fig No.11 Top additional reinforcement to Y-20 @250c/c in Y- direction

24
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project :
SECTOR -07, MANDOLA VIHAR UPAVP-NCC-A-MVY-CV-F-01 27.08.15
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Fig No.12 Bottom additional reinforcement to Y-20 @250c/c in X- direction

Fig No.13 Bottom additional reinforcement to Y-20 @250c/c in Y- direction

25
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F.1 2.00 X 2.00

Load, P = 610 kN YD = 0.45 m f ck = 30 N/mm2 Node No. = 109,310,961,094,354

2
Moment about X - axis, Mx = 5 kNm ZD = 0.30 m fy= 500 N/mm L/C = UFDLEQX
Moment about Z - axis, Mz = 1 kNm Lx = 2.000 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 2.000 m Z

166
Selfwt of footing = 35
Depth of over burden = 0 m 350
kN/m3

0.850
Density of Soil = 18
2
Required area, Areq. = 3.57 m Mz = 1

162
2
Provided area, Aprov. = 4.00 m Safe 0.45

Lz = 2.00
Column /

ZD
0.3

2.00
5
Maximum Bearing Pressure, pmax = 166 <181 Safe X Pedestal

Mx =

0.850
YD
Minimum Bearing pressure, pmin = 157 > 0 Safe
Thickness of footing at center, T1 = 350 mm Lx = 2.00

157
350
Thickness of footing at edge, T2 = 350 mm
Along Along
X - axis Z - axis 0.775 0.775
One way shear Safe Safe 0 0.744
350

Twoway shear (Punching shear) Safe 2.00 350 0.45

0.594

0.30
Dia of the bar, f 12 12
Required spacing 177 153 157 163 166
Provided spacing c/c 150 150
No of bars 13 13

Moment, M = 50 60 kN.m per m

d req. = 137 150 mm
Available effective depth, d = 282 294 mm

26
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F.1 2.00 X 2.00
2 2
Mu /bd = 0.95 1.05 N/mm
2
Required area of steel, Ast req. = 640 741 mm
2
Provided area of steel, Ast prov. = 754 754 mm
Provided % of steel = 0.267 0.256 %
Net pressures/diagram
2
At 'd' distance from face of the column = 164 164 kN/m
2
At 'd/2' distance from face of the column = 163 163 kN/m
At '1.73d' distance from face of the column = 165 164 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 294 282 mm
% of steel at 'd' = 0.26 0.27 %
Shear Force at 'd', V = 81 92 kN per m
2
Nominal shear stress, tv at 'd' = 0.415 0.487 N/mm
Permissible shear stress, 2tc at 'd' = 0.76 0.76 N/mm2
Safe Safe
Effective depth at '1.73d' = 294 282 mm
% of steel at '1.73d' = 0.26 0.27 %
Shear Force at '1.73d', V = 47 56.2 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.24 0.30 N/mm
Permissible shear stress, tc at '1.73d' = 0.38 0.38 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 294 mm
Influence area for twoway shear = 3.56 m2
Shear force = 585 kN
Perimeter of the c.s for punching = 2.68 m
Nominal shear stress, tv = 1.12 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

27
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F2 2.20 X 2.20

Load, P = 577 kN YD = 0.30 m f ck = 30 N/mm2 Node No. = 1264,1040,1069,1095,353,307

Moment about X - axis, Mx = 72 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLEQX
Moment about Z - axis, Mz = 2 kNm Lx = 2.200 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 2.200 m Z

173
Selfwt of footing = 55
Depth of over burden = 0 m 450
kN/m3

0.875
Density of Soil = 18
2
Required area, Areq. = 3.50 m Mz = 2

140
2
Provided area, Aprov. = 4.84 m Safe 0.3

0.45

Lz = 2.20
Column /

ZD
72

2.20
Maximum Bearing Pressure, pmax = 173 <181 Safe X Pedestal

Mx =

0.875
YD
Minimum Bearing pressure, pmin = 89 > 0 Safe
Thickness of footing at center, T1 = 450 mm Lx = 2.20

450

89
Thickness of footing at edge, T2 = 450 mm
Along Along
X - axis Z - axis 0.950 0.950
One way shear Safe Safe 0 0.694
450

Twoway shear (Punching shear) Safe 2.20 450 0.30

0.844

0.45
Dia of the bar, f 12 12
Required spacing 171 197 89 137 173
Provided spacing c/c 150 150
No of bars 15 15

Moment, M = 73 62 kN.m per m

d req. = 166 153 mm
Available effective depth, d = 394 382 mm

28
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F2 2.20 X 2.20
2 2
Mu /bd = 0.71 0.64 N/mm
2
Required area of steel, Ast req. = 662 577 mm
2
Provided area of steel, Ast prov. = 754 754 mm
Provided % of steel = 0.191 0.197 %
Net pressures/diagram
2
At 'd' distance from face of the column = 152 154 kN/m
2
At 'd/2' distance from face of the column = 144 147 kN/m
At '1.73d' distance from face of the column = 163 166 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 394 382 mm
% of steel at 'd' = 0.19 0.20 %
Shear Force at 'd', V = 90 81 kN per m
2
Nominal shear stress, tv at 'd' = 0.344 0.317 N/mm
Permissible shear stress, 2tc at 'd' = 0.66 0.68 N/mm2
Safe Safe
Effective depth at '1.73d' = 394 382 mm
% of steel at '1.73d' = 0.19 0.20 %
Shear Force at '1.73d', V = 45 35.0 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.17 0.14 N/mm
Permissible shear stress, tc at '1.73d' = 0.33 0.34 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 394 mm
Influence area for twoway shear = 4.25 m2
Shear force = 678 kN
Perimeter of the c.s for punching = 3.08 m
Nominal shear stress, tv = 0.84 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

29
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F3 2.50 X 2.75

Load, P = 925 kN YD = 0.30 m f ck = 30 N/mm2 Node No. = 358,1099,1024,1133,1034

Moment about X - axis, Mx = 19 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLLL
Moment about Z - axis, Mz = 68 kNm Lx = 2.500 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 2.750 m Z

176
Selfwt of footing = 78
Depth of over burden = 0 m 450
kN/m3

1.150
Density of Soil = 18
2
Required area, Areq. = 5.55 m Mz = 68

151
2
Provided area, Aprov. = 6.88 m Safe 0.3

0.45

Lz = 2.75
Column /

ZD
19

2.75
Maximum Bearing Pressure, pmax = 176 <181 Safe X Pedestal

Mx =

1.150
YD
Minimum Bearing pressure, pmin = 117 > 0 Safe
Thickness of footing at center, T1 = 450 mm Lx = 2.50

117
450
Thickness of footing at edge, T2 = 450 mm
Along Along
X - axis Z - axis 1.100 1.100
One way shear Safe Safe 0 0.692
450

Twoway shear (Punching shear) Safe 2.50 450 0.30

0.842

0.45
Dia of the bar, f 16 16
Required spacing 206 196 117 150 176
Provided spacing c/c 175 175
No of bars 14 16

Moment, M = 101 111 kN.m per m

d req. = 195 204 mm
Available effective depth, d = 376 392 mm

30
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F3 2.50 X 2.75
2 2
Mu /bd = 1.08 1.09 N/mm
2
Required area of steel, Ast req. = 976 1028 mm
2
Provided area of steel, Ast prov. = 1149 1149 mm
Provided % of steel = 0.306 0.293 %
Net pressures/diagram
2
At 'd' distance from face of the column = 159 160 kN/m
2
At 'd/2' distance from face of the column = 155 155 kN/m
At '1.73d' distance from face of the column = 165 165 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 392 376 mm
% of steel at 'd' = 0.29 0.31 %
Shear Force at 'd', V = 121 127 kN per m
2
Nominal shear stress, tv at 'd' = 0.464 0.508 N/mm
Permissible shear stress, 2tc at 'd' = 0.80 0.82 N/mm2
Safe Safe
Effective depth at '1.73d' = 392 376 mm
% of steel at '1.73d' = 0.29 0.31 %
Shear Force at '1.73d', V = 77 79.2 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.29 0.32 N/mm
Permissible shear stress, tc at '1.73d' = 0.40 0.41 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 392 mm
Influence area for twoway shear = 6.29 m2
Shear force = 1041 kN
Perimeter of the c.s for punching = 3.07 m
Nominal shear stress, tv = 1.30 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

31
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F4 2.75 X 2.75

Load, P = 1056 kN YD = 0.30 m f ck = 30 N/mm2 Node No. =1611,1606,1607,1184,1158 ,1129,1223

Moment about X - axis, Mx = 63 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLLL
Moment about Z - axis, Mz = 14 kNm Lx = 2.750 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 2.750 m Z

175
Selfwt of footing = 95
Depth of over burden = 0 m 500
kN/m3

1.150
Density of Soil = 18
2
Required area, Areq. = 6.36 m Mz = 14

156
2
Provided area, Aprov. = 7.56 m Safe 0.3

0.45

Lz = 2.75
Column /

ZD
63

2.75
Maximum Bearing Pressure, pmax = 175 <181 Safe X Pedestal

Mx =

1.150
YD
Minimum Bearing pressure, pmin = 130 > 0 Safe
Thickness of footing at center, T1 = 500 mm Lx = 2.75

130
500
Thickness of footing at edge, T2 = 500 mm
Along Along
X - axis Z - axis 1.225 1.225
One way shear Safe Safe 0 0.742
500

Twoway shear (Punching shear) Safe 2.75 500 0.30

0.892

0.45
Dia of the bar, f 16 16
Required spacing 197 213 130 155 175
Provided spacing c/c 175 175
No of bars 16 16

Moment, M = 126 112 kN.m per m

d req. = 218 205 mm
Available effective depth, d = 442 426 mm

32
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F4 2.75 X 2.75
2 2
Mu /bd = 0.97 0.93 N/mm
2
Required area of steel, Ast req. = 1026 946 mm
2
Provided area of steel, Ast prov. = 1149 1149 mm
Provided % of steel = 0.260 0.270 %
Net pressures/diagram
2
At 'd' distance from face of the column = 162 163 kN/m
2
At 'd/2' distance from face of the column = 159 160 kN/m
At '1.73d' distance from face of the column = 168 169 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 442 426 mm
% of steel at 'd' = 0.26 0.27 %
Shear Force at 'd', V = 132 122 kN per m
2
Nominal shear stress, tv at 'd' = 0.448 0.431 N/mm
Permissible shear stress, 2tc at 'd' = 0.76 0.78 N/mm2
Safe Safe
Effective depth at '1.73d' = 442 426 mm
% of steel at '1.73d' = 0.26 0.27 %
Shear Force at '1.73d', V = 79 69.8 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.27 0.25 N/mm
Permissible shear stress, tc at '1.73d' = 0.38 0.39 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 442 mm
Influence area for twoway shear = 6.90 m2
Shear force = 1153 kN
Perimeter of the c.s for punching = 3.27 m
Nominal shear stress, tv = 1.20 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

33
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F5 3.00 X 3.00

Load, P = 1336 kN YD = 0.30 m f ck = 30 N/mm2 Node No. = 1188,1150,1612,1140

Moment about X - axis, Mx = 21 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLLL
Moment about Z - axis, Mz = 10 kNm Lx = 3.000 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 3.000 m Z

170
Selfwt of footing = 124
Depth of over burden = 0 m 550
kN/m3

1.275
Density of Soil = 18
2
Required area, Areq. = 8.07 m Mz = 10

164
2
Provided area, Aprov. = 9.00 m Safe 0.3

0.45

Lz = 3.00
Column /

ZD
21

3.00
Maximum Bearing Pressure, pmax = 170 <181 Safe X Pedestal

Mx =

1.275
YD
Minimum Bearing pressure, pmin = 156 > 0 Safe
Thickness of footing at center, T1 = 550 mm Lx = 3.00

156
550
Thickness of footing at edge, T2 = 550 mm
Along Along
X - axis Z - axis 1.350 1.350
One way shear Safe Safe 0 0.792
550

Twoway shear (Punching shear) Safe 3.00 550 0.30

0.942

0.45
Dia of the bar, f 16 16
Required spacing 180 195 156 164 170
Provided spacing c/c 175 175
No of bars 17 17

Moment, M = 153 137 kN.m per m

d req. = 240 227 mm
Available effective depth, d = 492 476 mm

34
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F5 3.00 X 3.00
2 2
Mu /bd = 0.95 0.91 N/mm
2
Required area of steel, Ast req. = 1117 1034 mm
2
Provided area of steel, Ast prov. = 1149 1149 mm
Provided % of steel = 0.234 0.241 %
Net pressures/diagram
2
At 'd' distance from face of the column = 166 166 kN/m
2
At 'd/2' distance from face of the column = 165 165 kN/m
At '1.73d' distance from face of the column = 168 168 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 492 476 mm
% of steel at 'd' = 0.23 0.24 %
Shear Force at 'd', V = 144 134 kN per m
2
Nominal shear stress, tv at 'd' = 0.439 0.423 N/mm
Permissible shear stress, 2tc at 'd' = 0.72 0.74 N/mm2
Safe Safe
Effective depth at '1.73d' = 492 476 mm
% of steel at '1.73d' = 0.23 0.24 %
Shear Force at '1.73d', V = 84 75.9 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.26 0.24 N/mm
Permissible shear stress, tc at '1.73d' = 0.36 0.37 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 492 mm
Influence area for twoway shear = 8.25 m2
Shear force = 1383 kN
Perimeter of the c.s for punching = 3.47 m
Nominal shear stress, tv = 1.22 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

35
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F6 3.25 X 3.25

Load, P = 1594 kN YD = 0.30 m f ck = 30 N/mm2 Node No. 1149,1585,1027,1608,1610,1030

= ,1134,1072
Moment about X - axis, Mx = 41 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLLL
Moment about Z - axis, Mz = 3 kNm Lx = 3.250 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 3.250 m Z

174
Selfwt of footing = 159
Depth of over burden = 0 m 600
kN/m3

1.400
Density of Soil = 18
2
Required area, Areq. = 9.69 m Mz = 3

168
2
Provided area, Aprov. = 10.56 m Safe 0.3

0.45

Lz = 3.25
Column /

ZD
41

3.25
Maximum Bearing Pressure, pmax = 174 <181 Safe X Pedestal

Mx =

1.400
YD
Minimum Bearing pressure, pmin = 159 > 0 Safe
Thickness of footing at center, T1 = 600 mm Lx = 3.25

159
600
Thickness of footing at edge, T2 = 600 mm
Along Along
X - axis Z - axis 1.475 1.475
One way shear Safe Safe 0 0.842
600

Twoway shear (Punching shear) Safe 3.25 600 0.30

0.992

0.45
Dia of the bar, f 16 16
Required spacing 162 175 159 167 174
Provided spacing c/c 150 150
No of bars 22 22

Moment, M = 187 168 kN.m per m

d req. = 265 251 mm
Available effective depth, d = 542 526 mm

36
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F6 3.25 X 3.25
2 2
Mu /bd = 0.96 0.92 N/mm
2
Required area of steel, Ast req. = 1244 1155 mm
2
Provided area of steel, Ast prov. = 1340 1340 mm
Provided % of steel = 0.247 0.255 %
Net pressures/diagram
2
At 'd' distance from face of the column = 170 170 kN/m
2
At 'd/2' distance from face of the column = 168 169 kN/m
At '1.73d' distance from face of the column = 172 172 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 542 526 mm
% of steel at 'd' = 0.25 0.25 %
Shear Force at 'd', V = 160 150 kN per m
2
Nominal shear stress, tv at 'd' = 0.444 0.429 N/mm
Permissible shear stress, 2tc at 'd' = 0.74 0.76 N/mm2
Safe Safe
Effective depth at '1.73d' = 542 526 mm
% of steel at '1.73d' = 0.25 0.25 %
Shear Force at '1.73d', V = 93 84.3 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.26 0.24 N/mm
Permissible shear stress, tc at '1.73d' = 0.37 0.38 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 542 mm
Influence area for twoway shear = 9.73 m2
Shear force = 1666 kN
Perimeter of the c.s for punching = 3.67 m
Nominal shear stress, tv = 1.26 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

37
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F7 3.50 X 3.50

Load, P = 1823 kN YD = 0.30 m f ck = 30 N/mm2 Node No. 1149,1585,1027,1608,1610,1030

= ,1134,1072
Moment about X - axis, Mx = 28 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLLL
Moment about Z - axis, Mz = 37 kNm Lx = 3.500 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 3.500 m Z

175
Selfwt of footing = 200
Depth of over burden = 0 m 650
kN/m3

1.525
Density of Soil = 18
2
Required area, Areq. = 11.18 m Mz = 37

167
2
Provided area, Aprov. = 12.25 m Safe 0.3

0.45

Lz = 3.50
Column /

ZD
28

3.50
Maximum Bearing Pressure, pmax = 175 <181 Safe X Pedestal

Mx =

1.525
YD
Minimum Bearing pressure, pmin = 157 > 0 Safe
Thickness of footing at center, T1 = 650 mm Lx = 3.50

157
650
Thickness of footing at edge, T2 = 650 mm
Along Along
X - axis Z - axis 1.600 1.600
One way shear Safe Safe 0 0.892
650

Twoway shear (Punching shear) Safe 3.50 650 0.30

1.042

0.45
Dia of the bar, f 16 16
Required spacing 150 161 157 167 175
Provided spacing c/c 125 125
No of bars 28 28

Moment, M = 220 200 kN.m per m

d req. = 288 274 mm
Available effective depth, d = 592 576 mm

38
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F7 3.50 X 3.50
2 2
Mu /bd = 0.95 0.91 N/mm
2
Required area of steel, Ast req. = 1344 1251 mm
2
Provided area of steel, Ast prov. = 1608 1608 mm
Provided % of steel = 0.272 0.279 %
Net pressures/diagram
2
At 'd' distance from face of the column = 170 170 kN/m
2
At 'd/2' distance from face of the column = 168 169 kN/m
At '1.73d' distance from face of the column = 172 172 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 592 576 mm
% of steel at 'd' = 0.27 0.28 %
Shear Force at 'd', V = 174 164 kN per m
2
Nominal shear stress, tv at 'd' = 0.440 0.426 N/mm
Permissible shear stress, 2tc at 'd' = 0.78 0.78 N/mm2
Safe Safe
Effective depth at '1.73d' = 592 576 mm
% of steel at '1.73d' = 0.27 0.28 %
Shear Force at '1.73d', V = 100 91.2 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.25 0.24 N/mm
Permissible shear stress, tc at '1.73d' = 0.39 0.39 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 592 mm
Influence area for twoway shear = 11.32 m2
Shear force = 1944 kN
Perimeter of the c.s for punching = 3.87 m
Nominal shear stress, tv = 1.27 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

39
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F8 2.45 X 3.30

Load, P = 1223 kN YD = 0.30 m f ck = 30 N/mm2 Node No. 1149,1585,1027,1608,1610,1030

= ,1134,1072
Moment about X - axis, Mx = 37 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLLL
Moment about Z - axis, Mz = 19 kNm Lx = 2.450 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 3.300 m Z

178
Selfwt of footing = 102
Depth of over burden = 0 m 500
kN/m3

1.425
Density of Soil = 18
2
Required area, Areq. = 7.33 m Mz = 19

166
2
Provided area, Aprov. = 8.09 m Safe 0.3

0.45

Lz = 3.30
Column /

ZD
37

3.30
Maximum Bearing Pressure, pmax = 178 <181 Safe X Pedestal

Mx =

1.425
YD
Minimum Bearing pressure, pmin = 150 > 0 Safe
Thickness of footing at center, T1 = 500 mm Lx = 2.45

150
500
Thickness of footing at edge, T2 = 500 mm
Along Along
X - axis Z - axis 1.075 1.075
One way shear Safe Safe 0 0.742
500

Twoway shear (Punching shear) Safe 2.45 500 0.30

0.892

0.45
Dia of the bar, f 16 16
Required spacing 240 138 150 166 178
Provided spacing c/c 200 125
No of bars 13 26

Moment, M = 100 177 kN.m per m

d req. = 194 258 mm
Available effective depth, d = 426 442 mm

40
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/1/1900 NSS 1
Footing Marked = F8 2.45 X 3.30
2 2
Mu /bd = 0.83 1.36 N/mm
2
Required area of steel, Ast req. = 841 1463 mm
2
Provided area of steel, Ast prov. = 1005 1608 mm
Provided % of steel = 0.236 0.364 %
Net pressures/diagram
2
At 'd' distance from face of the column = 171 170 kN/m
2
At 'd/2' distance from face of the column = 168 168 kN/m
At '1.73d' distance from face of the column = 174 172 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 442 426 mm
% of steel at 'd' = 0.23 0.38 %
Shear Force at 'd', V = 113 171 kN per m
2
Nominal shear stress, tv at 'd' = 0.384 0.602 N/mm
Permissible shear stress, 2tc at 'd' = 0.72 0.90 N/mm2
Safe Safe
Effective depth at '1.73d' = 442 426 mm
% of steel at '1.73d' = 0.23 0.38 %
Shear Force at '1.73d', V = 60 114.8 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.20 0.40 N/mm
Permissible shear stress, tc at '1.73d' = 0.36 0.45 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 442 mm
Influence area for twoway shear = 7.42 m2
Shear force = 1284 kN
Perimeter of the c.s for punching = 3.27 m
Nominal shear stress, tv = 1.33 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

41
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/0/1900 NSS 1
Footing Marked = F9 1.45 X 2.25

Load, P = 341 kN YD = 0.30 m f ck = 30 N/mm2 Node No. = 1373

Moment about X - axis, Mx = 20 kNm ZD = 0.45 m fy= 500 N/mm2 L/C = UFDLLL
Moment about Z - axis, Mz = 14 kNm Lx = 1.450 m Load factor = 1.5
Gross SBC = 181 kN/m2 Lz = 2.250 m Z

148
Selfwt of footing = 29
Depth of over burden = 0 m 350
kN/m3

0.900
Density of Soil = 18
2
Required area, Areq. = 2.05 m Mz = 14

121
2
Provided area, Aprov. = 3.26 m Safe 0.3

0.45

Lz = 2.25
Column /

ZD
20

2.25
Maximum Bearing Pressure, pmax = 148 <181 Safe X Pedestal

Mx =

0.900
YD
Minimum Bearing pressure, pmin = 80 > 0 Safe
Thickness of footing at center, T1 = 350 mm Lx = 1.45

350

80
Thickness of footing at edge, T2 = 350 mm
Along Along
X - axis Z - axis 0.575 0.575
One way shear Safe Safe 0 0.594
350

Twoway shear (Punching shear) Safe 1.45 350 0.30

0.744

0.45
Dia of the bar, f 12 12
Required spacing 270 164 80 121 148
Provided spacing c/c 150 150
No of bars 10 15

Moment, M = 23 56 kN.m per m

d req. = 93 145 mm
Available effective depth, d = 282 294 mm

42
 NCC LIMITED
Engineering Design and Technology Department
Document No. Date
Project PROPOSED GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-R-01 27.08.15
Design Check Approved Rev
Title Analysis and design of Tower-F
YRR 1/0/1900 NSS 1
Footing Marked = F9 1.45 X 2.25
2 2
Mu /bd = 0.44 0.98 N/mm
2
Required area of steel, Ast req. = 420 690 mm
2
Provided area of steel, Ast prov. = 754 754 mm
Provided % of steel = 0.267 0.256 %
Net pressures/diagram
2
At 'd' distance from face of the column = 134 130 kN/m
2
At 'd/2' distance from face of the column = 128 125 kN/m
At '1.73d' distance from face of the column = 144 136 kN/m2

Along Along
Check for Oneway shear X - axis Z - axis
Effective depth at 'd' = 294 282 mm
% of steel at 'd' = 0.26 0.27 %
Shear Force at 'd', V = 41 84 kN per m
2
Nominal shear stress, tv at 'd' = 0.211 0.448 N/mm
Permissible shear stress, 2tc at 'd' = 0.76 0.76 N/mm2
Safe Safe
Effective depth at '1.73d' = 294 282 mm
% of steel at '1.73d' = 0.26 0.27 %
Shear Force at '1.73d', V = 13 54.3 kN per m
2
Nominal shear stress, tv at '1.73d' = 0.06 0.29 N/mm
Permissible shear stress, tc at '1.73d' = 0.38 0.38 N/mm2
Safe Safe

Check for Punching shear

Eff. depth at d/2 from face of column = 294 mm
Influence area for twoway shear = 2.82 m2
Shear force = 387 kN
Perimeter of the c.s for punching = 2.68 m
Nominal shear stress, tv = 0.74 N/mm2
ks = 0.5+bc = 1.00
tc =0.25 sqrt(fck) = 1.37 N/mm2
2
A'ble punching shear stress, ks*0.25sqrt(f ck) = 1.37 N/mm Safe

43
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project : UPAVP-NCC-A-MVY-CV-F-
SECTOR -07, MANDOLA VIHAR 27.08.15
01
Designed CheckedApproved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

7.1.4 Column/Wall design from E tabs

Required
size Steel Provided Reinf
(SW1)
300/200 x 3200 6725 7316 mm2

Required Provided Reinf

size Steel
(SW2)
mm2
300/200 x 3750 8211 9075

Required Provided Reinf

size Steel
(SW3)
mm2
300/200 x 3200 7341 8591

Required Provided Reinf

size Steel
(SW4)
mm2
300/150 x 7475 13182 14771

Required Provided Reinf

size Steel
(SW5)
mm2
300/200 x 4200 9200 12478

Required Provided Reinf

size Steel
(SW6)
mm2
300/200 x 3750 10994 16878

44
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project : UPAVP-NCC-A-MVY-CV-F-
SECTOR -07, MANDOLA VIHAR 27.08.15
01
Designed CheckedApproved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Required Provided Reinf

size Steel
(SW7)
mm2
300/150 x 8050 12122 17132

Required Provided Reinf

size Steel
(SW8)
mm2
300/200 x 3200 11414 15063

Required Provided Reinf

size Steel
(SW9)
mm2
300/150 x 8050 17414 25271

Required Provided Reinf

size Steel
(SW10)
mm2
300/200 x 3750 8062 11304

Required Provided Reinf

size Steel
(SW11)
mm2
300/200 x 4200 10608 12303

Required Provided Reinf

size Steel
(SW12)
mm2
300/200 x 6250 6650 7750

Required Provided Reinf

size Steel
(SW13)
mm2
300 x 4200 5397 5803

45
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project : UPAVP-NCC-A-MVY-CV-F-
SECTOR -07, MANDOLA VIHAR 27.08.15
01
Designed CheckedApproved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Required Provided Reinf

size Steel
(SW14)
mm2
300 x 4200 7989 9043

Required Provided Reinf

size Steel
(SW15)
mm2
300 x 4200 3150 4746

Required Provided Reinf

size Steel
(SW16)
mm2
250 x 3600 2250 4068

Required Provided Reinf

size Steel
(SW17)
250 x 3200/600 3356 mm2
5702
250 x 3200/600 4284

Required Provided Reinf

size Steel
(SW18)
250 x 3450 2157 mm2
3448
250 x 3450 2157

Required Provided Reinf

size Steel
(SW19)
mm2
250 x 2600 1625 2926

Required Provided Reinf

size Steel
(SW20)
mm2
250 x 2600 4191 4898

46
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project : UPAVP-NCC-A-MVY-CV-F-
SECTOR -07, MANDOLA VIHAR 27.08.15
01
Designed CheckedApproved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

Required Provided Reinf

size Steel
(SW21)
250 x 1200 750
250 x 1200 750 mm2
1551
250 x 1200 750
250 x 1200 1023

Required Provided Reinf

size Steel
(SW22)
250 x 1200 1354 mm2
1689
250 x 1200 1408

Required Provided Reinf

size Steel
(SW23)
250 x 1200 2234
mm2
250 x 1200 2238 2512
250 x 1200 2238

Required Provided Reinf

size Steel
(SW24)
250 x 1200 3729 mm2
4019
250 x 1200 3361

Required Provided Reinf

size Steel
(SW25)
mm2
250 x 1200 4106 4748

47
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN
Project : UPAVP-NCC-A-MVY-CV-F-
SECTOR -07, MANDOLA VIHAR 27.08.15
01
Designed CheckedApproved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1
Column Reinforcement Details

Column Required Ast

2
Column Size group steel (mm )
250 x 900 C7 1091
250 x 900 1080
250 x 900 1080
250 x 900 1080
2110
250 x 900 1080
250 x 900 1876
250 x 900 1897

Column Required Ast

Column Size group steel (mm2)
250 x 300 C1 720 904
250 x 450 C2/C2A 1142 1256
250 x 450 C3 1523 1608
250 x 450 C4 1838 2060
250 x 450 C5/C5A 2371 2512
250 x 450 C6/C6A 3106 3140
250 x 450 C8 423 452

48
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN SECTOR -07,
Project : UPAVP-NCC-A-MVY-CV-F-
MANDOLA VIHAR 27.08.15
01
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1

7.1.5 Soft Storey Calculations from E tabs

Load Shear Drift Shear Drift Stiffness

Story Stiffness X stiffn
Case X X Y Y Y result
ess %
kN mm kN/m kN mm kN/m
16th floor SRSSX 1110 0.6 1801748.1 493.61 0.3 1688403
15th floor SRSSX 1882 0.6 2903794.9 852.63 0.3 2740424 162 not a soft storey
14th floor SRSSX 2566 0.7 3821036.5 1185.6 0.3 3695798 132 not a soft storey
13th floor SRSSX 3168 0.7 4578376.4 1491.1 0.3 4477476 120 not a soft storey
12th floor SRSSX 3697 0.7 5231076 1769.7 0.3 5115685 115 not a soft storey
11th floor SRSSX 4165 0.7 5800485.5 2022.5 0.4 5664671 111 not a soft storey
10th floor SRSSX 4583 0.7 6324657.6 2251.2 0.4 6154598 110 not a soft storey
9th floor SRSSX 4962 0.7 6835471.5 2458 0.4 6611901 109 not a soft storey
8th floor SRSSX 5311 0.7 7343263.8 2645 0.4 7066497 108 not a soft storey
7th floor SRSSX 5633 0.7 7902491.9 2813.9 0.4 7551092 108 not a soft storey
6th floor SRSSX 5932 0.7 8540900.8 2966 0.4 8073631 109 not a soft storey
5th floor SRSSX 6209 0.7 9372190.7 3102 0.4 8721209 110 not a soft storey
4th floor SRSSX 6463 0.6 10453799 3221.9 0.3 9549224 112 not a soft storey
3rd floor SRSSX 6695 0.6 11878719 3325.7 0.3 1.1E+07 114 not a soft storey
2nd floor SRSSX 6901 0.5 14202964 3412.9 0.3 1.3E+07 120 not a soft storey
1st floor SRSSX 7079 0.4 16732067 3484 0.3 1.4E+07 118 not a soft storey
stilt SRSSX 7258 0.6 11995537 3550.2 0.3 1E+07 72 not a soft storey
basement roof
SRSSX 7822 0.4 19527076 3653.9 0.3 1.1E+07 163 not a soft storey

16th floor SRSSY 440.7 0.3 1490345.7 965.04 0.5 2048539

15th floor SRSSY 768.2 0.3 2450220.3 1643.6 0.5 3261478 160 not a soft storey
14th floor SRSSY 1071 0.3 3277908.1 2251.3 0.5 4259165 131 not a soft storey
13th floor SRSSY 1349 0.3 3972189.4 2790.3 0.6 5071216 120 not a soft storey
12th floor SRSSY 1602 0.4 4565342.7 3266.5 0.6 5732538 114 not a soft storey
11th floor SRSSY 1832 0.4 5086970.6 3688.1 0.6 6272223 110 not a soft storey
10th floor SRSSY 2039 0.4 5563389.6 4064.6 0.6 6747190 108 not a soft storey
9th floor SRSSY 2226 0.4 6018784.6 4405.3 0.6 7193754 107 not a soft storey
8th floor SRSSY 2395 0.4 6492625.1 4718 0.6 7648369 107 not a soft storey
7th floor SRSSY 2546 0.4 6980304.6 5008.6 0.6 8148816 107 not a soft storey
6th floor SRSSY 2682 0.4 7532155.7 5280.2 0.6 8700836 107 not a soft storey
5th floor SRSSY 2801 0.3 8177886.9 5533.7 0.6 9399250 109 not a soft storey
4th floor SRSSY 2905 0.3 9027675.5 5768 0.6 1E+07 110 not a soft storey
3rd floor SRSSY 2993 0.3 10015046 5981.4 0.5 1.1E+07 111 not a soft storey
49
 NCC Limited
Engineering Design and Technology Department

Document No. Date

PROPOSED GROUP HOUSING PROJECT IN SECTOR -07,
Project : UPAVP-NCC-A-MVY-CV-F-
MANDOLA VIHAR 27.08.15
01
Designed Checked Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1
2nd floor SRSSY 3065 0.3 11801766 6170.7 0.5 1.3E+07 117 not a soft storey
1st floor SRSSY 3122 0.2 12658410 6334.3 0.4 1.5E+07 112 not a soft storey
stilt SRSSY 3173 0.3 12091085 6499.9 0.6 1.1E+07 74 not a soft storey
basement roof
SRSSY 3261 0.2 13695655 6992.9 0.5 1.5E+07 137 not a soft storey

Expansion Gap between two Blocks.

Part-1
From the above table the total drift (i.e summation of all floors) is 11.3 mm
Seperation between two block requuired as per clause 7.11.3 is (11.3 x 2 x R/2)
= 45.2 mm
However an expansion joint of 75 mm is provided between three blocks.

50
 NCC Limited
Engineering Design and Technology Department
Document No. Date
ProjectPROPOSED
: GROUP HOUSING PROJECT IN SECTOR -07, MANDOLA VIHAR
UPAVP-NCC-A-MVY-CV-F-01 27.08.15
DSGN CHKD Approved Rev.
Title : Analysis and design of Tower-F
SHB KAR NSS 1
7.1.6 DESIGN OF PROPPED CANTILEVER RETAINING WALL
0.15 0

3.55 11.98

0
0.725 0.15 0.10 0.725 1.99
0.250
0.25 0.81
Toe Heel

0.34 1.700 32.0 2.5

0.195 0.195 Pressure diagrams BMD for Prop Cantilever
142 114 104 90 80 52
121
Note: Bending moments and shear forces are taken from STAAD.
2
Compressive strength of concrete, f ck = 25 N/mm
2
Tensile strength of steel, f y = 500 N/mm
Density of soil, gsoil = 18 kN/m3
Clear cover for stem earth face = 40 mm
Clear cover for stem inner face = 30 mm
Clear cover for Footing = 50 mm
Soil at rest condition co-efficient of active pressure = 0.5
Total Height of wall above Raft = 3.55m
2
Fire vehicle surcharge = 5 kN/m
2
Net Soil Bearing capacity at 3.5 m = 130 kN/m
2
Gross Soil Bearing capacity at 3.8 m = 181 kN/m
Design of Stem/Wall
Required Provided
Spacing

Spacing

BM, Mu/ Ast, Ast, Total

kNm bd2 deff, mm mm2 deff, mm Dia mm2 Ast pt
10 250 314
Max. Bending Moment at base (E/F) 628 0.306
31.10 1.11 118 553 142 205 10 250 314
B.M. at 0.350 m above base (E/F) 15.00 0.58 82 300 262 196 10 250 314 - 0.160
Max. B.M. at span (O/F) at 2.00 m above 14.35 0.84 80 323 156 160 8 250 201
402 0.252
from footing top 8 250 201
Horizontal Reinf. = 0.1bD(E/F) 250 201 250 8 200 251 - 0.101
Horizontal Reinf. = 0.1bD(E/F) 200 251 200 8 250 201 - 0.101

Check for shear

Shear force at support = 51 kN
at
at 'd' '1.73d'
205 355 mm
Shear force = 44 42.6 kN
Effective depth at critical section = 199 195 mm
2
Nominal shear stress,tv = 0.331 0.328 N/mm
2
Permissible shear stress,tc = 0.798 0.399 N/mm
Safe Safe

51
 Distance Loads,
S.No. Item Moment, kN.m
from heel kN
1 Wall (Rectangular portion) 0.900 13.3 12.0
2 Wall (Triangle portion) 0.792 4.4 3.5
3 Load on the wall from stilt slab 0.850 90.0 76.5
4 Base slab 0.850 10.6 9.0
5 Soil above heel 0.363 46.3 16.8
6 Soil above the toe 1.338 0.0 0.0
Total 164.7 117.8

Distance from heel where resultant reaction acts, x = 0.72 m

Eccentricity,e = b/2-x = 0.135 m
Moment of resistance, MR = 22.18 kN m
Overturnimg moment, Mo = 43.85 kN m
Net moment, Mo-MR = 21.67 kN m
2
Maximum pressure at toe slab = 142 kN/m Safe
2
Minimum pressure at heel slab = 52 kN/m Safe

Design of Heel Slab

Downward moment due to soil & baseslab = 19.76 kN m
Upward moment due to bearing pressure = 17.00 kN m
Net B.M.at junction of heel and stem = 2.76 kN m Downward & tension at top face
Required effective depth = 35 mm
Provided effective depth = 195 mm OK

Required Provided
deff, Ast, Spacin Ast,
Mu/bd2 mm Dia mm 2
g Spacing mm2 pt
0.11 195 10 300 262 200 393 0.20

Check for shear

Max. shear force At face of wall = 3.0 kN
Nominal shear stress, tv = 0.02 N/mm2
Permissible shear stress of concrete , tc = 0.340 N/mm2 Safe

Design of Toe Slab

Downward moment due to soil & baseslab = 1.65 kN.m
Upward moment due to bearing pressure = 33.93 kN.m
Net B.M. at junction of toe and stem = 32.28 kN.m Upward and tension at bottom face
Required effective depth = 121 mm
Provided effective depth = 195 mm
Required Provided
deff, Ast, Spacin Ast,
Mu/bd2 mm Dia mm2 g Spacing mm2 pt
1.27 195 10 734 107 125 628 0.32

Check for shear at 'd' at '1.73d'

Max. shear force At 'd' from face of wall = 64.45 48.599 kN
Nominal shear stress = 0.50 0.37 N/mm2
Permissible shear stress of concrete , tc = 0.82 0.41 N/mm2
Safe Safe

52
