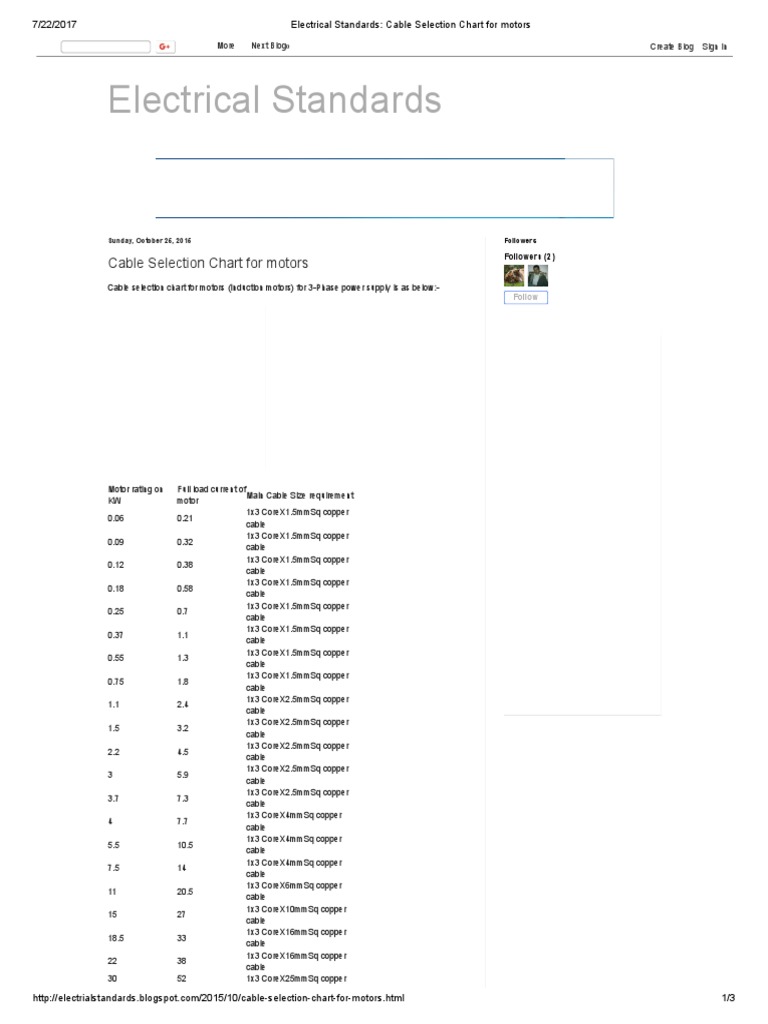

Cable Selection Chart for motors
Cable selection chart for motors (Induction motors) for 3-Phase power supply is as below:-
Follow
http://electrialstandards.blogspot.com/2015/10/cable-selection-chart-for-motors.html 1/3
7/22/2017 Electrical Standards: Cable Selection Chart for motors
cable
1x3 CoreX35mmSq copper
37 64
cable
1x3 CoreX50mmsq copper
45 78
cable
1x3 CoreX50mmsq copper
55 97
cable
1x3 CoreX70mmsq Copper
75 132
cable
1x3 CoreX95mmsq copper
90 156
cable
1x3 CoreX120mmsq copper
110 187
cable
1x3 coreX150mmsq copper
132 221
cable
1x3 CoreX185mmsq copper
160 260
cable
1x3CoreX 240mmsq copper
200 330
cable
1x 3CoreX400mmsq copper
250 415
cable
2X3CoreX 300 mmsq copper
315 520
cable
Above chart is for copper cables.
If there is requirement for aluminum cables then same will be increased by 1.5 times that the size
of copper cable.
