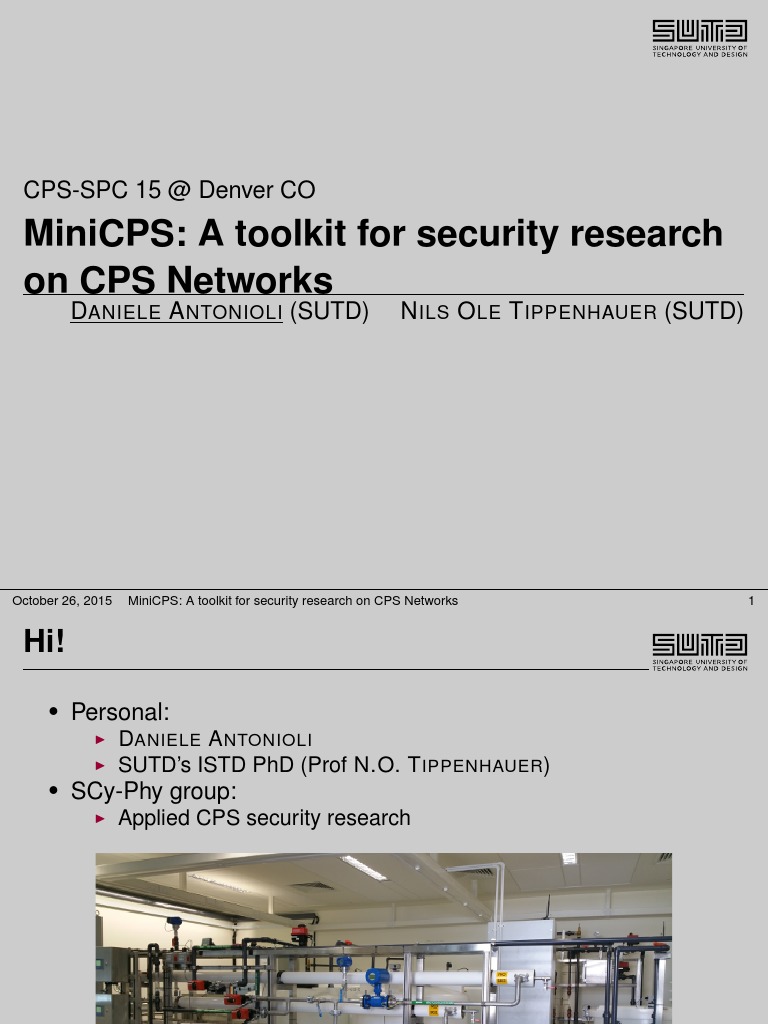

October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 1
Hi!
Personal:
I DANIELE A NTONIOLI
I SUTDs ISTD PhD (Prof N.O. T IPPENHAUER)
SCy-Phy group:
I Applied CPS security research
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 2
Why MiniCPS: Cyber-Physical Systems
CPS are:
I Complex
I Critical
I Connected
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 3
Why MiniCPS: Cyber-Physical Systems
CPS are:
I Complex
I Critical
I Connected
CPS information may be difficult to:
I Obtain
I Prove
I Share
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 3
Why MiniCPS: Cyber-Physical Systems
CPS are:
I Complex
I Critical
I Connected
CPS information may be difficult to:
I Obtain
I Prove
I Share
CPS research requires different expertises:
I Electronics, Automation
I Networking, Computer Science
I Physics. . .
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 3
Why MiniCPS: SWaT testbed
SCADA Historian
HMI
HMI
HMI
Switch L1 Network
PLC1a PLC1b
L0 Network
PLC2a PLC2b
L0 Network
... PLCna PLCnb
L0 Network
Remote IO Remote IO Remote IO
...
RIO RIO RIO
Sensor Sensor
Sensor
42.42 42.42 42.42
Research Environment:
I Reproducible
I Extensible
I Shareable
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 6
MiniCPS: Vision
Research Environment:
I Reproducible
I Extensible
I Shareable
Targeted to Cyber-Physical Systems:
I Network communications
I Control logic
I Physical layer interaction
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 6
MiniCPS: Vision
Research Environment:
I Reproducible
I Extensible
I Shareable
Targeted to Cyber-Physical Systems:
I Network communications
I Control logic
I Physical layer interaction
Dont reinvent the wheels. . .
I But: "Stand on the Shoulders of Giants"
I Eg: linux, python, mininet, git
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 6
MiniCPS: Diagram
Network
Component Component
Logic Logic
Physical Layer
API
Physical Layer
Simulation
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 7
MiniCPS: What is Mininet
Network
Component Component
Logic Logic
Physical Layer
API
Physical Layer
Simulation
Network-in-a-box emulator:
I Reproduce (complex) topologies
I Generating real packets using real protocols
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 8
MiniCPS: What is Mininet
Network
Component Component
Logic Logic
Physical Layer
API
Physical Layer
Simulation
Network-in-a-box emulator:
I Reproduce (complex) topologies
I Generating real packets using real protocols
One Linux kernel, multiple devices:
I Lightweight virtualization
I Each device is a container
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 8
MiniCPS: What is Mininet
Network
Component Component
Logic Logic
Physical Layer
API
Physical Layer
Simulation
Network-in-a-box emulator:
I Reproduce (complex) topologies
I Generating real packets using real protocols
One Linux kernel, multiple devices:
I Lightweight virtualization
I Each device is a container
SDN/OpenFlow development
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 8
MiniCPS: Physical Layer API
Network
Component Component
Logic Logic
Physical Layer
API
Physical Layer
Simulation
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 9
MiniCPS: Physical Layer API
Network
Component Component
Logic Logic
Physical Layer
API
Physical Layer
Simulation
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 9
MiniCPS: SWaT example
L1 network emulation
plc1.py plc2.py plc3.py
PLC PLC PLC
LIT101 LIT301
Grid FIT101 MV101
Sensor Sensor
42.42 42.42
P_101 FIT201
Sensor
42.42
Sensor
42.42
Physical process
Simulation script
Control strategy:
I Sensors: level (LIT), flow (FIT)
I Actuators: motorized valve (MV) and pump (P)
I PLC1 takes decision with the aid of PLC2 and PLC3
I Physical process simulation updates the state
Network:
I Realistic addresses (CIDR, MAC, ports)
I Replicate services: web-servers, ENIP client/server
I Optional Attacker and SDN Controller
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 10
MiniCPS: SWaT example II
SCADA Historian
HMI
HMI
HMI
L1 Network
Process 1
1a. Write '0' to 1b. Write '1' to PLC PLC
L0 Network
2. Write '1' to Remote IO
42.42
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 12
MiniCPS: Conclusions
Thank You!
Q&A
October 26, 2015 MiniCPS: A toolkit for security research on CPS Networks 12
