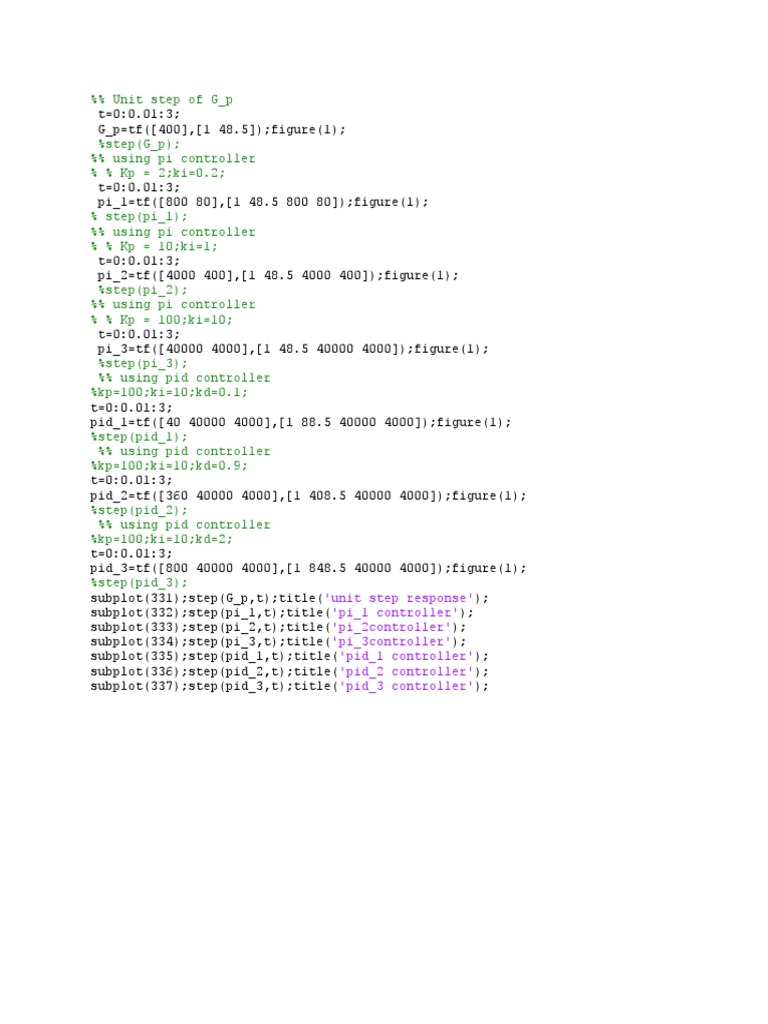

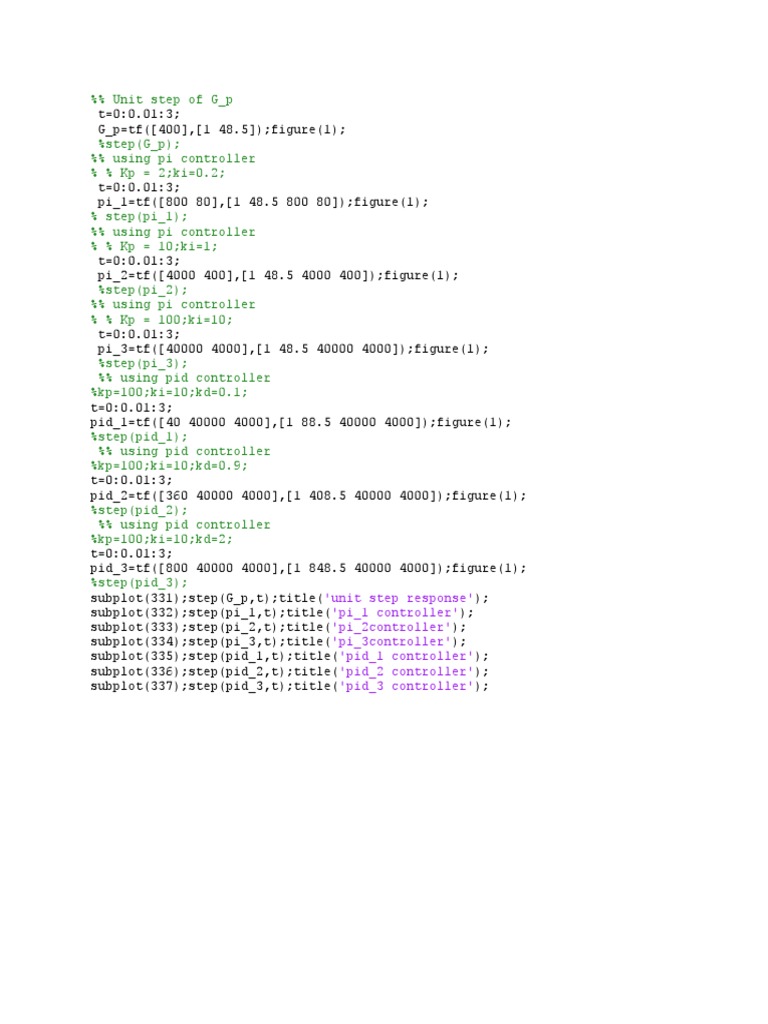

    %% Unit step of G_p

    t=0:0.01:3;
    G_p=tf([400],[1 48.5]);figure(1);
    %step(G_p);
    %% using pi controller
    % % Kp = 2;ki=0.2;
    t=0:0.01:3;
    pi_1=tf([800 80],[1 48.5 800 80]);figure(1);
    % step(pi_1);
    %% using pi controller
    % % Kp = 10;ki=1;
    t=0:0.01:3;
    pi_2=tf([4000 400],[1 48.5 4000 400]);figure(1);
    %step(pi_2);
    %% using pi controller
    % % Kp = 100;ki=10;
    t=0:0.01:3;
    pi_3=tf([40000 4000],[1 48.5 40000 4000]);figure(1);
    %step(pi_3);
    %% using pid controller
    %kp=100;ki=10;kd=0.1;
    t=0:0.01:3;
    pid_1=tf([40 40000 4000],[1 88.5 40000 4000]);figure(1);
    %step(pid_1);
    %% using pid controller
    %kp=100;ki=10;kd=0.9;
    t=0:0.01:3;
    pid_2=tf([360 40000 4000],[1 408.5 40000 4000]);figure(1);
    %step(pid_2);
    %% using pid controller
    %kp=100;ki=10;kd=2;
    t=0:0.01:3;
    pid_3=tf([800 40000 4000],[1 848.5 40000 4000]);figure(1);
    %step(pid_3);
    subplot(331);step(G_p,t);title('unit step response');
    subplot(332);step(pi_1,t);title('pi_1 controller');
    subplot(333);step(pi_2,t);title('pi_2controller');
    subplot(334);step(pi_3,t);title('pi_3controller');
    subplot(335);step(pid_1,t);title('pid_1 controller');
    subplot(336);step(pid_2,t);title('pid_2 controller');
    subplot(337);step(pid_3,t);title('pid_3 controller');
