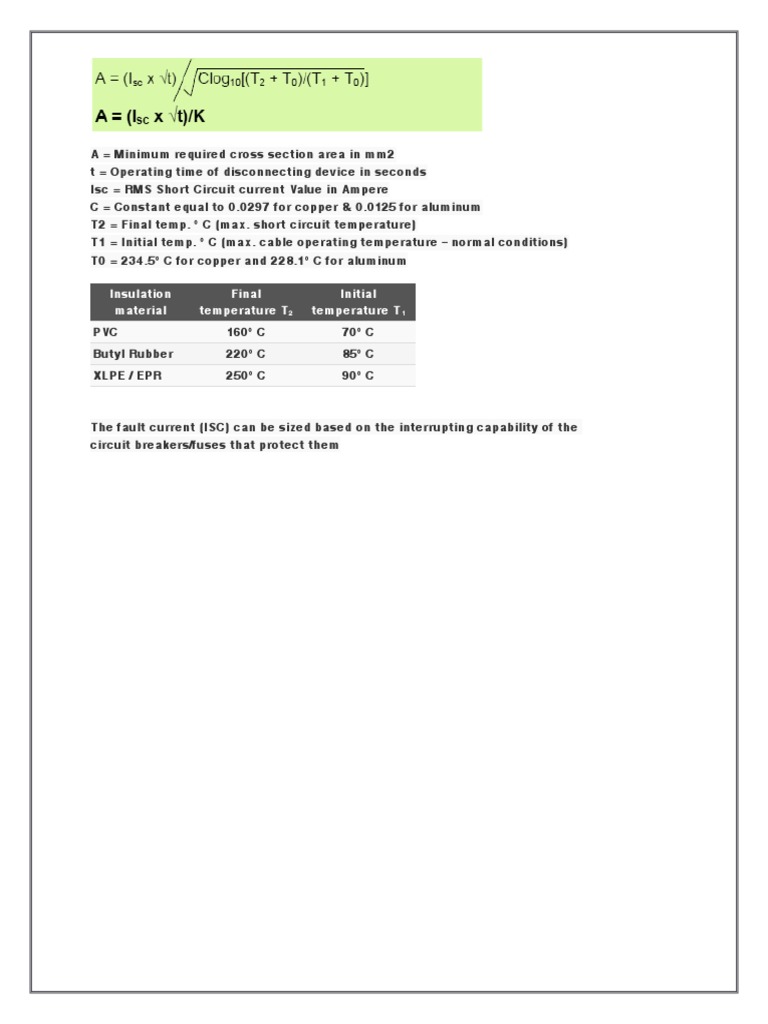

    A = Minimum required cross section area in mm2

    t = Operating time of disconnecting device in seconds


    Isc = RMS Short Circuit current Value in Ampere
    C = Constant equal to 0.0297 for copper & 0.0125 for aluminum
    T2 = Final temp. C (max. short circuit temperature)
    T1 = Initial temp. C (max. cable operating temperature normal conditions)
    T0 = 234.5 C for copper and 228.1 C for aluminum

    Insulation Final Initial


    material temperature T2 temperature T1
    PVC 160 C 70 C
    Butyl Rubber 220 C 85 C
    XLPE / EPR 250 C 90 C

    The fault current (ISC) can be sized based on the interrupting capability of the
    circuit breakers/fuses that protect them
