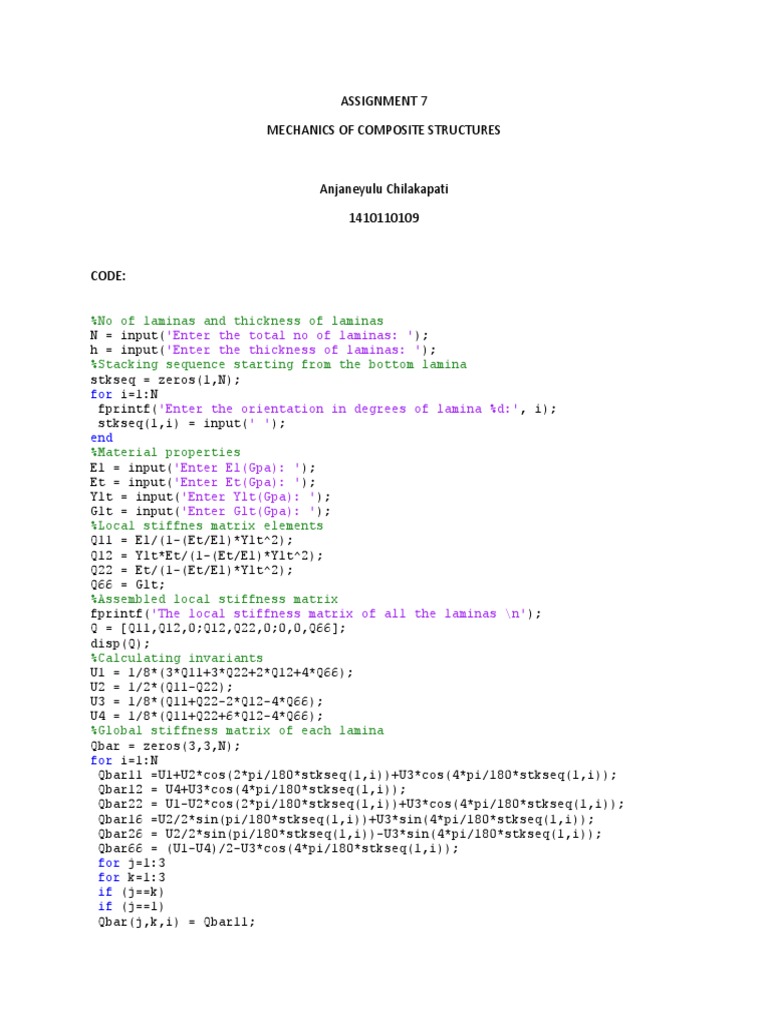

ASSIGNMENT 7

MECHANICS OF COMPOSITE STRUCTURES

Anjaneyulu Chilakapati

1410110109

CODE:

%No of laminas and thickness of laminas

N = input('Enter the total no of laminas: ');
h = input('Enter the thickness of laminas: ');
%Stacking sequence starting from the bottom lamina
stkseq = zeros(1,N);
for i=1:N
fprintf('Enter the orientation in degrees of lamina %d:', i);
stkseq(1,i) = input(' ');
end
%Material properties
El = input('Enter El(Gpa): ');
Et = input('Enter Et(Gpa): ');
Ylt = input('Enter Ylt(Gpa): ');
Glt = input('Enter Glt(Gpa): ');
%Local stiffnes matrix elements
Q11 = El/(1-(Et/El)*Ylt^2);
Q12 = Ylt*Et/(1-(Et/El)*Ylt^2);
Q22 = Et/(1-(Et/El)*Ylt^2);
Q66 = Glt;
%Assembled local stiffness matrix
fprintf('The local stiffness matrix of all the laminas \n');
Q = [Q11,Q12,0;Q12,Q22,0;0,0,Q66];
disp(Q);
%Calculating invariants
U1 = 1/8*(3*Q11+3*Q22+2*Q12+4*Q66);
U2 = 1/2*(Q11-Q22);
U3 = 1/8*(Q11+Q22-2*Q12-4*Q66);
U4 = 1/8*(Q11+Q22+6*Q12-4*Q66);
%Global stiffness matrix of each lamina
Qbar = zeros(3,3,N);
for i=1:N
Qbar11 =U1+U2*cos(2*pi/180*stkseq(1,i))+U3*cos(4*pi/180*stkseq(1,i));
Qbar12 = U4+U3*cos(4*pi/180*stkseq(1,i));
Qbar22 = U1-U2*cos(2*pi/180*stkseq(1,i))+U3*cos(4*pi/180*stkseq(1,i));
Qbar16 =U2/2*sin(pi/180*stkseq(1,i))+U3*sin(4*pi/180*stkseq(1,i));
Qbar26 = U2/2*sin(pi/180*stkseq(1,i))-U3*sin(4*pi/180*stkseq(1,i));
Qbar66 = (U1-U4)/2-U3*cos(4*pi/180*stkseq(1,i));
for j=1:3
for k=1:3
if (j==k)
if (j==1)
Qbar(j,k,i) = Qbar11;
 elseif (j==2)
Qbar(j,k,i) = Qbar22;
else
Qbar(j,k,i) = Qbar66;
end
elseif (j + k == 3)
Qbar(j,k,i) = Qbar12;
elseif (j + k == 4)
Qbar(j,k,i) = Qbar16;
else
Qbar(j,k,i) = Qbar26;
end
end
end
end
for i=1:N
fprintf('Global stiffness matrix for lamina %d: \n', i);
display(Qbar(:,:,i));
end
%ABBD matrix for the laminate
z = zeros(1,N+1);
for i =1:N
z(1,i+1) = z(1,i) + h;
end
A = zeros(3,3);
B = zeros(3,3);
D = zeros(3,3);
for i = 1:3
for j = 1:3
for k = 1:N
A(i,j) = A(i,j)+Qbar(i,j,k)*(z(1,k+1)-z(1,k));
B(i,j) = B(i,j)+1/2*Qbar(i,j,k)*(z(1,k+1)^2-z(1,k)^2);
D(i,j) = D(i,j)+1/3*Qbar(i,j,k)*(z(1,k+1)^3-z(1,k)^3);
end
end
end
ABBD = [A B; B D];
fprintf('The ABBD Matrix is :\n');
display(ABBD);
OUTPUT:
