Project management ASSIGNMENT Sunday, 21 January

2018

Assignment two:

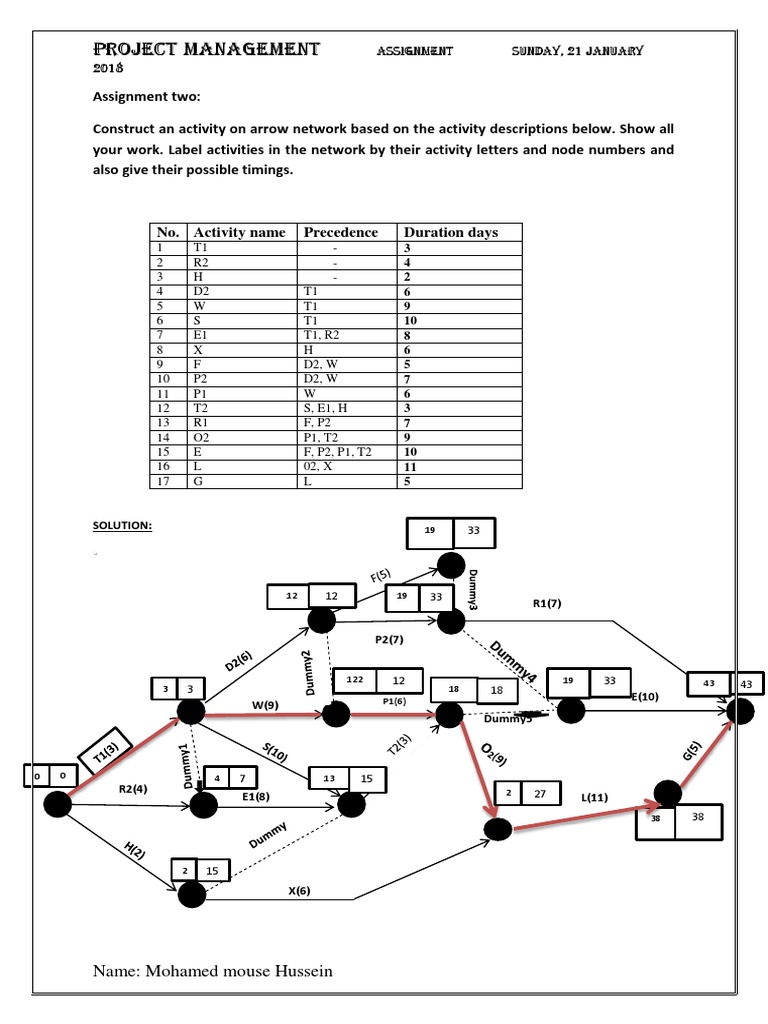

Construct an activity on arrow network based on the activity descriptions below. Show all
your work. Label activities in the network by their activity letters and node numbers and
also give their possible timings.

No. Activity name Precedence Duration days

1 T1 - 3
2 R2 - 4
3 H - 2
4 D2 T1 6
5 W T1 9
6 S T1 10
7 E1 T1, R2 8
8 X H 6
9 F D2, W 5
10 P2 D2, W 7
11 P1 W 6
12 T2 S, E1, H 3
13 R1 F, P2 7
14 O2 P1, T2 9
15 E F, P2, P1, T2 10
16 L 02, X 11
17 G L 5

SOLUTION: 19 33

12 2612 19 33
R1(7)

P2(7)

122 12 19 33 43
3 3 18 43
18
P1(6) E(10) 3
W(9)
Dummy5

0 0 4 7 13 15
R2(4) 2 27
E1(8) L(11)
7
38 38

2 15
1 X(6)

Name: Mohamed mouse Hussein

Project management ASSIGNMENT Sunday, 21 January
2018

Float calculation
Activity name duration Early Late finish Late start Early Total float Critical
star fininsh activity
T1 3 0 3 0 3 0 yes

R2 4 0 7 0 4 3 No

H 2 0 15 0 2 13 No

D2 6 3 26 3 12 17 No

W 9 3 12 3 12 0 yes

S 10 3 15 3 13 2 No

E1 8 4 15 7 13 3 No

X 6 2 27 15 27 19 No

F 5 12 33 26 17 16 No

P2 7 12 33 26 19 14 No

P1 6 12 18 12 18 0 yes

T2 3 13 18 15 18 2 No

R1 7 19 43 33 43 16 No

O2 9 18 27 18 27 0 yes

E 10 19 43 33 43 14 No

L 11 27 38 27 38 0 yes

G 5 38 43 38 43 0 yes

Name: Mohamed mouse Hussein
