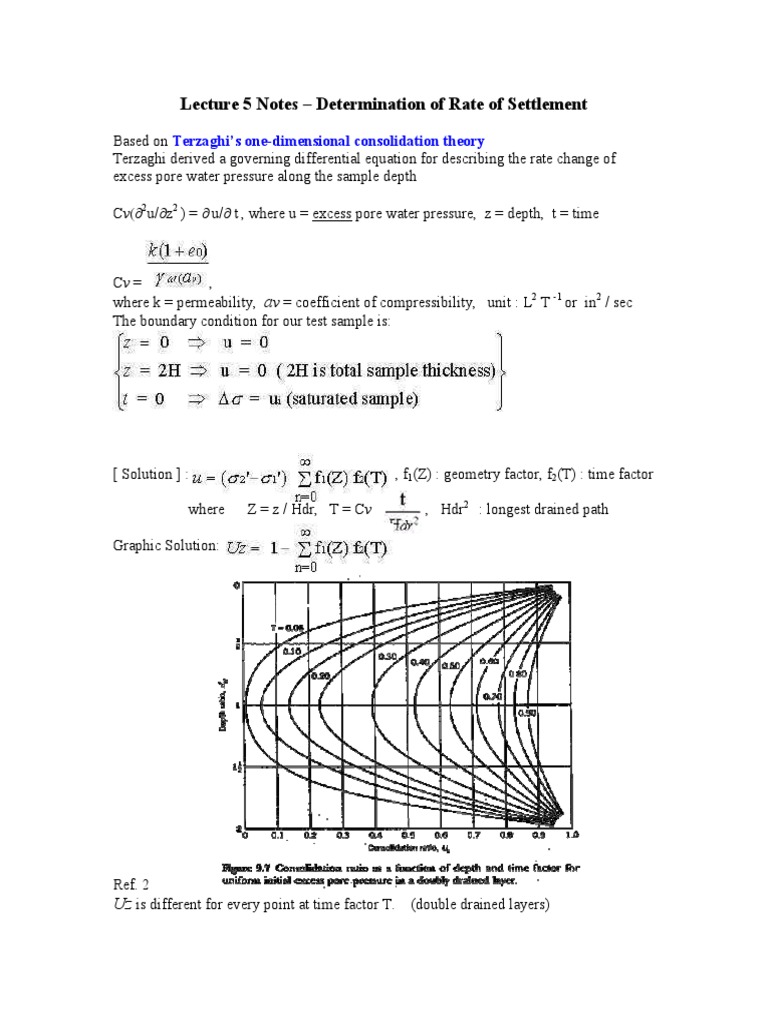

Lecture 5 Notes – Determination of Rate of Settlement

Based on Terzaghi’s one-dimensional consolidation theory

Terzaghi derived a governing differential equation for describing the rate change of
excess pore water pressure along the sample depth

Cv(∂2u/∂z2 ) = ∂ u/∂ t , where u = excess pore water pressure, z = depth, t = time

Cv = ,
where k = permeability, av = coefficient of compressibility, unit : L2 T -1 or in2 / sec
The boundary condition for our test sample is:

[ Solution ] : , f1(Z) : geometry factor, f2(T) : time factor

where Z = z / Hdr, T = Cv , Hdr2 : longest drained path

Graphic Solution:

Ref. 2
Uz is different for every point at time factor T. (double drained layers)
U = Average Consolidation Ratio

Figure 2: Average consolidation ratio: linear initial excess pore pressure. (Ref 1)
(a) Graphical interpretation of average consolidation (b) U versus T

We know that σ2' & σ1' relate directly to u2 & u1 (decreases in u ⇔ increase in σ')

therefore, Eq(2) becomes ,

where

ui = σ2' -σ1'
Uz = 1 100% Consolidation ⇔ u = 0
Uz = 0 0% Consolidation ⇔ u = ∆σ

Graphic Solution of Uz (Fig. 27-2)

Uz is a function of sample thickness and time factor.
Define a new variable U = Avg. consolidation ratio
(for entire layer, not for a single point), (see Fig.27.3)
Physically U = S(t) / Sc, S(t) is settlement at time t, Sc is total settlement.
U=f(T), (only T)
Example: Given: Cv = 2 x 10-4 in2/sec, Sc = 20 in. (was found by Eq1 Cc &Cs)

Find: Time for S(t) = 10 in.

[Solution]
U = S(t) / Sc = 10 / 20 = 50%
from Fig. 27.3 ⇒ Τ = 0.2
we know T = Cv (t / Hdr2) ⇒ t = T Hdr2 /Cv ⇒
t = 0.2(30/2×12)2 / (2×10-4) sec = 375 days

In consolidation test, we can obtain Cv value based on one of the following two methods:
(1) Taylor's square root of time fitting method
(2) Casagrande's logarithm of time fitting method
For (1) Cv = T90 Hdr2 / t90 (t90 → U = 90%) see Fig 9.9
(2) Cv = T50 Hdr2 / t50 (t50 → U = 50%) see Fig 9.7
 Ref. 4.

In general, the purposes of consolidation test are:

(1) Find Cc & Cs by plotting e vs. log σvc'
(2) Find σpc' from e vs. σvc' plot by using Casagrande's graphical method, and
(3) Find Cv at each stage of σvc' by plotting square root of time vs. e or log time
vs. e and plot Cv vs. σvc' curve

Reference:
1. Soil Mechanics, T. W. Lambe and R. V. Whitman, Wiley Book Company,1969.

2. An Introduction to Geotechnical Engineering, Robert D. Holtz and William D.

Kovacs, Prentice-Hall Book Company,1984.

3. Geotechnical Engineering - Soil Mechanics, John N. Cernica, Wiley Book

Company, 1995.

4. Engineering Properties of Soils and Their Measurement, Joseph E. Bowles, 4th

Ed., McGraw-Hill Book Company,1992.
