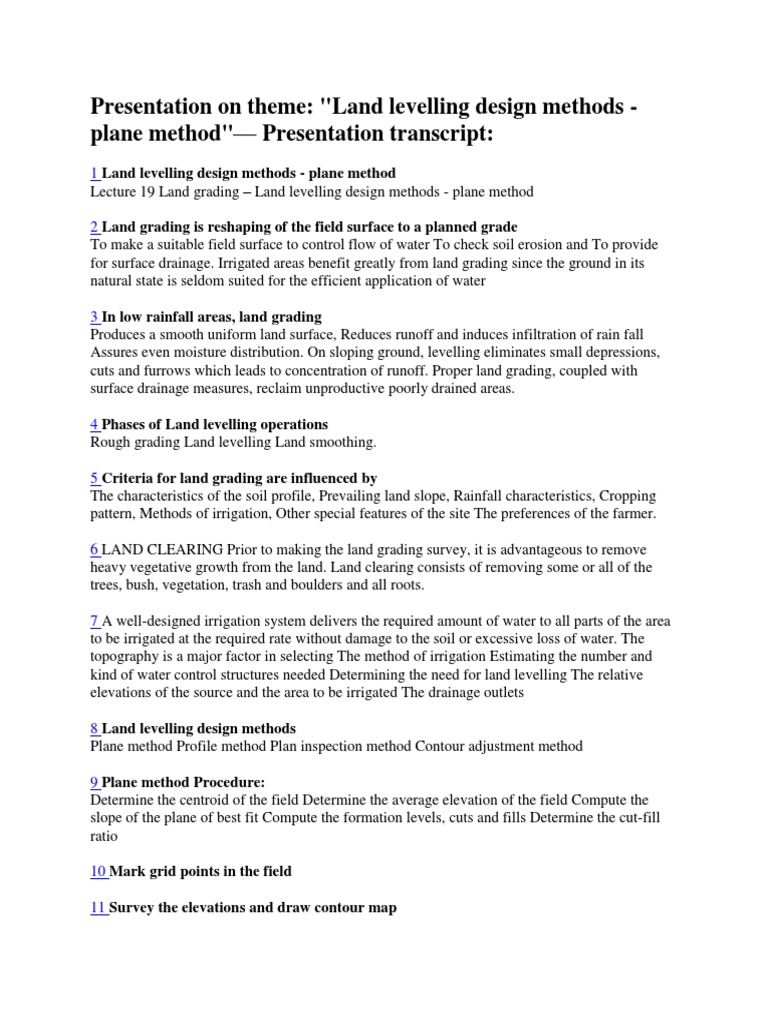

Presentation on theme: "Land levelling design methods -

plane method"— Presentation transcript:

1 Land levelling design methods - plane method
Lecture 19 Land grading – Land levelling design methods - plane method

2 Land grading is reshaping of the field surface to a planned grade

To make a suitable field surface to control flow of water To check soil erosion and To provide
for surface drainage. Irrigated areas benefit greatly from land grading since the ground in its
natural state is seldom suited for the efficient application of water

3 In low rainfall areas, land grading

Produces a smooth uniform land surface, Reduces runoff and induces infiltration of rain fall
Assures even moisture distribution. On sloping ground, levelling eliminates small depressions,
cuts and furrows which leads to concentration of runoff. Proper land grading, coupled with
surface drainage measures, reclaim unproductive poorly drained areas.

4 Phases of Land levelling operations

Rough grading Land levelling Land smoothing.

5 Criteria for land grading are influenced by

The characteristics of the soil profile, Prevailing land slope, Rainfall characteristics, Cropping
pattern, Methods of irrigation, Other special features of the site The preferences of the farmer.

6 LAND CLEARING Prior to making the land grading survey, it is advantageous to remove
heavy vegetative growth from the land. Land clearing consists of removing some or all of the
trees, bush, vegetation, trash and boulders and all roots.

7 A well-designed irrigation system delivers the required amount of water to all parts of the area
to be irrigated at the required rate without damage to the soil or excessive loss of water. The
topography is a major factor in selecting The method of irrigation Estimating the number and
kind of water control structures needed Determining the need for land levelling The relative
elevations of the source and the area to be irrigated The drainage outlets

8 Land levelling design methods

Plane method Profile method Plan inspection method Contour adjustment method

9 Plane method Procedure:

Determine the centroid of the field Determine the average elevation of the field Compute the
slope of the plane of best fit Compute the formation levels, cuts and fills Determine the cut-fill
ratio

10 Mark grid points in the field

11 Survey the elevations and draw contour map

12 Determining the centroid of the field
The centroid of a rectangular field is located at the point of intersection of its diagonals. The
centroid of a triangular field is located at the intersection of the lines drawn from its corners to
the midpoints of the opposite sides. To determine the centroid of irregular fields, the area is
divided into rectangles and right-angled triangles. The centroid is located by computing moments
about two reference lines at right angles o each other.

13 Determine the average elevation of the field

Adding the elevations of all grid points in the field and dividing the sum by the number of point
give the average elevation.

14 Locate the centroid and fix its elevation as mean of the field

15 Compute the slope of the plane of best fit

Compute the slope of the plane of best fit. The slope of any line in the x or y direction on the
plane which fits the natural ground surface, can be determined by the least squares method. in
which S=slope of line in a p1ane, dimensionless* D= distance from the reference line, m H=
elevation of the grid point, m n = number of grid points

16 Compute the formation levels, cuts and fills:

With the elevation of the centroid determined, the formation level of any point (the elevation
which the point should attain after land grading operation) may be determined, using the
computed or assumed values of Sx and Sy.

17 Mark the existing and computed elevation on grid points and compute cut/ fill

18 Computation of earthwork volumes of field :

L² ∑ C² Vc = 4(∑ C + ∑ F) L² ∑ F² Vf = 4 (∑ C + ∑ F) In which, Vc = Volume of cut, m³ Vf =
Volume of fill, m³ L = Grid spacing, m ∑ C = Sum of cuts on four corners of a grid square, m ∑
F = Sum of fills on four corners of a grid square, m

19 PROFILE METHOD, Essentially it consists of a trail and error method of adjusting grades on
plotted profiles until the irrigation criteria are met with and the earthwork balance is attained.

21 PLAN INSPECTION METHOD

The grid point elevations are noted on the plan, and the design grade elevations are determined
by inspection after the careful study of the topography. It is largely a trial and error procedure. In
selecting the elevations formation level the designer must simultaneously consider the down field
slope, cross slope, earth work balance and haul distance. The desired cut fill ratio and volumes of
earthwork are estimated from the summation of cuts and fills. The grades are frequently adjusted
to obtain favourable earthwork balance and to maintain the down field and cross slopes within
safe limits.

23 CONTOUR ADJUSTMENT METHOD

The contour adjustment method of land levelling designs consists of trial and error adjustments
of the contour lines on a plan map. The method is specially adapted to the smoothening of steep
lands that have to be irrigated. A contour map is drawn and the proposed ground surface is
shown on the same map by drawing new contour lines. The uniformity of downfield slope is
controlled by the uniformity of the horizontal spacing between contours, and the cross slopes can
be examined by scaling the distance between contours at right angles to the direction of
irrigation.
