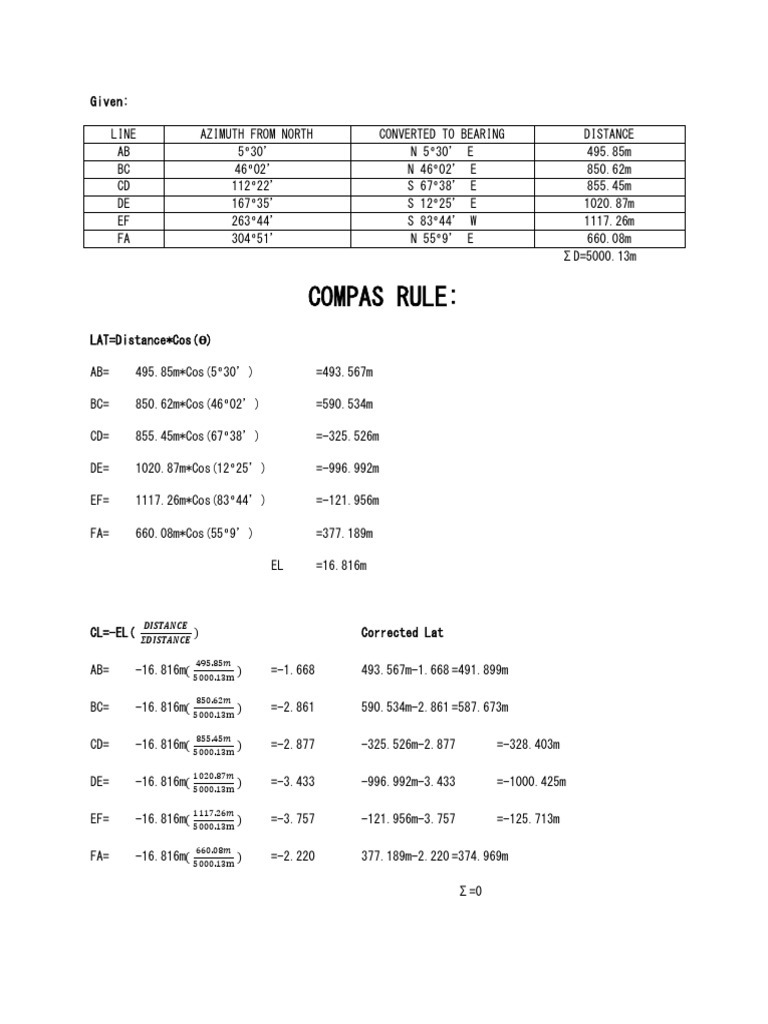

Given:

LINE AZIMUTH FROM NORTH CONVERTED TO BEARING DISTANCE

AB 5⁰30’ N 5⁰30’ E 495.85m
BC 46⁰02’ N 46⁰02’ E 850.62m
CD 112⁰22’ S 67⁰38’ E 855.45m
DE 167⁰35’ S 12⁰25’ E 1020.87m
EF 263⁰44’ S 83⁰44’ W 1117.26m
FA 304⁰51’ N 55⁰9’ E 660.08m
ΣD=5000.13m

COMPAS RULE:
LAT=Distance*Cos(Ө)

AB= 495.85m*Cos(5⁰30’) =493.567m

BC= 850.62m*Cos(46⁰02’) =590.534m

CD= 855.45m*Cos(67⁰38’) =-325.526m

DE= 1020.87m*Cos(12⁰25’) =-996.992m

EF= 1117.26m*Cos(83⁰44’) =-121.956m

FA= 660.08m*Cos(55⁰9’) =377.189m

EL =16.816m

𝑫𝑰𝑺𝑻𝑨𝑵𝑪𝑬
CL=-EL( ) Corrected Lat
𝜮𝑫𝑰𝑺𝑻𝑨𝑵𝑪𝑬

495.85𝑚
AB= -16.816m( ) =-1.668 493.567m-1.668 =491.899m
5000.13m

850.62𝑚
BC= -16.816m( ) =-2.861 590.534m-2.861 =587.673m
5000.13m

855.45𝑚
CD= -16.816m( ) =-2.877 -325.526m-2.877 =-328.403m
5000.13m

1020.87𝑚
DE= -16.816m( ) =-3.433 -996.992m-3.433 =-1000.425m
5000.13m

1117.26𝑚
EF= -16.816m( ) =-3.757 -121.956m-3.757 =-125.713m
5000.13m

660.08𝑚
FA= -16.816m( ) =-2.220 377.189m-2.220 =374.969m
5000.13m

Σ=0
DEP= Distance*Sin(Ө)

AB= 495.85m* Sin(5⁰30’) =47.525m

BC= 850.62m* Sin(46⁰02’) =612.228m

CD= 855.45m* Sin(67⁰38’) =791.092m

DE= 1020.87m* Sin(12⁰25’) =219.507m

EF= 1117.26m* Sin(83⁰44’) =-1110.584m

FA= 660.08m* Sin(55⁰9’) =-5410695m

EL =18.073m

𝑫𝑰𝑺𝑻𝑨𝑵𝑪𝑬
CL=-EL( ) Corrected Dep
𝜮𝑫𝑰𝑺𝑻𝑨𝑵𝑪𝑬

495.85𝑚
AB= -18.073m ( ) =-1.792 47.525m-1.792 =45.733m
5000.13m

850.62𝑚
BC= -18.073m ( ) =-3.072 612.228m-3.072 =609.153m
5000.13m

855.45𝑚
CD= -18.073m ( ) =-3.092 791.092m-3.092 =788m
5000.13m

1020.87𝑚
DE= -18.073m ( ) =-3.690 -219.507m-3.690 =215.817m
5000.13m

1117.26𝑚
EF= -18.073m ( ) =-4.038 -1110.584m-4.038 =-1114.622m
5000.13m

660.08𝑚
FA= -18.073m ( ) =-2.386 18.073m-2.386 =-544.081m
5000.13m

Σ=0

Adjusted Distance=√𝐋𝐀𝐓 𝟐 + 𝐃𝐄𝐏 𝟐

AB= √(491.899m)2 + (45.733m)2 =494.020m

BC= √(587.673m)2 + (609.153m)2 =846.420m

CD= √(328.403m)2 + (788m)2 =853.693m

DE= √(1000.425m)2 + (215.817m)2 =1023.439m

EF= √(125.713m)2 + (1114.622m)2 =1121.689m

FA= √(374.969m)2 + (544.081m)2 =660.777m

𝑫𝑬𝑷
ADJ BEARING=Tan-1( ) Az.NORTH
𝑳𝑨𝑻

45.733m
AB = Tan-1( ) =N 5⁰18’41.95” E =5⁰18’41.95”
491.899m

609.153m
BC = Tan-1( ) =N 45⁰1’41.53” E =45⁰1’41.53”
587.673m

788m
CD = Tan-1( ) =S 67⁰22’32.95” E =112⁰37’27.05”
328.403m

215.817m
DE = Tan-1( ) =S 12⁰10’24.94” E =167⁰49’35.06”
1000.425m

1114.622m
EF = Tan-1( ) =S 83⁰33’54.25” W =263⁰33’54.25”
125.713m

544.081m
FA = Tan-1( ) =N 55⁰25’34.39” W =304⁰34’25.61”
374.969m

COMPAS RULE
LINE Azimuth NORTH BEARING DISTANCE
AB 5⁰18’41.95” N 5⁰18’41.95” E 494.020m
BC 45⁰1’41.53” N 45⁰1’41.53” E 846.420m
CD 112⁰37’27.05” S 67⁰22’32.95” E 853.693m
DE 167⁰49’35.06” S 12⁰10’24.94” E 1023.439m
EF 263⁰33’54.25” S 83⁰33’54.25” W 1121.689m
FA 304⁰34’25.61” N 55⁰25’34.39” W 660.777m

TRANSIT RULE:
LAT=Distance*Cos(Ө)

AB= 495.85m*Cos(5⁰30’) =493.567m

BC= 850.62m*Cos(46⁰02’) =590.534m

CD= 855.45m*Cos(67⁰38’) =-325.526m

DE= 1020.87m*Cos(12⁰25’) =-996.992m

EF= 1117.26m*Cos(83⁰44’) =-121.956m

FA= 660.08m*Cos(55⁰9’) =377.189m

 l∑l=2905.764

EL=16.816

𝒍𝑨𝑻
CL=-EL( ) Corrected Lat
𝑰∑𝑰 𝑳𝑨𝑻

493.567m
AB= -16.816 ( ) =-2.856 =493.567m-2.856 =490.711
2905.764m

590.534m
BC= -16.816 ( ) =-3.417 =590.534m-3.417 =587.117
2905.764m

325.526m
CD= -16.816 ( ) =-1.884 =-325.526m-1.884 =-327.410
2905.764m

996.992m
DE= -16.816 ( ) =-5.770 =-996.992m-5.770 =-1002.762
2905.764m

121.956m
EF= -16.816 ( ) =-0.706 =-121.956m-0.706 =-122.662
2905.764m

377.189m
FA= -16.816 ( ) =-2.183 =377.189m-2.183 =375.006
2905.764m

∑=0

DEP= Distance*Sin(Ө)

AB= 495.85m* Sin(5⁰30’) =47.525m

BC= 850.62m* Sin(46⁰02’) =612.228m

CD= 855.45m* Sin(67⁰38’) =791.092m

DE= 1020.87m* Sin(12⁰25’) =219.507m

EF= 1117.26m* Sin(83⁰44’) =-1110.584m

FA= 660.08m* Sin(55⁰9’) =-541.695m

l∑l= 3322.63m

EL=18.073m

𝑫𝑬𝑷
CL=-EL( ) Corrected Dep
𝑰𝜮𝑰𝑫𝑬𝑷
 47.525m
AB= 18.073m( ) =-0.25 =47.525m-0.25 =47.266
3322.63m

612.228m
BC= 18.073m( ) =-3.330 =612.228m-3.330 =608.898
3322.63m

791.092m
CD= 18.073m( ) =-4.303 =791.092m-4.303 =796.789
3322.63m

219.507m
DE= 18.073m( ) =-1.194 =219.507m-1.194 =218.313
3322.63m

1110.584m
EF= 18.073m( ) =-6.041 =-1110.584m-6.041 =-1116.625
3322.63m

541.695m
FA= -18.073m( ) =-2.947 =-541.695m-2.947 =-544.642
3322.63m

∑=-0.001

Adjusted Distance=√𝐋𝐀𝐓 𝟐 + 𝐃𝐄𝐏 𝟐

AB= √490.711m2 + 47.266m2 =492.982

BC= √587.117m2 + 608.898m2 =845.851

CD= √A327.410m2 + 796.789m2 =852.194

DE= √1002.762m2 + 218.313m2 =1026.252

EF= √122.662m2 + 1116.625m2 =1123.342

FA= √375.006m2 + 544.642m2 =661.260

𝑫𝑬𝑷
ADJ BEARING=Tan-1( ) Az.NORTH
𝑳𝑨𝑻

47.226
AB = Tan-1( ) =N 5⁰29’49.96” E =5⁰29’49.96”
490.711

608.898
BC = Tan-1( ) =N 46⁰2’35.94” E =46⁰2’35.94”
587.117

786.789
CD = Tan-1( ) =S 67⁰24’22.04” E =112⁰35’37.96”
327.410

218.313
DE = Tan-1( ) =S 12⁰16’56.28” E =167⁰43’3.72”
1002.762

1116.625
EF = Tan-1( ) =S 83⁰43’53.16” W =263⁰43’53.16”
122.662

544.642
FA = Tan-1( ) =N 55⁰27’4.19” W =304⁰32’55.81”
375.006
 TRANSIT RULE
LINE Azimuth NORTH BERARING DISTANCE
AB 5⁰30’6.62” N 5⁰30’6.62” E 492.982
BC 46⁰2’35.94” N 46⁰2’35.94” E 845.851
CD 112⁰35’37.86” S 67⁰24’22.14” E 852.194
DE 167⁰43’3.72” S 12⁰16’56.28” E 1026.252
EF 263⁰43’53.16” S 83⁰43’53.16” W 1123.342
FA 304⁰32’55.81” N 55⁰27’4.19” W 661.260
ILLUSTRATION:

E
F
