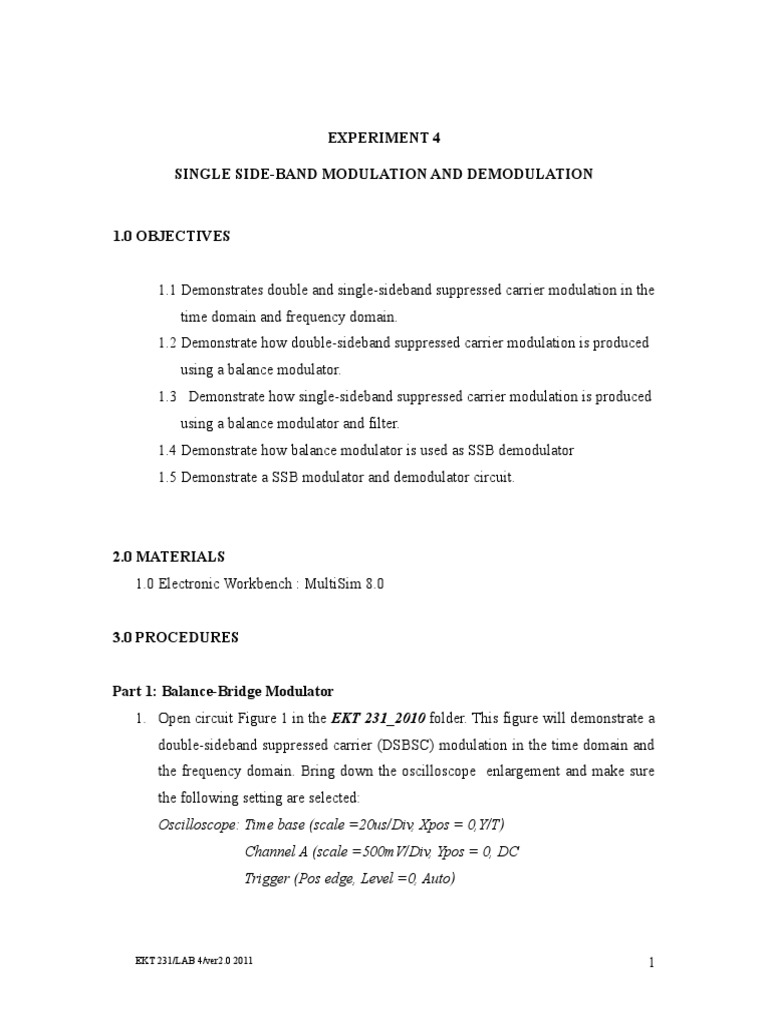

1.0 OBJECTIVES
2.0 MATERIALS
1.0 Electronic Workbench : MultiSim 8.0
3.0 PROCEDURES
Answer:
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
5. Change the frequency on the modulating signal sine wave to 10 kHz. Plot the
curve and spectral (spectrum analyzer) plot in the space provided.
What the difference between this curve plot and the plot of DSBSC in step 2?
Answer:
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
Time domain
6. Measure the upper side frequency (fusf) and the lower side frequency (flsf) and the
voltage amplitude of each spectral line and determine the bandwidth of the
DSBSC signal from the frequency spectral plot. Record the all answers on the
spectral plot.
How did this frequency spectrum for double sideband curve plot with 30 kHz
modulating frequency in step 5? Did the bandwidth change? Explain.
Answer:
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
1. Open circuit 2. This circuit shows a single-sideband modulator and the balance
modulator will produce double-sideband suppressed carrier (DSBSC) modulation.
The filter, tuned to the upper sideband, will pass the upper sideband and reject the
lower sideband, producing single sideband suppressed carrier (SSBSC)
modulation.
3. Run the simulation. The display shows the SSBSC filter output (blue) and
DSBSC (red) produce by the balanced bridge modulator in the time domain.
What the difference between SSBSC and DSBSC curve plot?
Answer:
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
1. Open circuit 3. This circuit will demonstrate how the information in a SSB signal
is recovered. The balance modulator and the filter in the SSB modulator section
will generate a SSB signal modulated with a 30 kHz sine wave. The balance
modulator (product detector) in the SSB demodulator section will recover the
information in the SSB signal. Sine wave generator V 2 in the SSB demodulator
2. Run the simulation. You have displayed the SSB demodulator output (blue) and
the information signal input to the SSB modulator (red) in the time domain. Draw
the curve plot in the space provided.
3. Measure the time period for one cycle of the SSB demodulator output (blue) and
SSB modulator sine wave input (red) and record your answers on the curve plots.
What causing the small ripple on the SSB demodulator output (blue)?
Answer:
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
Answer:
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
__________________________________________________________________
4.0 CONCLUSION
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
