Influence of Internal Parametric and Kinematic Excitation On Nonlinear Gearbox Vibration

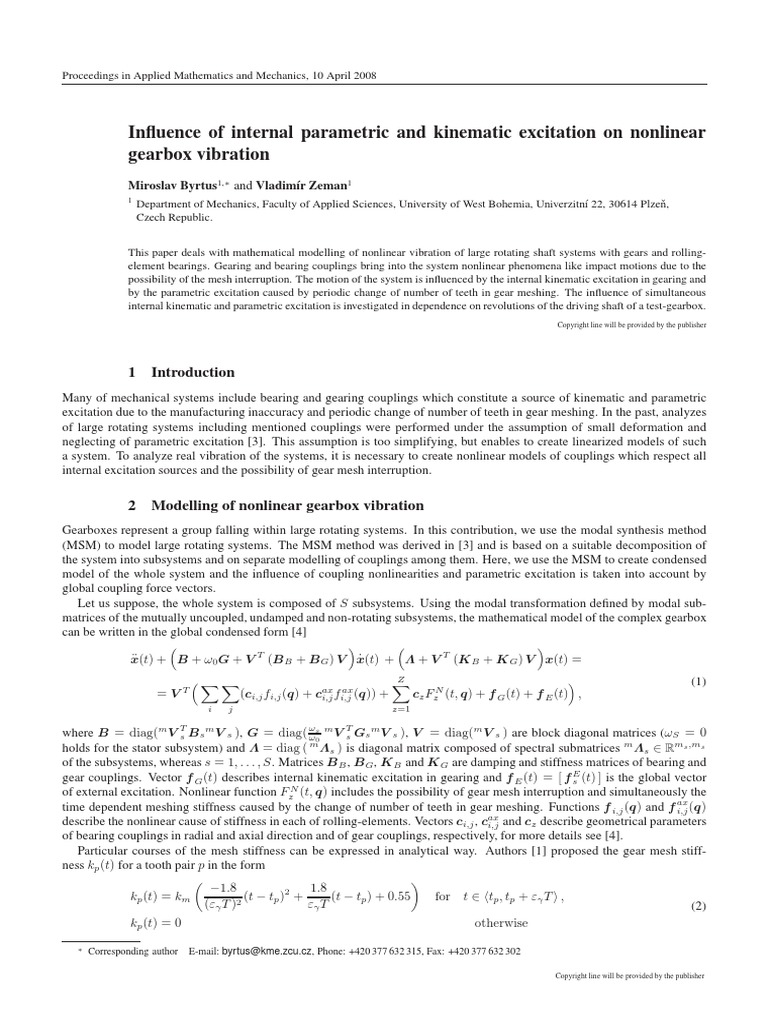

This paper deals with mathematical modelling of nonlinear vibration of large rotating shaft systems with gears and rolling-
element bearings. Gearing and bearing couplings bring into the system nonlinear phenomena like impact motions due to the
possibility of the mesh interruption. The motion of the system is influenced by the internal kinematic excitation in gearing and
by the parametric excitation caused by periodic change of number of teeth in gear meshing. The influence of simultaneous
internal kinematic and parametric excitation is investigated in dependence on revolutions of the driving shaft of a test-gearbox.
Copyright line will be provided by the publisher
1 Introduction
Many of mechanical systems include bearing and gearing couplings which constitute a source of kinematic and parametric
excitation due to the manufacturing inaccuracy and periodic change of number of teeth in gear meshing. In the past, analyzes
of large rotating systems including mentioned couplings were performed under the assumption of small deformation and
neglecting of parametric excitation [3]. This assumption is too simplifying, but enables to create linearized models of such
a system. To analyze real vibration of the systems, it is necessary to create nonlinear models of couplings which respect all
internal excitation sources and the possibility of gear mesh interruption.
of the subsystems, whereas s = 1, . . . , S. Matrices B B , B G , K B and K G are damping and stiffness matrices of bearing and
gear couplings. Vector f G (t) describes internal kinematic excitation in gearing and f E (t) = [ f E s (t) ] is the global vector
of external excitation. Nonlinear function FzN (t, q) includes the possibility of gear mesh interruption and simultaneously the
time dependent meshing stiffness caused by the change of number of teeth in gear meshing. Functions f i,j (q) and f ax i,j (q)
describe the nonlinear cause of stiffness in each of rolling-elements. Vectors ci,j , cax
i,j and c z describe geometrical parameters
of bearing couplings in radial and axial direction and of gear couplings, respectively, for more details see [4].
Particular courses of the mesh stiffness can be expressed in analytical way. Authors [1] proposed the gear mesh stiff-
ness kp (t) for a tooth pair p in the form
−1.8 2 1.8
kp (t) = km (t − tp ) + (t − tp ) + 0.55 for t ∈ htp , tp + εγ T i ,
(εγ T )2 εγ T (2)
kp (t) = 0 otherwise
∗ Corresponding author E-mail: byrtus@kme.zcu.cz, Phone: +420 377 632 315, Fax: +420 377 632 302
depending on the contact ratio εγ and on the period of the gear mesh. The parameter km represents maximal value of the gear
mesh stiffness of one tooth pair on the assumption that at time t = tp teeth enter into mesh and at t = tp + εγ T get out of the
mesh. The gear mesh period T = p2π zω
, with the parameter pz indicating the number of the teeth of the drive gear mounted on
a shaft rotating with angular velocity ω.
Fig. 1 shows dependence of the relative meshing stiffness kz /km on the path of the contact point in the front plane of
the gearing for different values of contact ratio εγ . The parameter kz,0 corresponds to the mean meshing stiffness. The bold
lines display the resulting gear mesh stiffness, whichPis given as a sum of the stiffnesses of teeth being in the gear mesh for a
given time. The resulting meshing stiffness kz (t) = p kp (t), is restricted to the tooth pairs in gear mesh for the given time t.
3
εγ = 1.8
3
εγ = 2.2 3
εγ = 2.8 3
εγ = 3
kz,0
2.5 2.5 kz,0 2.5 2.5
B3 B4
kz,0
kz /km
2 2 2 2 ω2 t − ∆ϕ2
0 0 0 0
0 1 2 3 0 1 2 3 0 1 2 3 0 1 2 3
ξ (path of contact point)
Fig. 1 Relative gear mesh stiffness for different values of contact Fig. 2 Scheme of the gearbox.
ratio εγ .
2 2
1 1
0 0
−1 −1
1800 2000 2200 2400 2600 2800 3000 3200 3400 1800 2000 2200 2400 2600 2800 3000 3200 3400
revolutions per minute revolutions per minute
Fig. 3 Bifurcation diagram of gearing deformation for time-varying Fig. 4 Bifurcation diagram of gearing deformation for time-varying
meshing stiffness without the phase shift. meshing stiffness with the phase shift π/2.
Acknowledgements This work was supported by the research project MSM 4977751303 of the Ministry of Education,Youth and Sports
of the Czech Republic.
References
[1] Y. Cai and T. Hayashi, The linear approximated equation of vibration of a pair of spur gears (Theory and experiment). in: Journal of
Mechanical Design, 116, 558-564 (1994).
[2] J. M. Thompson and H.B. Stewart, Nonlinear dynamics an chaos. John Wiley & Sons, Chichester, 2002.
[3] V. Zeman, Dynamics of rotating machines by the modal synthesis method, in: Proceedings of the Tenth World Congress IFToMM,
Oulu, Finland, June 20 – 24, 1999, pp. 1668-1673.
[4] V. Zeman and M. Byrtus, Mathematical modelling of gearbox nonlinear vibration. in: Proceedings of the The 12th World Congress in
Mechanism and Machine Science, Besanccon, France, 2007.
