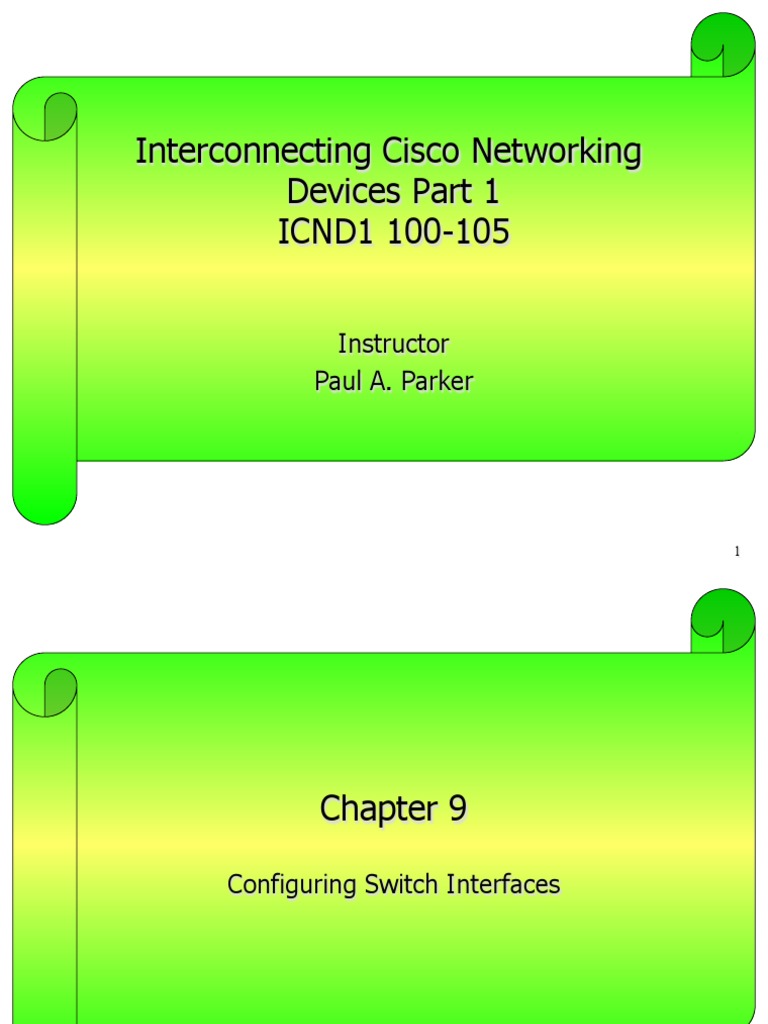

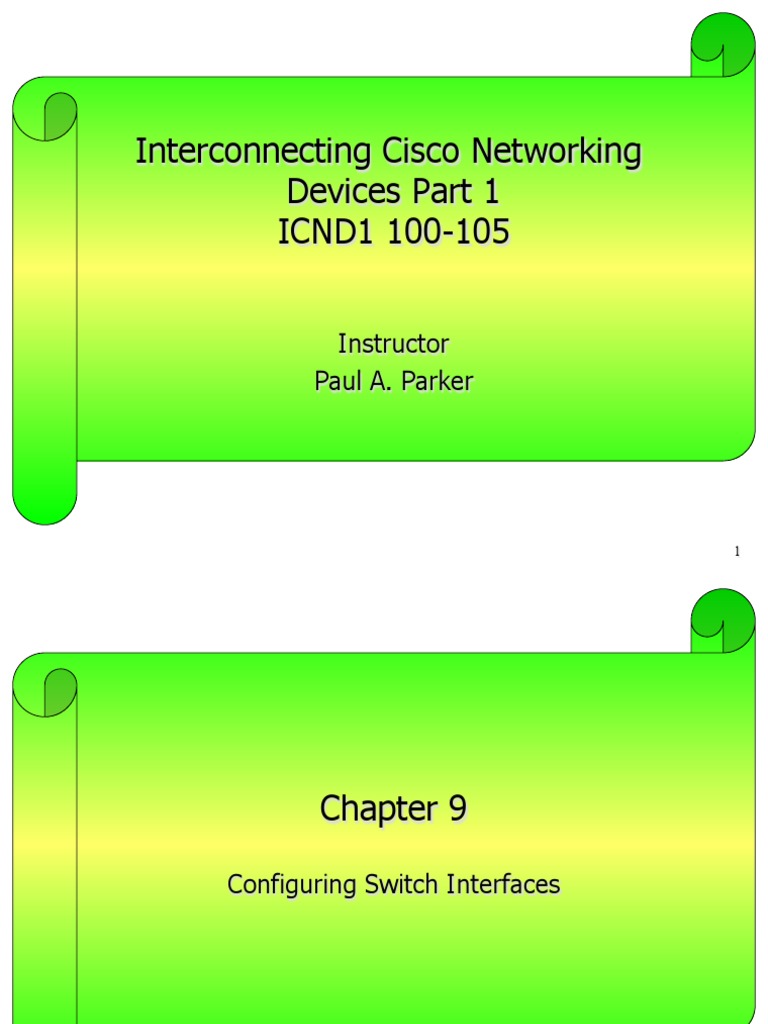

Interconnecting Cisco Networking

Devices Part 1
ICND1 100-105

Instructor
Paul A. Parker

1
 Chapter 9

Configuring Switch Interfaces

2
 Chapter 9
Configuring Switch Interfaces
v Configuring Speed, Duplex, and Description

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 3

 Chapter 9
Configuring Switch Interfaces
v Displaying Interface Status

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 4

 Chapter 9
Configuring Switch Interfaces
v Configuring Multiple Interfaces with the range Command
▼ The interface range FastEthernet 0/11 - 20 command tells
IOS that the next subcommand(s) apply to interfaces Fa0/11
through Fa0/20. You can define a range as long as all interfaces
are the same type and are numbered consecutively.
▼ IOS does not actually put the interface range command into the
configuration. Instead, it acts as if you had typed the
subcommand under every single interface in the specified range.
v Controlling Interface State with shutdown
▼ The shutdown command (to disable), and the no shutdown
command (to enable).
▼ You may use the abbreviations shut and no shut.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 5

 Chapter 9
Configuring Switch Interfaces
v Removing Configuration with the no Command
▼ With some IOS configuration commands (but not all), you can
revert to the default setting by issuing a no version of the
command.
➘  If you earlier had configured speed 100 on an interface, the no
speed command on that same interface reverts to the default speed
setting (which happens to be speed auto).
➘  Same idea with the duplex command: an earlier configuration of
duplex half or duplex full, followed by no duplex on the same
interface, reverts the configuration back to the default of duplex
auto.
➘  If you had configured a description command with some text, to
go back to the default state of having no description command at all
for that interface, use the no description command.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 6

 Chapter 9
Autonegotiation
v Autonegotiation
▼ For any 10/100 or 10/100/1000 interfaces—that is, interfaces
that can run at different speeds—Cisco Catalyst switches default
to a setting of duplex auto and speed auto. As a result, those
interfaces attempt to automatically determine the speed and
duplex setting to use. Alternatively, you can configure most
devices, switch interfaces included, to use a specific speed and/or
duplex.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 7

 Chapter 9
Autonegotiation
v Autonegotiation Under Working Conditions
▼ PC1: The switch port claims it can go as fast as 1000 Mbps, but
PC1’s NIC claims a top speed of 10 Mbps. Both the PC and
switch choose the best speed both support (10 Mbps) and the
best duplex (full).
▼ PC2: PC2 claims a best speed of 100 Mbps, which means it can
use 10BASE-T or 100BASE-T. The switch port and NIC negotiate
to use the best speed of 100 Mbps
and full duplex.
▼ PC3: It uses a 10/100/1000 NIC,
supporting all three speeds and
standards, so both the NIC and
switch port choose 1000 Mbps
and full duplex.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 8

 Chapter 9
Autonegotiation
v Autonegotiation Results When Only One Node Uses It
▼ IEEE autonegotiation defines some rules (defaults) that nodes
should use as defaults when autonegotiation fails—that is, when
a node tries to use autonegotiation but hears nothing from the
device. The rules:
▼ Speed: Use your slowest supported speed (often 10 Mbps).
▼ Duplex: If your speed = 10 or 100,
use half duplex; otherwise, use full
duplex.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 9

 Chapter 9
Autonegotiation
v Autonegotiation Results When Only One Node Uses It
▼ Cisco switches can make a better choice than that base IEEE
logic, because Cisco switches can actually sense the speed used
by other nodes, even without IEEE autonegotiation. As a result,
Cisco switches use this slightly different logic to choose the speed
when autonegotiation fails:
▼ Speed: Sense the speed (without using autonegotiation), but if
that fails, use the IEEE default (slowest supported speed, often
10 Mbps).
▼ Duplex: Use the IEEE defaults: If speed = 10 or 100, use half
duplex; otherwise, use full duplex.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 10

 Chapter 9
Autonegotiation
v Autonegotiation and LAN Hubs
▼ LAN hubs also impact how autonegotiation works. Basically, hubs
do not react to autonegotiation messages, and they do not
forward the messages. As a result, devices connected to a hub
must use the IEEE rules for choosing default settings, which
often results in the devices using 10 Mbps and half duplex.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 11

 Chapter 9
Port Security
v Port Security
▼ The following list summarizes these ideas common to all
variations of port security:
➘  Define a maximum number of source MAC addresses allowed for all
frames coming in the interface.
➘  Watch all incoming frames, and keep a list of all source MAC
addresses, plus a counter of the number of different source MAC
addresses.
➘  When adding a new source MAC address to the list, if the number of
MAC addresses pushes past the configured maximum, a port security
violation has occurred. The switch takes action (the default action is
to shut down the interface).

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 12

 Chapter 9
Port Security
v Configuring Port Security
▼ Step 1. Make the switch interface either a static access or trunk
interface using the switchport mode access or the
switchport mode trunk interface subcommands, respectively.
▼ Step 2. Enable port security using the switchport port-
security interface subcommand.
▼ Step 3. (Optional) Override the default maximum number of
allowed MAC addresses associated with the interface (1) by using
the switchport port-security maximum number interface
subcommand.
▼ Step 4. (Optional) Override the default action to take upon a
security violation (shutdown) using the switchport port-
security violation {protect | restrict | shutdown} interface
subcommand.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 13

 Chapter 9
Port Security
v Configuring Port Security
▼ Step 5. (Optional) Predefine any allowed source MAC addresses
for this interface using the switchport port-security mac-
address mac-address command. Use the command multiple
times to define more than one MAC address.
▼ Step 6. (Optional) Tell the switch to “sticky learn” dynamically
learned MAC addresses with the switchport port-security
mac-address sticky interface subcommand.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 14

 Chapter 9
Port Security
v Verifying Port Security
▼ The show port-security interface command lists the
configuration settings for port security on an interface.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 15

 Chapter 9
Port Security
v Port Security Violation Actions
▼ The switchport port-security violation { protect | restrict
| shutdown } defines the action taken when a violation on the
port occurs.

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 16

 Chapter 9
Port Security
v Port Security MAC Addresses as Static and Secure but not
Dynamic
▼ Once a switch port has been configured with port security, the
switch no longer considers MAC addresses associated with that
port as being dynamic entries as listed with the show mac
address-table dynamic EXEC command. Even if the MAC
addresses are dynamically learned, once port security has been
enabled, you need to use one of these options to see the MAC
table entries associated with ports using port security:
▼ show mac address-table secure: Lists MAC addresses
associated with ports that use port security
▼ show mac address-table static: Lists MAC addresses
associated with ports that use port security, as well as any other
statically defined MAC addresses

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 17

 Chapter 9
Exam Preparation Tasks

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 18

 Chapter 9
Command References
v Switch Interface Configuration

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 19

 Chapter 9
Command References
v Switch Interface Configuration

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 20

 Chapter 9
Command References
v Port Security Configuration

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 21

 Chapter 9
Command References
v EXEC Command Reference

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 22

 Chapter 9
Command References
v EXEC Command Reference

CCENT/CCNA ICND1 Interconnecting Cisco Networking Devices Part 1 23
