    CHAWISA LO (BAT)

    CHARGE-DISCHARGE SWITCH CIRCUIT

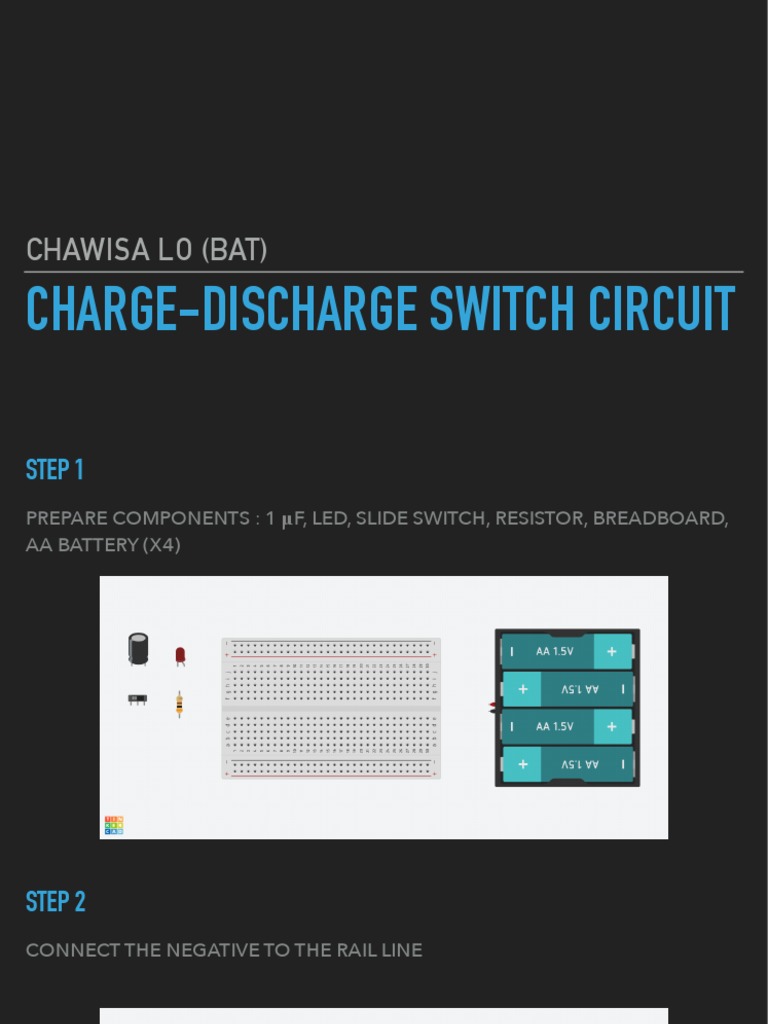

    STEP 1
    PREPARE COMPONENTS : 1 𝛍F, LED, SLIDE SWITCH, RESISTOR, BREADBOARD,
    AA BATTERY (X4)
    STEP 2
    CONNECT THE NEGATIVE TO THE RAIL LINE
    STEP 3
    CONNECT THE POSITIVE TO THE RAIL LINE
    STEP 4
    CONNECT THE RESISTOR TO THE NEGATIVE RAIL LINE AND THE ROWS
    STEP 5
    CONNECT THE LED: CATHODE TO THE SAME ROW AS THE RESISTOR AND
    ANODE TO ANOTHER ROW
    STEP 6
    CONNECT THE CAPACITOR TO THE ROWS (ANY ROWS YOU’D LIKE)
    STEP 7
    CONNECT A WIRE FROM THE GROUND TO THE NEGATIVE LEG OF THE
    CAPACITOR
    STEP 8
    ADD A SLIDE SWITCH
    STEP 9
    CONNECT A WIRE FROM THE POSITIVE LEG TO THE MIDDLE LEG OF THE
    SWITCH
    STEP 10
    CONNECT A WIRE FROM THE ANODE OF THE LED TO THE LEFT LEG OF THE
    SWITCH
    STEP 11
    CONNECT A WIRE FROM THE POSITIVE RAIL LINE TO THE RIGHT LEG OF THE
    SWITCH
