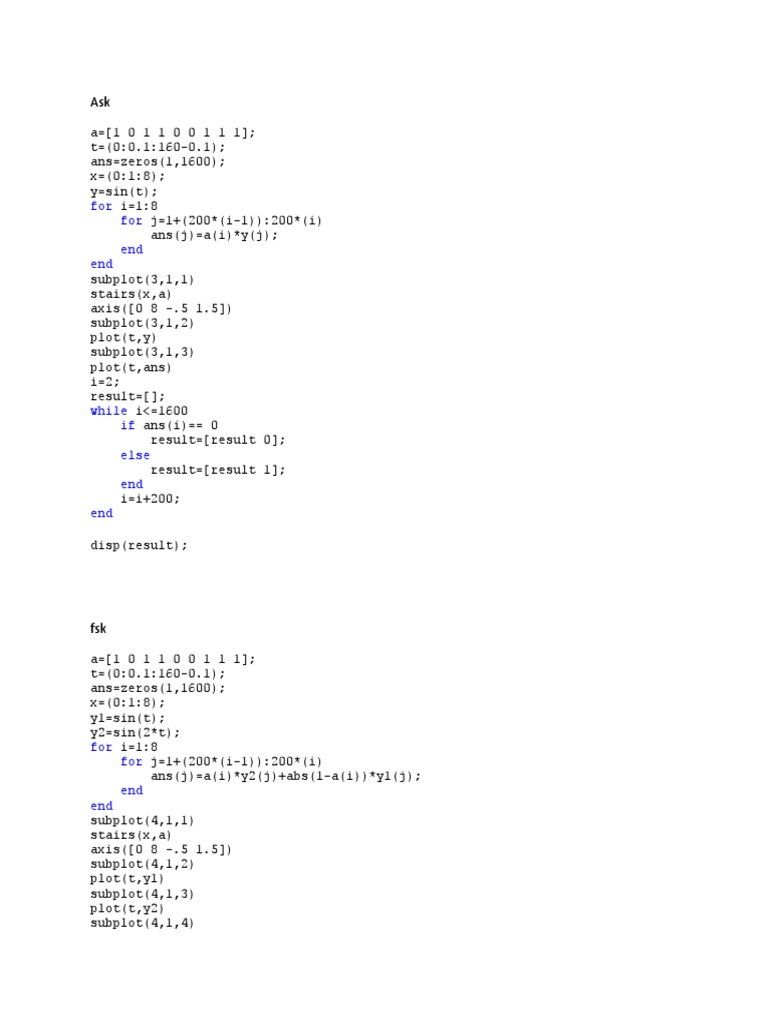

    Ask

    a=[1 0 1 1 0 0 1 1 1];
    t=(0:0.1:160-0.1);
    ans=zeros(1,1600);
    x=(0:1:8);
    y=sin(t);
    for i=1:8
    for j=1+(200*(i-1)):200*(i)
    ans(j)=a(i)*y(j);
    end
    end
    subplot(3,1,1)
    stairs(x,a)
    axis([0 8 -.5 1.5])
    subplot(3,1,2)
    plot(t,y)
    subplot(3,1,3)
    plot(t,ans)
    i=2;
    result=[];
    while i<=1600
    if ans(i)== 0
    result=[result 0];
    else
    result=[result 1];
    end
    i=i+200;
    end

    disp(result);

    fsk

    a=[1 0 1 1 0 0 1 1 1];
    t=(0:0.1:160-0.1);
    ans=zeros(1,1600);
    x=(0:1:8);
    y1=sin(t);
    y2=sin(2*t);
    for i=1:8
    for j=1+(200*(i-1)):200*(i)
    ans(j)=a(i)*y2(j)+abs(1-a(i))*y1(j);
    end
    end
    subplot(4,1,1)
    stairs(x,a)
    axis([0 8 -.5 1.5])
    subplot(4,1,2)
    plot(t,y1)
    subplot(4,1,3)
    plot(t,y2)
    subplot(4,1,4)
    plot(t,ans)

    nrz

    input=[1,0,1,1,0,0,0,1,1,0,1];
    a=[0,0,0,0,0,0,0,0,0,0,0,0];

    for i=1:1:11
    if input(i)==1
    a(i)=5;
    else
    a(i)=-5;
    end
    end
    t=(0:1:11);
    subplot(6,2,1)
    stairs(t,a);
    axis([0 11,-8 8])
    if input(1)==1
    a(1)=5;
    else
    a(1)=-5;
    end
    for i=2:1:11
    if input(i)==1
    a(i)=-a(i-1);
    else
    a(i)=a(i-1);
    end
    end
    subplot(6,2,2)
    stairs(t,a);
    axis([0 11,-8 8])
    if input(1)==1
    a(1)=-5;
    else
    a(1)=5;
    end
    for i=2:1:11
    if input(i)==0
    a(i)=-a(i-1);
    else
    a(i)=a(i-1);
    end
    end
    subplot(6,2,3)
    stairs(t,a);
    axis([0 11,-8 8])
    b=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];
    for i=1:1:11
    if input(i)==1
    b(2*i-1)=5;
    b(2*i)=0;
    else
    b(2*i-1)=0;
    b(2*i)=0;
    end
    end
    t1=(0:0.5:11.5);
    subplot(6,2,4)
    stairs(t1,b);
    axis([0 11,-1.5 7])
    b=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];
    for i=1:1:11
    if input(i)==1
    b(2*i-1)=5;
    b(2*i)=0;
    else
    b(2*i-1)=-5;
    b(2*i)=0;
    end
    end
    t1=(0:0.5:11.5);
    subplot(6,2,5)
    stairs(t1,b);
    axis([0 11,-8 8])
    x=5;
    b=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];
    for i=1:1:11
    if input(i)==1
    b(2*i-1)=x;
    b(2*i)=0;
    x=-x;
    else
    b(2*i-1)=0;
    b(2*i)=0;
    end
    end
    t1=(0:0.5:11.5);
    subplot(6,2,6)
    stairs(t1,b);
    axis([0 11,-8 8])
    b=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];
    for i=1:1:11
    if input(i)==1
    b(2*i-1)=5;
    b(2*i)=-5;
    else
    b(2*i-1)=-5;
    b(2*i)=5;
    end
    end
    t1=(0:0.5:11.5);
    subplot(6,2,7)
    stairs(t1,b);
    axis([0 11,-8 8])
    x=-5;
    b=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];
    for i=1:1:11
    if input(i)==1
    b(2*i-1)=x;
    b(2*i)=-x;
    x=-x;
    else
    b(2*i-1)=x;
    b(2*i)=x;
    end
    x=-x;
    end
    t1=(0:0.5:11.5);
    subplot(6,2,8)
    stairs(t1,b);
    axis([0 11,-8 8])
    x=-5;
    b=[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];
    for i=1:1:11
    if input(i)==0
    b(2*i-1)=x;
    b(2*i)=-x;
    x=-x;
    else
    b(2*i-1)=x;
    b(2*i)=x;
    end
    x=-x;
    end
    t1=(0:0.5:11.5);
    subplot(6,2,8)
    stairs(t1,b);
    axis([0 11,-8 9])
