H.264 4 / 8 / 16CH 960H DVR Quick Guide
H.264 4 / 8 / 16CH 960H DVR Quick Guide

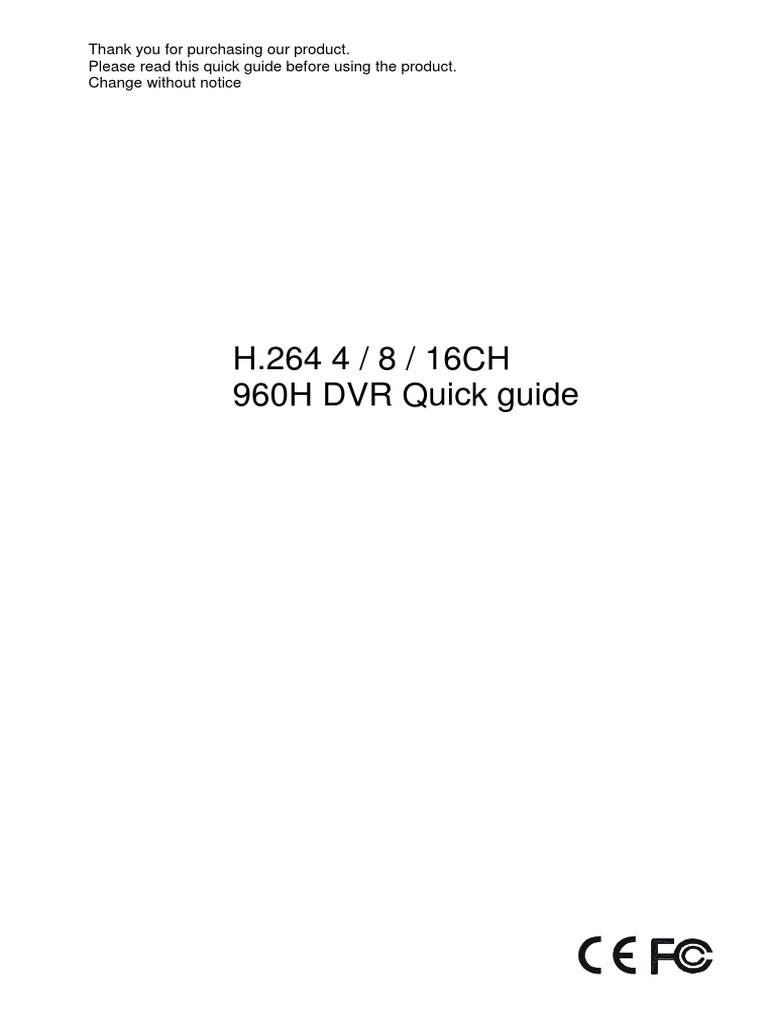

H.264 4 / 8 / 16CH
960H DVR Quick guide
◆ CAUTION
z Please read this user manual carefully to ensure that you can use the device correctly
and safely
z We do not warrant all the content is correct. The contents of this manual are subject to
change without notice
z This device should be operated only from the type of power source indicated on the
marking label. The voltage of the power must be verified before using. If not in use for a long
time, pull out the plug from the socket
z Do not install this device near any heat sources such as radiators, heat registers, stoves
or other device that produce heat
z Do not install this device near water. Clean only with a dry cloth
z Do not block any ventilation openings. And ensure well ventilation around the machine
z Do not power off the DVR at normal recording condition! The correct operation to shut
off DVR is to stop recording firstly, and then select “shut-down” button at the right of the
menu bar to exit, and finally to cut off the power.
z This machine is indoor using equipment. Do not expose the machine in rain or moist
environment. In case any solid or liquid get into the machine’s case, please cut off the
power supply immediately, and ask for qualified technicians to check the machine before
restart
z Refer all servicing to qualified service personnel. No any parts repaired by yourself
without technical aid or approval.
-2-
1. Product Introduction
COMPRESSION FORMAT
z Standard H.264 compression with low bit rate and better image quality
LIVE SURVEILLANCE
z Supports HDMI/ VGA/BNC output
z Supports channel security by hiding live display
z Display the local record state and basic information
z Supports USB to make full control
RECORD MEDIA
z Supports one SATA HDD to record for a longer time without any limitation
BACKUP
z Supports USB 2.0 devices to backup
z Supports saving recorded files with AVI standard format to a remote computer through internet
RECORD & PLAYBACK
z Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
z Supports recycle after HDD full
z Resolution, frame rate and picture quality are adjustable
z 4CH DVR supports 4 CH 960H real-time recording
z 8CH DVR supports 960H @12/15frame recording or 8CH full D1/CIF real-time recording.
z 16CH DVR supports 960H @12/15frame recording or 16CH full D1/CIF real-time recording.
z Three record search modes: time search, event search and image search
z 4/8/16-CH screen playback simultaneously
z Supports deleting and locking the recorded files one by one
z Supports remote playback in Network Client through LAN or internet
ALARM
z 1 channel alarm output and 4/8/16 channel alarm input available
z Supports schedule for motion detection and sensor alarm
z Supports pre-recording and post recording
z Supports linked channels recording once motion or alarm triggered on certain channel
z Supports linked PTZ preset ,auto cruise and track of the corresponding channel
PTZ CONTROL
z Supports various PTZ protocols
z Supports 128 PTZ presets and 8 auto cruise tracks
z Supports remote PTZ control through internet
SECURITY
z Customize user right: log search, system setup, two way audio, file management, disk
management, remote login, live view, manual record, playback, PTZ control and remote live
view
z Supports 1 administrator and 63 users.
z Supports event log recording and checking, events unlimited
NETWORK
z Supports TCP/IP, DHCP, PPPOE, DDNS protocol
z Supports IE browser to do remote view
z Supports setup client connection amount
z Supports dual stream. Network stream is adjustable independently to fit the network bandwidth
and environment.
z Supports picture snap and color adjustment in remote live
z Supports remote time and event search, and channel playback with picture snap
z Supports remote PTZ control with preset and auto cruise
z Supports remote full menu setup, changing all the DVR parameters remotely
z Supports mobile surveillance by phones with iPhone/Android/
z Supports CMS to manage multi devices on internet
-3-
1.2 Front Panel Definition
Notice: The pictures are only for reference; please make the object as the standard.
-4-
1.3 Rear Panel Instructions
-5-
Rear Panel for 16-ch
-6-
1.4 Remote control
Button Function
Switch off—to stop DVR. Use it before turning off the
Power Button power
Record Button To record manually
-/-- /0-9 Digital Button Input number or choose camera
Fn1 Button Unavailable temporarily
Multi Button To choose multi screen display mode
Next Button To switch the live image
SEQ To enter into auto dwell mode
Audio To enable audio output in live mode
Switch To switch the output between BNC and VGA
-7-
1.5 Mouse Control
◆Connection: Please connect the USB mouse to USB port on the front or back panel.
◆Mouse functions:
1)Under LIVE mode:
On every channel,you could double click the left button to switch FULL SCREEN and
double click again to switch back to original split mode.
On every channel,you could single click right button to popup MENU page.
2. Wizard setup
2.1 Wizard for language and time setup
-8-
Please click “next” to next wizard process.
You can setup record frame rate and quality for each channel and change record resolution.
Adjustable parameter as following,
-9-
If 960H mode is enabled, here are the following resolutions available
4 CH 4CIF@30(25) 4WD1@30(25)
8 CH 8CIF@30(25) 8WD1@15(12)
16 CH 16CIF@30(25) 16WD1@15(12)
If you want to change all channel setup at once, please click “All” then setup
resolution, frame rate and quality at right hand side.
- 10 -
Compatible Devices
Brand Capacity
A-DATA 512MB, 1G, 2GB
Transcend 4GB
Kingston 2GB
Toshiba 2GB
SanDisk 4GB
Brand Model
LG GH24NS90
- 11 -
3. Compatible HDD
HDS721616PLA380 160GB
HCT721025SLA380 500GB
HITACHI
HCP725050GLA380 500GB
HDP725050GLA360 1TB
HCS5C1050DLE630
TOSHIBA 500GB
FW:620 DT01ABA050V
DT01ABA100 1TB
DT01ACA100 1TB
85-H4996D-A004G-A
