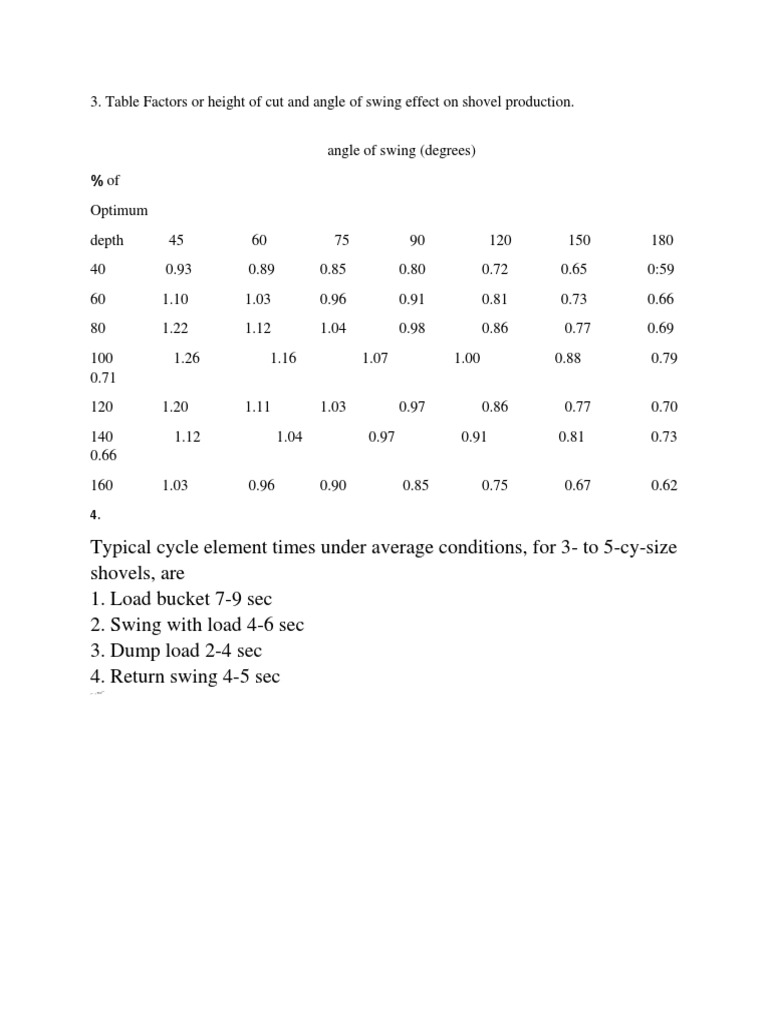

3. Table Factors or height of cut and angle of swing effect on shovel production.

angle of swing (degrees)

% of
Optimum
depth 45 60 75 90 120 150 180
40 0.93 0.89 0.85 0.80 0.72 0.65 0:59
60 1.10 1.03 0.96 0.91 0.81 0.73 0.66
80 1.22 1.12 1.04 0.98 0.86 0.77 0.69
100 1.26 1.16 1.07 1.00 0.88 0.79
0.71
120 1.20 1.11 1.03 0.97 0.86 0.77 0.70
140 1.12 1.04 0.97 0.91 0.81 0.73
0.66
160 1.03 0.96 0.90 0.85 0.75 0.67 0.62
4.

Typical cycle element times under average conditions, for 3- to 5-cy-size

shovels, are
1. Load bucket 7-9 sec
2. Swing with load 4-6 sec
3. Dump load 2-4 sec
4. Return swing 4-5 sec
