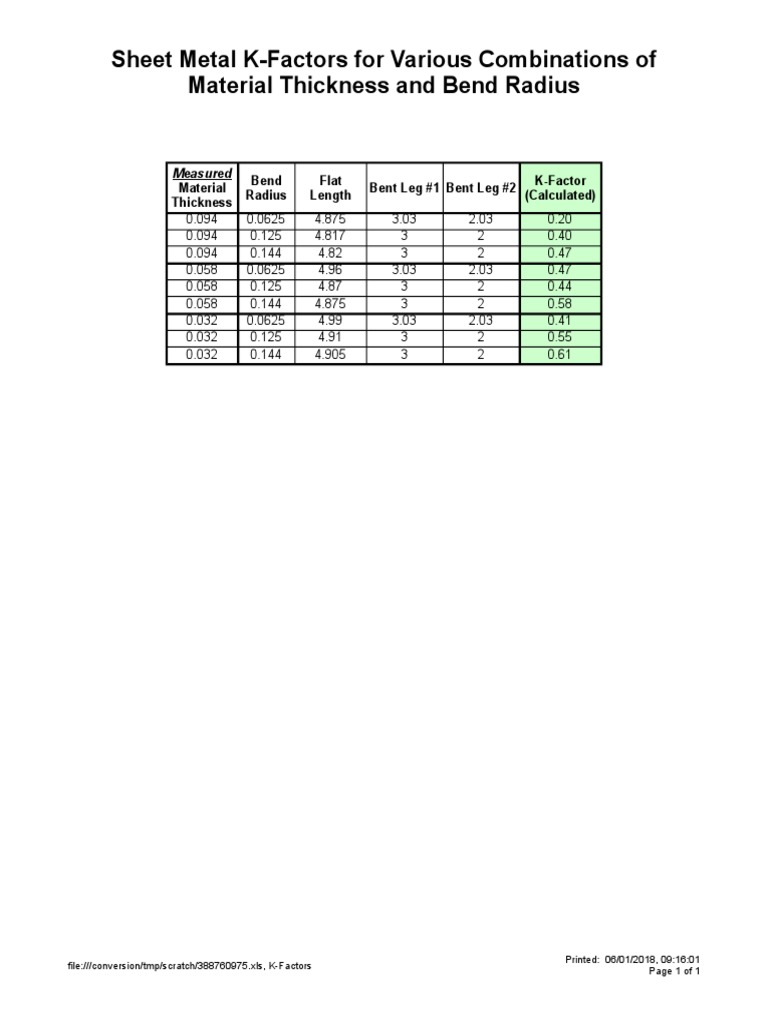

    Sheet Metal K-Factors for Various Combinations of

    Material Thickness and Bend Radius

    Measured
    Bend Flat K-Factor
    Material Bent Leg #1 Bent Leg #2
    Radius Length (Calculated)
    Thickness
    0.094 0.0625 4.875 3.03 2.03 0.20
    0.094 0.125 4.817 3 2 0.40
    0.094 0.144 4.82 3 2 0.47
    0.058 0.0625 4.96 3.03 2.03 0.47
    0.058 0.125 4.87 3 2 0.44
    0.058 0.144 4.875 3 2 0.58
    0.032 0.0625 4.99 3.03 2.03 0.41
    0.032 0.125 4.91 3 2 0.55
    0.032 0.144 4.905 3 2 0.61

    Printed: 06/01/2018, 09:16:01


    file:///conversion/tmp/scratch/388760975.xls, K-Factors
    Page 1 of 1
