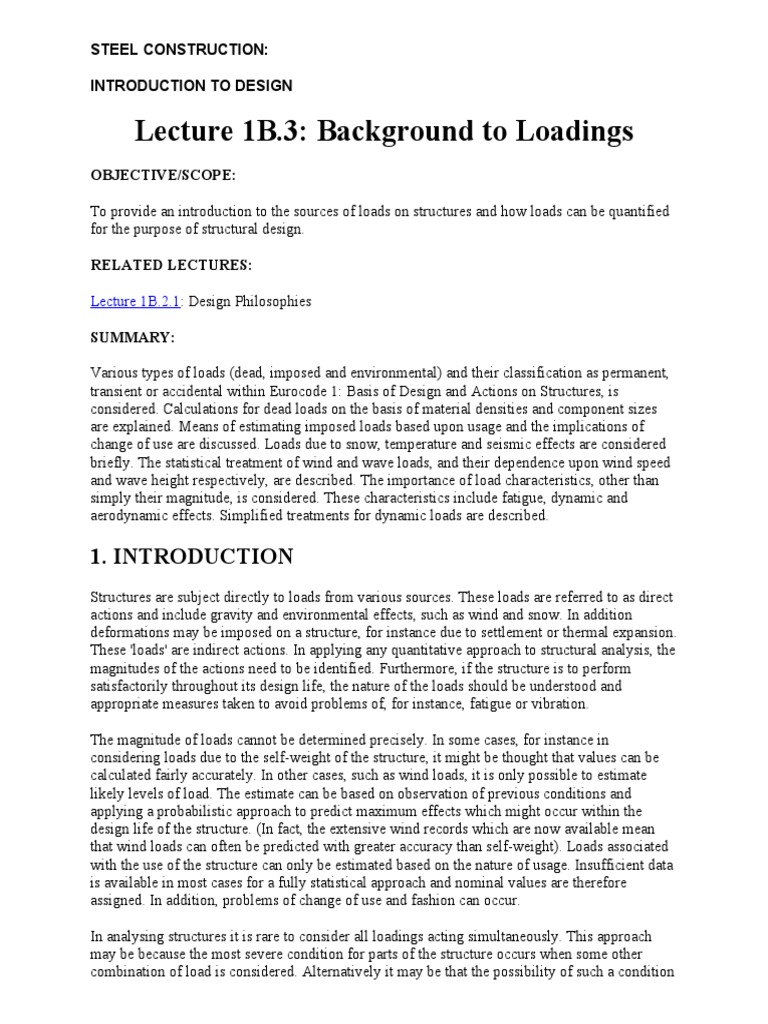

STEEL CONSTRUCTION:

INTRODUCTION TO DESIGN

Lecture 1B.3: Background to Loadings

OBJECTIVE/SCOPE:

To provide an introduction to the sources of loads on structures and how loads can be quantified
for the purpose of structural design.

RELATED LECTURES:

Lecture 1B.2.1: Design Philosophies

SUMMARY:

Various types of loads (dead, imposed and environmental) and their classification as permanent,
transient or accidental within Eurocode 1: Basis of Design and Actions on Structures, is
considered. Calculations for dead loads on the basis of material densities and component sizes
are explained. Means of estimating imposed loads based upon usage and the implications of
change of use are discussed. Loads due to snow, temperature and seismic effects are considered
briefly. The statistical treatment of wind and wave loads, and their dependence upon wind speed
and wave height respectively, are described. The importance of load characteristics, other than
simply their magnitude, is considered. These characteristics include fatigue, dynamic and
aerodynamic effects. Simplified treatments for dynamic loads are described.

1. INTRODUCTION
Structures are subject directly to loads from various sources. These loads are referred to as direct
actions and include gravity and environmental effects, such as wind and snow. In addition
deformations may be imposed on a structure, for instance due to settlement or thermal expansion.
These 'loads' are indirect actions. In applying any quantitative approach to structural analysis, the
magnitudes of the actions need to be identified. Furthermore, if the structure is to perform
satisfactorily throughout its design life, the nature of the loads should be understood and
appropriate measures taken to avoid problems of, for instance, fatigue or vibration.

The magnitude of loads cannot be determined precisely. In some cases, for instance in
considering loads due to the self-weight of the structure, it might be thought that values can be
calculated fairly accurately. In other cases, such as wind loads, it is only possible to estimate
likely levels of load. The estimate can be based on observation of previous conditions and
applying a probabilistic approach to predict maximum effects which might occur within the
design life of the structure. (In fact, the extensive wind records which are now available mean
that wind loads can often be predicted with greater accuracy than self-weight). Loads associated
with the use of the structure can only be estimated based on the nature of usage. Insufficient data
is available in most cases for a fully statistical approach and nominal values are therefore
assigned. In addition, problems of change of use and fashion can occur.

In analysing structures it is rare to consider all loadings acting simultaneously. This approach
may be because the most severe condition for parts of the structure occurs when some other
combination of load is considered. Alternatively it may be that the possibility of such a condition
actually occurring is extremely small. However, the risk of coexistence of apparently unrelated
loads may be greater than is first imagined. Correlations can be produced from unexpected
sources or from coincidences which, although physically unconnected, are temporarily
connected. For example, floor and wind loads would normally be considered as unrelated.
However, in hurricane areas residents on the coast might be expected to move their ground floor
contents to upper floors if a hurricane warning, with associated tidal surge, were given. This
circumstance could very easily produce extreme floor loads in combination with extreme wind
loads. This case may be a very special one but there are others. The risk of fire may not be
considered correlated with high wind loads, yet in many parts of the world high winds are more
likely in winter, which is also the period of greatest fire risk.

For these reasons it is convenient to consider loads under various categories. The categories can
then be ascribed different safety factors and applied in various combinations as required.
Traditionally, loadings have been classified as dead, superimposed and environmental loads.
These classes include a wide range of gravity effects, seismic action, pressures due to retained
material or liquids, temperature induced movement, and, for marine structures, water movement.
The Eurocodes on actions and steelwork design [1, 2] classify loads and other actions as
permanent, variable and accidental. These classes of action will be considered in more detail in
the following Sections.

In limit state design, characteristic values of actions are used as the basis of all calculations. They
are values which statistically have only a small probability of being exceeded during the life of
the structure. To provide a margin of safety, particularly against collapse, partial safety factors
are applied to these characteristic values to obtain design quantities. In principle, different partial
safety factors can be applied depending on the degree of uncertainty or variability of a particular
type of action. In practice, whilst this appears to be the case, the actual values of partial safety
factors used incorporate significant elements of the global safety factor and do not represent a
rigorous probabilistic treatment of the uncertainties of the actions.

2. PERMANENT ACTIONS
Permanent actions, as the name implies, are always present and must be considered in all cases.
They comprise what are traditionally referred to as dead loads, but may also include permanent
imposed loads due, for instance, to machinery or stored material.

2.1 Dead Loads

Dead loads are gravity loads due to the self weight of the structure and any fixtures or finishes
attached to it (Figure 1). Their magnitudes can be estimated with reasonable confidence based on
prescribed dimensions and a knowledge of material density. Even so, variations due to
constructional tolerances and natural variations in materials, will exist. Furthermore, fixtures,
fittings and finishes may be replaced or modified during the life of the structure. This possibility
has been recognised in calculating loads on bridge decks, for which a separate load category of
'superimposed dead load' is included to allow for surfacing which is likely to be replaced a
number of times during the life of the bridge. For this situation there is consequently a much
greater potential for variability than for other dead loads.
A similar condition exists within certain types of building with respect to partitions (Figure 2).
Where the position of walls is predetermined their weight can simply be included as a dead load.
For more speculative development, internal partitions will be the responsibility of the client and
their layout is likely to change many times during the life of the building. An allowance, as an
equivalent uniformly distributed load, is therefore normally made.

Schedules of densities for common building materials are listed in Eurocode 1 [1] and
manufacturers of proprietary products, such as cladding, blockwork, raised floors, etc. provide
information on weights. Together with specified dimensions, these data enable dead loads to be
calculated. Where dead loads are not strictly evenly distributed over a plan area, such as timber
floor joists located at discrete intervals, they are often represented as an equivalent uniformly
distributed load for convenience in design calculations. As long as the equivalent magnitude is
determined in a rational manner, any differences between this simplified approach and a more
rigorous analysis taking account of the actual location of the joists will be negligible.
To determine dead loads, consider, for example, the case of a floor consisting of a 150mm thick
reinforced concrete slab with 50mm lightweight screed and a 15mm plaster soffit. Details are
shown in Figure 3 together with densities for each material. The total dead load per square metre
of floor plan can be calculated as follows:

lightweight screed  15 x 0,05  = 0,75 kN/m2

rc slab  24 x 0,15  = 3,60
plaster  12 x 0,015  = 0,18
total dead load    = 4,53 kN/m2

In addition an allowance would normally be made for any services or fittings (electric lighting,
pipework, etc.) fitted to the underside of the slab or located within the screed or under a raised
floor (Figure 4). This case is another where an equivalent uniformly distributed load is used to
represent load sources distributed in an uneven manner. A value between 0,1 and 0,3 kN/m2 is
normally adequate to cover such installations.
The weight of walls can be treated in a similar manner to floors by considering the various
component parts and summing the weights per square metre on elevation. For example, consider
a cavity wall consisting of a tile-hung brick outer leaf (100mm thick) and a plastered blockwork
inner leaf (150mm thick) as shown in cross-section in Figure 5.

The total dead load is determined as follows:

tiles  0,6 kN/m2

brickwork  2,1
blockwork  1,4
plaster  0,2
total dead load of wall  4,3 kN/m2

By multiplying this value by the height of the wall, the load intensity as a line load on the
supporting structure can be determined.

Loads due to internal lightweight stud or blockwork partitions cannot normally be treated in such
a rigorous manner since their location is often not known at the design stage and in any case may
change during the life of the building. Instead an allowance is made within the assessment of
imposed loads which is described under variable actions.

3. VARIABLE ACTIONS
Variable actions comprise loads which are not always acting but may exist at various times
during the normal use of the structure. They include loads due to the occupation of a building
and traffic on bridges (imposed loads), snow and wind loads (environmental loads), and
temperature effects (Figure 6). They do not include accidental conditions such as fire, explosion
or impact.
3.1 Imposed Loads

Imposed loads - sometimes referred to as "superimposed", "super" or "live" loads - are those
loads due directly to the use of the structure. For buildings, they are concerned with the
occupancy by people, furniture, equipment, etc. For bridges they are due to traffic, whether
pedestrian or vehicular.

Clearly these conditions will be almost constantly changing and are rather more difficult to
quantify than dead loads. For buildings, the approach has therefore been to relate imposed load
levels to occupancy, and to base them on observation and sensible deduction. Eurocode 1: Basis
of Design and Actions on Structures [1] distinguishes between four classes of loaded floor area
as follows:

 areas of dwellings, offices, etc.

 garage and traffic areas.
 areas for storage, production machinery and filing.
 areas serving as escape routes.

The first class is further subdivided into four categories according to their specific use. They are
residential (including hospital wards, hotel bedrooms etc.), public premises (such as offices,
hotels, hospitals, schools, leisure centres etc.), public premises susceptible to overcrowding
(including assembly halls, conference rooms, theatres, shopping areas and exhibition rooms), and
public premises susceptible to overcrowding and accumulation of goods (including areas in
warehouses and department stores).

The characteristic values of the imposed loads for these different categories are given in Table 1.
Thus domestic residences attract a lower imposed load than office accommodation; areas of
public assembly, where large numbers of people could gather at any one time, are prescribed a
high superimposed load. Storage areas must be particularly carefully considered and Eurocode 1
includes details of densities for a range of stored materials. Some of these, such as steel strip,
will generate high loads, but even apparently innocuous conditions, such as filing stores, can
experience very high loading levels. Escape routes must be designed for relatively high imposed
loads.

Although such loads are used in limit state design in a semi-probabilistic way and are referred to
as characteristic values (implying a statistical basis for their derivation) little data is available. A
proper statistical analysis is not therefore possible and values specified are nominal quantities.
One study which was conducted into office accommodation in the UK [4] revealed a wide
variation in actual load levels for similar building occupancies. In all cases the load levels
measured were considerably less than the characteristic values specified for the structural design.
However, this observation must be viewed with some caution since design must allow for
extreme conditions, misuse and panic situations.

Note that, although imposed loading will rarely be evenly distributed, a uniform distribution of
load intensity is normally assumed (Figure 7).

3.2 Permitted Reductions in Imposed Load

The nominal values of imposed load associated with different classifications of building
occupancy and use represent extreme conditions. In many cases the probability of such
conditions existing simultaneously throughout a building is remote. In recognition of this remote
possibility some reductions in imposed load intensity may be permitted. Reduction applies
particularly to columns in multi-storey buildings where it increases with the number of floors
supported by a particular length of column. Typical reductions range from 10% to 30% and
apply to imposed loads only. No reductions are permitted in dead load or for certain types of
imposed load - notably in the case of storage areas, crane loads, and loads explicitly allowed for
such as those due to machinery or due to people in public premises susceptible to overcrowding.

3.3 Superimposed Bridge Loads

In practice a highway bridge is loaded in a very complex way by vehicles of varying sizes and
groupings. In order to simplify the design process this real loading is typically simulated by two
basic imposed loads - a uniformly distributed load and a knife edge load - representing an
extreme condition of normal usage (Figure 8). The design is then checked for a further load
arrangement representing the passage of an abnormal load. The magnitudes of all these loads are
generally related to the road classification, the highway authority's requirements and the loaded
length of the bridge.

For vehicular traffic within buildings, lightweight conditions (less than 16 tonnes) can be dealt
with in categories such as cars, light vehicles and medium vehicles. For heavier traffic, highway
loading must be considered.

Railway bridge design must take account of static loading and forces associated with the
movement of vehicles. As for highway bridges, two models of loading are specified for
consideration as separate load cases. They represent ordinary traffic on mainline railways and,
where appropriate, abnormal heavy loads. They are expressed as static loads due to stationary
vehicles and are factored to allow for dynamic effects associated with train speeds up to
300km/h. Eurocode 1 also gives guidance on the distribution of loads and their effects and
specifies horizontal forces due to vehicle motion. Centrifugal forces associated with the
movement around curves, lateral forces due to oscillation of vehicles (nosing) and longitudinal
forces due to traction and braking are included.

Other aspects of bridge loading which need to be considered include accidental loads and the
possibility of premature failure due to fatigue under traffic loading.

3.4 Crane Loads

For buildings fitted with travelling overhead cranes, the loads due to the crane itself and the
lifted load are considered separately. The self weight of the crane installation is generally readily
available from the manufacturer, and the load lifted corresponds to the maximum lifting capacity
of the crane. When a load is lifted from rest, there is an associated acceleration in the vertical
direction. In the same way that gravity loads are equal to mass multiplied by the acceleration due
to gravity, so the lifting movement causes an additional force. If the load is lifted very gently -
that is with little acceleration - this force will be very small, but a sudden snatch, i.e. a rapid rate
of acceleration, would result in a significant force. This force is of course in addition to the
normal force due to gravity, and is generally allowed for by factoring the normal static crane
loads.

Movements of the crane, both along the length and across the width of the building, are also
associated with accelerations and retardations, this time in the horizontal plane. The associated
horizontal forces must be taken into account in the design of the supporting structure. The
magnitude of the forces will depend, as before, on the rates of acceleration. The normal
procedure is to calculate the magnitudes on the basis of a proportion of the vertical wheel load.
The approach yields an equivalent static force which can be used in designing the structure for
strength. However, the nature of crane loads must also be recognised. The possibility of
premature failure due to fatigue under the cyclic loading conditions should be considered.

3.5 Environmental Loads

Environmental loads are clearly variable actions. For bridges and buildings the most important
environmental loads are those due to snow and wind. For marine structures, particularly offshore
installations such as oil platforms, loads due to water movements are often dominant. The action
of waves generally represents the most severe condition. In certain geographical locations, the
effects of earthquakes must be included in the structural analysis. All of these loads from
environmental sources are beyond the control of man. It has therefore been recognised that a
statistical approach must be adopted in order to quantify corresponding design loads.

The approach is based on the 'return period' which is a length of time to which recorded
environmental data, such as wind speeds, snowfall or wave heights, is related. If records are only
available over a relatively short period, data for the 'return period' may be predicted. The most
severe condition on average over the return period then represents the design value. For a return
period of 100 years, for example, it is referred to as the 1 in 100 year wind speed or wave height,
etc. The return period normally corresponds to the design life of the structure. Clearly there is a
degree of uncertainty about the process of predicting the most severe conditions likely to be
encountered. Further simplifications are implicit in translating measured environmental data such
as wind speeds or wave heights into loads.

3.6 Wind Loads

Wind forces fluctuate with time but for many structures the dynamic effect is small and the wind
load can be treated using normal static methods. Such structures are defined as 'rigid' and
Eurocode 1 [1] provides guidance on this classification. For slender structures the dynamic effect
may be significant. Such structures are classified as 'flexible' structures and their dynamic
behaviour must be taken into account.

The most important parameter in quantifying wind loads is the wind speed. The basis for design
is the maximum wind speed (gust) predicted for the design life of the structure. Factors which
influence its magnitude are:

 geographical location; wind speeds are statistically greater in certain regions than others.
For many areas considerable statistical data is now available and basic wind speeds are
published usually in the form of isopleths (Figure 9) which are lines of equal basic wind
speed superimposed on a map. The basic wind speed is referred to in Eurocode 1 [1] as
the reference wind speed and corresponds to the mean velocity at 10m above flat open
country averaged over a period of 10 minutes with a return period of 50 years.
 physical location; winds gust to higher speeds in exposed locations such as coasts than in
more sheltered places such as city centres (Figure 10), because of varying surface
roughness which reduces the wind speed at ground level. This variation is taken into
account by a roughness coefficient which is related to the roughness of the terrain and the
height above ground level.
 topography; the particular features of a site in relation to hills or escarpments are taken
into account by a topography coefficient.
 building dimensions; height is important in particular because wind speeds increase with
height above ground level (Figure 11).
 the mean wind velocity is determined by the reference wind velocity factored to account
for the building height, ground roughness and topography. The wind pressure is
proportional to the square of the mean wind speed. In addition the following parameters
are important:
 structural shape; it is important to recognise that wind loads are not simply a frontal
pressure applied to the facade of a structure but are the result of a complex pressure
distribution on all faces due to the movement of air around the whole structure. The
distribution is further complicated by adjacent structures and natural
obstructions/variations such as hills, valleys, woodland which may all influence the
pattern of air movement and associated pressure distribution.
 roof pitch; this parameter is really a special aspect of structural shape. It is worth noting
that roofs with a very shallow pitch may be subject to uplift or suction, whilst steeper
roofs - say greater than about 20 - are likely to be subject to a downwards pressure
(Figure 12).
 wind direction; pressure distributions will change for different wind directions (Figure
13).
 gust response factor; this factor is used to take into account the reduction of the spatial
average of the wind pressure with increasing area due to the non-coincidence of
maximum local pressures acting on the external surface of the structure. Thus small parts
of a building, such as cladding units and their fixings, must be designed for higher wind
pressures than the whole structure. The gust response factor is related to an equivalent
height, which corresponds approximately to the centroid of the net wind force on a
structure.
Tabulated procedures enable the above parameters to be accounted for firstly in calculating the
design wind speed, and secondly in translating that wind speed into a system of forces on the
structure. These equivalent static forces can then be used in the analysis and resistance design of
the structure, as a whole. However, certain additional features of wind should also be taken into
account:

 local pressures, particularly at corners and around obstructions in an otherwise 'smooth'

surface, can be significantly higher than the general level (Figure 14). High local
pressures particularly affect cladding and fixing details, but can also be a consideration
for structural elements in these areas.
 structures sensitive to wind should be given a more sophisticated treatment. It might
involve wind tunnel testing and include the influence of surrounding buildings. Structures
which might need to be treated in this way include high-rise buildings, long or slender
bridges, masts and towers.
 aerodynamic instability may be a consideration for certain types of structure or
component, for example chimneys and masts. Vortex shedding can normally be avoided
by the use of strakes (Figure 15). Galloping may be a problem in cables.
3.7 Snow Loads

Loads due to snow have traditionally been treated by specifying a single load intensity, with
possible reductions for steep roof slopes. This approach takes no account of such aspects as the
increased snowfall at higher altitudes or of locally higher loads due to drifting. Cases of complete
or partial collapse due to snow load are not unknown [5]. A more rational approach is to use a
snow map giving basic snow load intensities for a specified altitude and return period similar to
the treatment for basic wind speeds (Figure 16). Corrections for different altitudes or design life
can then be applied as shown in Table 2. At present the European snow map is provisional and
further work is under way to acquire more data.

Allowance for different roof configurations can be dealt with by means of a shape coefficient. It
provides for conditions such as accumulations of snow behind parapets, in valleys and at abrupt
changes of roof height (Figure 17). In addition to snow falling in calm conditions, it may be
necessary to consider the effects of wind. Wind may cause a redistribution of snow, and in some
cases its partial removal from roofs. Any changes in snow distribution on roofs due to excessive
heat loss through part of the roof or snow clearing operations should be accounted for if such
loading patterns are critical. Eurocode 1 [1] does not cover additional wind loads due to the
presence of snow or the accretion of ice, nor loads in areas where snow is present throughout the
year.
3.8 Wave Loading

For offshore structures in deep and hostile waters, wave loads can be particularly severe. The
loads arise due to movement of water associated with wave action. These movements can be
described mathematically to relate forces to physical wave characteristics such as height and
wavelength.

The treatment is therefore similar to wind loads in that these physical characteristics are
predicted and corresponding forces on the particular structural arrangement then calculated.
These calculation procedures are, however, very complicated and must realistically be performed
on a computer.

3.9 Temperature Effects

Exposed structures such as bridges may be subject to significant temperature variation which
must be taken into account in the design. If it is not provided for in terms of allowing for
expansion, significant forces may develop and must be included in the design calculations. In
addition, differential temperatures, e.g. between the concrete deck and steel girders of a
composite bridge, can induce a stress distribution which must be considered by the designer.

3.10 Retained Material

Structures for retaining and containing material (granular or liquid) will be subject to a lateral
pressure. For liquids it is simply the hydrostatic pressure. For granular material a similar
approach can be adopted, but with a reduction in pressure depending on the ability of the
material to maintain a stable slope - this is the Rankine approach. Ponding of water on flat roofs
should be avoided by ensuring adequate falls (1:60 or more) to gutters.

3.11 Seismic Loads

In some parts of the world earthquakes are a very important design consideration. Seismic
actions on structures are due to strong ground motion. They are a function of the ground motion
itself and of the dynamic characteristics of the structure.

Strong ground motion can be measured by one of its parameters, the maximum ground
acceleration being the parameter most usually adopted for engineering purposes. These
parameters are expressed on a probabilistic basis, i.e. they are associated with a certain
probability of occurrence or to a return period, in conjunction with the life period of the structure
[3].

3.12 Accidental Loads

Accidental actions may occur as a result of accidental situations. The situations include fire,
impact or explosion. It is very difficult to quantify these effects. In many cases it may be
preferable to avoid the problem, for instance by providing crash barriers to avoid collision from
vehicles or roof vents to dissipate pressures from explosions.

Where structures such as crash barriers for vehicles and crowds must be designed for 'impact' the
loading is treated as an equivalent static load.

4. CONCLUDING SUMMARY
 There are many sources of structural loads, notably dead loads, those due to the use of the
structure and environmental effects such as wind, earthquake, snow and temperature. The
loads must be quantified for the purpose of structural design. Dead loads can be
calculated. Imposed loads can only be related to type of use through observation on other
similar structures. Environmental loads are based on a statistical treatment of recorded
data.
 Calculated or prescribed values of loads are factored to provide an adequate margin of
safety. The nature, as well as the magnitude, of the loads must be recognised, particularly
in terms of dynamic and fatigue behaviour.

5. REFERENCES
[1] Eurocode 1: Basis of Design and Actions on Structures, CEN (in preparation).

[2] Eurocode 3: Design of Steel Structures: ENV 1993-1-1: Part 1.1, General principles and rules
for buildings, CEN, 1992.

[3] Eurocode 8: Structures in Seismic Regions - Design, CEN (in preparation).

[4] Floor Loadings in Office Buildings - the Results of a Survey, BRE Current Paper 3/71,
Building Research Establishment, Watford, 1971.

[5] Design Practice and Snow Loading - Lessons from a Roof Collapse, The Structural Engineer,
Vol 64A, No 3, 1986.
6. ADDITIONAL READING
1. Monograph on Planning and Design of Tall Buildings, Volume CL, Tall Building Criteria
and Loading, American Society of Civil Engineers, 1980.
2. Civil Engineer's Handbook, Butterworths, London, 1974.
3. Bridge Aerodynamics Conference, Institute of Civil Engineers, Thomas Telford, London,
1981.
4. On Methods of Load Calculation, CIB Report No 9, Rotterdam, 1967.
5. BRE The Designer's Guide to Wind Loading of Building Structures

Part 1 Butterworths, 1985

Part 2, Butterworths, 1990.

Loaded Areas                           

[kN/m2]

Category A - general 2,0

  - stairs 3,0

  - balconies 4,0



Category B - general 3,0

  - stairs, balconies 4,0



Category C - with fixed seats 4,0

  - other 5,0



Category D - general 5,0

Table 1 Imposed loads on floors in buildings

   Snow load so [kN/m2]

Altitude [m]

Zone 0 200 400 600

1 0,40 0,49 0,70 0,95

2 0,80 0,98 1,40 1,89

3 1,20 1,47 2,09 2,84

4 1,60 1,97 2,79 3,78

5 2,00 2,46 2,49 4,73

Table 2 Snow loads for zones given in Figure 16

so = 0,412z

where:

A is the altitude of the site above mean sea level [m]

z is a constant, depending on the snow load zone.

Previous | Next | Contents
