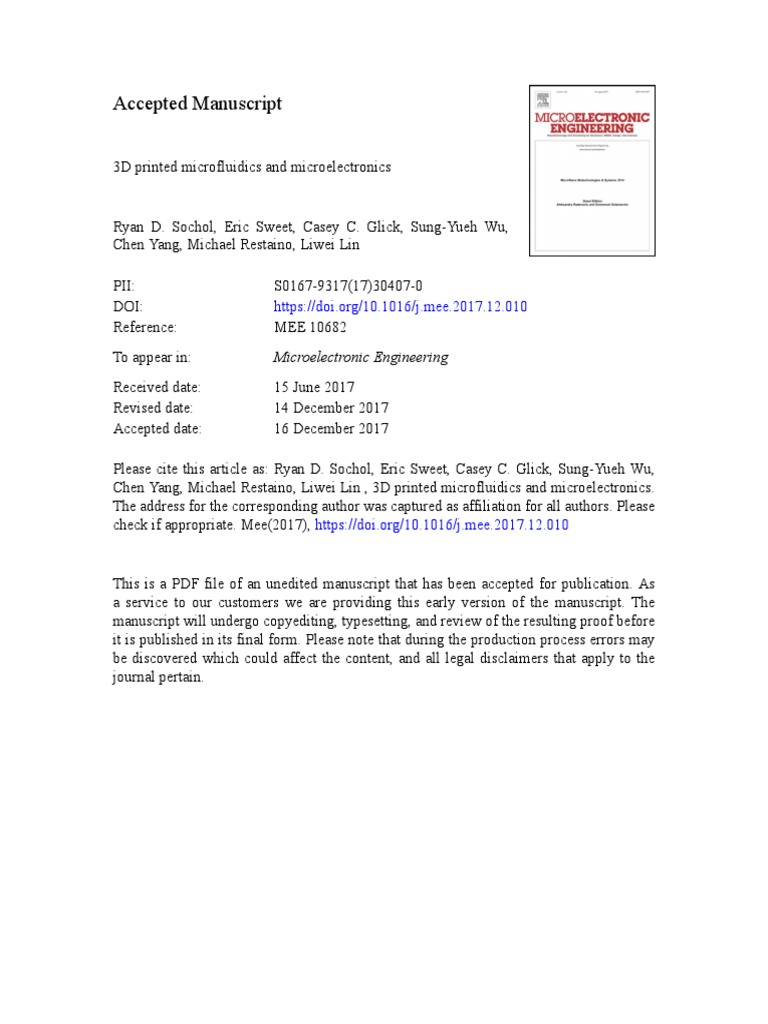

PII: S0167-9317(17)30407-0
DOI: https://doi.org/10.1016/j.mee.2017.12.010
Reference: MEE 10682
To appear in: Microelectronic Engineering
Received date: 15 June 2017
Revised date: 14 December 2017
Accepted date: 16 December 2017
Please cite this article as: Ryan D. Sochol, Eric Sweet, Casey C. Glick, Sung-Yueh Wu,
Chen Yang, Michael Restaino, Liwei Lin , 3D printed microfluidics and microelectronics.
The address for the corresponding author was captured as affiliation for all authors. Please
check if appropriate. Mee(2017), https://doi.org/10.1016/j.mee.2017.12.010
This is a PDF file of an unedited manuscript that has been accepted for publication. As
a service to our customers we are providing this early version of the manuscript. The
manuscript will undergo copyediting, typesetting, and review of the resulting proof before
it is published in its final form. Please note that during the production process errors may
be discovered which could affect the content, and all legal disclaimers that apply to the
journal pertain.
ACCEPTED MANUSCRIPT
a.
Department of Mechanical Engineering, University of Maryland, College Park
T
IP
b.
Fischell Department of Bioengineering, University of Maryland, College Park
CR
c.
Department of Mechanical Engineering, University of California, Berkeley
d.
Berkeley Sensor and Actuator Center
US
e.
Department of Physics, University of California, Berkeley
AN
* Ryan D. Sochol, 2147 Glenn L. Martin Hall, University of Maryland, College Park, MD
M
Liwei Lin, 5135 Etcheverry Hall, University of California, Berkeley, CA 94720, USA;
lwlin@me.berkeley.edu
PT
CE
AC
1
ACCEPTED MANUSCRIPT
Abstract
T
the semiconductor and microelectromechanical systems (MEMS) industries. These
IP
methodologies have enabled microfluidic platforms to be fabricated with fully-integrated
CR
microelectronics – a critical requirement for applications such as electrophoresis and
US
(e.g., via electrowetting-on-dielectric (EWOD) phenomena), and on-chip electrochemical
AN
detection. Despite the distinguishing capabilities afforded by conventional
2
ACCEPTED MANUSCRIPT
1. Introduction
significant and wide-ranging advantages for applications in chemistry and biology [1-3],
including rapid thermal and biochemical diffusion times [4], low reagent volumes [5],
laminar flow profiles [6], precision handling of microparticles (e.g., microbeads and living
T
cells) [7, 8], and controlled regulation of microenvironmental characteristics [9, 10].
IP
To benefit from these characteristics, researchers have utilized and/or adapted
CR
conventional micromachining methods to fabricate fluidic systems at smaller scales [11-
US
standard semiconductor materials, including silicon [14] and glass [15, 16]; however,
AN
disadvantages associated with the use of such materials for microfluidic applications
Bell Labs [20], Duffy et al. introduced a technique for micromolding and bonding the
single layer of PDMS is shown in Figure 1 – left, which consists of five fundamental
steps: (i) photoresist (e.g., SU-8) is spin-coated onto a Si wafer; (ii) microchannel
AC
designs are photolithographically defined (e.g., using a photomask and UV light); (iii) the
photoresist; (iv) liquid PDMS is poured onto the Si wafer with patterned photoresist,
which serves as a negative master; and (v) after the PDMS is thermally cured, the
molded PDMS is removed from the Si wafer, allowing individual devices to be cut and
3
ACCEPTED MANUSCRIPT
then punched with holes at designated inlet/outlet port locations [22-24]. Following this
micromolding process, the PDMS devices can be bonded to a substrate (e.g., a glass
slide or another PDMS layer) using methods including UV ozone or Oxygen plasma
T
comprised of multiple discrete layers that are bonded together – a process termed
IP
“multilayer soft lithography” [25, 26]. The use of multiple layers allows for each tier to
CR
serve a distinct functionality. For example, certain layers can operate as relatively rigid
US
yield fluidic routing capabilities that mimic those of electronic circuits [27-29]. In addition
AN
to differences in physical or mechanical functions, each layer can also be designed with
intervening permeable layer that supports biochemical transport for biological studies
ED
[30-33]. Researchers have also developed methods to create non-planar molds for
applications including microfluidic railing via microchannels with multiple heights [39-42]
components with microfluidic systems. One approach involves the manual insertion of
4
ACCEPTED MANUSCRIPT
conducting wire [47] or other electrode material [48] into microfluidic channels or ports.
Alternatively, the protocols for soft lithography can be adjusted to achieve PDMS
bonding to a substrate with a planar electronics layer, such as a glass slide [49] or PCB
board [50]. Figure 1 illustrates an example protocol for fabricating a microfluidic device
with embedded electrodes. The process for fabricating the metal-patterned glass
T
substrate includes five key steps: (i) photoresist is spin-coated onto a glass substrate;
IP
(ii) electrode designs are photolithographically defined; (iii) a thin layer of a secondary
CR
metal to support electrode adhesion is deposited (e.g., via physical vapor deposition
(PVD) or electroplating); (iv) a layer of a primary metal electrode is deposited; and then
US
(v) the substrate in chemically developed, resulting in liftoff (i.e., removal) of the
AN
undesired photoresist-metal features (Fig. 1 – right). Thereafter, micromolded PDMS
interface with metal electrodes, pads, and interconnects (Fig. 1 – bottom). To support
ED
this bonding process and the ultimate sealing of the microchannels, researchers have
layers [51], plasma surface modification [52], dielectric barrier discharge [53], and
CE
with a conductive nanoparticle filler, such as carbon black [55], silver [55], zinc [56], or
carbon nanotubes [57], prior to thermal curing. This technique allows for the assembly
of vertical sidewall electrodes directly in contact with the microfluidic channel [58] and
5
ACCEPTED MANUSCRIPT
can also be used to place other active polymer composites adjacent to microfluidic
channels [59].
a wide range of on-chip capabilities. In a number of cases, direct fluid contact with the
electrodes is not required, such as for electrode-generated heat sources [60-62] or cell
T
manipulation via magnetic fields [63-65]. Similarly, electrically-generated effects can be
IP
performed with isolated electrodes for applications including fluorescence-activated cell
CR
sorting [66], electrorheological fluid [67] and valve manipulation [68-70], and droplet
US
which individual microfluidic droplets can be manipulated by dielectrically altering their
AN
surface energy [73] – only partial electrode isolation is required as fluid droplets remain
in direct contact with a common grounding electrode while isolated from control
M
electrodes by a layer of dielectric material [74, 75]. In contrast, electrodes are directly
ED
integrated into microfluidic systems when a direct conducting path into the fluid is
needed, such as for electrophoresis [76], dielectrophoresis [77, 78], fluid manipulation
PT
via electrokinetic effects [79, 80], and hydrogel [81-83] and cell manipulation [84, 85].
CE
chemical and biological fields [86]. A critical barrier for those outside of engineering
fields is that gaining access to the necessary equipment for device construction (e.g., in
training and high usage fees [87]. Furthermore, the clean room-based procedures for Si
6
ACCEPTED MANUSCRIPT
wafer processing are typically executed manually, which can be exceedingly cost, time,
and labor-intensive [88]. These issues are exacerbated when fabricating multilayer or
multilevel device designs that require distinct tiers to be manually aligned and/or
assembled – procedures that can diminish the precision and reproducibility associated
T
microelectronic advancements on-site can be challenging (especially for those outside
IP
of engineering fields). Another critical issue is the intrinsic restriction of monolithicity,
CR
which renders relatively common features of macroscale fluidic components (e.g.,
circular channels with varying diameter, non-planar physical architectures, etc.) difficult
US
or impossible to achieve in microscale domains. This monolithicity also constrains the
AN
assembly and packaging of microfluidic systems to relatively planar geometries [91].
More significantly, planar systems restrict the geometry of applied electromagnetic fields
M
[92] as planar electrodes cannot generate parallel electric fields [93] (e.g., a requirement
ED
for optimal capacitive cell cytometry and droplet detection [94]). Consequently,
limitations could offer significant promise for diverse academic and industrial fields.
CE
Thus, just within the last few years, research into the potential for 3D printing of
microfluidic devices has already begun to expand the general understanding of the
AC
[95, 96].
7
ACCEPTED MANUSCRIPT
are used to generate a digital 3D model (e.g., in STL file format), which is then imported
T
into computer-aided manufacturing (CAM) software corresponding to a specific 3D
IP
printer or 3D printing process. Lastly, the resulting 3D printing code (e.g., G-code) is
CR
electronically imported into the 3D printer to enable autonomous device construction.
US
for applications throughout broad academic and industrial fields (e.g., selective laser
AN
sintering, laminated object manufacturing, and binder jetting), the micro/nanoscale 3D
deposition modeling and direct ink writing, (ii) stereolithography, and (iii) multijet (or
polyjet) modelling.
PT
Extrusion-Based 3D Printing
CE
most interest across academic, industrial, and commercial spaces. In 1988, S. Scott
Crump introduced the first extrusion-based 3D printing approach. Stemming from his
experiences making a toy frog (for his daughter) using a hot glue gun loaded with a
mixture of polyethylene and candle wax, S. Scott Crump described and patented an
object is formed using dispensing heads (e.g., nozzles) to directly deposit heated
8
ACCEPTED MANUSCRIPT
(Fig. 2a) [97]. FDM – alternatively referred to as “fused filament fabrication (FFF)” as
polylactic acid (PLA), and polyethylene terephthalate (PET). In the late 1990s,
T
Ceserano and Calvert adapted this concept to extrude and deposit pseudoplastic
IP
materials [98], including ceramics and composites, via a technique termed
CR
“robocasting”. Further extensions of these methodologies in which materials or “inks”
US
3D structures without requiring thermal processing steps (i.e., heating or cooling) are
AN
characterized as “direct ink writing (DIW)” [99-101].
M
Stereolithography
did not file a full patent specification. In 1984, Charles W. Hull filed a patent for a similar
CE
layer fashion to ultimately fabricate a 3D object comprising cured material (Fig. 2b)
[103]. It should be noted that the initialism “SLA” has since come to be used to describe
the process, rather than the apparatus; however, the initialism “SL” is often used
instead. In developing SLA, Hull also created the widely-used STL file format for 3D
9
ACCEPTED MANUSCRIPT
models, and pioneered the digital slicing and hatching (i.e., infill) approaches that
T
adaptations of SLA have included: (i) the use of projection-based photoexposure (e.g.,
IP
via digital micromirror device (DMD) or digital light processing (DLP) technologies) to
CR
cure an entire layer at once (in contrast to the point-by-point process inherent to the use
US
continuous liquid interface production (CLIP) [105], and (iii) holographic approaches for
AN
curing entire volumes in a single step [106].
M
Multijet Modelling
In the early 1990s, Yamane et al. invented a technique for building 3D structures
ED
combined with the simultaneous printing of a sacrificial support material [108] and
parallel dispensing strategies [109], became the basis for “Multijet Modelling (MJM)”
CE
approaches. Referred to as either “Multijet” or “Polyjet” 3D printing, MJM entails the use
AC
After completion of the 3D printing process, the support material – typically a water-
10
ACCEPTED MANUSCRIPT
T
McDonald et al. applied an earlier MJM approach, referred to as “solid-object printing”,
IP
to 3D print various molds for PDMS micromolding (Fig. 3a), enabling microfluidic
CR
systems with serpentine channels and multilayered vias [112]. Subsequently,
US
researchers have extended this work to create molds using SLA [113] and MJM [114].
For example, Hwang et al. created multiple MJM 3D printed molds that can be
assembled to surround liquid-phase PDMS during the curing process, and then
ED
removed thereafter (relying on the flexibility of PDMS) to create complex PDMS channel
PT
architectures (Fig. 3b) [117]. Costa et al. used a similar 3D printed template molding
healthy and diseased (narrowed) vascular structures, (ii) using the templates for PDMS
casting, and then (iii) removing the 3D printed templates to leave behind empty
microchannels within the solidified PDMS (Fig. 3x) [119]. Additionally, Glick et al.
decrease the time and labor associated with assembling multilayer microfluidic systems
11
ACCEPTED MANUSCRIPT
with many distinct layers (Fig. 3c) [118]. Compared to the concept of 3D printing an
entire microfluidic system, the use of 3D printing for fabricating molds provides several
advantages: (i) each mold can be used for the fabrication of multiple microfluidic
devices, saving on 3D printing times and costs, and (ii) the process is compatible with
T
latter benefit allows for researchers to employ similar micromolding procedures, yet
IP
achieve geometric characteristics that would be exceedingly difficult to achieve using
CR
conventional methods. Nonetheless, the molds are still limited in geometric versatility
by the requirement that they must be able to support demolding processes. Thus,
US
although 3D printed transfer molding procedures can overcome issues associated with
AN
clean room-based wafer processing, many of the limitations associated with protocols
efforts have employed FDM to build fluidic systems [124-128], the inherent trade-off
CE
between feature resolution and fabrication time has limited its efficacy for microfluidics
AC
materials or “fugitive inks” [101], which can then be casted and subsequently removed.
In particular, the Jennifer Lewis group has pioneered a number of fugitive ink-based
DIW strategies for resolving 3D microfluidic systems. In one of the earliest of these
12
ACCEPTED MANUSCRIPT
ink; (ii) the 3D printed network is then casted with a surrounding liquid resin; (iii) the
resin is solidified via a curing process; and (iv) the fugitive ink is heated to support
hollow, interconnected microfluidic channels (Fig. 4a) [99]. Wu et al. adapted this
T
approach by applying an omnidirectional printing technique [129] to print free-floating
IP
fugitive ink within a reservoir of a photocurable hydrogel (Fig. 4b) [130]. After the
CR
printing process, the researchers photocured the surrounding hydrogel, and then
evacuated the liquid-phase fugitive ink via vacuum. The resulting system included
US
vascular-inspired 3D microchannels within the hydrogel matrix (Fig. 4b) [130]. Using a
AN
similar approach, Miller et al. 3D printed a 3D carbohydrate glass lattice; however, in
this case, the 3D sacrificial network was encapsulated with living cells and ECM before
M
being dissolved in media [131]. Gelber et al. also 3D printed sacrificial structures using
ED
fluid mixer (Fig. 4c) [132]. Kolesky et al. further extended this approach in a
PT
combinational method than involved using DIW to bioprint two distinct cell-laden gels
CE
adjacent to a fugitive ink, which was ultimately removed and then lined with endothelial
demonstrated by Li et al. employing wax jetting for sacrificial material deposition for
microfluidics is the ability to print using multiple filament material extrusion heads [135],
13
ACCEPTED MANUSCRIPT
from a porous material in a single step for the detection of nitrate content in soil [136].
microfluidics with respect to alternative 3D printing approaches and observed that ~600
T
~300 μm-wide extrusion nozzle – provided additional surface area for laminar flow
IP
interfacial contact that expedited diffusive mixing [137]. Thus, FDM can be employed to
CR
fabricate FDM-printed laminar flow microfluidic mixers; however, the use of FDM-printed
US
mixing would not negatively affect the performance of the device [137].
AN
Microfluidic Systems via Stereolithography
M
varied in size, revealing channel resolutions on the order of 300-400 µm and also
presenting methods to improve optical clarity (Fig. 5a) [90]. Concurrently, Shallan et al.
CE
gradient and microdroplet generators (Fig. 5b) [138]. Bhargava et al. developed a
microfluidic resistors in the form of 750750 µm2 microchannels with varying lengths
(and therefore, resistances) [139]. These elements were utilized for microfluidic
applications including fluidic mixing and droplet generation (Fig. 5c) [139]. Macdonald
et al. revealed that SLA-printed microchannels more reliably and accurately replicated
14
ACCEPTED MANUSCRIPT
as-designed dimensions (~26±20 μm wider) with lower surface roughness than those
The results revealed that SLA offers an effective technology for fabricating microfluidics
devices for applications in which limited laminar flow mixing is required, such as for
T
microfluidic device, Urrios et al. demonstrated the use of several types of DLP-based
IP
SLA to fabricate microfluidic systems using a photocurable low-MW poly(ethylene
CR
glycol) diacrylate (MW 250) (PEG-DA-250) [140]. In contrast to the aforementioned
systems with static components, Au et al. also presented 3D printed microfluidic valves
US
with deformable membranes, which were employed to create a peristaltic pump
AN
comprised of three valves and a multi-fluid perfusion chamber comprised of four valves
(Fig. 5d) [141]. Other groups have since demonstrated additional SLA-based valving
M
printing approach that has been demonstrated, as of the writing of this review, capable
PT
surface, which can then be sealed to form an enclosed microchannel [145]. Below this
50 μm limit, the pixelated resolution of the UV light source resulted in unintended curing
of resin inside the channels. Because the precise chemical formulation of the SLA resin
has a significant effect on the practical resolution of SLA-printed features, Gong et al.
15
ACCEPTED MANUSCRIPT
absorber molecules as well as lower viscosities than commercial resins [146], which
μm-thick membranes [143]. Recently, the Nordin group further optimized a custom
T
knowledge, marks the smallest 3D printed microchannels reported in the literature at
IP
this time. Additionally, Kotz et al. created an SLA-compatible silica nanocomposite that
CR
enabled conversion to transparent fused silica glass (via heat treatment) following the
3D printing process, and demonstrated resolutions on the order of tens of microns [148].
US
Thus, customization of SLA-compatible photomaterials appears to be a critical area of
AN
research to further improve the feature resolution and material versatility of SLA-printed
microfluidic systems.
M
date, DLW approaches have achieved the highest feature resolutions for 3D printing
PT
also be a limitation. Specifically, for DLW, the trade-off between voxel size (i.e., the 3D
point of two-photon polymerization) and 3D printing time has typically limited the total
AC
build volume of 3D printed structures to within the 100 μm3 to 1 mm3 range [155]. Thus,
initial efforts toward using DLW for 3D printed microfluidics involved direct-writing
first loading the photocurable material into microfluidic channels, researchers were able
16
ACCEPTED MANUSCRIPT
diffusion-based mixing dynamics [149] and construct multidirectional fluidic vias [150].
Lamont et al. recently extended this approach to 3D print microfluidic diode components
structures must be self-supporting. For geometries that do not satisfy this condition,
T
fully-integrated support structures (e.g., pillar-like ribs) must be added to the design to
IP
facilitate successful prints [105]. Although such structures can be manually removed
CR
from macroscale objects following the 3D printing process, doing so for submillimeter-
the most complex physical geometries of any additive manufacturing approach. For
ED
straight channel geometries, yet demonstrated the potential for integrating non-3D
AC
printed parts, such as membrane inserts [156]. Lee et al. extended this concept by
components (e.g., channels, mixers, junctions, etc.) could be connected through the use
of non-3D printed rubber O-rings and metal pins to realize functional devices (Fig. 6b)
17
ACCEPTED MANUSCRIPT
T
single-input-regulated multi-flow controller (Fig. 6c – right) [110]. Sweet et al. later
IP
extended the use of these components by integrating several 3D printed fluidic circuit
CR
elements in order to realize finger-powered fluidic pumping and mixing systems [159].
An important benefit of MJM is that devices can be printed not only with a single
US
part material and a support material [160], but also with additional part materials (or
AN
functional gradings of materials) to realize multi-material 3D printed microfluidic systems
[161, 162]. To demonstrate this concept, Keating et al. 3D printed a “Quake Valve” [26]
M
with a rigid photoplastic for the overall system, but with a flexible rubber-like material for
ED
the valving membrane (Fig. 6d) [162]. Recently, Hubbard et al. demonstrated multi-
material microfluidic capacitors, diodes, and transistors, which comprised that comprise
PT
two distinct materials: (i) a non-compliant photoplastic material for functionally ‘rigid’
CE
features, and (ii) a flexible photomaterial for deformable diaphragms and sealing O-rings
integration, build volumes, print speeds, and geometric versatility, MJM material
selection remains limited to a relatively small number of proprietary materials [164, 165].
Among the materials that are available, the vast majority are limited in terms of
18
ACCEPTED MANUSCRIPT
biocompatibility, which may impede the adoption of MJM approaches for biological and
leaching of cytotoxic monomers into contacting fluid. For example, conformal PDMS
and polystyrene-based coatings offer one route to enhance endothelial cell adherence
T
to inner microchannel surfaces for improved efficiency of cell lysis [166]. Similarly,
IP
researchers have observed that polyurethane-based scaffold drop-casting coatings can
CR
improve both substrate cytocompatibility and hydrophilicity for enhanced attachment
US
surfaces [167]. In addition, the use of sacrificial support materials results in all internal
AN
voids (e.g., microchannels) being filled with these materials directly after the 3D printing
component design changes. For example, to remove sacrificial wax support materials
ED
from device microchannels, Sochol et al. executed a multistep protocol including: (i)
immersing the devices in mineral oil heated to 80 °C; (ii) manually inputting hot mineral
PT
oil through the microchannels via a syringe; and (iii) inputting pressurized air through
CE
with additional input/output ports to facilitate this process, such as fluidic diodes that
AC
required four ports rather than the standard two (Fig. 6c – bottom left) [110]. The use
of water-soluble support materials can alleviate the need for such design changes;
however, it is important to note that the removal process for such materials is diffusion
19
ACCEPTED MANUSCRIPT
physically dislodging it [162] or allowing the material to dissolve over time (often over
multiple days) [137, 163, 168]. The diffusion-limited challenges associated with the
shapes and enclosed structures [169] often guide the design of devices to support
T
can accommodate the insertion of a removal tool [156, 162]. Although the addition of
IP
multiple access ports and external stimuli (e.g., sonication) can accelerate the
CR
dissolution process [163], the removal time is directly related to the length of internal
US
microdevice geometries, such as the DNA-inspired microfluidic system shown in Figure
AN
6a, would be difficult or unfeasible to achieve due to the challenges associated with the
20
ACCEPTED MANUSCRIPT
mainly stemmed from demonstrating devices with newly manufacturable forms (e.g.,
T
predominantly on function – i.e., achieving printable conductive materials with desired
IP
electrical characteristics [170]. At present, researchers have primarily employed
CR
extrusion-based 3D printing approaches for electronics applications; however, there
US
have been adaptations of such processes to enable new capabilities. In particular, Ahn
substrates (Fig. 7b) [171]. Notably, Zhou et al. further extended these strategies to 3D
ED
print a silver-nanoparticle ink to create both in-plane and out-of-plane passive radio
PT
oscillators (Fig. 7c) [172]. The researchers were able to integrate fully printed
CE
inks during the deposition process to create conductive metallic interconnects and
freestanding spiral architectures (Fig. 7d) [173]. Liu et al. presented an additional
21
ACCEPTED MANUSCRIPT
microelectronics.
One of the key challenges of 3D printing electrically conductive inks is that the
T
porosity of fabricated parts may cause electrical shorts due to the spreading of the inks
IP
on surface layers [175] or between stacked layers [176]. To reduce such issues, one
CR
approach is to use micromachining techniques to build fine channel features that serve
US
manually placed in desired locations (Fig. 8a) [177]. Alternatively, through process
AN
optimization, conductive inks can be directly printed without the need for guiding
grooves [178-182]. For example, researchers have reported resistivities for silver inks
M
deposited silver inks, researchers have demonstrated that local annealing of printed
silver conductive traces yielded a resistivity of 4.3 × 10 −8 Ωm – close to the bulk silver
PT
porosity [185-188].
technology and its potential uses in the real world become closer to a reality. Gubanova
transistors (ISFETs) for micro volume analysis [189]. Other groups have bypassed
22
ACCEPTED MANUSCRIPT
components, such as capacitors, inductors, and high pass filters as well as copper-
based microwave metamaterials [190, 191]. Additional strategies have enabled more
For example, Muth et al. presented an embedded 3D printing approach that involved
T
extruding conductive ink inside of a reservoir of liquid photopolymer to form resistive
IP
sensing elements for flexible strain sensors [192]. Researchers have also
CR
demonstrated that the extrusion process itself can be adapted, such that multiple
US
Frutiger et al. fabricated capacitive soft strain sensors through an extrusion-based
AN
multicore-shell printing strategy (Fig. 8b) [193]. Finally, microchannels filled with liquid
metals at room temperature, such as mercury, gallium, and their alloys, also offer a
M
potential route to improve the speed and geometric complexity of liquid metal-integrated
ED
approaches as well. Interest in light driven 3D technologies such as SLA/DLP and DLW
for the creation of conductive structures has increased in recent years due to the
AC
example, Odent et al. presented elastic and conductive ionic composite hydrogels that
are compatible with SLA processes and demonstrated both elastic deformation and
conductivities up to 2.9 S m−1 (Fig. 8c) [199]. Recently, researchers have adapted
23
ACCEPTED MANUSCRIPT
carbon nanotubes (MWCNTs) [195]. On a much smaller scale, DLW has been used to
composite material [196]. Researchers have also investigated the utilization of SLS for
T
conductivity of up to 10 Ωm at just 1 wt% CNTs [202].
IP
To provide an alternative to DIW of conductive materials, Wu et al. presented an
CR
approach that entails 3D printing a structure with empty channels, which are
subsequently filled with a conductive liquid metal paste (Fig. 8d) [203]. This strategy
US
enabled fabrication of electronic components including resistors, inductors, and
AN
capacitors, as well as integrated circuits, such as an inductor and capacitor resonant
tank capable of passive wireless sensing functions. Similar to prior works, however, the
M
resistivity of the filled liquid metal pasted was measured as 3.6 × 10−6 Ωm due to the
ED
poor packing density of silver particles inside the channels and inefficient curing
processes [203]. Agarwala et al. adapted this approach to achieve microchannel strain
PT
technology; (ii) the electronic interconnects are 3D printed via DIW; and (iii) commercial
stages during the 3D printing processes. For example, researchers have demonstrated
3D printed antennas and microwave devices by merging FDM with DIW of conductive
inks [205-207]. Similarly, a number of groups have integrated SLA with DIW (while
24
ACCEPTED MANUSCRIPT
a variety of electronic systems, including motion sensors [208, 209] and timer circuits
(Fig. 8e) [210]. For example, Figure 8f shows a six-sided gaming die consisting of a
problem of such methods, however, is that the photocurable materials currently used for
T
SLA processes may be affected by weathering, aging, dimensional changes, and UV
IP
exposure doses, and thus, could limit the reliability of SLA-DIW-based 3D printed
CR
electronics [177].
US
3D Printing of Semiconductor and Other Electronic Materials
AN
In addition to polymers and conductors, 3D printed microelectronics can benefit
such as semiconductor, magnetic, and piezoelectric materials; however, there are three
ED
key issues in producing these materials with high quality via 3D printing processes.
First, most of these materials are made in the form of nanoparticles to be mixed with
PT
solvents and polymers for desirable printing viscosity and properties with respect to 3D
CE
structure from the nanoparticles without voids and grain boundaries. Because most
25
ACCEPTED MANUSCRIPT
T
interconnects. One notable example is a 3D printed quantum dot LED presented by
IP
Kong et al., which was constructed by interweaving five diff erent materials: (i)
CR
semiconducting inorganic nanoparticles, (ii) elastomeric matrix, (iii) organic polymers for
charge transport, (iv) metal conductors, and (v) a UV transparent substrate (Fig. 9a)
US
[212]. Mannoor et al. demonstrated the ability to create bionic ears by using DIW to 3D
AN
print a cell-laden hydrogel matrix and an intertwined conducting silver nanoparticle-
based polymer (Fig. 9b) [213]. Sun et al. employed DIW to 3D print Li4Ti5O12 (LTO) and
M
LiFePO4 (LFP) in an adjacent architectures to serve as materials for the anode and
ED
carbon materials was recently reviewed by Fu et al. [215], it is of note that a material of
growing interest in the additive manufacturing field is graphene as well as its oxidized
AC
and reduced forms graphene oxide (GO) and reduced graphene oxide (rGO) [216-219].
conductivity, and mechanical strength all while being relatively cheap to create and
even biocompatible [218]. Researchers have also demonstrated the ability to 3D print
structures comprising SiO2 [220], ZnO [221], SiC (Fig. 9d) [222], BaTiO3 [223], ZrO2
26
ACCEPTED MANUSCRIPT
[224], and GO (Fig. 9e) [225]. One important caveat, however, is that the efficacy of 3D
T
IP
CR
US
AN
M
ED
PT
CE
AC
27
ACCEPTED MANUSCRIPT
5. Conclusion
Although these efforts have generated considerable interest in academia, industry, and
the general public, in many ways, the overall field remains in its infancy.
T
At present, state-of-the-art demonstrations of 3D printing-based microfluidic and
IP
microelectronic capabilities serve as important first steps toward a longer-term transition
CR
of emerging technologies from the lab to real-world uses and commercialization. It is
US
industrial applications is founded on 3D printing-induced benefits that are unequivocally
AN
superior to conventional manufacturing methods. In the case that additive
manufacturing protocols continue to suffer from relatively slow fabrication speeds and
M
low production volumes, the aforementioned benefits will instead need to stem from the
ED
printing processes. Thus, it is critical for researchers to focus less on evaluating how
PT
readily produced using conventional means, and instead, focus more on demonstrating
singular 3D printing approach has thus far exhibited characteristics that would be ideal
28
ACCEPTED MANUSCRIPT
precise resolution for both external and internal features (e.g., for electrodes and
microchannels, respectively), (iii) minimal labor before, during, and after the printing
T
process, (iv) high geometric and architectural versatility, (v) a wide selection of printable
IP
materials, including materials that are biocompatible and conductive materials that
CR
exhibit low electrical resistivity, (vi) rapid fabrication times, and (vii) low costs.
Unfortunately, recent works have revealed that current 3D printing techniques that are
US
beneficial for microfluidics manufacturing suffer from numerous limitations in the context
AN
of microelectronics fabrication and vice versa.
including FDM and DIW provide significant advantages compared to other additive
ED
processes for fabricating microelectronic systems [226], yet such approaches are ill-
suited for microfluidics manufacturing [96, 164, 227]. One could employ extrusion-
PT
material structure, and then execute standard casting and fugitive ink removal protocols
AC
[99, 130-133] to resolve hollow microchannels that intersect with or run adjacent to the
based 3D printing.
29
ACCEPTED MANUSCRIPT
for microfluidics manufacturing [95], and current research into custom SLA resin
approaches have not yet been demonstrated for the direct placement and/or integration
T
of electrically conductive materials during the 3D printing process. Instead, such
IP
methods typically require extensive post-process metallization protocols [228-230] that
CR
continue to be limited by many of the issues associated with conventional
US
printed microfluidic systems can be designed to incorporate the manual insertion of non-
AN
3D printed electronic components [139, 231]. Yet, such protocols are inherently limited
by factors such as labor, precision, and repeatability, and thus, are not ideal for long-
M
Rather, we anticipate that the selection and use of a specific fabrication strategy will be
CE
30
ACCEPTED MANUSCRIPT
printing technologies that are ideally suited for both microfluidics and microelectronics
T
accelerate the advancement of new generations of 3D printed microfluidic systems with
IP
full, autonomous microelectronics integration.
CR
US
AN
M
ED
PT
CE
AC
31
ACCEPTED MANUSCRIPT
Author Contributions
R.D.S. wrote the abstract, Section 2, and Section 5, illustrated Figures 1 and 2, and
prepared Figures 3-9. R.D.S., C.C.G., E.S., S.-Y.W., and C.Y. wrote Section 1. R.D.S.,
C.C.G., and E.S. wrote Section 3. S.-Y.W., C.Y., and L.L. wrote Section 4. R.D.S.,
C.C.G., E.S., S.-Y.W., C.Y. and L.L. edited the manuscript. R.D.S., E.S. and M.R.
T
edited Sections 3, 4 and 5 upon revision.
IP
CR
US
AN
M
ED
PT
CE
AC
32
ACCEPTED MANUSCRIPT
Figures
T
IP
CR
US
AN
M
ED
PT
CE
AC
33
ACCEPTED MANUSCRIPT
T
IP
CR
US
AN
M
ED
PT
CE
AC
34
ACCEPTED MANUSCRIPT
T
IP
CR
US
Figure 3. Examples of using 3D printing to fabricate 3D molds for PDMS curing.
(a) Concept of using a computer-aided design (CAD) file to 3D print a mold that allows
for PDMS replica molding [112]. (b) Illustrations of using multiple discrete 3D printed
molding components (gray) to mold PDMS (blue), after which the 3D printed molds can
AN
be removed [117]. (c) Concept and results for using double-sided molding procedures
with 3D printed molds to fabricate male-female alignment structures for assembling
complex multilayer microfluidic systems with five distinct layers [118]. (d) Concept and
M
results for creating a single-body PDMS device with an enclosed 3D microchannel via
casting PDMS around a solid SLA-printed microchannel template, followed by manual
ED
35
ACCEPTED MANUSCRIPT
T
IP
CR
US
AN
M
ED
PT
36
ACCEPTED MANUSCRIPT
T
IP
CR
US
AN
M
ED
distinct fluids followed by droplet generation [139]. (d) A 3D printed microfluidic valve
and a 3D printed multi-fluid perfusion chamber comprising four integrated valves [141].
CE
AC
37
ACCEPTED MANUSCRIPT
T
IP
CR
US
AN
M
ED
PT
CE
AC
38
ACCEPTED MANUSCRIPT
T
IP
CR
US
AN
M
ED
PT
CE
AC
T
IP
CR
US
AN
M
ED
PT
CE
AC
40
ACCEPTED MANUSCRIPT
T
IP
CR
US
AN
M
ED
PT
CE
AC
41
ACCEPTED MANUSCRIPT
References
[1] F. K. Balagaddé, L. You, C. L. Hansen, F. H. Arnold, and S. R. Quake, "Long-Term Monitoring of
Bacteria Undergoing Programmed Population Control in a Microchemostat," Science, vol. 309,
pp. 137-140, July 1, 2005 2005.
[2] C.-C. Lee, G. Sui, A. Elizarov, C. J. Shu, Y.-S. Shin, A. N. Dooley, et al., "Multistep Synthesis of a
Radiolabeled Imaging Probe Using Integrated Microfluidics," Science, vol. 310, pp. 1793-1796,
December 16, 2005 2005.
[3] T. Thorsen, S. J. Maerkl, and S. R. Quake, "Microfluidic large-scale integration," Science, vol. 298,
pp. 580-584, Oct 18 2002.
T
[4] R. D. Sochol, B. P. Casavant, M. E. Dueck, L. P. Lee, and L. Lin, "A dynamic bead-based microarray
for parallel DNA detection," Journal of Micromechanics and Microengineering, vol. 21, p.
IP
054019, 2011.
[5] W. H. Tan and S. Takeuchi, "A trap-and-release integrated microfluidic system for dynamic
CR
microarray applications," Proceedings of the National Academy of Sciences of the United States
of America, vol. 104, pp. 1146-1151, Jan 2007.
[6] R. D. Sochol, A. Lu, J. Lei, K. Iwai, L. P. Lee, and L. Lin, "Microfluidic bead-based diodes with
US
targeted circular microchannels for low Reynolds number applications," Lab on a Chip, vol. 14,
pp. 1585-1594, 2014.
[7] W. H. Tan and S. Takeuchi, "Dynamic microarray system with gentle retrieval mechanism for
cell-encapsulating hydrogel beads," Lab on a Chip, vol. 8, pp. 259-266, 2008.
AN
[8] R. D. Sochol, S. Li, L. P. Lee, and L. Lin, "Continuous flow multi-stage microfluidic reactors via
hydrodynamic microparticle railing," Lab on a Chip, vol. 12, pp. 4168-4177, 2012.
[9] T. Teshima, H. Ishihara, K. Iwai, A. Adachi, and S. Takeuchi, "A dynamic microarray device for
M
paired bead-based analysis," Lab on a Chip, vol. 10, pp. 2443-2448, 2010.
[10] K. Kuribayashi-Shigetomi, H. Onoe, and S. Takeuchi, "Cell Origami: Self-Folding of Three-
ED
Dimensional Cell-Laden Microstructures Driven by Cell Traction Force," PLoS ONE, vol. 7, Dec
2012.
[11] P. Yager, T. Edwards, E. Fu, K. Helton, K. Nelson, M. R. Tam, et al., "Microfluidic diagnostic
technologies for global public health," Nature, vol. 442, pp. 412-418, Jul 27 2006.
PT
[12] K. S. Elvira, X. C. i Solvas, R. C. R. Wootton, and A. J. deMello, "The past, present and potential
for microfluidic reactor technology in chemical synthesis," Nat Chem, vol. 5, pp. 905-915, 2013.
[13] F. J. H. Hol and C. Dekker, "Zooming in to see the bigger picture: Microfluidic and
CE
nanofabrication tools to study bacteria," Science, vol. 346, October 24, 2014 2014.
[14] H. T. G. van Lintel, F. C. M. van De Pol, and S. Bouwstra, "A piezoelectric micropump based on
micromachining of silicon," Sensors and Actuators, vol. 15, pp. 153-167, 1988.
AC
[15] D. J. Harrison, A. Manz, Z. Fan, H. Luedi, and H. M. Widmer, "Capillary electrophoresis and
sample injection systems integrated on a planar glass chip," Analytical Chemistry, vol. 64, pp.
1926-1932, 1992/09/01 1992.
[16] D. J. Harrison, K. Fluri, K. Seiler, Z. Fan, C. S. Effenhauser, and A. Manz, "Micromachining a
Miniaturized Capillary Electrophoresis-Based Chemical Analysis System on a Chip," Science, vol.
261, pp. 895-897, August 13, 1993 1993.
[17] S. R. Quake and A. Scherer, "From Micro- to Nanofabrication with Soft Materials," Science, vol.
290, pp. 1536-1540, 2000.
[18] G. M. Whitesides, "The origins and the future of microfluidics," Nature, vol. 442, pp. 368-373,
2006.
[19] E. K. Sackmann, A. L. Fulton, and D. J. Beebe, "The present and future role of microfluidics in
biomedical research," Nature, vol. 507, pp. 181-189, 03/13/print 2014.
42
ACCEPTED MANUSCRIPT
T
Microparticle Arraying System," Lab on a Chip, vol. 12, pp. 5051-5056, 2012.
IP
[24] R. D. Sochol, D. Corbett, S. Hesse, W. E. R. Krieger, K. T. Wolf, M. Kim, et al., "Dual-mode
hydrodynamic railing and arraying of microparticles for multi-stage signal detection in
continuous flow biochemical microprocessors," Lab on a Chip, vol. 14, pp. 1405-1409, 2014.
CR
[25] J. R. Anderson, D. T. Chiu, R. J. Jackman, O. Cherniavskaya, J. C. McDonald, H. Wu, et al.,
"Fabrication of Topologically Complex Three-Dimensional Microfluidic Systems in PDMS by
Rapid Prototyping," Analytical Chemistry, vol. 72, pp. 3158-3164, 2000/07/01 2000.
US
[26] M. A. Unger, H. P. Chou, T. Thorsen, A. Scherer, and S. R. Quake, "Monolithic microfabricated
valves and pumps by multilayer soft lithography," Science, vol. 288, pp. 113-116, Apr 7 2000.
[27] D. C. Leslie, C. J. Easley, E. Seker, J. M. Karlinsey, M. Utz, M. R. Begley, et al., "Frequency-specific
AN
flow control in microfluidic circuits with passive elastomeric features," Nature Physics, vol. 5, pp.
231-235, Mar 2009.
[28] B. Mosadegh, C.-H. Kuo, Y.-C. Tung, Y.-s. Torisawa, T. Bersano-Begey, H. Tavana, et al.,
"Integrated elastomeric components for autonomous regulation of sequential and oscillatory
M
flow switching in microfluidic devices," Nature Physics, vol. 6, pp. 433-437, Jun 2010.
[29] J. A. Weaver, J. Melin, D. Stark, S. R. Quake, and M. A. Horowitz, "Static control logic for
ED
microfluidic devices using pressure-gain valves," Nature Physics, vol. 6, pp. 218-223, Mar 2010.
[30] D. Huh, H. Fujioka, Y.-C. Tung, N. Futai, R. Paine, J. B. Grotberg, et al., "Acoustically detectable
cellular-level lung injury induced by fluid mechanical stresses in microfluidic airway systems,"
PT
Proceedings of the National Academy of Sciences, vol. 104, pp. 18886-18891, November 27,
2007 2007.
[31] D. Huh, B. D. Matthews, A. Mammoto, M. Montoya-Zavala, H. Y. Hsin, and D. E. Ingber,
CE
"Reconstituting Organ-Level Lung Functions on a Chip," Science, vol. 328, pp. 1662-1668, June
25, 2010 2010.
[32] D. Huh, D. C. Leslie, B. D. Matthews, J. P. Fraser, S. Jurek, G. A. Hamilton, et al., "A Human
Disease Model of Drug Toxicity–Induced Pulmonary Edema in a Lung-on-a-Chip Microdevice,"
AC
43
ACCEPTED MANUSCRIPT
[37] C. M. Waits, A. Modafe, and R. Ghodssi, "Investigation of gray-scale technology for large area 3D
silicon MEMS structures," Journal of Micromechanics and Microengineering, vol. 13, p. 170,
2003.
[38] C. Chen, D. Hirdes, and A. Folch, "Gray-scale photolithography using microfluidic photomasks,"
Proceedings of the National Academy of Sciences, vol. 100, pp. 1499-1504, February 18, 2003
2003.
[39] S. E. Chung, W. Park, S. Shin, S. A. Lee, and S. Kwon, "Guided and fluidic self-assembly of
microstructures using railed microfluidic channels," Nature Materials, vol. 7, pp. 581-587, 2008.
[40] P. Wook, L. Hosuk, P. Hyungsung, and K. Sunghoon, "Sorting directionally oriented
microstructures using railed microfluidics," Lab on a Chip, pp. 2169-75, 2009.
T
[41] S. H. Lee, S.-E. Choi, A. J. Heinz, W. Park, S. Han, Y. Jung, et al., "Active Guidance of 3D
IP
Microstructures," Small, vol. 6, pp. 2668-2672, Dec 6 2010.
[42] S. E. Chung, Y. Jung, and S. Kwon, "Three-Dimensional Fluidic Self-Assembly by Axis Translation
of Two-Dimensionally Fabricated Microcomponents in Railed Microfluidics," Small, vol. 7, pp.
CR
796-803, Mar 21 2011.
[43] D. Lai, J. M. Labuz, J. Kim, G. D. Luker, A. Shikanov, and S. Takayama, "Simple multi-level
microchannel fabrication by pseudo-grayscale backside diffused light lithography," RSC Adv., vol.
US
3, pp. 19467-19473, 2013.
[44] D. Di Carlo, L. Y. Wu, and L. P. Lee, "Dynamic single cell culture array," Lab on a Chip, vol. 6, pp.
1445-1449, 2006.
AN
[45] D. Di Carlo and L. P. Lee, "Dynamic single-cell analysis for quantitative biology," Analytical
Chemistry, vol. 78, pp. 7918-7925, 2006.
[46] B. Mosadegh, T. Bersano-Begey, J. Y. Park, M. A. Burns, and S. Takayama, "Next-generation
integrated microfluidic circuits," Lab on a Chip, vol. 11, pp. 2813-2818, 2011 2011.
M
[48] M. Zhang, J. Wu, X. Niu, W. Wen, and P. Sheng, "Manipulations of microfluidic droplets using
electrorheological carrier fluid," Phys. Rev. E, vol. 78, p. 066305, Dec 2008.
[49] P. J. A. Kenis, R. F. Ismagilov, and G. M. Whitesides, "Microfabrication Inside Capillaries Using
PT
Multiphase Laminar Flow Patterning," Science, vol. 285, pp. 83-85, 1999.
[50] S. Hediger, J. Fontannaz, A. Sayah, W. Hunziker, and M. A. M. Gijs, "Biosystem for the culture
and characterisation of epithelial cell tissues," Sensors and Actuators B: Chemical, vol. 63, pp.
CE
Printing for Gold Thin Film and PDMS Patterns," ACS Applied Materials & Interfaces, vol. 2, pp.
1324-1330, 2010/05/26 2010.
[53] R. Morent, N. D. Geyter, F. Axisa, N. D. Smet, L. Gengembre, E. D. Leersnyder, et al., "Adhesion
enhancement by a dielectric barrier discharge of PDMS used for flexible and stretchable
electronics," Journal of Physics D: Applied Physics, vol. 40, p. 7392, 2007.
[54] D. P. Poenar, C. Iliescu, M. Carp, A. J. Pang, and K. J. Leck, "Glass-based microfluidic device
fabricated by parylene wafer-to-wafer bonding for impedance spectroscopy," Sensors and
Actuators A: Physical, vol. 139, pp. 162-171, 9/12/ 2007.
[55] X. Z. Niu, S. L. Peng, L. Y. Liu, W. J. Wen, and P. Sheng, "Characterizing and Patterning of PDMS-
Based Conducting Composites," Advanced Materials, vol. 19, pp. 2682-2686, 2007.
44
ACCEPTED MANUSCRIPT
T
[60] R. S. Dubrow, C. B. Kennedy, and R. Nagle. (2001). Microfluidic devices and systems
IP
incorporating cover layers.
[61] R. Nagle and R. S. Dubrow. (2001). Integrated devices and systems for performing temperature
controlled reactions and analyses.
CR
[62] A. Mazouchi and G. M. Homsy, "Thermocapillary migration of long bubbles in polygonal tubes. I.
Theory," Physics of Fluids, vol. 13, 2001.
[63] J. Junho, S. Jun, and P. Grodzinski, "Micropumps based on alternating high-gradient magnetic
US
fields," IEEE Transactions on Magnetics, vol. 36, pp. 2012-2014, 2000.
[64] D. Psaltis, S. R. Quake, and C. Yang, "Developing optofluidic technology through the fusion of
microfluidics and optics," Nature, vol. 442, pp. 381-386, 07/27/print 2006.
AN
[65] A. C. Siegel, S. S. Shevkoplyas, D. B. Weibel, D. A. Bruzewicz, A. W. Martinez, and G. M.
Whitesides, "Cofabrication of Electromagnets and Microfluidic Systems in
Poly(dimethylsiloxane)," Angewandte Chemie, vol. 118, pp. 7031-7036, 2006.
[66] G. Yao and W. H. Tan, "Molecular-beacon-based array for sensitive DNA analysis," Analytical
M
Applications," Annual Review of Fluid Mechanics, vol. 44, pp. 143-174, 2012.
[70] M. Zhang, L. Wang, X. Wang, J. Wu, J. Li, X. Gong, et al., "Microdroplet-based universal logic
gates by electrorheological fluid," Soft Matter, vol. 7, pp. 7493-7497, 2011.
CE
45
ACCEPTED MANUSCRIPT
[77] Schwartz, Wang, and Bruinsma, "Cell locomotion and focal adhesions are regulated by the
mechanical properties of the substrate - Discussion," Biological Bulletin, vol. 194, pp. 349-350,
Jun 1998.
[78] U. S. Schwarz, N. Q. Balaban, D. Riveline, A. Bershadsky, B. Geiger, and S. A. Safran, "Calculation
of forces at focal adhesions from elastic substrate data: The effect of localized force and the
need for regularization," Biophysical Journal, vol. 83, pp. 1380-1394, Sep 2002.
[79] D. R. Link, E. Grasland-Mongrain, A. Duri, F. Sarrazin, Z. Cheng, G. Cristobal, et al., "Electric
Control of Droplets in Microfluidic Devices," Angewandte Chemie International Edition, vol. 45,
pp. 2556-2560, 2006.
[80] P. Takhistov, A. Indeikina, and H.-C. Chang, "Electrokinetic displacement of air bubbles in
T
microchannels," Physics of Fluids, vol. 14, 2002.
IP
[81] "REVERSIBLE BONDING OF MICROFLUIDIC CHANNELS USING DRY ADHESIVES," ed, 2015.
[82] L. Engel, O. Berkh, K. Adesanya, J. Shklovsky, E. Vanderleyden, P. Dubruel, et al., "Actuation of a
novel Pluronic-based hydrogel: Electromechanical response and the role of applied current,"
CR
Sensors and Actuators B: Chemical, vol. 191, pp. 650-658, 2// 2014.
[83] K. Seon Jeong, K. Han Il, P. Sang Jun, K. In Young, L. Sang Hoon, L. Tae Soo, et al., "Behavior in
electric fields of smart hydrogels with potential application as bio-inspired actuators," Smart
US
Materials and Structures, vol. 14, p. 511, 2005.
[84] H. Andersson and A. van den Berg, "Microfluidic devices for cellomics: a review," Sensors and
Actuators B: Chemical, vol. 92, pp. 315-325, 7/15/ 2003.
AN
[85] J. Voldman, M. L. Gray, M. Toner, and M. A. Schmidt, "A Microfabrication-Based Dynamic Array
Cytometer," Analytical Chemistry, vol. 74, pp. 3984-3990, 2002/08/01 2002.
[86] P. Tseng, C. Murray, D. Kim, and D. Di Carlo, "Research highlights: printing the future of
microfabrication," Lab on a Chip, vol. 14, pp. 1491-1495, 2014.
M
[87] K. Iwai, K. C. Shih, X. Lin, T. A. Brubaker, R. D. Sochol, and L. Lin, "Finger-powered microfluidic
systems using multilayer soft lithography and injection molding processes," Lab on a Chip, vol.
ED
and plug the lab? ," Microelectronic Engineering vol. 132, pp. 156 - 175, 2015.
[92] J.-H. So and M. D. Dickey, "Inherently aligned microfluidic electrodes composed of liquid metal,"
Lab Chip, vol. 11, pp. 905-911, 2011.
[93] J. D. Jackson, Classical electrodynamics: Wiley, 1999.
[94] J. Z. Chen, A. A. Darhuber, S. M. Troian, and S. Wagner, "Capacitive sensing of droplets for
microfluidic devices based on thermocapillary actuation," Lab on a Chip, vol. 4, pp. 473-480,
2004.
[95] N. Bhattacharjee, A. Urrios, S. Kang, and A. Folch, "The upcoming 3D-printing revolution in
microfluidics," Lab on a Chip, vol. 16, pp. 1720-1742, 2016.
[96] S. Waheed, J. M. Cabot, N. P. Macdonald, T. Lewis, R. M. Guijt, B. Paull, et al., "3D printed
microfluidic devices: enablers and barriers," Lab on a Chip, vol. 16, pp. 1993-2013, 2016.
46
ACCEPTED MANUSCRIPT
[97] S. S. Crump, "Apparatus and method for creating three-dimensional objects," ed: Google
Patents, 1992.
[98] J. Cesarano and P. D. Calvert, "Freeforming objects with low-binder slurry," ed: Google Patents,
2000.
[99] D. Therriault, S. R. White, and J. A. Lewis, "Chaotic mixing in three-dimensional microvascular
networks fabricated by direct-write assembly," Nature Materials, vol. 2, pp. 265-271, Apr 2003.
[100] G. M. Gratson, M. Xu, and J. A. Lewis, "Microperiodic structures: Direct writing of three-
dimensional webs," Nature, vol. 428, pp. 386-386, 2004.
[101] J. A. Lewis, "Direct Ink Writing of 3D Functional Materials," Advanced Functional Materials, vol.
16, pp. 2193-2204, 2006.
T
[102] H. Kodama, "Automatic method for fabricating a three‐dimensional plastic model with photo
IP
‐hardening polymer," Review of Scientific Instruments, vol. 52, pp. 1770-1773, 1981.
[103] C. W. Hull, "Apparatus for production of three-dimensional objects by stereolithography," ed:
CR
Google Patents, 1986.
[104] S. Maruo, O. Nakamura, and S. Kawata, "Three-dimensional microfabrication with two-photon-
absorbed photopolymerization," Optics Letters, vol. 22, pp. 132-134, 1997/01/15 1997.
[105] J. R. Tumbleston, D. Shirvanyants, N. Ermoshkin, R. Janusziewicz, A. R. Johnson, D. Kelly, et al.,
US
"Continuous liquid interface production of 3D objects," Science, vol. 347, pp. 1349-1352, 2015.
[106] M. Shusteff, A. E. M. Browar, B. E. Kelly, J. Henriksson, T. H. Weisgraber, R. M. Panas, et al.,
"One-step volumetric additive manufacturing of complex polymer structures," Science
AN
Advances, vol. 3, 2017.
[107] M. Yamane, T. Kawaguchi, S. Kagayama, S. Higashiyama, K. Suzuki, J. Sakai, et al., "Apparatus
and method for forming three-dimensional article," ed: Google Patents, 1991.
M
[108] T. A. Almquist and D. R. Smalley, "Thermal stereolithography," ed: Google Patents, 1997.
[109] H. Gothait, "Apparatus and method for three dimensional model printing," ed: Google Patents,
2001.
ED
[110] R. D. Sochol, E. Sweet, C. C. Glick, S. Venkatesh, A. Avetisyan, K. F. Ekman, et al., "3D printed
microfluidic circuitry via multijet-based additive manufacturing," Lab on a Chip, vol. 16, pp. 668-
678, 2016.
PT
[112] C. M. McDonald JC, Metallo SJ, Anderson JR, Stroock AD, Whitesides GM., "Prototyping of
microfluidic devices in poly(dimethylsiloxane) using solid-object printing," Anal Chem, vol. 74,
pp. 1537-45, 2002.
[113] G. Comina, A. Suska, and D. Filippini, "Low cost lab-on-a-chip prototyping with a consumer grade
AC
47
ACCEPTED MANUSCRIPT
T
check-valves integration," Micromachines, vol. 6, pp. 437-451, 2015.
IP
[122] G. V. Kaigala, S. Ho, R. Penterman, and C. J. Backhouse, "Rapid prototyping of microfluidic
devices with a wax printer," Lab Chip, vol. 7, pp. 384-387, 2007.
[123] M. S. Thomas, B. Millare, J. M. Clift, D. Bao, C. Hong, and V. I. Vullev, "Print-and-Peel Fabrication
CR
for Microfluidics: What's in it for Biomedical Applications?," Annals of Biomedical Engineering,
vol. 38, pp. 21-32, 2009.
[124] A. J. Capel, S. Edmondson, S. D. R. Christie, R. D. Goodridge, R. J. Bibb, and M. Thurstans, "Design
US
and additive manufacture for flow chemistry," Lab on a Chip, vol. 13, pp. 4583-4590, 2013.
[125] P. J. Kitson, M. H. Rosnes, V. Sans, V. Dragone, and L. Cronin, "Configurable 3D-Printed
millifluidic and microfluidic 'lab on a chip' reactionware devices," Lab on a Chip, vol. 12, pp.
AN
3267-3271, 2012.
[126] M. D. Symes, P. J. Kitson, J. Yan, C. J. Richmond, G. J. T. Cooper, R. W. Bowman, et al.,
"Integrated 3D-printed reactionware for chemical synthesis and analysis," Nat Chem, vol. 4, pp.
349-354, 2012.
M
Integrated Prussian Blue Nanoparticle-Modified Electrodes," Analytical Chemistry, vol. 87, pp.
5437-5443, 2015/05/19 2015.
[128] M. Banna, K. Bera, R. Sochol, L. Lin, H. Najjaran, R. Sadiq, et al., "3D Printing-Based Integrated
PT
Mar 20 2009.
[130] W. Wu, A. DeConinck, and J. A. Lewis, "Omnidirectional Printing of 3D Microvascular Networks,"
Advanced Materials, vol. 23, pp. H178-H183, 2011.
[131] J. S. Miller, K. R. Stevens, M. T. Yang, B. M. Baker, D.-H. T. Nguyen, D. M. Cohen, et al., "Rapid
AC
48
ACCEPTED MANUSCRIPT
T
Proceedings of the National Academy of Sciences, vol. 111, pp. 15013-15018, October 21, 2014
IP
2014.
[140] A. Urrios, C. Parra-Cabrera, N. Bhattacharjee, A. M. Gonzalez-Suarez, L. G. Rigat-Brugarolas, U.
Nallapatti, et al., "3D-printing of transparent bio-microfluidic devices in PEG-DA," Lab Chip, vol.
CR
16, pp. 2287-2294, 2016.
[141] A. K. Au, N. Bhattacharjee, L. F. Horowitz, T. C. Chang, and A. Folch, "3D-printed microfluidic
automation," Lab on a Chip, vol. 15, pp. 1934-1941, 2015.
US
[142] C. I. Rogers, K. Qaderi, A. T. Woolley, and G. P. Nordin, "3D printed microfluidic devices with
integrated valves," Biomicrofluidics, vol. 9, p. 016501, 2015.
[143] H. Gong, A. T. Woolley, and G. P. Nordin, "High density 3D printed microfluidic valves, pumps,
AN
and multiplexers," Lab on a Chip, vol. 16, pp. 2450-2458, 2016.
[144] M. J. Beauchamp, G. P. Nordin, and A. T. Woolley, "Moving from millifluidic to truly microfluidic
sub-100-μm cross-section 3D printed devices," Analytical and Bioanalytical Chemistry, vol. 409,
pp. 4311-4319, 2017/07/01 2017.
M
3373, 2016.
[146] H. Gong, M. Beauchamp, S. Perry, A. T. Woolley, and G. P. Nordin, "Optical approach to resin
formulation for 3D printed microfluidics," RSC Advances, vol. 5, pp. 106621-106632, 2015.
PT
[147] H. Gong, B. P. Bickham, A. T. Woolley, and G. P. Nordin, "Custom 3D printer and resin for 18
[small mu ]m [times] 20 [small mu ]m microfluidic flow channels," Lab on a Chip, vol. 17, pp.
2899-2909, 2017.
CE
49
ACCEPTED MANUSCRIPT
T
[157] K. G. Lee, K. J. Park, S. Seok, S. Shin, D. H. Kim, J. Y. Park, et al., "3D printed modules for
IP
integrated microfluidic devices," RSC Advances, vol. 4, pp. 32876-32880, 2014.
[158] E. C. Sweet, J. C.-L. Chen, I. Karakurt, A. T. Long, and L. Lin, "3D printed three-flow microfluidic
concentration gradient generator for clinical E. Coli-antibiotic drug screening," in Micro Electro
CR
Mechanical Systems (MEMS), 2017 IEEE 30th International Conference on, 2017, pp. 205-208.
[159] E. C. Sweet, R. R. Mehta, R. Lin, and L. Lin, "Finger-powered, 3D printed microfluidic pumps," The
19th International Solid-State Sensors, Actuators and Microsystems Conference (Transducers
US
2017), June 18-22 2017.
[160] J. G. Dawson, D. C. Hesley, N. Katagiri, C. P. Nguyen, S. A. Mannuel, T. G. Wun, et al.,
"Bioinspired vascular structures via 3D printing and suspended microfluidics," in 2017 IEEE 30th
AN
International Conference on Micro Electro Mechanical Systems (MEMS), 2017, pp. 426-429.
[161] N. W. Bartlett, M. T. Tolley, J. T. B. Overvelde, J. C. Weaver, B. Mosadegh, K. Bertoldi, et al., "A
3D-printed, functionally graded soft robot powered by combustion," Science, vol. 349, pp. 161-
165, 2015.
M
[162] S. J. Keating, M. I. Gariboldi, W. G. Patrick, S. Sharma, D. S. Kong, and N. Oxman, "3D Printed
Multimaterial Microfluidic Valve," PLoS ONE, vol. 11, p. e0160624, 2016.
ED
[164] A. K. Au, W. Huynh, L. F. Horowitz, and A. Folch, "3D-Printed Microfluidics," Angewandte Chemie
International Edition, vol. 55, pp. 3862-3881, 2016.
[165] R. Walczak and K. Adamski, "Inkjet 3D printing of microfluidic structures—on the selection of the
CE
printer towards printing your own microfluidic chips," Journal of Micromechanics and
Microengineering, vol. 25, p. 085013, 2015.
[166] B. C. Gross, K. B. Anderson, J. E. Meisel, M. I. McNitt, and D. M. Spence, "Polymer Coatings in 3D-
Printed Fluidic Device Channels for Improved Cellular Adherence Prior to Electrical Lysis,"
AC
50
ACCEPTED MANUSCRIPT
T
Highly-Porous 3D LiFePO4 Electrodes by Low Temperature Direct Writing Process," Materials,
IP
vol. 10, p. 934, 2017/08/10/ 2017.
[175] Y. V. T. P. Ketterl, N. C. Arnal, J. W. I. Stratton, E. A. Rojas-Nastrucci, M. F. Córdoba-Erazo, M. M.
Abdin, C. W. Perkowski, P. I. Deffenbaugh, K. H. Church, and T. M. Weller, "A 2.45 GHz Phased
CR
Array Antenna Unit Cell Fabricated Using 3-D Multi-Layer Direct Digital Manufacturing," IEEE
Transactions on Microwave Theory and Techniques, vol. 63, pp. 4382-4394, 2015.
[176] L. U. O. J. P. Swensen, B. Araki, and A. M. Dollar, "Printing Three-Dimensional Electrical Traces in
US
Additive Manufactured Parts for Injection of Low Melting Temperature Metals," Journal of
Mechanisms and Robotics, vol. 7, p. 021004, 2015.
[177] D. Espalin, D. W. Muse, E. MacDonald, and R. B. Wicker, "3D Printing multifunctionality:
AN
structures with electronics," The International Journal of Advanced Manufacturing Technology,
vol. 72, pp. 963-978, 2014.
[178] T. H. J. v. Osch, J. Perelaer, A. W. M. de Laat, and U. S. Schubert, "Inkjet Printing of Narrow
M
Conductive Tracks on Untreated Polymeric Substrates," Advanced Materials, vol. 20, pp. 343-
345, 2008.
[179] B. Y. Ahn, E. B. Duoss, M. J. Motala, X. Guo, S. I. Park, Y. Xiong, et al., "Omnidirectional printing
ED
of flexible, stretchable, and spanning silver microelectrodes," Science, vol. 323, pp. 1590-3, Mar
20 2009.
[180] J. A. Lewis, B. Y. Ahn, and E. B. Duoss, "METAL NANOPARTICLE INKS " United States Patent US
PT
7922939, 2009.
[181] J. A. Lewis, E. B. Duoss, and M. Twardowski, "SOL_GEL INKS " United States Patent US 7956102,
2011.
CE
[182] B. Y. Ahn and J. A. Lewis, "Amphiphilic silver particles for conductive inks with controlled wetting
behavior," Materials Chemistry and Physics, vol. 148, pp. 686-691, 2014.
[183] D. Periard, Malone, E., & Lipson, H. , "Printing Embedded Circuits," presented at the In 18th
Solid Freeform Fabrication Symposium, Austin TX, 2007.
AC
[184] D. A. Roberson, Wicker, R. B., & MacDonald, E., "Ohmic curing of printed silver conductive
traces,". Journal of electronic materials, vol. 41(9), pp. 2553-2566, 2012.
[185] J. W. Boley, K. Chaudhary, T. J. Ober, M. Khorasaninejad, W. T. Chen, E. Hanson, et al., "High-
Operating-Temperature Direct Ink Writing of Mesoscale Eutectic Architectures," Advanced
Materials, vol. 29, pp. n/a-n/a, 2017/02/01/ 2017.
[186] X. Mu, T. Bertron, C. Dunn, H. Qiao, J. Wu, Z. Zhao, et al., "Porous polymeric materials by 3D
printing of photocurable resin," Materials Horizons, vol. 4, pp. 442-449, 2017 2017.
[187] S. Nesaei, M. Rock, Y. Wang, M. R. Kessler, and A. Gozen, "Additive Manufacturing With
Conductive, Viscoelastic Polymer Composites: Direct-Ink-Writing of Electrolytic and Anodic
Poly(Ethylene Oxide) Composites," Journal of Manufacturing Science and Engineering, vol. 139,
p. 111004, 2017/11/01/ 2017.
51
ACCEPTED MANUSCRIPT
[188] K. Tian, J. Bae, S. E. Bakarich, C. Yang, R. D. Gately, G. M. Spinks, et al., "3D Printing of
Transparent and Conductive Heterogeneous Hydrogel–Elastomer Systems," Advanced Materials,
vol. 29, 2017/03/01/ 2017.
[189] O. Gubanova, M. Andrianova, M. Saveliev, N. Komarova, E. Kuznetsov, and A. Kuznetsov,
"Fabrication and package of ISFET biosensor for micro volume analysis with the use of direct ink
writing approach," Materials Science in Semiconductor Processing, vol. 60, pp. 71-78,
2017/03/15/ 2017.
[190] P. F. Flowers, C. Reyes, S. Ye, M. J. Kim, and B. J. Wiley, "3D printing electronic components and
circuits with conductive thermoplastic filament," Additive Manufacturing, vol. 18, pp. 156-163,
2017/12/01/ 2017.
T
[191] Y. Xie, S. Ye, C. Reyes, P. Sithikong, B.-I. Popa, B. J. Wiley, et al., "Microwave metamaterials made
IP
by fused deposition 3D printing of a highly conductive copper-based filament," Applied Physics
Letters, vol. 110, p. 181903, 2017/05/01/ 2017.
[192] J. T. Muth, D. M. Vogt, R. L. Truby, Y. Mengüç, D. B. Kolesky, R. J. Wood, et al., "Embedded 3D
CR
Printing of Strain Sensors within Highly Stretchable Elastomers," Advanced Materials, vol. 26, pp.
6307-6312, 2014.
[193] A. Frutiger, J. T. Muth, D. M. Vogt, Y. Mengüç, A. Campo, A. D. Valentine, et al., "Capacitive Soft
US
Strain Sensors via Multicore–Shell Fiber Printing," Advanced Materials, vol. 27, pp. 2440-2446,
2015.
[194] K. Khoshmanesh, S.-Y. Tang, J. Y. Zhu, S. Schaefer, A. Mitchell, K. Kalantar-zadeh, et al., "Liquid
AN
metal enabled microfluidics," Lab on a Chip, vol. 17, pp. 974-993, 2017.
[195] "Digital light processing 3D printing of conductive complex structures," Additive Manufacturing,
vol. 18, pp. 74-83, 2017/12/01/ 2017.
[196] E. Blasco, J. Müller, P. Müller, V. Trouillet, M. Schön, T. Scherer, et al., "Fabrication of Conductive
M
3D Gold-Containing Microstructures via Direct Laser Writing," Advanced Materials, vol. 28, pp.
3592-3595, 2016/05/01/ 2016.
ED
[198] L. Hirt, A. Reiser, R. Spolenak, and T. Zambelli, "Additive Manufacturing of Metal Structures at
the Micrometer Scale," Advanced Materials, vol. 29, p. 1604211, 2017/05// 2017.
[199] J. Odent, T. J. Wallin, W. Pan, K. Kruemplestaedter, R. F. Shepherd, and E. P. Giannelis, "Highly
CE
52
ACCEPTED MANUSCRIPT
T
manufacturing of a novel wireless motion sensor system with GPS," DTIC Document2007.
IP
[209] S. Castillo, D. Muse, F. Medina, E. MacDonald, and R. Wicker, "Electronics integration in
conformal substrates fabricated with additive layered manufacturing," in Proceedings of the
20th Annual Solid Freeform Fabrication Symposium, 2009, pp. 730-737.
CR
[210] A. Joe Lopes, E. MacDonald, and R. B. Wicker, "Integrating stereolithography and direct print
technologies for 3D structural electronics fabrication," Rapid Prototyping Journal, vol. 18, pp.
129-143, 2012.
US
[211] E. Macdonald, R. Salas, D. Espalin, M. Perez, E. Aguilera, D. Muse, et al., "3D printing for the
rapid prototyping of structural electronics," IEEE Access, vol. 2, pp. 234-242, 2014.
[212] Y. L. Kong, I. A. Tamargo, H. Kim, B. N. Johnson, M. K. Gupta, T.-W. Koh, et al., "3D Printed
AN
Quantum Dot Light-Emitting Diodes," Nano Letters, vol. 14, pp. 7017-7023, 2014/12/10 2014.
[213] M. S. Mannoor, Z. Jiang, T. James, Y. L. Kong, K. A. Malatesta, W. O. Soboyejo, et al., "3D Printed
Bionic Ears," Nano Letters, vol. 13, pp. 2634-2639, 2013/06/12 2013.
[214] K. Sun, T.-S. Wei, B. Y. Ahn, J. Y. Seo, S. J. Dillon, and J. A. Lewis, "3D Printing of Interdigitated Li-
M
Ion Microbattery Architectures," Advanced Materials, vol. 25, pp. 4539-4543, 2013.
[215] K. Fu, Y. Yao, J. Dai, and L. Hu, "Progress in 3D Printing of Carbon Materials for Energy-Related
ED
[219] J. Zhong, G.-X. Zhou, P.-G. He, Z.-H. Yang, and D.-C. Jia, "3D printing strong and conductive geo-
polymer nanocomposite structures modified by graphene oxide," Carbon, vol. 117, pp. 421-426,
2017/06/01/ 2017.
[220] J. E. Smay, J. Cesarano, and J. A. Lewis, "Colloidal Inks for Directed Assembly of 3-D Periodic
Structures," Langmuir, vol. 18, pp. 5429-5437, 2002/07/01 2002.
[221] C. R. Tubío, F. Guitián, and A. Gil, "Fabrication of ZnO periodic structures by 3D printing," Journal
of the European Ceramic Society, vol. 36, pp. 3409-3415, 2016.
[222] K. Cai, B. Román-Manso, J. E. Smay, J. Zhou, M. I. Osendi, M. Belmonte, et al., "Geometrically
Complex Silicon Carbide Structures Fabricated by Robocasting," Journal of the American Ceramic
Society, vol. 95, pp. 2660-2666, 2012.
53
ACCEPTED MANUSCRIPT
[223] S. S. Nadkarni and J. E. Smay, "Concentrated Barium Titanate Colloidal Gels Prepared by Bridging
Flocculation for Use in Solid Freeform Fabrication," Journal of the American Ceramic Society, vol.
89, pp. 96-103, 2006.
[224] Y.-y. Li, L.-t. Li, and B. Li, "Direct write printing of three-dimensional ZrO2 biological scaffolds,"
Materials & Design, vol. 72, pp. 16-20, 2015.
[225] E. García-Tuñon, S. Barg, J. Franco, R. Bell, S. Eslava, E. D'Elia, et al., "Printing in Three
Dimensions with Graphene," Advanced Materials, vol. 27, pp. 1688-1693, 2015.
[226] J. A. Lewis and B. Y. Ahn, "Device Fabrication: Three-dimensional printed electronics," Nature,
vol. 518, pp. 42-43, 2015.
[227] C. M. B. Ho, S. H. Ng, K. H. H. Li, and Y.-J. Yoon, "3D printed microfluidics for biological
T
applications," Lab Chip, vol. 15, pp. 3627-3637, 2015.
IP
[228] A. von Bieren, E. de Rijk, J.-P. Ansermet, and A. Macor, "Monolithic metal-coated plastic
components for mm-wave applications," in 2014 39th International Conference on Infrared,
Millimeter, and Terahertz waves (IRMMW-THz), 2014, pp. 1-2.
CR
[229] P. Nayeri, M. Liang, R. A. Sabory-Garcı, M. Tuo, F. Yang, M. Gehm, et al., "3D printed dielectric
reflectarrays: low-cost high-gain antennas at sub-millimeter waves," IEEE Transactions on
Antennas and Propagation, vol. 62, pp. 2000-2008, 2014.
US
[230] R. Zhu, G. Lipworth, T. Zvolensky, D. Marks, and D. Smith, "Versatile manufacturing of split block
microwave devices using rapid prototyping and electroplating."
[231] A. S. Munshi and R. S. Martin, "Microchip-based electrochemical detection using a 3-D printed
AN
wall-jet electrode device," Analyst, vol. 141, pp. 862-869, 2016.
M
ED
PT
CE
AC
54
ACCEPTED MANUSCRIPT
T
IP
CR
Graphical abstract
US
AN
M
ED
PT
CE
AC
55
ACCEPTED MANUSCRIPT
Highlights
T
IP
CR
US
AN
M
ED
PT
CE
AC
56
Graphics Abstract
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
