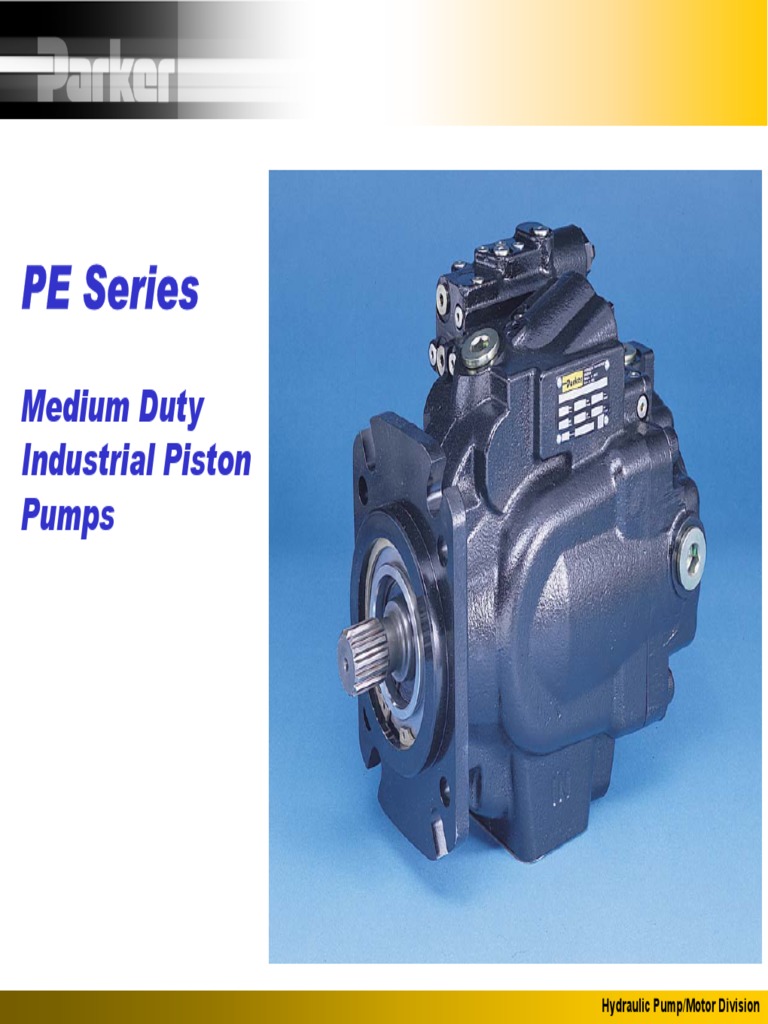

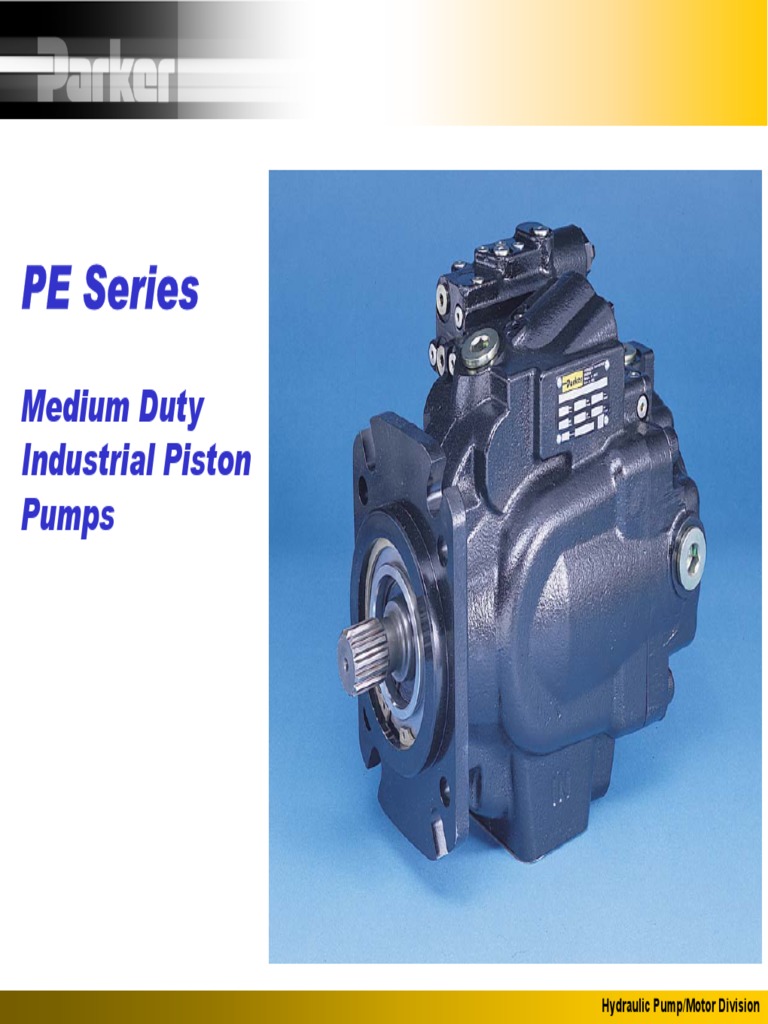

PE Series
Medium Duty
Industrial Piston
Pumps
Hydraulic Pump/Motor Division

Hydraulic Pump Series P2/P3/PE
P2/PE - Standard Pump

Displacement cc/rev. 60 75 105 145
Pressure (psi) (cont. / peak) All sizes 4600 / 5200
Self priming speed (rpm) 2800 2500 2300 2200
Port locations Side Side Side Side
Rear Rear
P3 - Supercharged Pump
Pressure (psi) (cont. / peak) All sizes 4600 / 5200
Port locations Side Side Side Side
P2/P3/PE Controls 60 75 105 145

Load sense w/ max. pressure Available all sizes
Torque Available all sizes
Torque summation Planned
Remote pressure Available all sizes
Maximum pressure Available all sizes
Electronic flow control Planned
P2/P3/PE Comparison
P2/PE P3
Higher Speed Rating

Ports in Cover
Inlet Port in Housing
Has Case Drain ,No Drain in Control
No Case Drain , Has Drain in
Control
Has Air Bleed
PE Series Pump
• Thru Drives Available

– SAE A, B, C on all sizes
– SAE D available on 145
• Inlet and Outlet Gage

Ports Standard
• SAE Spline and Keyed

Shafts
• Adjustable Maximum
Displacement Stop
Standard
• Side Flange Ports

Standard
– Rear Ports Available on
PE060 and PE075

P3 Supercharged Pump
Impeller ,
boosts
inlet
pressure

P3 Supercharged Pump
Means higher
speed
capability and
superior
performance
at high
altitudes

PE Design Objectives
• Low Noise
• Reliable
• High Self Priming Speeds
• Easy To Install

Summary PE Low Noise
• Pump Housing Optimization

– Absolute reduction in noise emission
– Frequency shift to better “sound”
• Pre-compression Volume (ripple chamber)
– reduces flow and pressure pulsation by 10-50%
Rigid Contoured Ripple Chamber

Design Technology

Conventional
Piston Pump Piston
Barrel
Design
The low pressure piston

chambers are pre-
compressed with high
pressure oil from the
outlet piston through a
communication port in
the valve plate. Suction Pressure
Valve plate
Rotation

Conventional
Piston Pump Piston
Barrel
Design

chambers are pre-
Valve plate
Rotation

Conventional
Piston Pump Piston Barrel
Design

chambers are pre-
Valve plate
Rotation

P2/ P3 Design
With Unique
Ripple
Reduction
Chamber
The Ripple Chamber Suction Pressure

design extends the
time for the reverse
flow to complete the Rotation
precompression.

P2/ P3 Design
With Unique
Ripple
Reduction
Chamber
The Ripple Chamber Suction Pressure

design extends the
time for the reverse
flow to complete the Rotation
precompression.

P2/ P3 Design
With Unique
Ripple
Reduction
Chamber
With the Ripple Chamber, Suction Pressure

a lower flow rate is required
to pre-compress the low
pressure piston, so the
Rotation
pressure ripple is less.

Hydraulic Noise
Traditional Design Piston

Cylinder block
Rotation Suction kidney Pressure kidney
Valve plate

Hydraulic Noise Reduction
Piston
Ripple Chamber Cylinder block
Technology
Rotation Suction kidney Pressure kidney
Valve plate
Pre - compression volume
PE Ripple Chamber
Ripple Chamber
The Ripple Chamber design
reduces the output flow
pulsation by up to 50%
compared with common
designs on the market.
This feature comes with

no additional cost and can
be more effective than a
separate silencer or
similar devices.

Pressure Ripple
Pressure Ripple @ 200 Bar
50
40
30 PE No Ripple
Ripple
Bar PE With Ripple
(PSI) 20
10
0
500 1000 1500 2000 2500 3000
Shaft Speed (RPM)

P2 Design - Reliability
Saddle
Bearing
Design

Pressure
Lubricated
for Long Life

Dual
Acting
Servo
Piston

Less
Loading ,
means
extra
reliability

Heavy
Duty
Shaft
Bearing

PE Reliability Summary
P2 Objective : Long Life

• Shaft Bearing
– Designed for 5000 hrs. @ full flow and pressure
• Long Saddle Bearing Life
– Composite saddle bearings for good load
distribution and low friction
– Lubricated saddle bearings
– Dual Acting Servo Piston

Product Life
BETA 10 bearing life time
25000
20000
15000
Hours
10000
5000 1000 rpm

2000 rpm
Max rpm
0
320 bar 300 bar 280 bar 260 bar 240 bar 220 bar 200 bar 180 bar 160 bar
Average working pressure
Calculation Model:
Duty cycle in %: Life calculations are based on the pump operating at 100% flow.
x x x x
Please note that the life calculatio ns require that the conditions
Pressure in bar: listed in the pump catalog be maintained over the life of the pump.
Average working pressure + + + =

High Self Priming Speeds
PE - Pump
Competition 2700 2200 2000 1800
Highest self priming speeds in the industry!

High Self Priming Speeds
• Customer Benefits
– Reduced System costs
– Smaller installation package
• Eliminate Charge pumps and pressurized
reservoirs.
– Pumps will work well in JIC style units.
• As always a positive inlet condition is best
practice.

PE Control Options
Two Spool Control
∆ - p adjusting screw
Max. pressure adjusting screw

PE Controls

PE Pump Controls
• Load Sense Control

– Load sense control will adjust output flow to maintain
a constant pressure drop across an orifice
• Pressure Compensator
– The pressure compensator control will limit pump
outlet pressure to a predetermined level and adjust
pump outlet flow to the level needed to maintain the
set pressure.
• Remote Pressure Compensator
– Same as the pressure compensator , except that the
adjustment is done with a remotely located relief
valve instead of at the pump control.
• Torque Limiter Control
– Will adjust flow to limit the input torque demand of
the pump

PE Control Options
LA Load Sense with Pressure Limiter
LB Load Sense with Bleed and Pressure Limiter
PA Pressure Limiter 100 – 320 bar (1450 – 4650 psi)
PB Pressure Limiter 20 – 210 bar (290 – 3045 psi)
RA Remote Pressure Limiter
Torque Control , with Load Sense & Pressure

TA
Limiter, Torque range 20-60% of max rated torque.
Torque Control , Load Sense with Bleed & Pressure
TB
Torque Control , with Load Sense & Pressure
TC
Torque Control , Load Sense with Bleed & Pressure
TD

Pressure Compensator
At pressures below
compensator setting, flow
remains maximum.
When compensator setting is

reached, the pump de-strokes
to maximum required (or zero)
flow. The pump will maintain
GPM
maximum pressure until
system pressure drops.
PSI

PA / PB Control
PA / PB , Pressure Compensator Control

still uses Two Spool Control
On PA Control this
adjusting screw is inactive

PE – PA / PB Control
PE – PA (Pressure Control) Plug
Pump pressure to
the servo piston
(Onstroke the pump)

PA / PB Control
For PA Control , top spool is

inactive
Pressure
Compensator
Adjustment
Factory set as
specified in model
code

Remote Pressure Compensator
At pressures below the remote

relief valve setting, flow
remains maximum.
When relief valve setting is
reached, the pump de-strokes
to actual required (or zero)
flow. The pump will maintain
GPM
remote relief valve pressure
until the system pressure
drops.
PSI

Remote Compensator
Remote compensator
allows control of pump
from a remote location
from a relief valve
located in a different
location.

RA Control
(X) To remote pressure

PE - RA (Remote Pressure control valve
Control)
Pump pressure to
the servo piston
(Onstroke the pump)

Remote Compensator
Remote compensator
allows control of pump
from a remote location.
With addition of a 2
way valve the pump
can be forced into a
low pressure
(differential spring)
stand-by condition.
Less noisy (by 1/3), no
heat from case drain,
power savings

PE Remote Pressure Control
Good things to Know
• Standard Remote Compensator Differential Spring setting is 300 psi.

This pressure is additive to the setting of the remote relief valve.
• Standby Pressure is the pressure level the pump will maintain with
the remote signal line vented to tank. This is typically 10-20 psi
higher than the differential setting.
• The remote control pilot flow is about 1 GPM.
• The “ PA” pressure compensator control can be converted to a “RA”
remote control by removing the plug in the “X” Port and connecting
that port to a remote relief valve.

Load Sense Control
The load sense comp will

increase or decrease the
output flow to maintain a
constant delta across the
load orifice. This means
GPM
that regardless of load
conditions the flow will
remain constant for a
given orifice opening. PSI

PE - LA Control
PE - LA (Load Sensing with

Maximum Pressure Control) (X) LS signal
∆ - p adjusting screw

Drain to case Control pressure to
Pump pressure to the servo piston
the servo piston
(Destroke the pump)
(Onstroke the pump)

PE - LA Control
PE - LA (Load Sensing with

Maximum Pressure Control)

PE Load Sense Control
Good things to Know
• Standard Load Sense Delta P setting is 300 psi.

• Standby Pressure is the pressure level the pump will maintain with
no load sense signal. This is typically 10-20 psi higher than the Load
Sense Delta P setting
• Higher LS spring setting = faster response,
but lower system efficiency
• The load sense bleed option (LB) will vent the load sense signal to
allow the pump to go to low pressure standby when there is no flow
demand. This function is typically and best accomplished in the load
sense system valve, but if the system valve does not have this
feature, it can be ordered in the pump. The disadvantage of having
the bleed in the pump is that there is a continuous loss of this bleed
flow through the pump control even when the pump is operating
normal.

Converting from Load Sense
P2/3-075
P2/3-105 Control to Pressure Compensator
P2 pumps with LA load sense control can be converted to PA
pressure compensator control by removing the plug in the load
sense spool and by plugging the X port.

Torque Limiter Control
• The torque limiter control will vary pump displacement so that a

desired maximum input torque level to the pump is maintained.
Typically this desired torque level is the maximum torque available
for the hydraulic functions on a machine…the intent is to have the
pump controlled to use the input power available most efficiently…
when high force is needed the pump will provide high pressure;
when high speed is needed the pump will provide high flow.
Torque
Control
Cartridge

• The Torque Limiter Control is achieved by the addition of a special
cartridge relief valve that controls the maximum pressure in the load
sense port . The torque control cartridge relief valve setting is a
function of the pump displacement . Since Torque is directly related
to pressure and displacement , this valve acts as a torque limiter.

Good things to Know
• The “TA” torque control is really three controls in one because it also
has a load sense control and a pressure limiter control function
included.
• The pump will be controlled in the load sense mode at flow &
pressure conditions below the torque setting . Once the input torque
setting is reached , the pump will be controlled by the torque control.
• The maximum pump pressure is controlled by the pressure limiter.

PE Torque Limiter Control
PE - TA (Torque, Load Sensing

and Maximum Pressure
Control)
Pressure, internal feed,

to the torque control

• The Torque Control relief valve spring tension is adjusted by the
position of the link piston, which is connected to the swashplate. As
the pump destrokes , the spring tension is increased and the load
sense pressure is allowed to go to a higher level before the torque
control opens.

Torque Control
Characteristics
Theoretical
Constant HP
Flow
Torque Limiter Pump Curve
Pressure

Torque Control
Characteristics
Extra Flow and Pressure Available with Torque Control
Theoretical
Constant HP
Flow
Pressure Comp Pump Curve
Torque Limiter Pump Curve
Pressure

Torque Control
Characteristics
PE145 20 - 60% Torque

1800 RPM Catalog Curves
provide data on
flow and pressure
80
70 20%
30%
characteristics
60 40%
50%
50 60%
Flow (GPM)
40
30
20
10
0
0 1000 2000 3000 4000 5000
Pressure (PSI)

Torque Control
Characteristics
Link Piston will define the

range of the torque control settings
Maximum TA,TB Range TC,TD Range

Rated Torque 20-60% of 50-90% of
Max Torque Max Torque
Nm Nm Nm
060 329 68 - 204 170-306
075 424 85 – 254 212-382
105 594 119 - 356 297-535
145 820 164 - 492 410-738

Torque Control
Characteristics
The standard load sense
pumps are shipped 20-60% Link
Piston so it is easy to convert a
load sense model to a TA or TB
torque control pump .
Maximum TA,TB Range TC,TD Range
Rated Torque 20-60% of 50-90% of
Max Torque Max Torque
Nm Nm Nm
060 329 68 - 204 170-306
075 424 85 – 254 212-382
105 594 119 - 356 297-535
145 820 164 - 492 410-738

FAB Analysis PE
Features Advantages Benefits

• Modern design • Unique port layout • Easy to install/ cost saving
• Ripple chamber • Reduced hydraulic generated noise
• Modular design • Freedom in machine design
• Rigid housing • Quite pump operation
• 320 bar design • Longer pump life
• Compact • Flexibility in machine design
• Through drive - full torque • Energy efficient system lay out
• High speed performance • Very good suction characteristics • Flexibility in machine design
• Parker system/ application • All products from Parker • Reduction of vendors

approach
• Tested solutions • Reduced development cost

Pet Raining

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Pet Raining

Uploaded by

Copyright:

Available Formats

PE Series

Hydraulic Pump/Motor Division

P2/PE - Standard Pump

P2/P3/PE Controls 60 75 105 145

Higher Speed Rating

• Thru Drives Available

• Inlet and Outlet Gage

• SAE Spline and Keyed

• Side Flange Ports

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

• Pump Housing Optimization

Rigid Contoured Ripple Chamber

Hydraulic Pump/Motor Division

The low pressure piston

Hydraulic Pump/Motor Division

The low pressure piston

Hydraulic Pump/Motor Division

The low pressure piston

Hydraulic Pump/Motor Division

The Ripple Chamber Suction Pressure

Hydraulic Pump/Motor Division

The Ripple Chamber Suction Pressure

Hydraulic Pump/Motor Division

With the Ripple Chamber, Suction Pressure

Hydraulic Pump/Motor Division

Traditional Design Piston

Rotation Suction kidney Pressure kidney

Hydraulic Pump/Motor Division

Rotation Suction kidney Pressure kidney

This feature comes with

Hydraulic Pump/Motor Division

Pressure Ripple @ 200 Bar

Shaft Speed (RPM)

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

P2 Objective : Long Life

Hydraulic Pump/Motor Division

BETA 10 bearing life time

5000 1000 rpm

Average working pressure + + + =

Hydraulic Pump/Motor Division

Highest self priming speeds in the industry!

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

Two Spool Control

Max. pressure adjusting screw

Hydraulic Pump/Motor Division

Hydraulic Pump/Motor Division

• Load Sense Control

Hydraulic Pump/Motor Division

LA Load Sense with Pressure Limiter

LB Load Sense with Bleed and Pressure Limiter

PA Pressure Limiter 100 – 320 bar (1450 – 4650 psi)

PB Pressure Limiter 20 – 210 bar (290 – 3045 psi)

RA Remote Pressure Limiter

Torque Control , with Load Sense & Pressure

When compensator setting is

At pressures below the remote

The load sense comp will
