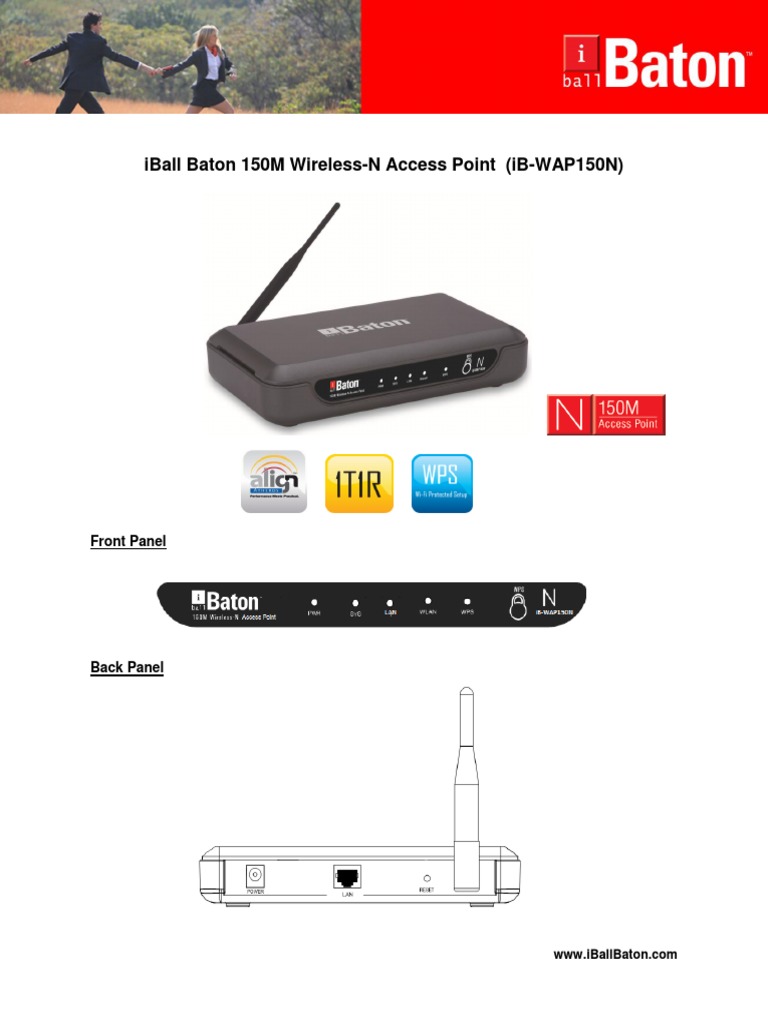

Iball Baton 150M Wireless-N Access Point (Ib-Wap150N) : Front Panel
Iball Baton 150M Wireless-N Access Point (Ib-Wap150N) : Front Panel
Iball Baton 150M Wireless-N Access Point (Ib-Wap150N) : Front Panel
Front Panel
Back Panel
www.iBallBaton.com
Wireless Antenna: The external antenna is used to transmit and receive wireless data.
Power: The power port connects to the power adapter provided with the 150Mbps
Wireless-N Access Point
LAN Port: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch
or a router.
Reset: The Reset button is used to restore the AP’s factory default settings
LED Specification
Slow Flash A wireless device is connecting to the network by WPS function. This
process will last in the first 2 minutes.
WPS A wireless device has been successfully added to the network by
On
WPS function.
Quick Flash A wireless device failed to be added to the network by WPS function.
www.iBallBaton.com
General:
Compatible with IEEE 802.11b, IEEE 802.11g, IEEE802.11n
Standards IEEE 802.3, IEEE 802.3u
Wireless:
Frequency Band 2.4~2.4835GHz
11n:up to 150Mbps(Automatic)
Radio Data Rate 11g:54/48/36/24/18/12/9/6M(Automatic)
11b:11/5.5/2/1M(Automatic)
AP Mode
Multi-SSID Mode
AP Client Mode
Wireless Mode Repeater Mode (WDS / Universal )
AP+ Bridge mode (point-to-point / point to Multi-point)
www.iBallBaton.com
iBall-Baton,
iBall-Baton1,
Multi SSID
iBall-Baton2,
Guest
Wireless Transmit
20dBm Max RF Power
Power
Dimensions (W*D*H) 6.5 * 4.3 * 1.1 in.(165 * 108 * 28 mm) without antenna
Working Environment:
www.iBallBaton.com
Factory Default Settings:
Username admin
Password admin
IP Address 192.168.1.254
Note:
Product specifications are subject to change without notice.
All trademarks, logos, brands & product names are properties of their respective owners.
Warranty: All iBall Baton products are governed by iBall Baton Warranty terms. Refer
www.iBallBaton.com for details.
For any technical help on iBall Baton products, please contact support@iballbaton.com
