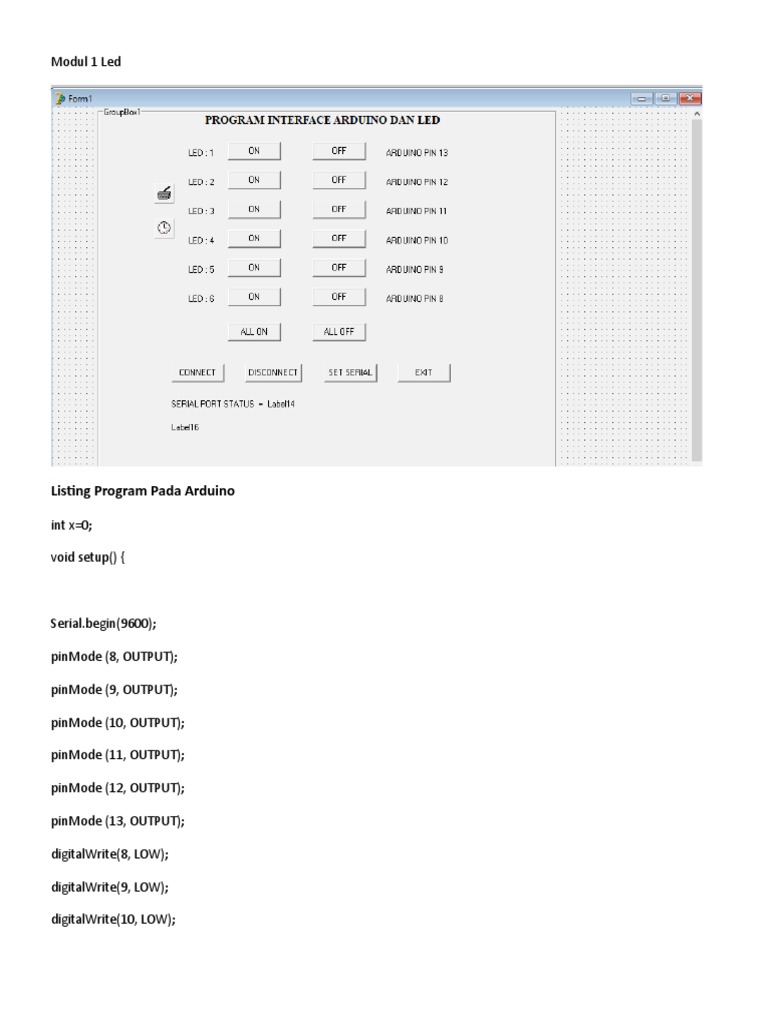

    Modul 1 Led

    Listing Program Pada Arduino

    int x=0;

    void setup() {

    Serial.begin(9600);

    pinMode (8, OUTPUT);

    pinMode (9, OUTPUT);

    pinMode (10, OUTPUT);

    pinMode (11, OUTPUT);

    pinMode (12, OUTPUT);

    pinMode (13, OUTPUT);

    digitalWrite(8, LOW);

    digitalWrite(9, LOW);

    digitalWrite(10, LOW);
    digitalWrite(11, LOW);

    digitalWrite(12, LOW);

    digitalWrite(13, LOW);

    void loop()

    if (Serial.available()>0)

    x=Serial.read();

    if (x=='A')

    digitalWrite(13, HIGH);

    if(x=='B')

    digitalWrite(12, HIGH);

    if(x=='C')

    digitalWrite(11, HIGH);

    if(x=='D')

    digitalWrite(10, HIGH);
    }

    if(x=='E')

    digitalWrite(9, HIGH);

    if(x=='F')

    digitalWrite(8, HIGH);

    if(x=='O')

    digitalWrite(13, LOW);

    if(x=='P')

    digitalWrite(12, LOW);

    if(x=='Q')

    digitalWrite(11, LOW);

    if(x=='R')

    digitalWrite(10, LOW);

    if(x=='S')

    {
    digitalWrite(9, LOW);

    if(x=='T')

    digitalWrite(8, LOW);

    if(x=='X')

    digitalWrite(8, HIGH);

    digitalWrite(9, HIGH);

    digitalWrite(10, HIGH);

    digitalWrite(11, HIGH);

    digitalWrite(12, HIGH);

    digitalWrite(13, HIGH);

    if (x=='Y')

    digitalWrite(8, LOW);

    digitalWrite(9, LOW);

    digitalWrite(10, LOW);

    digitalWrite(11, LOW);

    digitalWrite(12, LOW);

    digitalWrite(13, LOW);

    delay(300); }
