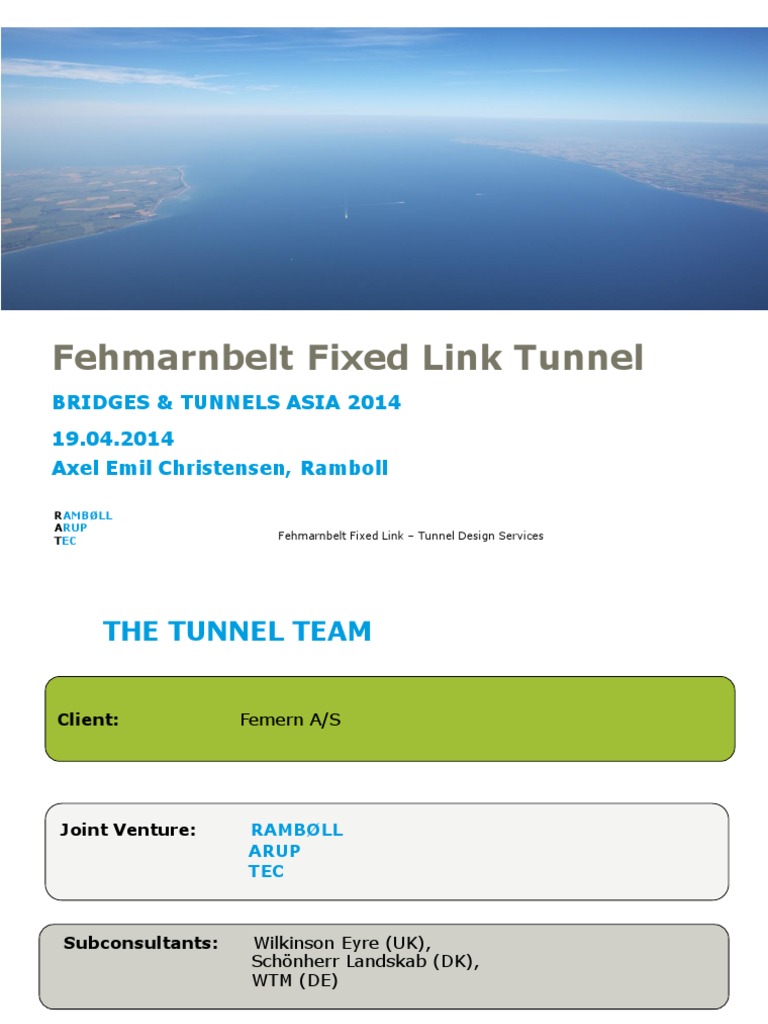

Fehmarnbelt Fixed Link Tunnel

BRIDGES & TUNNELS ASIA 2014

19.04.2014
Axel Emil Christensen, Ramboll

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 THE TUNNEL TEAM

Client: Femern A/S

Joint Venture: RAMBØLL

ARUP
TEC

Subconsultants: Wilkinson Eyre (UK),

Schönherr Landskab (DK),
WTM (DE)

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
LINKING NORTHERN EUROPE

2000: The Oresund

1998: The Great Belt Bridge
Bridge

2021: The ”Missing

Link”

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 FEHMARNBELT FIXED LINK

Treaty between Denmark

and Sweden 1991

Trans European Network

priority

Treaty between Denmark

and Germany 2008

Multiple solutions
investigated, including:
Immersed tunnel
Bored tunnel
Cable stayed bridge
Suspension bridge

Immersed tunnel solution

adopted 2011
RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
OWNERSHIP

The Danish state

The Ministry of
Transport

Sund & Bælt

Holding A/S

A/S
A/S Øresund Femern A/S
Storebælt

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 FINANCING THE LINK
Finance Model

100% Danish owned Company 100% German

Danish State Guarantee Company

Appr. 1.2
billion € Appr. 5.5 billion € Appr. 1.0
billion €

Danish German
Coast to Coast
Hinterland Hinterland
Fixed Link
May be
financed by Financed by income from
income from fixed link fees
the fixed link
fees

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
TRAFFIC VOLUMES

• Road tunnel operational design Traffic Volume 2021 2041

speed = 110 km/h
Road Tunnel 9,800 16,000
• Rail tunnel operational design
speed not less than 200 km/h
Rail Tunnel 89 153

Road Traffic Rail Traffic

Bus Passenger
Trucks

Cars Freight

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
FASTER RAILWAY CONNECTION TO EUROPE

Today:

• København-Hamborg: 4½ t.

• Stockholm-Hamborg: 10 t.

2021:

Fixed Link: - 1 t.
Hinterland works - ½ t.

• København-Hamborg: 3 t.

• Stockholm-Hamborg: 8 t.

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
IMPORTANT MILESTONES

• 1991, Part of the Øresund treaty, Denmark Sweden

• 1996 – 1999, feasibility study

• 2006 – 2008, further studies

• 7th October 2008, Treaty between Denmark and Germany

• November 2010, immersed tunnel recommended

• February 2011, the recommendation was accepted

• October 2012, pre-qualification was started

• May 2013, PQ result was published

• 2nd September, tender process starts

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 MAIN ALTERNATIVES
Cable Stayed Bridge : Immersed Tunnel:

Cable Stayed Bridge : Immersed Tunnel:

Feasibility Study : 4,4 bill EUR Feasibility Study : 5,5 bill EUR
Conceptual Design : 5,1 bill EUR Conceptual Design : 5,0 bill EUR
(COWI /Obermeyer) (Ramboll /Arup/TEC)

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 ALTERNATIVE - BORED TUNNEL

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 THE TUNNEL

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
ALIGNMENT AND SECTION

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
Tunnel Length and Depth

Fehmarnbelt Fixed Link

Tunnel Length 18.1 km
Trans Bay Tube BART Tunnel
Øresund Tunnel
Busan-Geoje Fixed Link
Immersed Tunnel
17.6 km Hampton Roads Tunnel
Length
Cross Harbour Tunnel
Tama River Tunnel
Marmaray Crossing
Tunnel Depth 40 m
0 5 10 15 20

WORLD IMT RECORD !

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
PORTAL AREA - FEHMARN

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 PORTAL AREA - FEHMARN

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
PORTAL AREA - LOLLAND

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
RECLAMATION WORKS

• All dredged materials to be

re-used inside the project
• Reclamation area at Lolland
about 330 ha
• Reclamation area at
Fehmarn about 30 ha
• Stockpiles for TPR contractor
at Fehmarn and Lolland
• Reclamation areas to include
beaches and different
habitats

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
LANDSCAPE AND NEW ENVIRONMENT

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 LAGOON AREA

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 SAFETY CONCEPT
AND
INSTALLATIONS

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 DIFFERENCES
TUNNEL AND OPEN ROAD OR BRIDGE

• Wind
• Slippery road surface
• Rain
• Fog
• Darkness

• Protected against the weather

• Well lit environment

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
RISK – CONCLUSION:
Tunnels are in general the safest ”element” in the
road network but:
Tunnels have a “disaster potential”

OVERALL TARGET FOR THE PROJECT:

Just as safe – or safer- to drive through the tunnel as driving on
an open motorway or railway!

We fulfil this requirement with a comfortable margin!

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
KEY ASPECTS OF THE SAFETY CONCEPT

• Rural tunnel + Intelligent traffic

management = no queuing up

• Unidirectional traffic, Road and Rail

• Full emergency lane in each direction

• Robust Longitudinal Ventilation

• Escape per 108 meters to centre gallery

or parallel safe tube

• Fixed Fire Suppression Systems

• High level Monitoring, Detection and

Control

• 24/7 Traffic Control Operation

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 VENTILATION – DAY-TO-DAY OPERATION

• Longitudinal ventilation –
portal to portal

• Both road and rail tubes

normally self-ventilated
by piston effect

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 VENTILATION – FIRE SITUATION

• Minimum cross section

• Jets fans every 400m

• Critical velocity of • Simplicity, reliability and resilience

3.1m/s
• Implications for congested traffic

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 IMT DESIGN

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
GEOLOGICAL PROFILE

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 Alignment

Puttgarden
Rødby

1 10
9
8
2 7
3 4 5 6

RAMBØLL
ARUP 29
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 Standard element
• 79 Standard elements divided into 9 segments of app. 24 m,
weight 76.600 tons

• Niche at centre of the element for ventilation or traffic information

signs

• Same layout for all standard elements e.g. Box-outs, cast-in

items, cable ducts, etc.

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
Special element

Systems distributed from special element:

• Electrical systems

• Communication systems

• Monitoring systems

• Drainage system

1,780 m 1,780 m 1,780 m

RAMBØLL
ARUP 31
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
Special element

Special element is approximately:

• 4 meter higher

• 5 meter wider

RAMBØLL
ARUP 32
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
Special element

• Lay-by is located on the western side

(accessible for maintenance vehicles
coming from Denmark)

• Access to all rooms (without

disturbing traffic)

• Access to service gallery and traffic

tubes above

RAMBØLL
ARUP 33
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
Special element

RAMBØLL
ARUP 34
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
Special element; technical rooms

RAMBØLL
ARUP 35
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
INNOVATION – SPECIAL ELEMENTS

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 CONSTRUCTION

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 PRODUCTION SITE RØDBYHAVN

RAMBØLL
ARUP 38
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
PRODUCTION SITE - PERSPECTIVE

RAMBØLL
ARUP 39
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 CONSTRUCTION PRINCIPLE
STANDARD ELEMENTS

Production of tunnel
elements for Øresund
- Controlled environment
- Straight elements

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
RAMBØLL
ARUP 41
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services

CI
08
RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 ØRESUND TUNNEL – TOW OUT

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 BASIC DATA – CONCEPT DESIGN
Approximate
numbers

Length of standard tunnelelement 217 m

Height of standard tunnelelement 8,9 m
Weight of standard tunnelelement 76,000 ts
Number of tunnelelements 89 pcs
Structural Concrete 2,6 mio. m3
Reinforcement 300.000 ts
Tie-down anchors 1400 pcs

Total dredged volume in trench 14,5 mio. m3

Trench backfill volumes 7 mio. m3
Reclaimed areas 3 mio. m2
RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 CONTRACT PRINCIPLES
• Four Civil Works Contracts:

• Tunnel North (IMT)

• Tunnel South (IMT)
• Portal Structures and Ramps
• Dredging and Reclamation

• Design and Build Contracts

• Competitive Dialogue Procedure
• Other contracts will follow later

• Electrical and Mechanical Works

• Railway
• ??

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
PROJECT PROCUREMENT PROCESS
• Stage 1 Bid submission 4 April 2014

• Stage 1 Bid assessment April and May 2014

• Stage 1 Dialogue meetings May to August 2014

• Stage 2 Invitation (Priced Bids) October 2014

• Stage 2 Bid submission December 2014

• Stage 2 Bid assessment

• Stage 3 Invitation Spring 2015

• Stage 3 Final Bid submission

• Stage 3 Final Bid assessment

• Preferred Bidder

• Standstill period (10 days)

• Contract, Summer 2015

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 THE FOUR CIVIL WORK CONTRACTS

IMT North (TUN) Tunnel Portals & Ramps (TPR)

IMT South (TUS) Dredging & Reclamation (TDR )

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
QUANTITIES FOR STANDARD ELEMENTS

Required amount of materials Delivery of concrete

per week

Concrete 24,000 m³
Reinforcement 3,200 tons
Water 4,400 m³ 16 trucks every hour
Cement 8,000 tons
Sand 16,800 tons Or
Gravel 28,800 tons
(1 day = 24 hours) Delivery of materials

1 coaster every day

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 GERMAN CONSTRUCTION SITE

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 PROJECT TIMESCHEDULE

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 ADVANCE ACTIVITIES

Special grant for the project – Total 1,1 billion DKK

2013: 350 million DKK
2014: 750 million DKK
The activities do not require a Danish EIA-procedure

• Access roads
• Services for the construction sites
• Dewatering system for the hinterland
• Demolition works
• Environmental provisions
• Archeological investigations

RAMBØLL
ARUP
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
 ANNIMATION OF THE CONSTRUCTION WORK

RAMBØLL
ARUP 53
TEC Fehmarnbelt Fixed Link – Tunnel Design Services
THANK YOU FOR YOUR
ATTENTION

2011/01/05
GO-HOME MEETING
