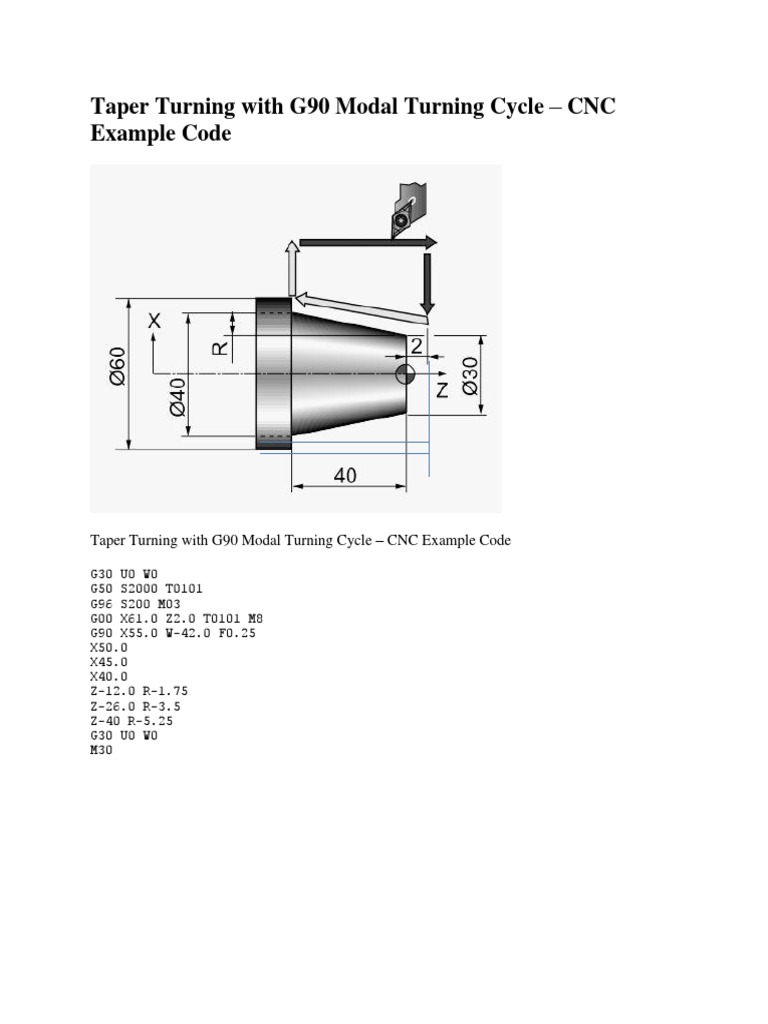

Taper Turning with G90 Modal Turning Cycle – CNC

Example Code

Taper Turning with G90 Modal Turning Cycle – CNC Example Code

G30 U0 W0
G50 S2000 T0101
G96 S200 M03
G00 X61.0 Z2.0 T0101 M8
G90 X55.0 W–42.0 F0.25
X50.0
X45.0
X40.0
Z-12.0 R-1.75
Z-26.0 R-3.5
Z-40 R-5.25
G30 U0 W0
M30
CNC Programming Example with Fanuc G71 Rough Turning Cycle and
G70

Usage of G70 Finishing cycle with G72 Facing cycle is same as shows here in the following
example.

CNC Programming Example with Fanuc G71 Rough Turning Cycle and G70

N10 G00 G90 X142 Z171

N20 G71 U4 R1
N30 G71 P40 Q110 U4 W2 F0.3
N40 G00 X40
N50 G01 Z140 F0.2
N60 G01 X60 Z110
N70 G01 Z90
N80 G01 X100 Z80
N90 G01 Z60
N110 G01 X140 Z40
N120 G70 P40 Q110
N130 G00 X200 Z220
N140 M30
CNC Fanuc G72 Canned Cycle Facing

Fanuc cnc control is widely used, no doubt one of the most favorite cnc control of cnc
programmers, due to its ease of programming and durability.

CNC Fanuc G72 Canned Cycle Facing

N5 G00 X65 Z42

N6 G72 W2 R2
N7 G72 P8 Q9 U0 W0 F0.3
N8 G00 Z30
N9 G01 X20

Here are all the parameters for G72 Canned Cycle Facing

First CNC Block of G72 Canned Cycle Facing

W Depth of cut.

R Return value after a cut is complete.

Second CNC Block of G72 Canned Cycle Facing

P Contour start block number.

Q Contour end block number.

P & Q The cnc program blocks between the P block number and Q block number will be
repeated until the end dimension is not met.

U Finishing allowance in x-axis.

W Finishing allowance in z-axis

Taper Threading with G32

Taper Threading with G32 a CNC Programming Example

G32 is used for thread cutting

N10 G50 S800 T0100

N20 G97 S800 M03
N30 G00 X90.0 Z5.0
N40 X22.026
N50 G32 X49.562 Z-71.5 F3.0
N60 G00 X90.0
N70 Z5.0
N80 X21.052
N90 G32 X48.588 Z-71.5
N100 G00 X90.0
N110 Z5.0
N120 X150.0 Z150.0
N130 M30
CNC Program Example Code for Fanuc G90 Turning Cycle

G90 Turning Cycle Fanuc – CNC Program Example

G30 U0 W0
G50 S2000 T0100
G96 S200 M03
G00 X56.0 Z2.0 T0101 M08
G90 X51.0 W-32.0 F0.25
X46.0
X41.0
X36.0
X31.0
X30.0
G30 U0 W0
M30
