    of 1

    Ref.

    #:__1808/1021__

    PPC#: ___182075___

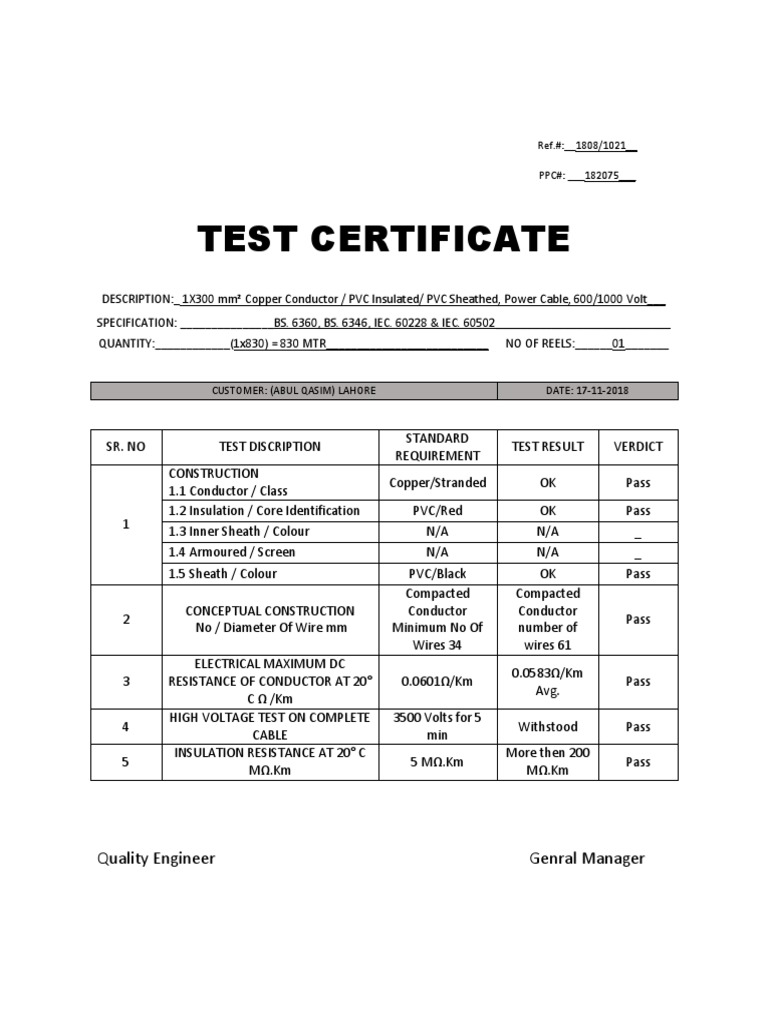

    TEST CERTIFICATE
    DESCRIPTION:_ 1X300 mm² Copper Conductor / PVC Insulated/ PVC Sheathed, Power Cable, 600/1000 Volt___
    SPECIFICATION: _______________BS. 6360, BS. 6346, IEC. 60228 & IEC. 60502____________________________
    QUANTITY:____________(1x830) = 830 MTR__________________________ NO OF REELS:______01_______

    CUSTOMER: (ABUL QASIM) LAHORE DATE: 17-11-2018

    STANDARD
    SR. NO TEST DISCRIPTION TEST RESULT VERDICT
    REQUIREMENT
    CONSTRUCTION
    Copper/Stranded OK Pass
    1.1 Conductor / Class
    1.2 Insulation / Core Identification PVC/Red OK Pass
    1 1.3 Inner Sheath / Colour N/A N/A _
    1.4 Armoured / Screen N/A N/A _
    1.5 Sheath / Colour PVC/Black OK Pass
    Compacted Compacted
    CONCEPTUAL CONSTRUCTION Conductor Conductor
    2 Pass
    No / Diameter Of Wire mm Minimum No Of number of
    Wires 34 wires 61
    ELECTRICAL MAXIMUM DC
    0.0583Ω/Km
    3 RESISTANCE OF CONDUCTOR AT 20° 0.0601Ω/Km Pass
    Avg.
    C Ω /Km
    HIGH VOLTAGE TEST ON COMPLETE 3500 Volts for 5
    4 Withstood Pass
    CABLE min
    INSULATION RESISTANCE AT 20° C More then 200
    5 5 MΩ.Km Pass
    MΩ.Km MΩ.Km

    Quality Engineer Genral Manager
