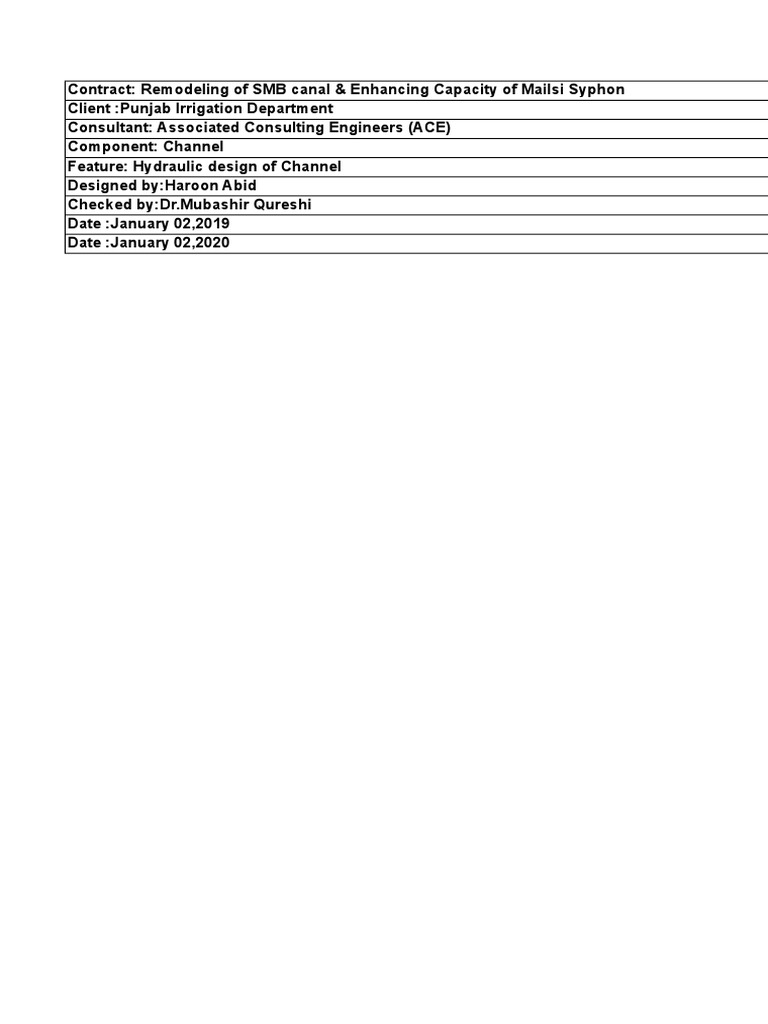

Contract: Remodeling of SMB canal & Enhancing Capacity of Mailsi Syphon
Client :Punjab Irrigation Department
Consultant: Associated Consulting Engineers (ACE) Component: Channel Feature: Hydraulic design of Channel Designed by:Haroon Abid Checked by:Dr.Mubashir Qureshi Date :January 02,2019 Date :January 02,2020 Contract: Remodeling of SMB canal & Enhancing Capacity of Mailsi Syphon No. of Sheets Rev. CALCULATION SHEET 20 Client :Punjab Irrigation Department Designed Date :January Component: Channel by:Haroon Abid 02,2019 Checked Date :January Feature: Hydraulic design of Channel by:Dr.Mubashir 02,2020 Qureshi Feature: Hydraulic design of Channel
Select Unit Preference SI
Description Symbol Data Reference
Input Data
Type of Channel Rectangular Inputs
Channel Discharge Q = 19.30 Cumecs
Channel Bed width b = 5.00 m
Channel flow depth y = 0.57 m
Channel side slope z = - -
Manning's n n = 0.0350 -
Bed Slope S = 0.1538 m
Calculations
Flow area A = 2.87 m2 A=by
Wetted Perimeter P = 6.15 m P=b+2y
Hydraulic Radius R = 0.47 m R=A/P
Velocity of Channel V = 6.74 m V=1/nR^2/3 S^0.50
Calculated Discharge Q = 19.30 cumecs Q=AV
Main Channels Minimum a. Clean, straight, full, no rifts or deep pools b. Same as above, but more stones and weeds 0.03 c. Clean, winding, some pools and shoals 0.033 d. Same as above, but some weeds and stones 0.035 e. Same as above, lower stages, more ineffective slopes and sections 0.04 f. Same as "d" but more stones 0.045 g. Sluggish reaches, weedy. deep pools 0.05 h. Very weedy reaches, deep pools, or floodways with heavy stands of timber and brush 0.07 Normal Maximum 0.03 0.033 0.035 0.04 0.04 0.045 0.045 0.05 0.048 0.055 0.05 0.06 0.07 0.08 0.1 0.15
