DAC1
DAC1

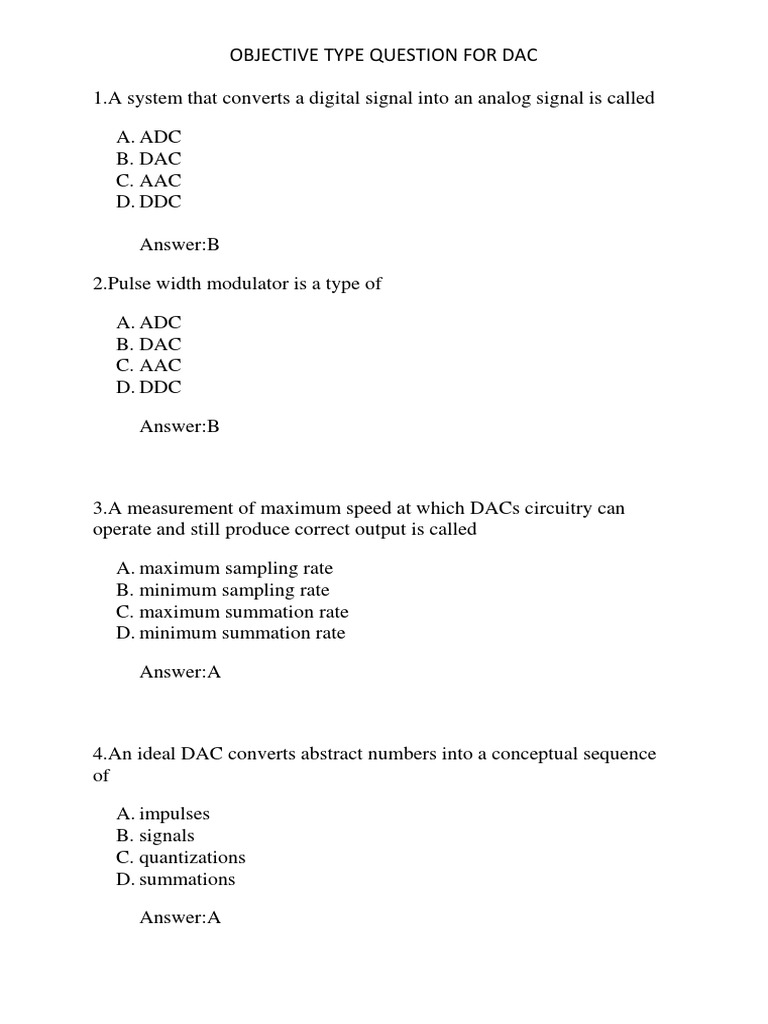

1.A system that converts a digital signal into an analog signal is called
A. ADC
B. DAC
C. AAC
D. DDC
Answer:Bnswer
A. ADC
B. DAC
C. AAC
D. DDC
Answer:B
Answer
3.A measurement of maximum speed at which DACs circuitry can
operate and still produce correct output is called
Answer:A
Answer
4.An ideal DAC converts abstract numbers into a conceptual sequence
of
A. impulses
B. signals
C. quantizations
D. summations
Answer:A
OBJECTIVE TYPE QUESTION FOR DAC
Answer
5.A measurement of difference between largest and smallest signals
DAC is referred as
A. dynamic range
B. static range
C. determinant range
D. stable range
Answer:A
Answer
OBJECTIVE TYPE QUESTION FOR DAC
When Qbar =1, it makes transistor Q1-ON and Q2-OFF. The output of the CMOS inverter is 0v,
connecting the resistance R1 to ground.
advertisement
10. How to overcome the limitation of binary weighted resistor type DAC?
a) Using R-2R ladder type DAC
b) Multiplying DACs
c) Using monolithic DAC
d) Using hybrid DAC
View Answer
Answer: a
Explanation: Usage wide range of resistors is the limitation of binary weighted resistor type DAC,
this can be avoided by using R-2R ladder type DAC Where only two value of resistor are
required.
11. Find output voltage equation for 3 bit DAC converter with R and 2R resistor?
a) Vo= -RF [(b2/8R) +(b1/4R) +(b0/2R)].
b) Vo= -RF [(b2/R) +(b1/2R) +(b0/4R)].
c) Vo= -RF [(b2/2R)+(b1/4R) +(b0/8R)].
d) Vo= -RF [(b0/4R)+(b1/2R) +(b2/R)].
View Answer
Answer: c
Explanation: The output voltage corresponding to all possible combination of binary input in a 3-
bit R-2R DAC is given as
Vo=-RF [(b2/2R) +(b1/4R) +(b0/8R)].
