Direct 2nd Order Analysis R Liew 2013 PDF
Direct 2nd Order Analysis R Liew 2013 PDF

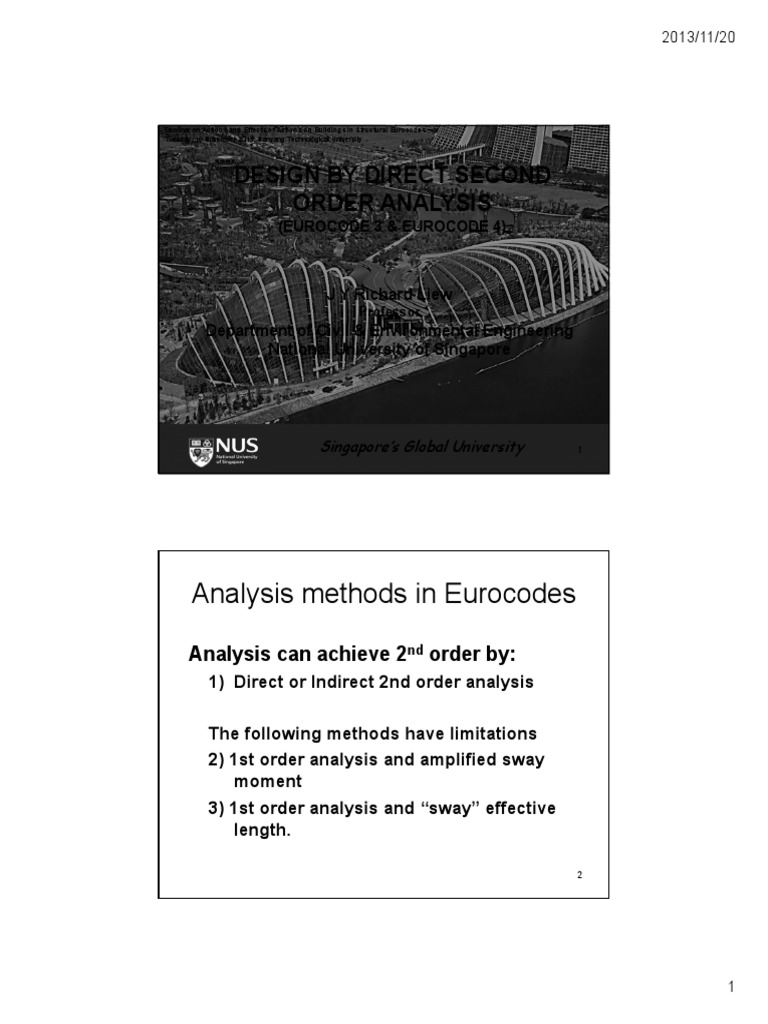

J Y Richard Liew
Professor
Department of Civil & Environmental Engineering
National University of Singapore
1
2013/11/20
Load P P
H H
x x
h
x / h
Frame
Second-Order Effects
P
• P– effect :
– due to floor sway
– 1st order frame stiffness modified
– dominant effect
2
2013/11/20
Frame Behaviour
Factored load level
Displacement
Load
Full elastic response
Load
Peak load
Deformed
geometry
Geometric and
material nonlinearity
Elastic limit
Service load level
Frame
Displacement
Frame stability
Significant of second order effects depends on
critical buckling load factor:
αcr= Ncr/NEd
Frame
Nonsway
Sway
Direct
3
2013/11/20
Design of Sway Frames αcr< 10
If the effects of deformed geometry has to be considered, the
design of sway frame may be accomplished by one of the
following methods:
1. Direct second order analysis that considers frame and
member stability
2. Member buckling check with second order moment or
amplified moment method
3. Member buckling check using column effective buckling
lengths according to the global buckling mode of the
structure.
8
4
2013/11/20
Effective length for sway frame
Second order moment / amplified moment OR
Effective length for sway frame
9
Amplified Sway Method
5
2013/11/20
Non‐sway mode Sway mode
12
6
2013/11/20
αcr= Ncr/NEd
from buckling analysis
14
7
2013/11/20
Be Careful!
• Critical buckling load analysis is not
second order analysis
• It is often used to check if the structure is
sensitive to buckling.
• It is a means to calculate amplified second
order moment or effective length factor.
There are limitations to the use of these
simplified methods.
15
Design using KL
Second order moment is still needed!
16
8
2013/11/20
17
9
2013/11/20
Example:
Second order moment OR
Member verification is
needed.
19
Effective length KL
20
10
2013/11/20
21
22
11
2013/11/20
23
12
2013/11/20
25
http://www.amazon.com/Stability-Design-
Semi-Rigid-Frames- http://as.wiley.com/WileyCDA/WileyT
Chen/dp/0471076708#reader_047107670 26
itle/productCd-0470030615.html#
http://en.nidacse.com/ 8
13
2013/11/20
27
Resistance to horizontal force is
provided by concrete core
(a)
28
14
2013/11/20
Experience shows that conventional method over design the main members and under-design the bracing members
30
collapse of a telecom tower in Vietnam
15
2013/11/20
31
32
Collapse of Water Tank Tower - Brunei
16
2013/11/20
Temporary Support
braced
Unbraced
33
34
17
2013/11/20
Fundamental differences
between old and new codes (1)
• Old codes mention nothing about analysis as it
is often based on linear analysis. Checking of
strength and stability is at the design stage.
→ Analysis simple and design complex.
Fundamental differences
between old and new codes (2)
• Modern codes consider member and frame
stability directly into the analysis and design
becomes simple.
→ Analysis complex and design simple.
36
18
2013/11/20
37
38
19
2013/11/20
39
20
2013/11/20
41
42
21
2013/11/20
Collapse
Analysis of
Composite
Frames
20-story building
subjects
to Wind Load
22
2013/11/20
Imperfections
• In Eurocode-3, a special feature is the
consideration of frame and member
imperfections which are not so explicitly
expressed in most other codes.
45
Imperfections
23
2013/11/20
Frame imperfections
5.3.2 - The effects of frame imperfections shall be
incorporated in frame analysis using an equivalent
geometric imperfection or equivalent horizontal force.
48
24
2013/11/20
49
Member imperfections
For a compression member, the equivalent initial
bow imperfection specified in Table 5.1 of
Eurocode-3 may be used in a second order
analysis of the member.
25
2013/11/20
NIDA Software
51
52
26
2013/11/20
53
54
27
2013/11/20
Example 1
CHS88.9x3.2 (A= 8.62cm2, I=79.2cm4, Z=17.8cm3, S=23.5
cm3, fy=355 N/mm2, E=2.05x105 N/mm2)
Second order direct analysis predicts the same load as EC3 based on cross section check
56
NIDA- Nonlinear Integrated Design and Analysis software
28
2013/11/20
NIDA Software
57
NIDA Software
1.1
58
29
2013/11/20
59
NIDA Software
30
2013/11/20
NIDA Software
61
NIDA Software
31
2013/11/20
Recent projects
NIDA Software
63
64
NIDA Software
32
2013/11/20
NIDA Software
65
NIDA Software
66
33
2013/11/20
NIDA Software
67
Gardens by the Bay
The Cloud Forest and The Flower Dome
34
2013/11/20
69
70
35
2013/11/20
71
Second order over turning moment
72
36
2013/11/20
73
74
37
2013/11/20
75
Concrete-filled section
Concrete-cased section
Composite Stiffness
38
2013/11/20
Modelling of Semi-Rigid
Connections
77
78
39
2013/11/20
20-Storey Composite
Building Frame
30 % Increase by considering
composite action
79
Core-Braced Frame
System
Republic Plaza 80
40
2013/11/20
Compartment
Fire
Compartment
Fire
41
2013/11/20
Closure
• Advanced nonlinear analysis has been developed for
core-braced, semi-rigid, steel and composite frames
42
