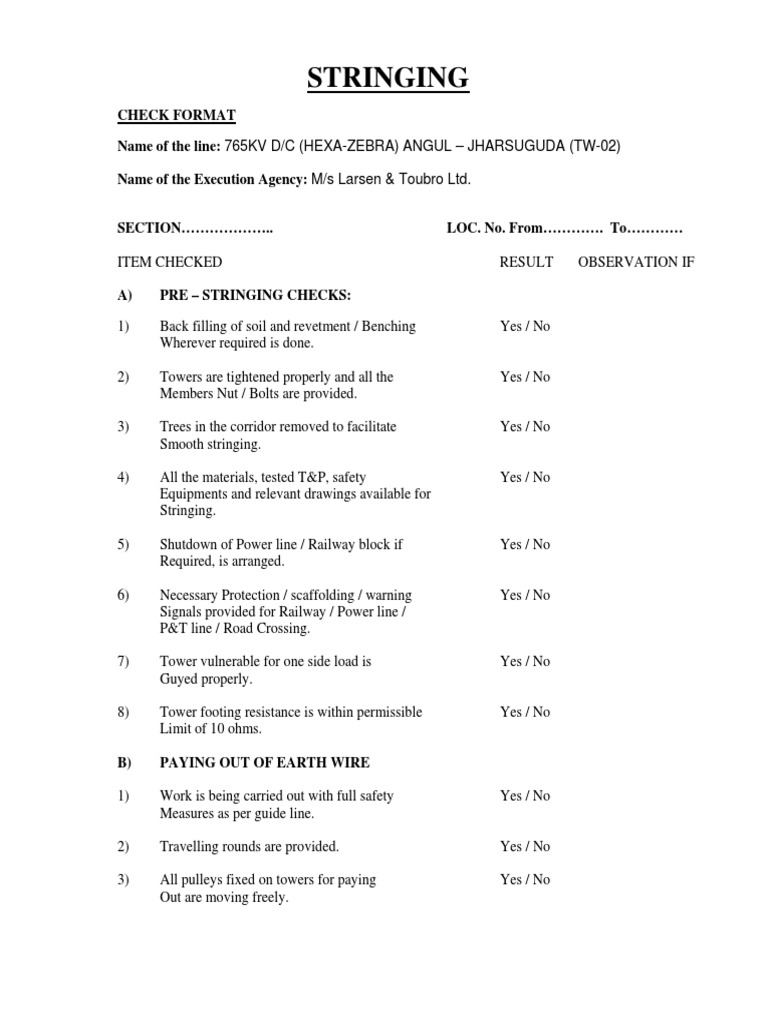

Stringing JMC
CHECK FORMAT
VERIFIED
SIGNATURE……………………………
NAME………………………………….
DESIGNATION: E4/E5
DATE…………………………………..
APPROVED
SIGNATURE……………………………
NAME………………………………….
DESIGNATION: E6/E7
DATE…………………………………..
ANNEXURE CF – I
DETAILS OF EARTHWIRE / CONDUCTOR
1. MAKE:
2. Batch No:
3. Quantity and Location:
1. There is no damage to earth wire / conductor before or during stringing. Strands are in perpendicular
position.
1. Insulators are completely cleaned with soft cloth Glazing is proper. There is no crack, scratch or white
spot on its surface.
2. ‘R’ clips in insulators are fitted properly.
3. While hosting, no damage caused to insulators
2. Temperature ……….0C
Sag
Tension
1. During paying out / rough sagging, tension in conductor / Earth wire was as per technical specifications
2. For final sagging, initial stringing chart for conductor and final stringing chart for earth wire are used.
1. MAKE:
2. Batch No:
1. All components of clamps have been provided as per approved drawings. Dimension and galvanizing
are OK clamp is cleaned and there is no damage to any component.
2. All Nuts & bolts have been properly tightened.
3. Split pins have been properly fixed.
4. In case of tension clamp, dimension before and after compression recorded as per Ann. GF - IX.
1. MAKE:
2. Batch No:
Sl.No Fixed on Loc. No Fixed towards Loc. No Phase / wire No. No. Of V.D.
1. All components of V.D. have been provided as per approved drawings. Dimensions and galvanizing
are OK, V.D. is cleaned and there is no damage to any component.
2. Nuts & bolts tightened properly.
3. V.D. fixed as per approved placement chart.
1. MAKE:
2. Batch No:
1. All components of spacer have been provided as per approved drawings. Dimensions and galvanizing
are OK, spacer is cleaned and there is no damage to any component.
2. Nuts & bolts tightened properly.
3. Spacer / Spacer damper fixed as per approved placement chart.
