DAF
DAF
2)

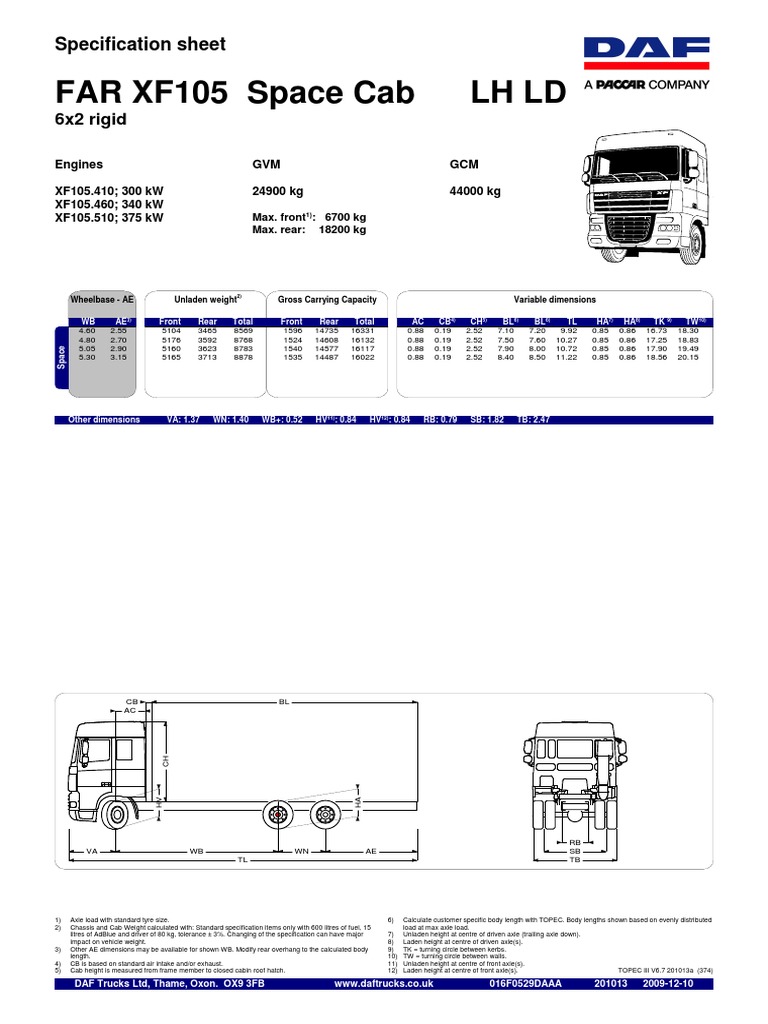

Wheelbase - AE Unladen weight Gross Carrying Capacity Variable dimensions
WB AE3) Front Rear Total Front Rear Total AC CB4) CH5) BL6) BL6) TL HA7) HA8) TK 9) TW10)
4.60 2.55 5104 3465 8569 1596 14735 16331 0.88 0.19 2.52 7.10 7.20 9.92 0.85 0.86 16.73 18.30
4.80 2.70 5176 3592 8768 1524 14608 16132 0.88 0.19 2.52 7.50 7.60 10.27 0.85 0.86 17.25 18.83
5.05 2.90 5160 3623 8783 1540 14577 16117 0.88 0.19 2.52 7.90 8.00 10.72 0.85 0.86 17.90 19.49
Space
5.30 3.15 5165 3713 8878 1535 14487 16022 0.88 0.19 2.52 8.40 8.50 11.22 0.85 0.86 18.56 20.15
Other dimensions VA: 1.37 WN: 1.40 WB+: 0.52 HV11): 0.84 HV12): 0.84 RB: 0.79 SB: 1.82 TB: 2.47
CB BL
AC
CH
HV
HA
RB
VA WB WN AE SB
TL TB
1) Axle load with standard tyre size. 6) Calculate customer specific body length with TOPEC. Body lengths shown based on evenly distributed
2) Chassis and Cab Weight calculated with: Standard specification items only with 600 litres of fuel, 15 load at max axle load.
litres of AdBlue and driver of 80 kg, tolerance ± 3%. Changing of the specification can have major 7) Unladen height at centre of driven axle (trailing axle down).
impact on vehicle weight. 8) Laden height at centre of driven axle(s).
3) Other AE dimensions may be available for shown WB. Modify rear overhang to the calculated body 9) TK = turning circle between kerbs.
length. 10) TW = turning circle between walls.
4) CB is based on standard air intake and/or exhaust. 11) Unladen height at centre of front axle(s).
5) Cab height is measured from frame member to closed cabin roof hatch. 12) Laden height at centre of front axle(s). TOPEC III V6.7 201013a (374)
DAF Trucks Ltd, Thame, Oxon. OX9 3FB www.daftrucks.co.uk 016F0529DAAA 201013 2009-12-10
FAR XF105 Space Cab LH LD Drawbar and trailer equipment
D-value cross member D=13; Pneumatic trailer connection palm type; Electric
connection 24 V / 2x7 pins.
Cab exterior Optional:
Mechanically suspended Space Cab with steel bumper, tinted glass and electric • Trailer coupling D=12-13 • Trailer cable EBS
window openers. Main mirrors and wide angle mirrors electrically heated. • Trailer coupling D=19
Electrically controlled roof hatch. Cab width 2490 mm; Anti-theft system, engine
immobiliser; Front view mirror. Bodies and preparations for bodying
Optional: Application connector on the cab front; Side marker lights.
• Cab suspension air • Four spot lights on the cab roof Optional:
• Xenon head lights with washer • Two spot lights on the cab roof • Application connector for tail lift • Application connector on the chassis
• Combi lights in bumper control
Driveline
Engine 300 kW (410 hp), MX300, 38 degrees; Manual gearbox, 16 speeds;
Gearbox ratio 16.41-1.00; Rear axle ratio 2.53; Mechanical differential lock; Traction
control 13.0 t.
Optional:
• AS Tronic gearbox, 12 speeds • ASR
• Gearbox overdrive
Brake system
Exhaust brake; Dual circuit full air brake system with ventilated discs front and rear.
Twin cylinder air compressor with heated air dryer, 670 l/min at 10 bar. Electronic
Brake System; ABS.
Optional:
• MX Engine Brake • ZF Intarder
Chassis
Wheelbase 4.80 m / rear overhang 2.70 m; Side member height 260 mm;
Aluminium fuel tank 600 l, height 505 mm; No spare wheel carrier; Spray
suppression; Front underrun protection (FUP).
Optional:
• Various material / fuel tank size
combinations
Depending on the vehicle configuration a specific option may not be possible. The
availability and specification of this vehicle may differ per country. For further
information please contact the DAF organisation.
Subject to modification without prior notice.
